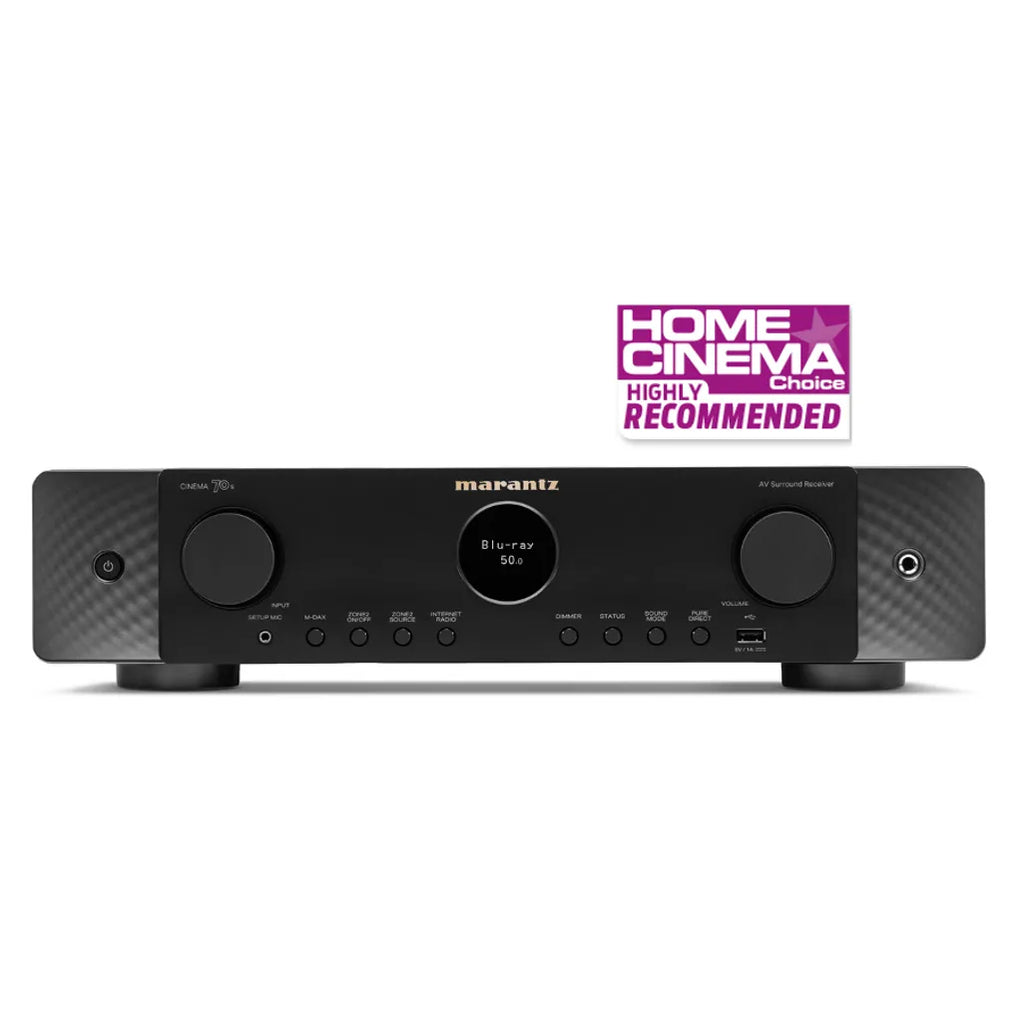

Marantz CINEMA70 AV Receiver

Name: Marantz CINEMA70 AV Receiver
Brand: Marantz
SKU: CINEMA70S/N1B
Price: 21490.00 ZAR
Availability: InStock

R 21,490.00 ZAR R 31,990.00 ZAR

CINEMA 70s

CINEMA 70s features a highly compact slimline design, making theaters possible in spaces where equipment cannot occupy large amounts of space. CINEMA 70s comes replete with the latest immersive audio formats and an all-new HD graphical user interface makes setup from your sofa intuitive.

Slimline Design
7.2 Channels
50 Watts per Channel
6 HDMI Inputs plus eARC
8K & Dolby Atmos
HEOS Built-in
5 Year Warranty

Engineered To Perform

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theaters.Details & SpecificationsPower Amplifier Multichannel Surround Technologies Inputs Outputs

Composite In / Out0 / 0
Component In / Out0 / 0
HDMI In / Out6 / 1
Multi-Room Video Out via HDMINo
Analog In / Fixed Level Out3 in / 0 out
Phono (MM) InYes
Digital In: Optical / Coaxial1 / 1
Multi-Room Out: analog / digital1 / 0
Multichannel Preamp Out7.2
Subwoofer Out2
7.1 multichannel inputNo
Number of Speaker Terminals7
Speaker A / Bassignable
Multi-Room Speaker Terminalassignable
Front InputsUSB-A
USB Audio / Made for iPod / Made for iPhoneYes / No / No
AM/FM TunerYes

HDMI

Total HDMI Inputs / No. Support 8K6 / 3
HDCP2.3 supportYes
HDMI Outputs: Main / Zone1 / 0
Analog to HDMI Video ConversionNo
HDMI Upscaling1080P/4K to 8K
Max resolution @ framerate8K/60Hz, 4K/120Hz
Audio Return ChannelARC, eARC
Video Dynamic RangeHDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gamingYes
Variable Refresh Rate / Quick Frame TransportYes / Yes
HDMI Pass-Through in Standby ModeYes
CECYes
DSD Audio over HDMINo
Auto LipSyncYes

Performance Technologies Acoustic Room Correction Music File Support Streaming Services Network Connectivity Smart Home Integration and Control

Voice Assistant CompatibilityAlexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)Marantz AVR Remote App, HEOS
HEOS Multi-Room IntegratedYes
HEOS Link Compatibility: IR/ IPYes /Yes
Multi-Room zones2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / PreoutYes / Yes
Zone HDMI Output from HDMI SourceNo
Control ConnectivityIP Control / Web Control / App Control
IR Flasher InYes
Marantz Remote BusYes
DC Trigger Output1
HDMI DiagnosticsYes

Others General

Available ColorsBlack
Metal Front PanelNo
System Remote ControlRC050SR
Power Consumption in W250
Power Consumption No-Sound (ECO on/off) in W30 / 40
Standby Consumption in W0.2
CEC Standby Consumption in W0.5
Network Standby Consumption in WLess than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches17.4 x 15.1 x 4.3
17.4 x 15.1 x 7.0
17.4 x 14.7 x 4.3
Weight in lbs.19.2
What's in the boxMain unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord

Number of Powered Channels: 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): 50 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive)-
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive): 70 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive): 100 W
70% Guarantee: Yes
Discrete Power Amplifier: Yes
Amplifier Topology: Class A/B
Current Feedback Topology: No
Bi-Amp Drive: assignable

Multichannel Surround Technologies

DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other
Max Number of Processing (Preamp) Channels: 7.1

Inputs Outputs

Composite In / Out: 0
Component In / Out: 0
HDMI In: 6 / Out: 1
Multi-Room Video Out via HDMI: No
Analog In: 3 / Fixed Level Out: 0
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 1
Multi-Room Out: analog: 1 / digital: 0
Multichannel Preamp Out: 7.2
Subwoofer Out: 2
7.1 multichannel input: No
Number of Speaker Terminals: 7
Speaker A / B: assignable
Multi-Room Speaker Terminal: assignable
Front Inputs: USB-A
USB Audio
AM/FM Tuner: Yes

HDMI

Total HDMI Inputs: 6 / No. Support: 3
HDCP2.3 support: Yes
HDMI Outputs: Main: 1 / Zone: 0
Analog to HDMI Video Conversion: No
HDMI Upscaling: 1080P/4K to 8K
Max resolution @ framerate: 8K/60Hz, 4K/120Hz
Audio Return Channel: ARC, eARC
Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Frame Transport
HDMI Pass-Through in Standby Mode: Yes
CEC: Yes
DSD Audio over HDMI: No
Auto LipSync: Yes

Performance Technologies

Copper Plated Chassis: No
Toroidal Power Supply Transformer: No
Hyper Dynamic Amplifier Modules (HDAM) (List version): No
Pure Direct Mode: Yes
Gold Plated RCA Terminals: No
Clock Jitter Reducer: No

Acoustic Room Correction

Audyssey: MultEQ
Audyssey Dynamic EQ / Dynamic Volume
Audyssey LFC: No
Dirac Live Support: No
Variable Cross Over: Yes
Optimized Bass Redirection: Yes
Bass Sync: No

Music File Support

Lossy Formats: MP3 / WMA / AAC
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio: 2.8 MHz / 5.6 MHz
Gapless Playback: FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2: Yes
Network Audio Sharing: Yes

Streaming Services

HEOS Multi-room and Streaming: Yes
AirPlay Audio Streaming: AirPlay 2
Internet Radio: TuneIn
Spotify: Spotify Connect
Pandora: Yes
SiriusXM: Yes
Other Streaming Services: Amazon Music HD/ Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested: Yes

Network Connectivity

Ethernet PortsYes
Wi-Fi (include version / band): Yes
Bluetooth (Include version): Yes
Bluetooth Re-transmit for Bluetooth headphones: Yes

Smart Home Integration and Control

Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android)Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility: IR/ IP
Multi-Room zones: 2
Zone Audio Source: HDMI: 2 / Opt, Coax: 2 / Network, USB / Analog
Zone Audio Output: Speaker / Preout
Zone HDMI Output from HDMI Source: No
Control Connectivity: IP Control / Web Control / App Control
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Output: 1
HDMI Diagnostics: Yes

Others

Front Displayport hole OLED
GUI Languages: 3
Setup Assistant: Yes
Smart Select on Remote: Yes
Firmware Update by Network / USB
ECO Mode: Yes
Auto Power off: Yes
Sleep Timer: Yes

General

Available Colors: Black
Metal Front Panel: No
System Remote Control: RC050SR
Power Consumption in W: 250
Power Consumption No-Sound (ECO on/off) in W: 30 / 40
Standby Consumption in W: 0.2
CEC Standby Consumption in W: 0.5
Network Standby Consumption in W: Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches: 17.4 x 15.1 x 4.3
Antenna:Vertical :(W x D x H) in inches: 17.4 x 15.1 x 7.0
W/o Antenna:(W x D x H) in inches: 17.4 x 14.7 x 4.3
Weight in lbs.: 19.2
What's in the box: Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
