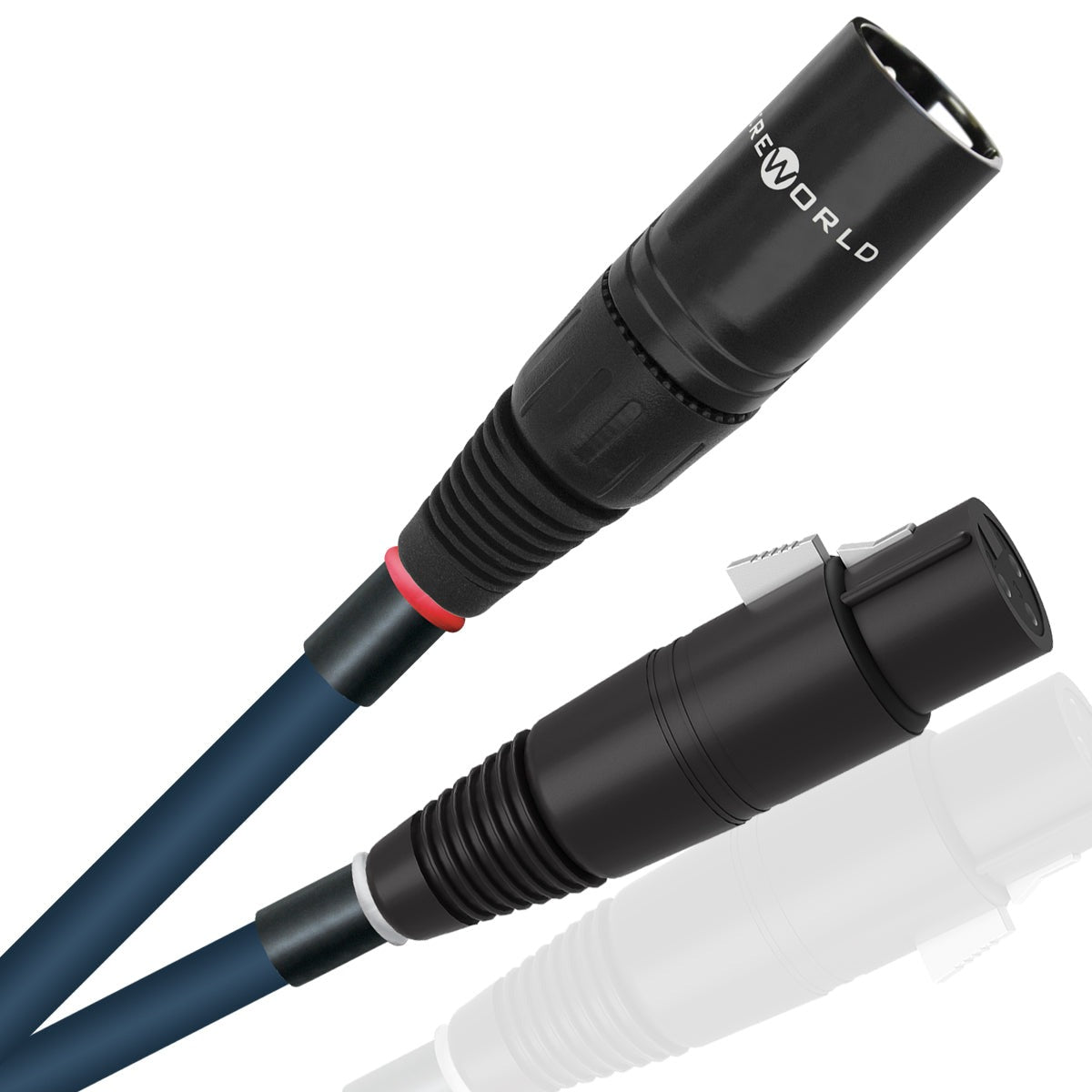

Balanced outputs earn their keep when source, preamplifier and power amplifier are separated across a rack or studio workspace. Luna 10 provides a matched XLR pair for those line-level connections.
The cable uses a Tri DNA Helix conductor arrangement with oxygen-free copper and COMPOSILEX 5 insulation, terminated in silver-clad XLR contacts.
Choose one metre for adjacent components or two metres when routing around rack rails, shelves and equipment ventilation space.
For official product information and current support resources, visit the Wireworld Luna 10 Balanced XLR Interconnect product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Balanced XLR pair | Connects two-channel components with matched left and right leads. |
| Flexible routing | Fits around rack furniture without forcing a tight connector bend. |
| Multi-strand signal path | Uses Luna 10's Tri DNA Helix conductor arrangement. |
| Shield-aware system link | Suits balanced line-level connections in domestic and professional audio systems. |
| DETAIL | VALUE |
| Technical Specifications | |
| Signal conductors | 3 conductors; 14 insulated strands |
| XLR gauge | 26AWG / 0.13 sq. mm |
| Conductor material | Oxygen-free copper |
| Insulation | COMPOSILEX 5 |
| XLR contacts | Silver-clad copper alloy |
| Termination | XLR female to XLR male pair |
| Part code | LUI10 |
