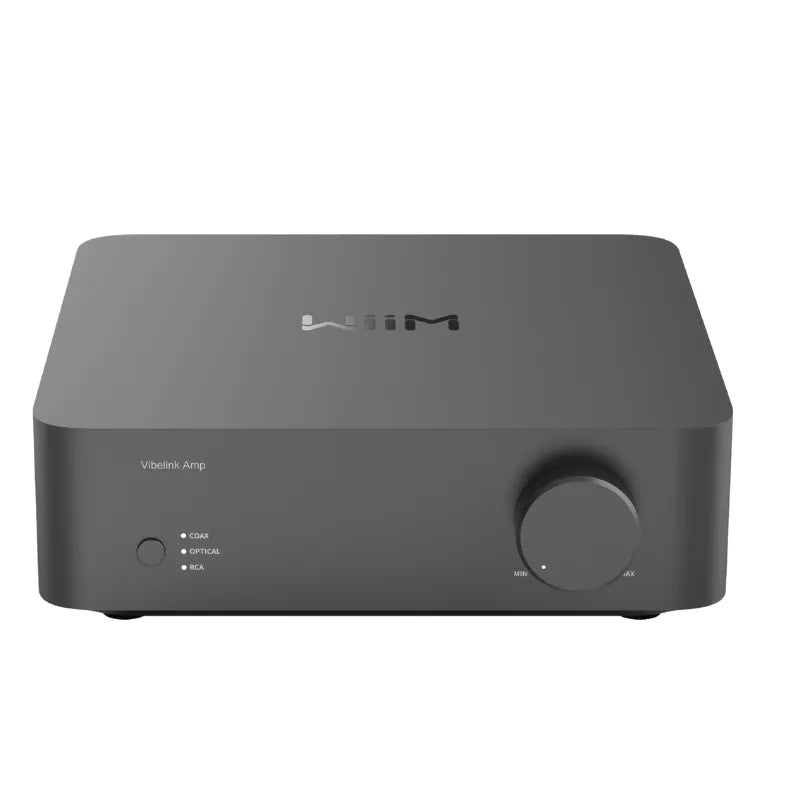

WiiM left the streaming out of this amplifier on purpose. The Vibelink Amp is a pure two-channel power amplifier, made to sit under a WiiM streamer and turn its output into proper speaker drive. Nothing inside runs an app or needs an account; it takes a signal and powers the speakers.
It slots in as the matching half of a WiiM stack. An Ultra or a Pro Plus feeds it over RCA or optical, the two components stack cleanly on a shelf or in a cabinet, and the system gains genuine amplifier headroom without a second streaming platform appearing in the signal chain.
That separation suits a serious listening room. Upgrades and firmware live in the streamer while the amplifier simply keeps doing its job, and a CD player or a turntable with its own phono stage can join over the line input without ever touching the digital side.
For official product information and current support resources, visit the WiiM Vibelink Amp product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Load-tolerant output stage | Feedback taken after the output filter keeps distortion low and the sound consistent from one pair of speakers to the next. |
| Digital and analogue sources | Optical and coaxial feeds are converted internally, while the RCA input stays analogue the whole way through. |
| Silent by construction | A copper heat pipe and the unibody aluminium case cool the amplifier passively; there is no fan to hear. |
| Trigger-linked power | A connected streamer can wake the amplifier automatically, and it stands down on its own when the system goes quiet. |
| DETAIL | VALUE |
| Product Specifications | |
| Output power | 100W per channel at 8Ω (stereo) |
| Amplification | Class-D with PFFB (Post-Filter Feedback); TI TPA3255 amplifier chip; 6 × TI OPA1612 op-amps |
| DAC | ESS 9039Q2M |
| Digital playback | PCM up to 192kHz/24-bit |
| Total harmonic distortion (THD+N) | ≤0.0005% |
| Signal-to-noise ratio (SNR) | ≥120dB |
| Frequency response | 20Hz-20kHz ±0.5dB |
| Speaker impedance range | 3-8 ohms |
| Inputs | 1 × RCA stereo line-in; 1 × optical (TOSLINK), up to 192kHz/24-bit; 1 × coaxial (S/PDIF), up to 192kHz/24-bit; 12V trigger in |
| Speaker outputs | Gold-plated binding posts for banana plugs or bare wire |
| Auto standby | After 30 or 60 minutes of inactivity |
| Power input | 100-240V AC, 50/60Hz, 3A max |
| Dimensions | 200 × 212.5 × 66 mm (7.9 × 8.4 × 2.6 in) |
| Weight | 2.05 kg (4.5 lbs) |
| Package Contents | |
| In the box | 1 × WiiM Vibelink Amp; 1 × power cable; 1 × RCA cable; 1 × optical cable; 4 × banana plugs; use guide |
