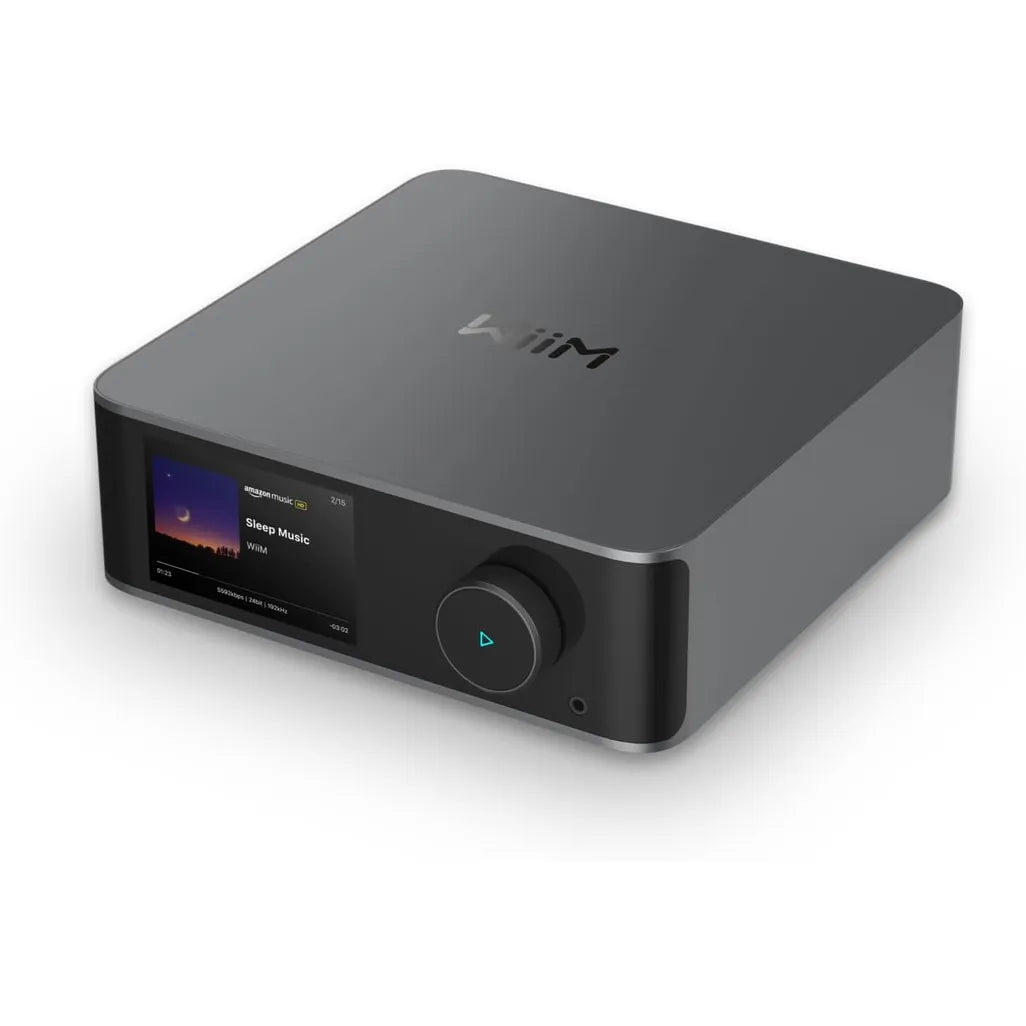

WiiM Ultra Streamer
WiiM Ultra is a network music streamer and digital hub for adding app control, high-resolution playback and modern television connectivity to an existing amplifier or active-speaker system.
Its ESS DAC feeds analogue outputs, while HDMI ARC, phono, line, optical, coaxial and USB connections accommodate a broad mix of sources and destinations.
The 3.5 in touchscreen handles quick control at the unit, with the WiiM Home app managing streaming services, multiroom groups, EQ and room correction.
For official product information and current support resources, visit the WiiM Ultra product page.
| ITEM |
DESCRIPTION |
| Main Features |
| Broad source support |
HDMI ARC, moving-magnet phono, line and optical inputs bring television and music sources into one system. |
| Flexible outputs |
Line, optical, coaxial, USB, subwoofer and headphone outputs suit several system layouts. |
| High-resolution platform |
Network and digital playback support audio up to 24-bit/192 kHz. |
| Touchscreen control |
The colour display provides local access to playback and settings. |
| DETAIL |
VALUE |
| Product Specifications |
| DAC |
ESS ES9038 Q2M |
| Maximum resolution |
24-bit/192 kHz |
| Analogue output |
2.1 Vrms maximum; 121 dB SNR; 0.00018% THD+N |
| Inputs |
Line, optical, HDMI ARC and moving-magnet phono |
| Outputs |
Line, optical, coaxial, USB, subwoofer and headphone |
| Network |
Wi-Fi 6 and Ethernet |
| Bluetooth |
5.3 |
| Control |
3.5 in colour touchscreen; WiiM Home app; 12 V trigger |
| Dimensions (W × D × H) |
211 × 200 × 72 mm |
| Weight |
1.42 kg |
