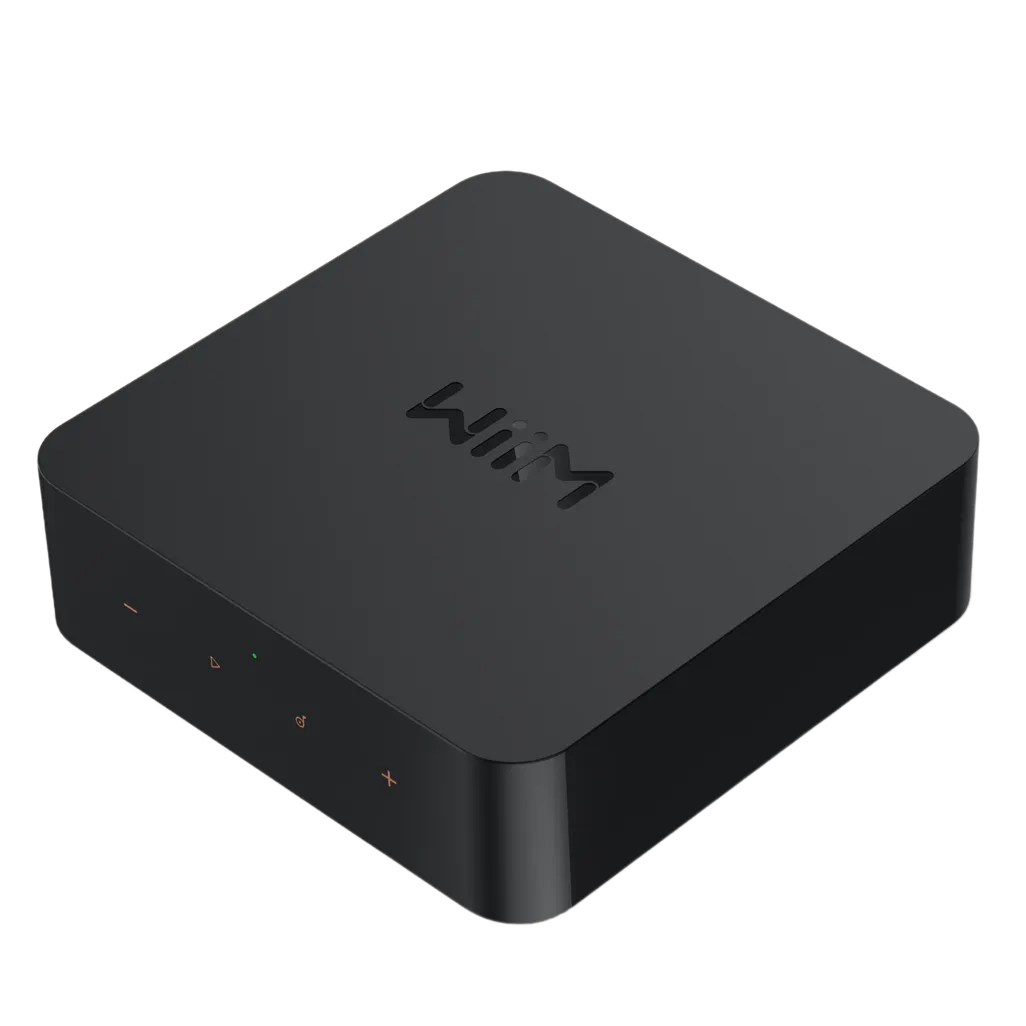

This is the streamer WiiM builds for listeners who intend to use the analogue outputs seriously. An AKM Velvet Sound DAC handles conversion, and its measured noise and distortion sit low enough that the streamer stops being the weak link in front of a good amplifier.
It also treats external sources with respect. A CD player or a turntable with a phono stage connects over RCA or optical and plays through the same system, with the high-resolution input stage keeping the signal honest on the way in.
The rest of the package matches the ambition: the voice remote ships in the box, a trigger output wakes the power amplifier with the music, and casting and voice support cover iPhone, Android, Alexa, Google Assistant and Siri households alike.
For official product information and current support resources, visit the WiiM Pro Plus product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Hi-fi grade conversion | The DAC stage was chosen for the analogue outputs first, with measured performance to back it up. |
| High-resolution line input | The analogue input is digitised at studio resolution, so external sources keep their quality. |
| Room correction and per-source EQ | Each input can carry its own EQ curve, with correction for the room applied on top. |
| Voice remote included | Volume, presets and push-to-talk Alexa from the listening chair. |
| DETAIL | VALUE |
| Product Specifications | |
| DAC | AKM AK4493SEQ (Velvet Sound) |
| ADC | TI Burr-Brown PCM1861 |
| Analogue output performance | 121 dB SNR; -113 dB (0.00023%) THD+N |
| Frequency response | 20 Hz-45 kHz; 20 Hz-20 kHz (±0.1 dB) |
| Digital outputs | Optical and coaxial, bit-perfect up to 192 kHz/24-bit |
| Analogue connections | RCA line out; RCA line in (2 Vrms, digitised up to 192 kHz/24-bit) |
| Optical input | Up to 192 kHz/24-bit, stereo PCM (Dolby Digital and DTS not supported) |
| Trigger | 12V trigger out (2.5 mm jack) |
| Network and wireless | Dual-band Wi-Fi (802.11 b/g/n/ac); 10/100M Ethernet; two-way Bluetooth (SBC and AAC) |
| Streaming protocols | AirPlay 2, Chromecast Audio, Spotify Connect, TIDAL Connect, Amazon Music Casting, DLNA, QPlay 2.0, Roon Ready |
| Voice control | Alexa, Google Assistant, Siri |
| EQ and calibration | RoomFit room correction; 10-band graphic and parametric EQ; per-source EQ |
| Power | USB Type-C, 5V, 1.5A or higher |
| Dimensions | 140 × 140 × 42 mm (5.5 × 5.5 × 1.6 in) |
| Weight | 400 g (14.1 oz) |
| Package Contents | |
| In the box | 1 × WiiM Pro Plus; 1 × WiiM Voice Remote; USB power adapter (5V, 2A); USB Type-C cable; RCA cable; optical cable; 2.5 mm to 3.5 mm trigger converter; quick start guide |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
