There is a faster way to modernise a good older amplifier than replacing it. The WiiM Mini plugs into a spare input, hides behind the equipment it upgrades, and puts today's streaming services on a system that never had them.
Connection is one cable. Optical feeds a DAC or digital input for the cleanest path, or the 3.5 mm output runs into any spare analogue input, and the aux input even lets an older source join the party. The WiiM Home app then looks after services, presets and the sound itself.
Setup runs through the app in a few minutes, the touch surface on top covers play, pause and volume, and a word to Alexa or Siri handles the rest. For a bedroom system, a study or a first streaming upgrade, this is the smallest possible step with the least possible fuss.
For official product information and current support resources, visit the WiiM Mini product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Upgrades any amplifier | Adds network streaming to whatever hi-fi is already in the room, digital or analogue. |
| App-based room tuning | Built-in correction measures the space and adjusts the output, with manual EQ for those who prefer their own curve. |
| Multiroom ready | Groups with other WiiM players, HomePods and Echo speakers for synchronised playback. |

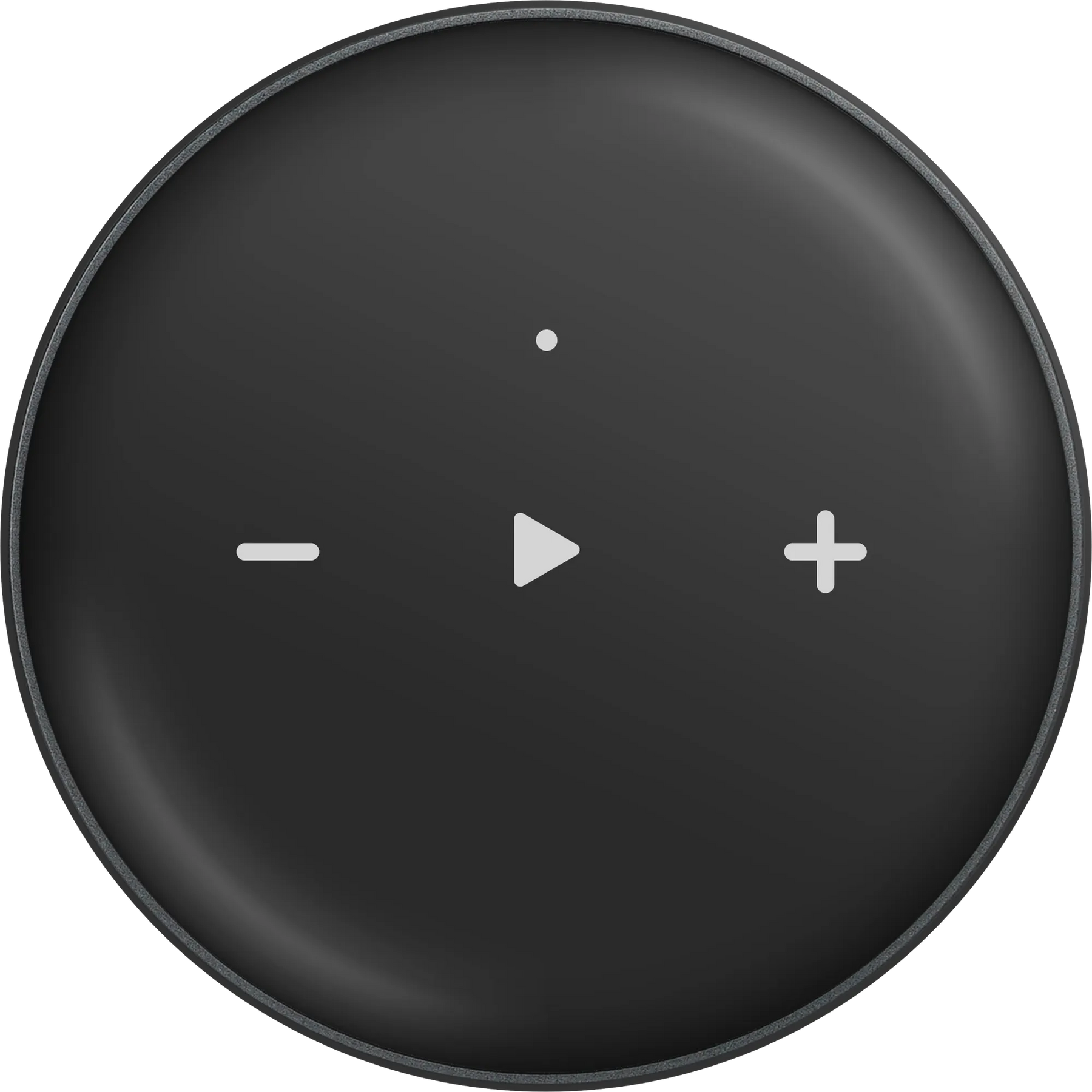

| Touch controls on top | Play, pause and volume are a tap away when the phone is in another room. |
| DETAIL | VALUE |
| Product Specifications | |
| DAC | TI PCM5121 |
| Analogue output performance | 106 dB SNR; -92dB (0.0025%) THD+N |
| Digital output | Optical (SPDIF), up to 192 kHz/24-bit |
| Analogue connections | 3.5 mm aux out; 3.5 mm aux in (1 Vrms, digitised at 48 kHz/16-bit) |
| Wireless | Dual-band Wi-Fi (802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz); two-way Bluetooth (SBC and AAC) |
| Streaming protocols | AirPlay 2, Spotify Connect, TIDAL Connect, DLNA |
| Voice control | Alexa, Siri |
| EQ and calibration | RoomFit room correction; 10-band graphic and parametric EQ |
| Power | USB Type-C, 5V, 1A |
| Dimensions | 69 × 69 × 24 mm (2.7 × 2.7 × 0.9 in) |
| Weight | 40 g (1.4 oz) |
| Package Contents | |
| In the box | 1 × WiiM Mini; USB power adapter (5V, 1A); USB Type-C cable; 3.5 mm to RCA cable; 3.5 mm to 3.5 mm cable; optical cable (all 1.2 m); quick start guide |
