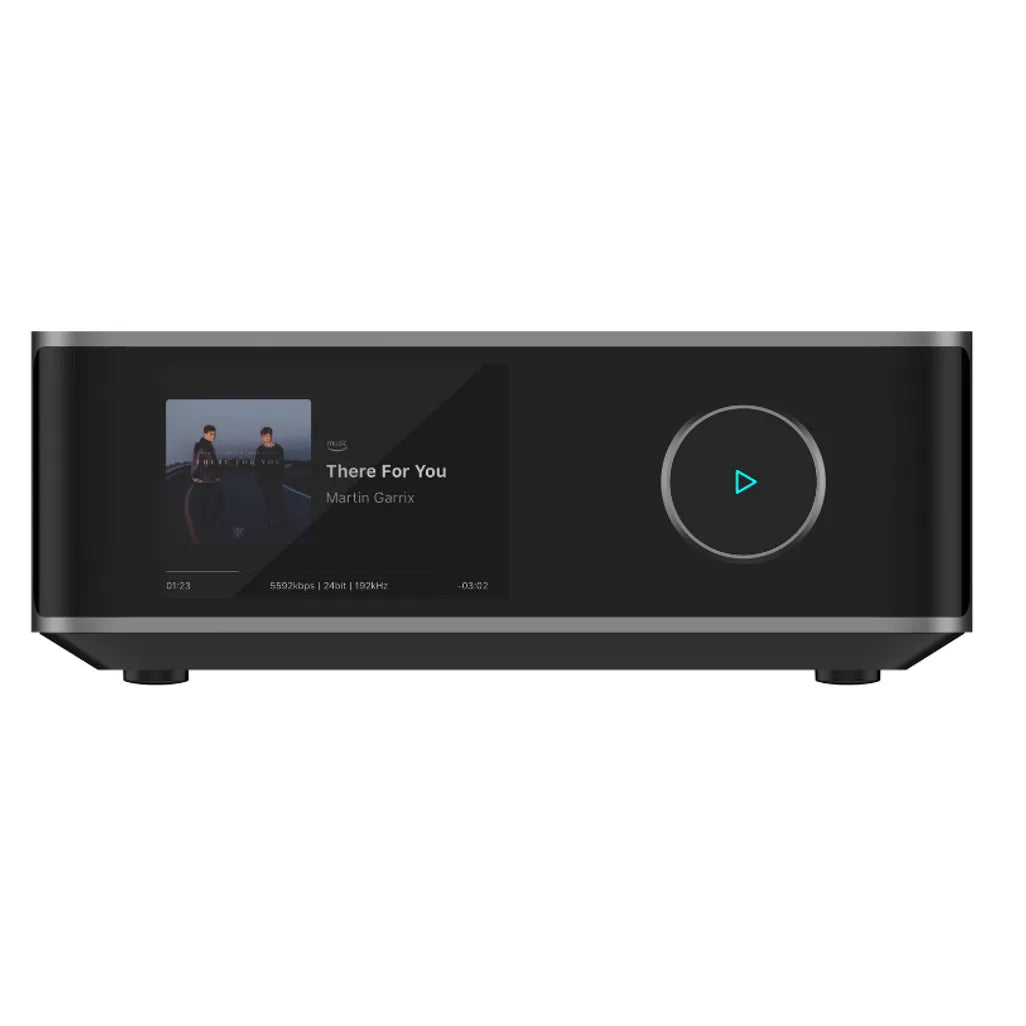

One box runs the whole system here. The Amp Ultra is the flagship of the WiiM range, a streaming amplifier that puts the streamer, the DAC, room correction and a serious power stage inside a single machined aluminium chassis, with a glass touchscreen set into the front panel.
It earns its place in the main room of the house. HDMI ARC carries the television's sound, a dedicated output hands the low end to a subwoofer, and the line input accepts any analogue source with its own output stage. RoomFit calibration then measures the room and trims the response to suit it, which is the difference between speakers that sounded good in the showroom and speakers that sound good against your back wall.
The power rating is quoted with both channels driven, which is the honest way to quote it, and the output stage keeps its grip on difficult four-ohm speakers. The audible result is control at low volume on weeknights and composure when a film soundtrack asks for more on the weekend.
For official product information and current support resources, visit the WiiM Amp Ultra product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Television input over HDMI ARC | Film and series sound plays through the stereo speakers, with Dolby Digital handled on board. |
| Touchscreen and knob control | Playback, volume and settings are available at the unit without reaching for a phone. |
| USB media server | Music on an attached USB drive is served to other WiiM and DLNA players around the house. |
| Voice and multiroom | Takes commands through Alexa or Google Assistant and groups with WiiM, Nest and Echo devices for whole-house playback. |
| Silent passive cooling | A copper heat pipe and the aluminium chassis shed heat with no fan noise, even under load. |
| DETAIL | VALUE |
| Product Specifications | |
| Power output (THD = 0.08%, two channels driven) | 100 W per channel at 8Ω; 200 W per channel at 4Ω |
| Amplification | Class-D with PFFB (Post-Filter Feedback); dual TI TPA3255 amplifier chips; 6 × TI OPA1612 op-amps |
| DAC | ESS 9039Q2M |
| Total harmonic distortion (THD+N) | -106dB (0.0005%) at 5W |
| Signal-to-noise ratio (SNR) | 121dB |
| Frequency response | 20Hz-45kHz; 20Hz-20kHz (±0.5dB) |
| Speaker impedance range | 2-8Ω |
| Inputs | 1 × HDMI ARC (up to 192kHz/24-bit, stereo PCM and Dolby Digital); 1 × optical (up to 192kHz/24-bit); 1 × RCA line-in (2 Vrms, digitised up to 192kHz/24-bit); external USB storage (FAT32, NTFS, EXT4) |
| Outputs | Gold-plated speaker binding posts (banana plugs or bare wire); 1 × subwoofer out; 1 × USB out (UAC 2.0, up to 24-bit/192kHz) |
| Network and wireless | Wi-Fi 6 (upgradeable to Wi-Fi 6E via software update); 10/100M Ethernet; Bluetooth 5.3 |
| Streaming protocols | Google Cast Audio, Spotify Connect, TIDAL Connect, Amazon Music Casting, QPlay 2.0, DLNA, Squeezelite, Roon Ready |
| EQ and calibration | RoomFit auto-correction; 24 preset EQ settings; 10-band graphic EQ; 10-band parametric EQ |
| Display | 3.5-inch LCD touchscreen with rotary knob |
| Power input | 100-240V AC, 50/60Hz, 500W |
| Dimensions | 200 × 211 × 76.2 mm (7.87 × 8.3 × 3 in) |
| Weight | 2.45 kg (5.4 lbs) |
| Package Contents | |
| In the box | 1 × WiiM Amp Ultra; 1 × WiiM Voice Remote 2; 4 × banana plugs; power, RCA, HDMI and optical cables; quick start guide |
