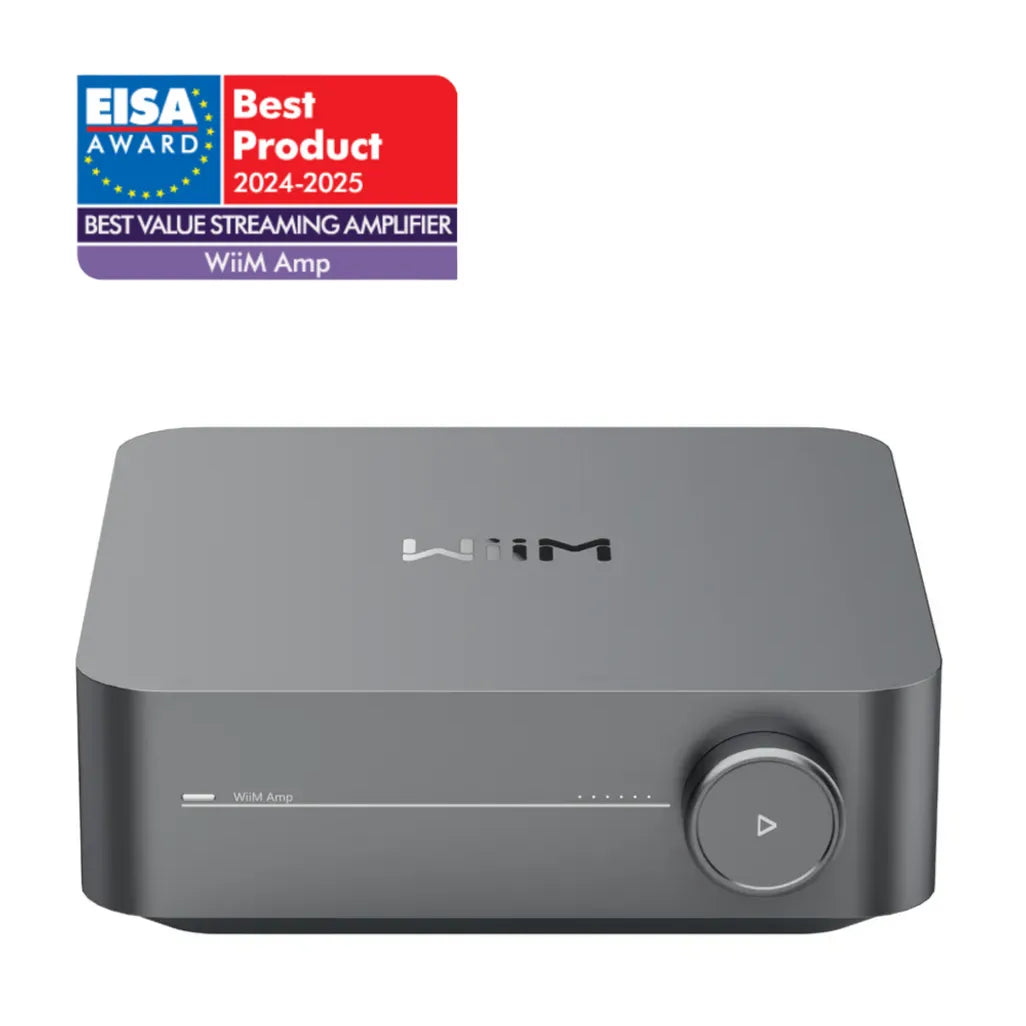

A pair of passive speakers and this single compact box make a complete hi-fi. The WiiM Amp handles streaming, conversion and amplification in one aluminium chassis, with the WiiM Home app tying services, sources and settings together.
In an Apple household it is the natural pick of the range. AirPlay 2 and Siri are on board and it groups with HomePod speakers, while Alexa and Google Assistant cover everyone else in the house.
It also does television duty. HDMI ARC brings the TV's sound through the stereo pair, so films and series get the same treatment as music, and the bedroom or study system this replaces never has to come back.
For official product information and current support resources, visit the WiiM Amp product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Multiroom by design | Groups with other WiiM devices so the same music follows you from room to room. |
| Two-way Bluetooth | Streams in from a phone or out to Bluetooth headphones for late-night listening. |
| USB library playback | Music on an attached USB drive plays directly, no computer or network share required. |
| Subwoofer ready | A dedicated output adds a sub when the room calls for more low end. |
| Voice remote included | Volume, tracks and presets from the couch without opening the app. |
| DETAIL | VALUE |
| Product Specifications | |
| Output power | 60 Watts/channel at 8 ohms; 120 Watts/channel at 4 ohms |
| Audio amplification | TI TPA3255 |
| DAC | ESS 9018 K2M |
| Total harmonic distortion (THD+N) | -92dB (0.0025%) at 5W |
| Signal-to-noise ratio (SNR) | 98 dB |
| Inputs | 1 × HDMI ARC (stereo PCM); 1 × optical, up to 192kHz/24-bit; 1 × RCA line-in (2 Vrms, digitised up to 192kHz/24-bit); USB storage (FAT32, NTFS, EXT4) |
| Outputs | Passive speaker terminals (banana plugs, L and R); subwoofer out (2.0 Vrms); USB out (UAC 2.0, up to 192kHz/24-bit) |
| Network and wireless | Wi-Fi 5 (802.11 b/g/n/ac, dual band); 10/100Mbps Ethernet; Bluetooth 5.0, two-way (A2DP sink and source) |
| Streaming protocols | AirPlay 2, Chromecast, Spotify Connect, TIDAL Connect, Alexa Cast, DLNA, Roon Ready |
| Voice control | Alexa, Google Assistant, Siri |
| Power input | 100-240V AC, 50/60Hz, 4A max |
| Dimensions | 190 × 190 × 63 mm (7.48 × 7.48 × 2.48 in) |
| Weight | 1.84 kg (4.1 lbs) |
| Package Contents | |
| In the box | 1 × WiiM Amp; 1 × WiiM Voice Remote; power, HDMI, RCA and optical cables (1.5m each); quick start guide |
