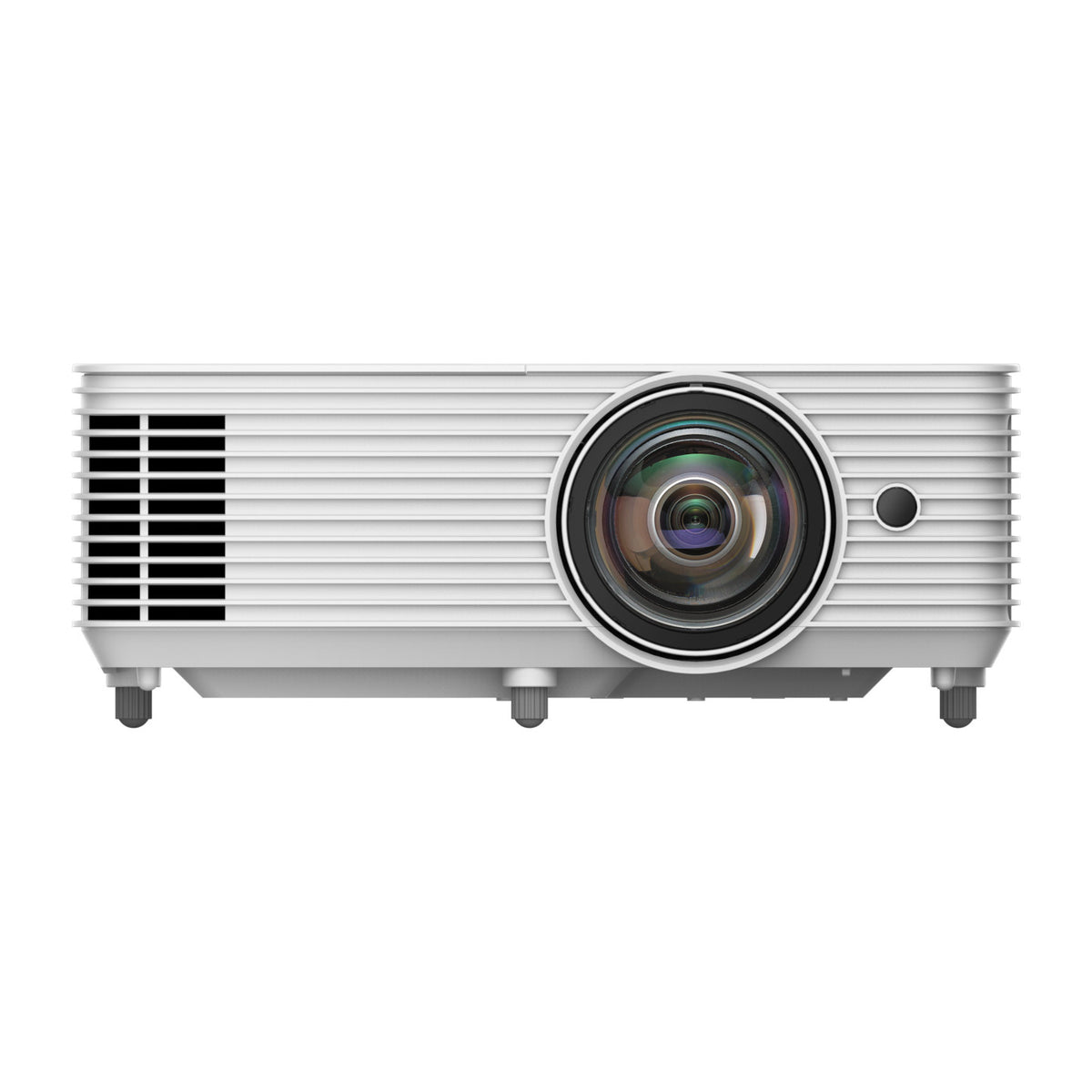

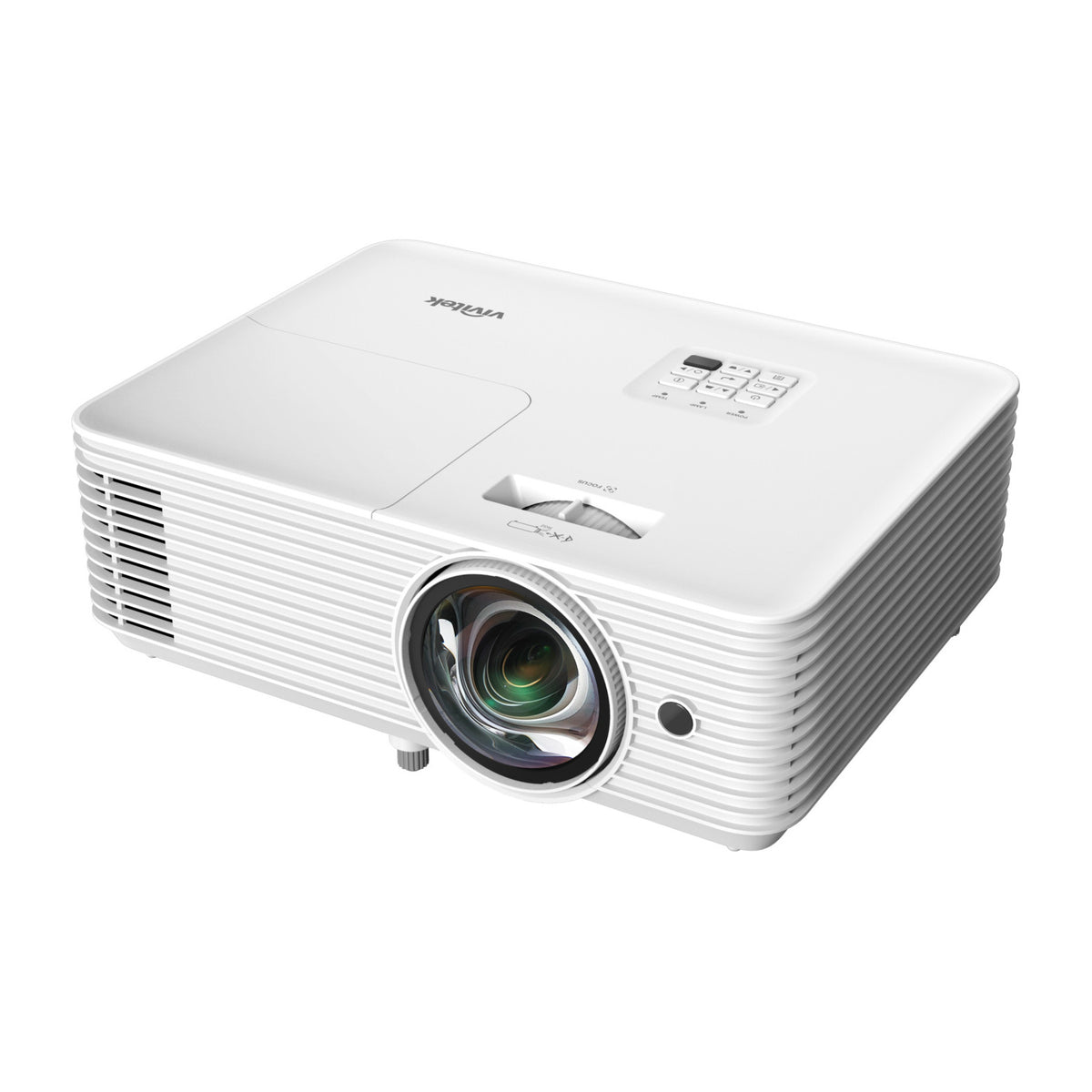

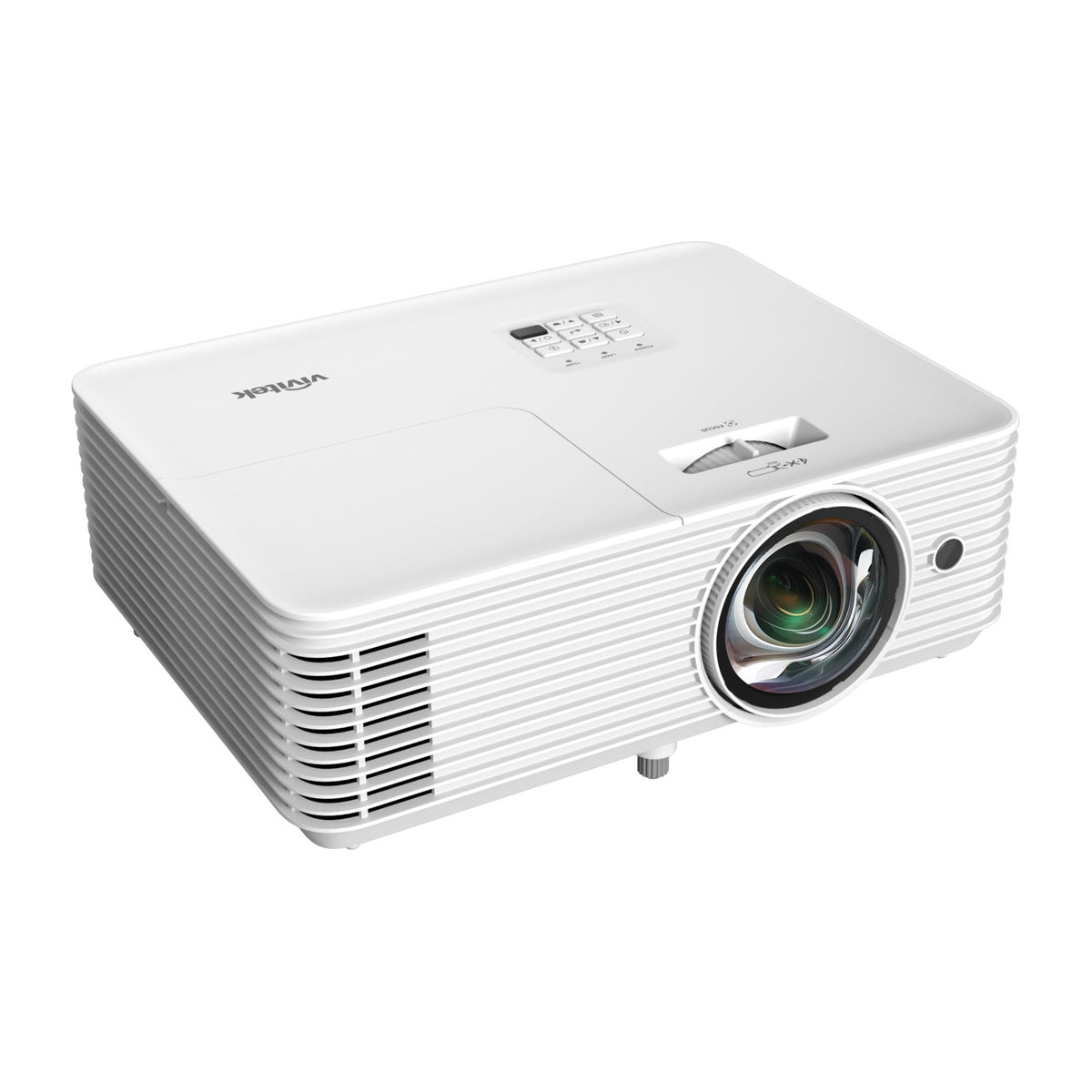

The DX335-ST combines XGA resolution with a short throw lens for presentations where the projector needs to sit close to the screen. Its 3,800 ANSI lumens and HDMI input suit classroom and meeting content.
Vertical keystone correction helps align the image, while the built-in 10 W speaker provides audio. The lamp has separate life ratings for Normal, Eco and Long Eco modes.
| ITEM | DESCRIPTION |
|---|---|
| Image format | XGA (1024 x 768) |
| Brightness | 3800 ANSI Lumens |
| Projection optics | 0.617 : 1 |
| Source connections | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports 1.4b (x1), RS-232 , USB A x1 (power 5V/1.5A), USB miniB (Service), Audio-Out (Mini-Jack) , Composite Video , Audio-In (Mini-Jack) |
AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | XGA (1024 x 768) |
| Brightness | 3800 ANSI Lumens |
| Contrast Ratio | 30,000:1 |
| Native Aspect Ratio | 4:3 |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.55” DMD |
| Lamp Life and Type | 5,000 / 6,000 / 10,000 Hours (Normal / Eco. / Long Eco. Mode), 203W |
| Throw Ratio | 0.617 : 1 |
| Zoom Ratio | 1.1x |
| Projection Distance | 0.4~3.8m |
| Image Size (Diagonal) | 31.9"~303.1" |
| Keystone Correction | Vertical: +/-30° |
| Speakers | 10W |

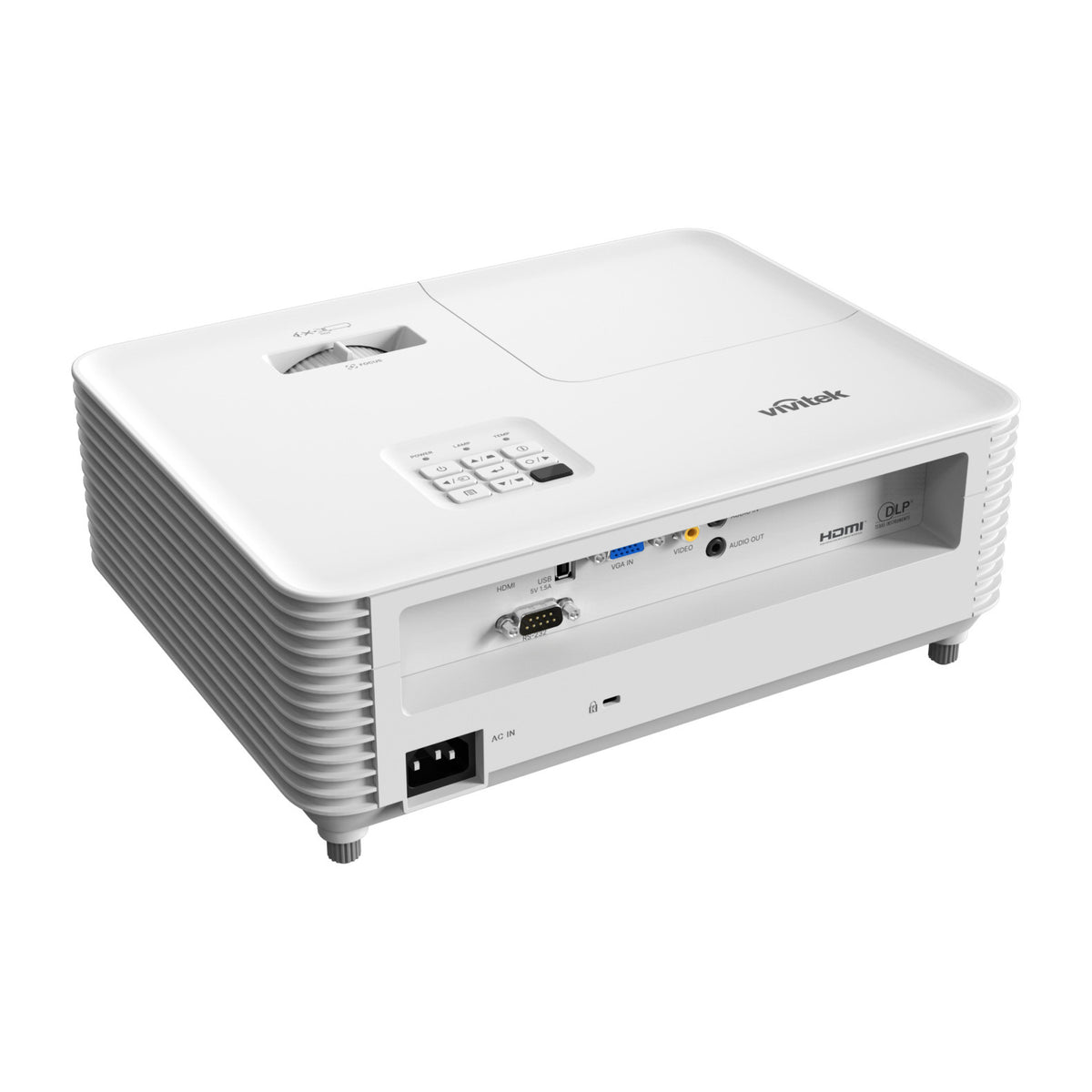

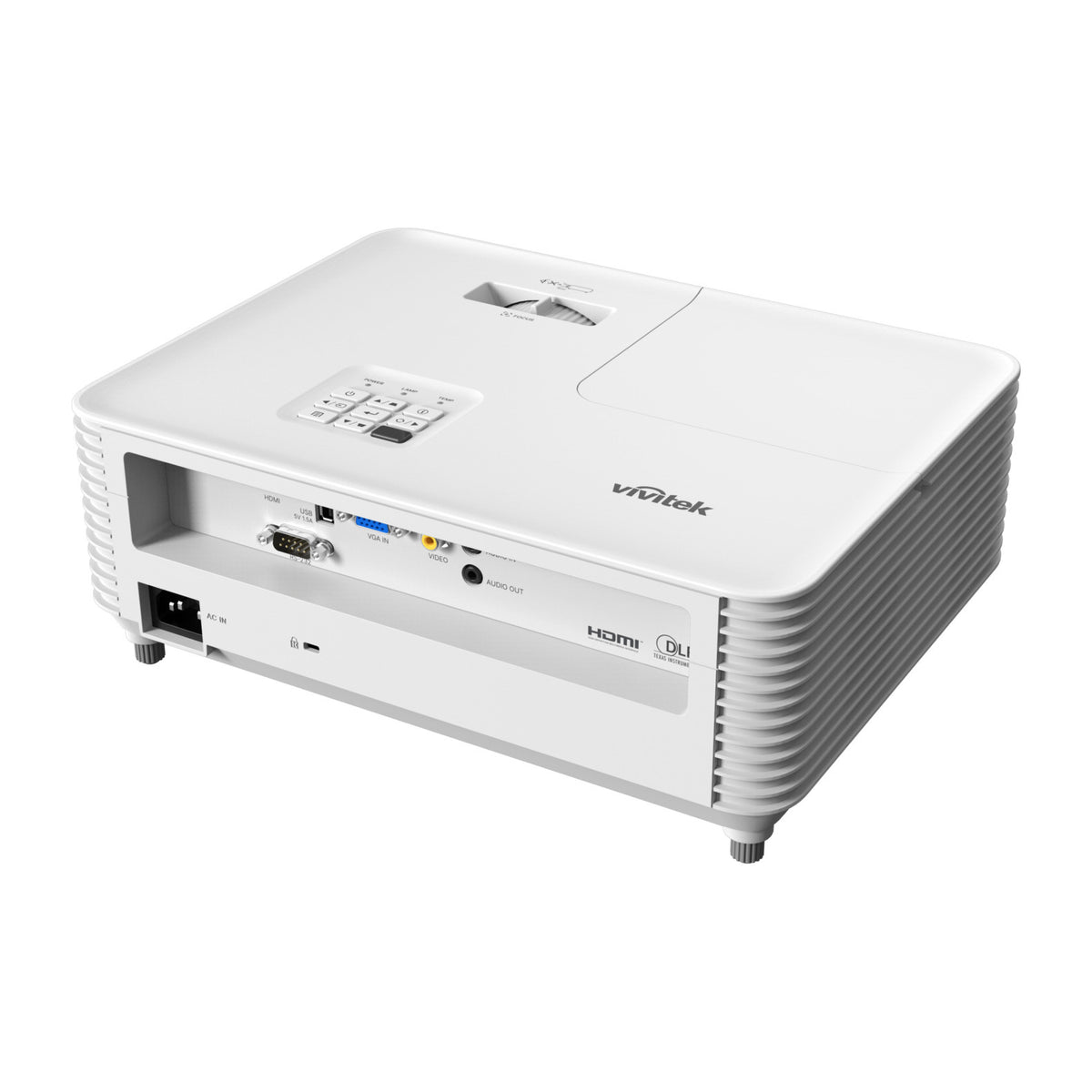

| I/O Connection Ports | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports 1.4b (x1), RS-232 , USB A x1 (power 5V/1.5A), USB miniB (Service), Audio-Out (Mini-Jack) , Composite Video , Audio-In (Mini-Jack) |
| Dimensions (W x D x H) | 313 x 236 x 114mm |
| Weight | 2.7 kg |
| Noise Level | 33dB / 27dB (Normal / Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 200W (Eco. Mode), 240W (Normal Mode), <0.5W (Standby) |
