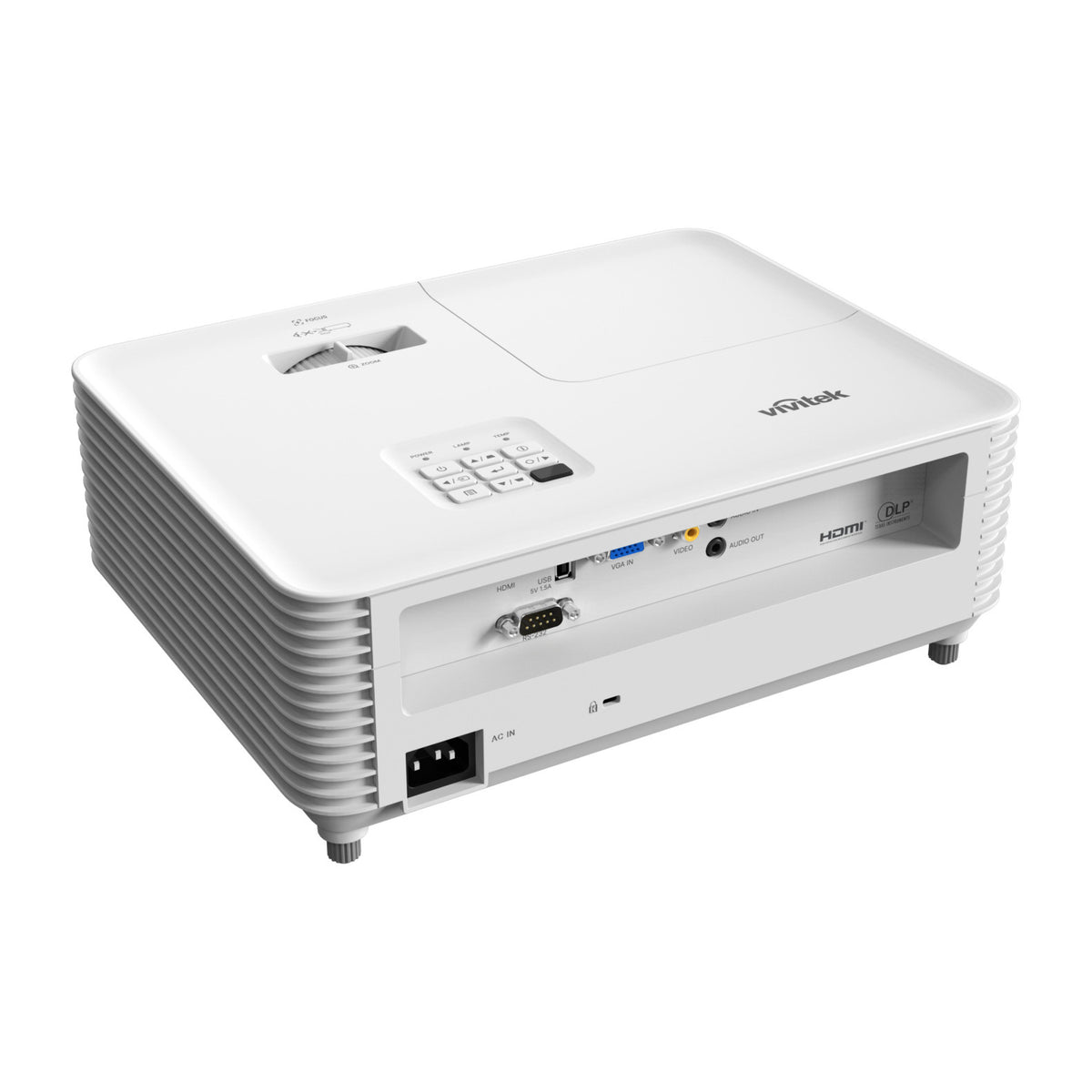

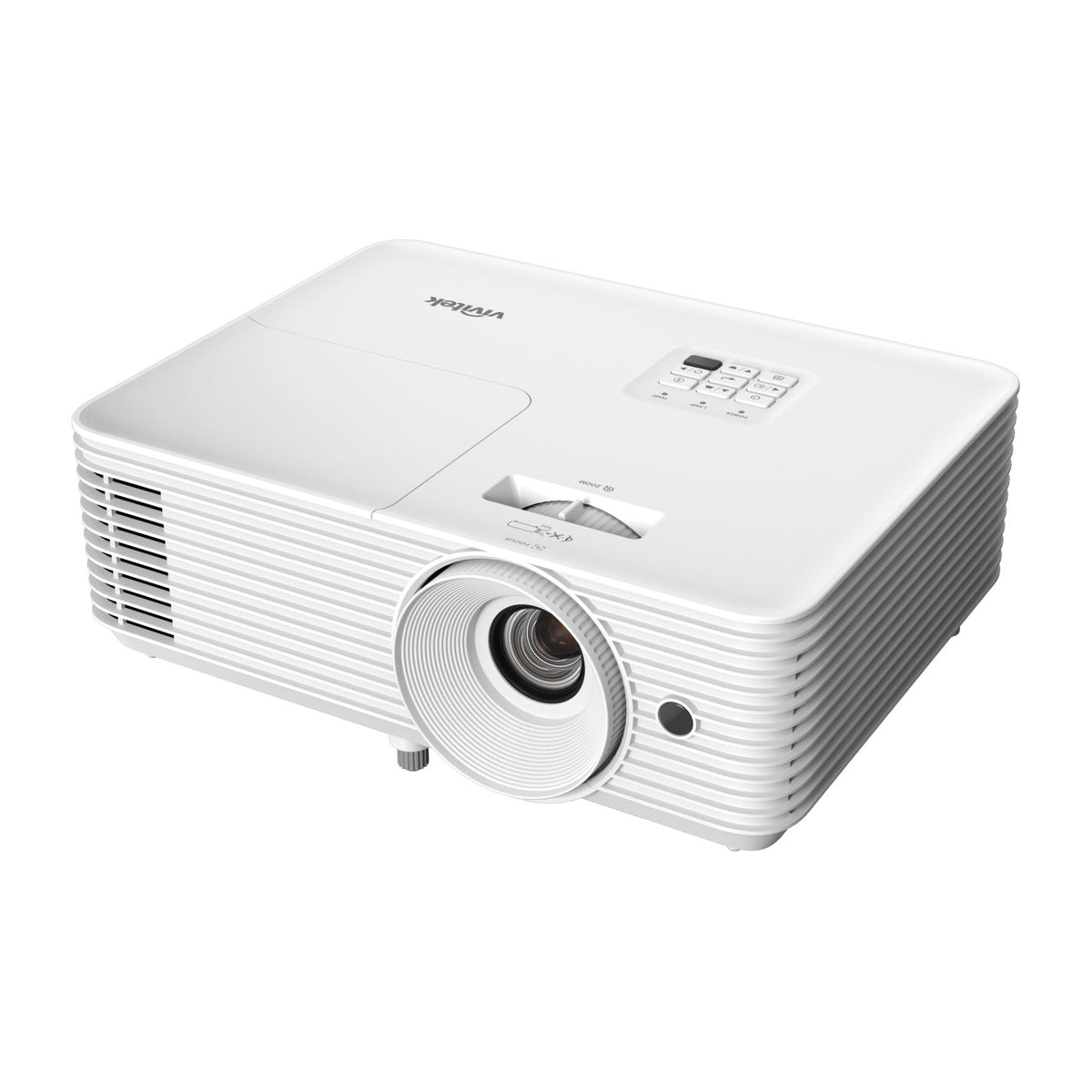

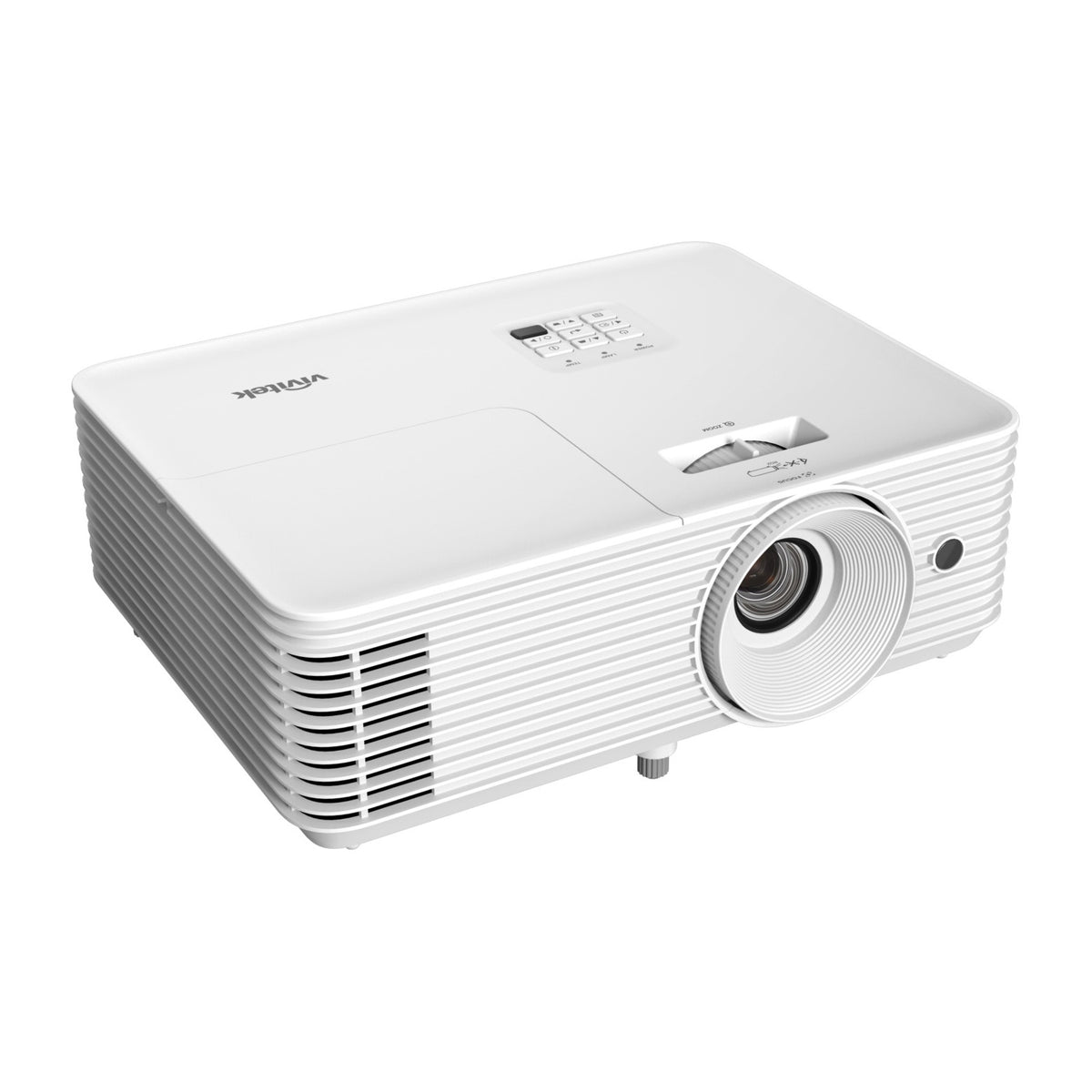

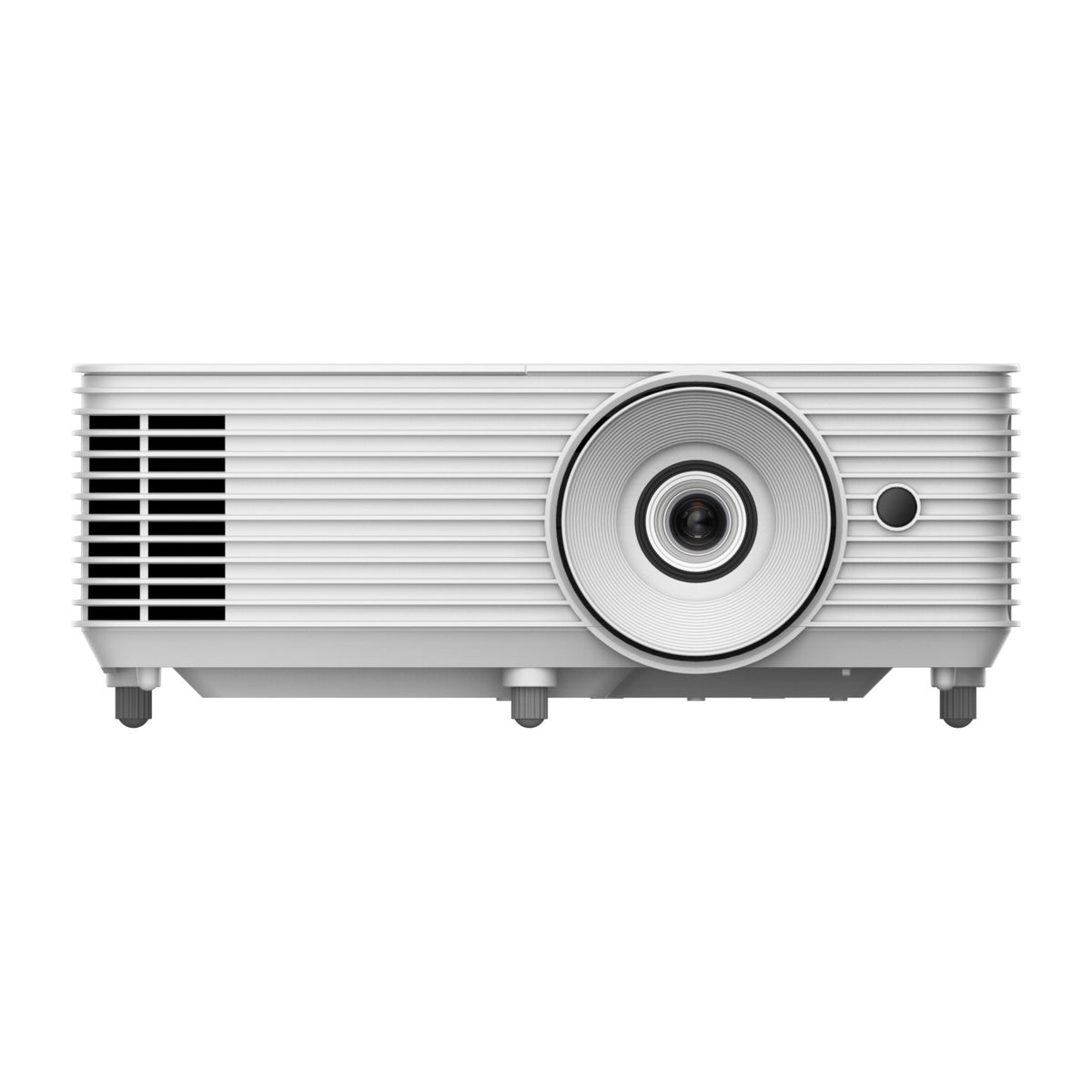

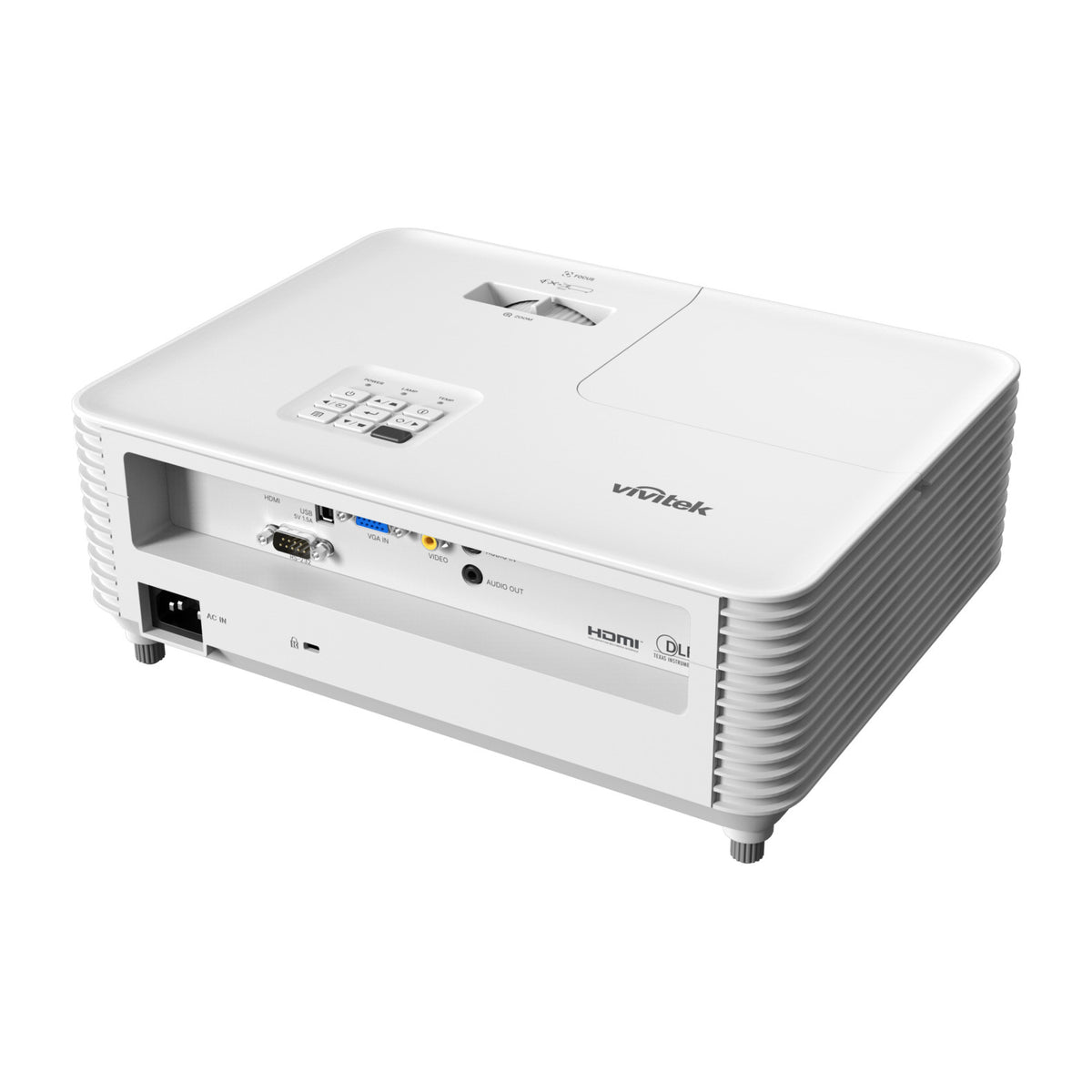

The DX330 is a compact XGA projector for presentations and teaching. It pairs 4,000 ANSI lumens with a 4:3 image format, with HDMI and VGA inputs for source devices.
A built-in speaker handles audio, and vertical keystone correction helps align the picture. Lamp life is rated separately for Normal, Eco and Long Eco modes, so the service-life figures below reflect the selected operating mode.
| ITEM | DESCRIPTION |
|---|---|
| Image format | XGA (1024 x 768) |
| Brightness | 4000 ANSI Lumens |
| Projection optics | 1.94 - 2.33 : 1 |
| Source connections | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports 1.4b (x1), RS-232 , USB A x1 (power 5V/1.5A), USB miniB (Service), Audio-Out (Mini-Jack) , Composite Video , Audio-In (Mini-Jack) |
AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | XGA (1024 x 768) |
| Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 30,000:1 |
| Native Aspect Ratio | 4:3 |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.55” DMD |
| Lamp Life and Type | 6,000 / 7,000 / 10,000 Hours (Normal / Eco. / Long Eco. Mode), 203W |
| Throw Ratio | 1.94 - 2.33 : 1 |
| Zoom Ratio | 1.1x |
| Projection Distance | 1.2 - 12 m |
| Image Size (Diagonal) | 27.34" - 300" |
| Keystone Correction | Vertical: +/-40° |
| Speakers | 10W |
| I/O Connection Ports | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports 1.4b (x1), RS-232 , USB A x1 (power 5V/1.5A), USB miniB (Service), Audio-Out (Mini-Jack) , Composite Video , Audio-In (Mini-Jack) |
| Dimensions (W x D x H) | 313 x 236 x 114mm |
| Weight | 2.6 kg |
| Noise Level | 31dB / 27dB (Normal / Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 210W (Eco. Mode), 250W (Normal Mode), <0.5W (Standby) |
