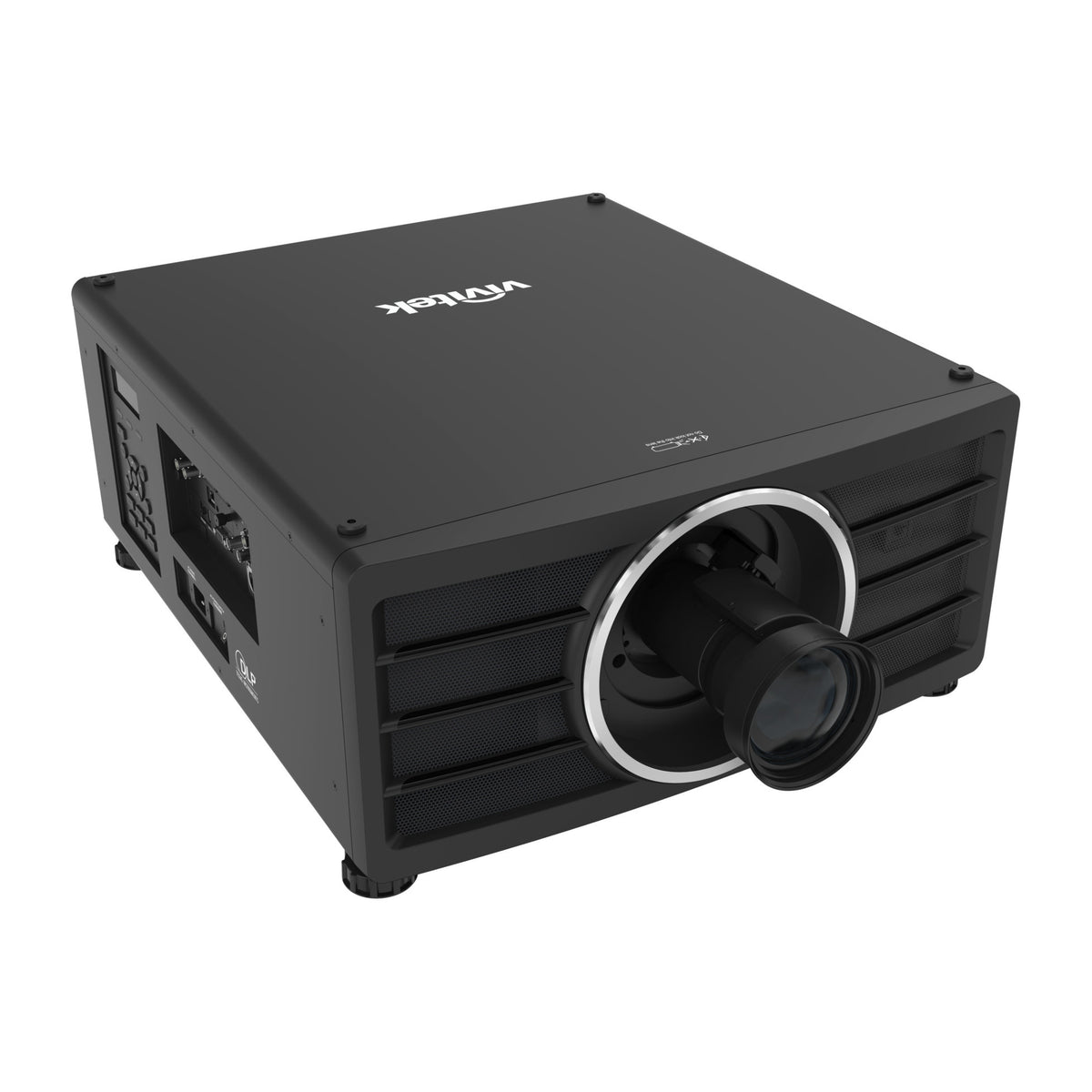

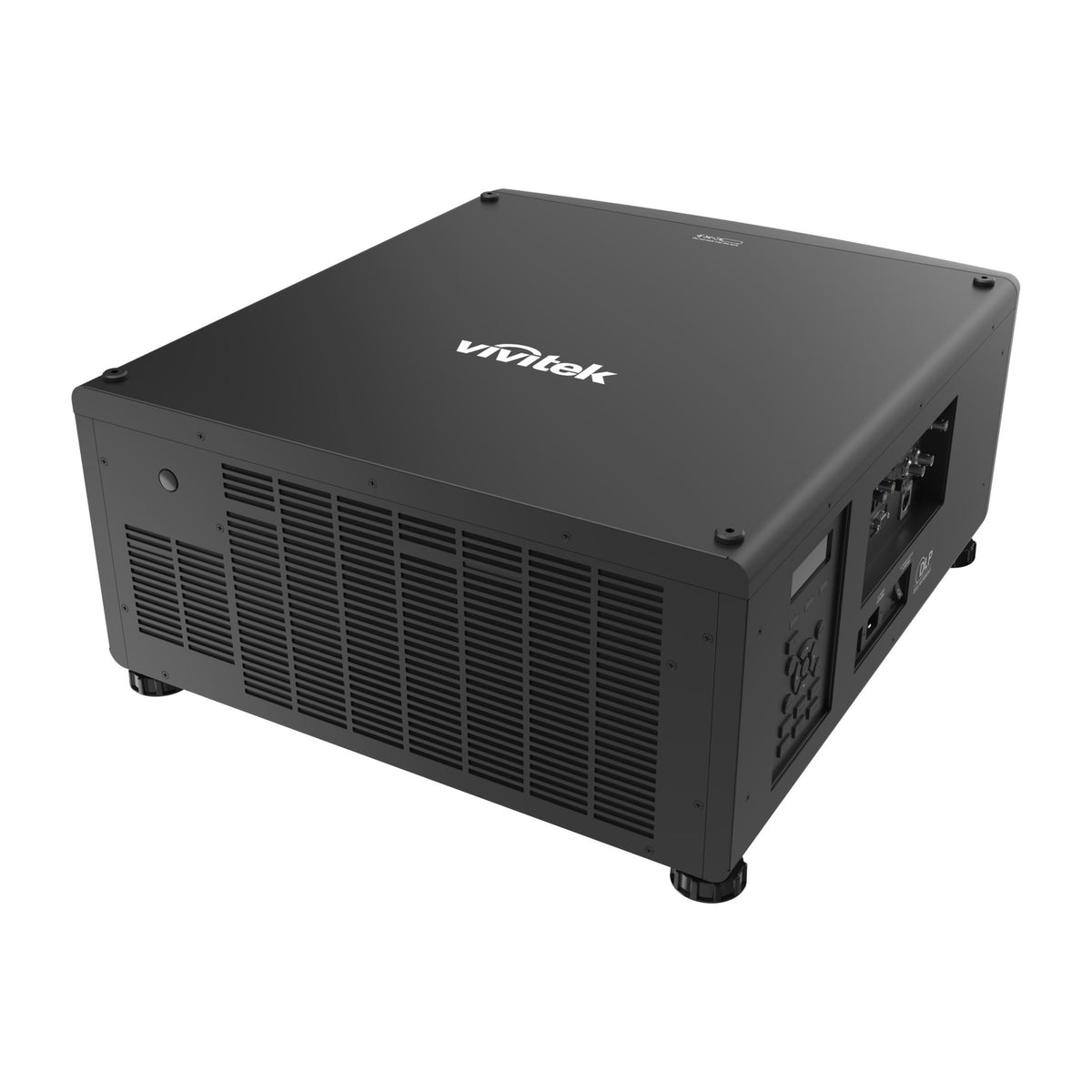

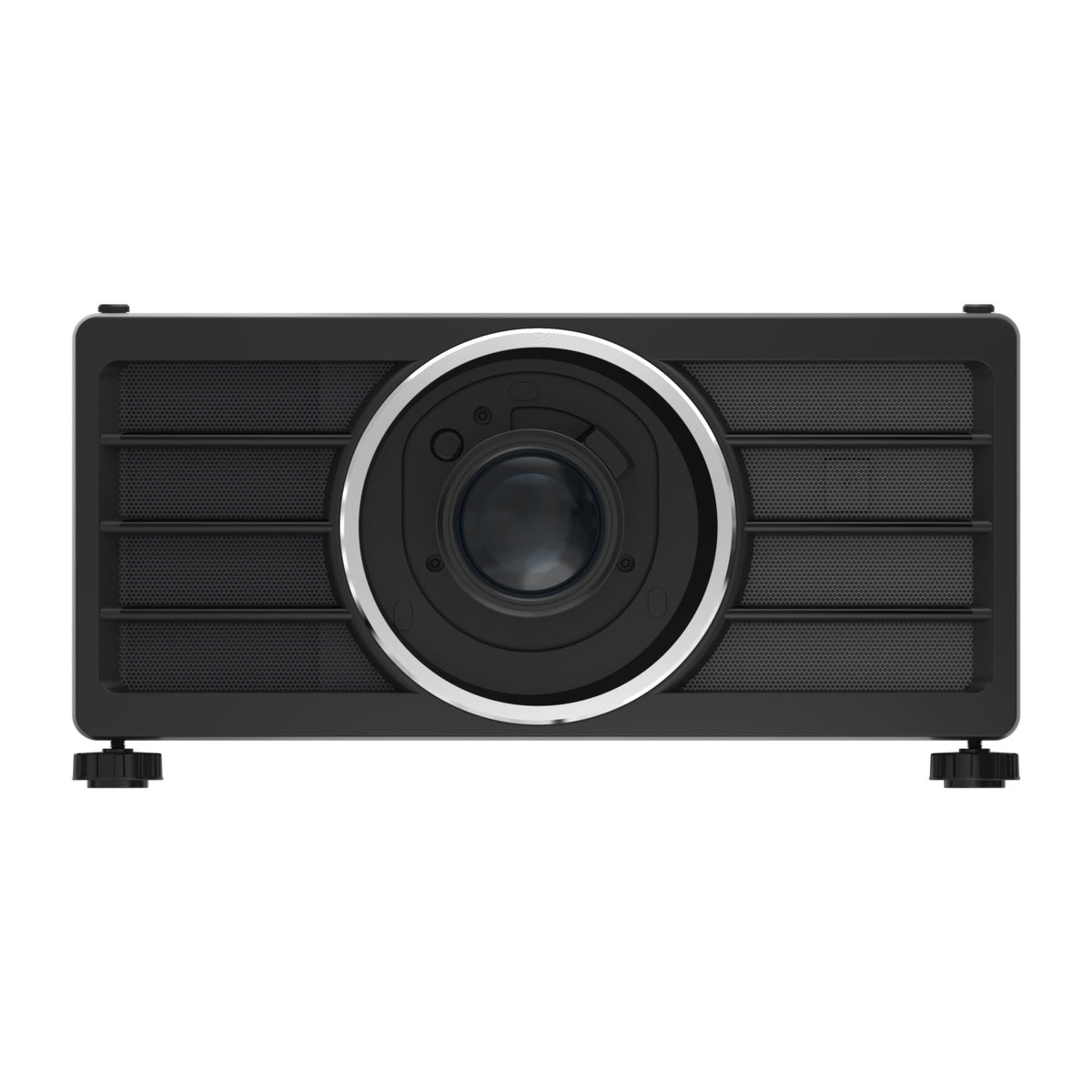

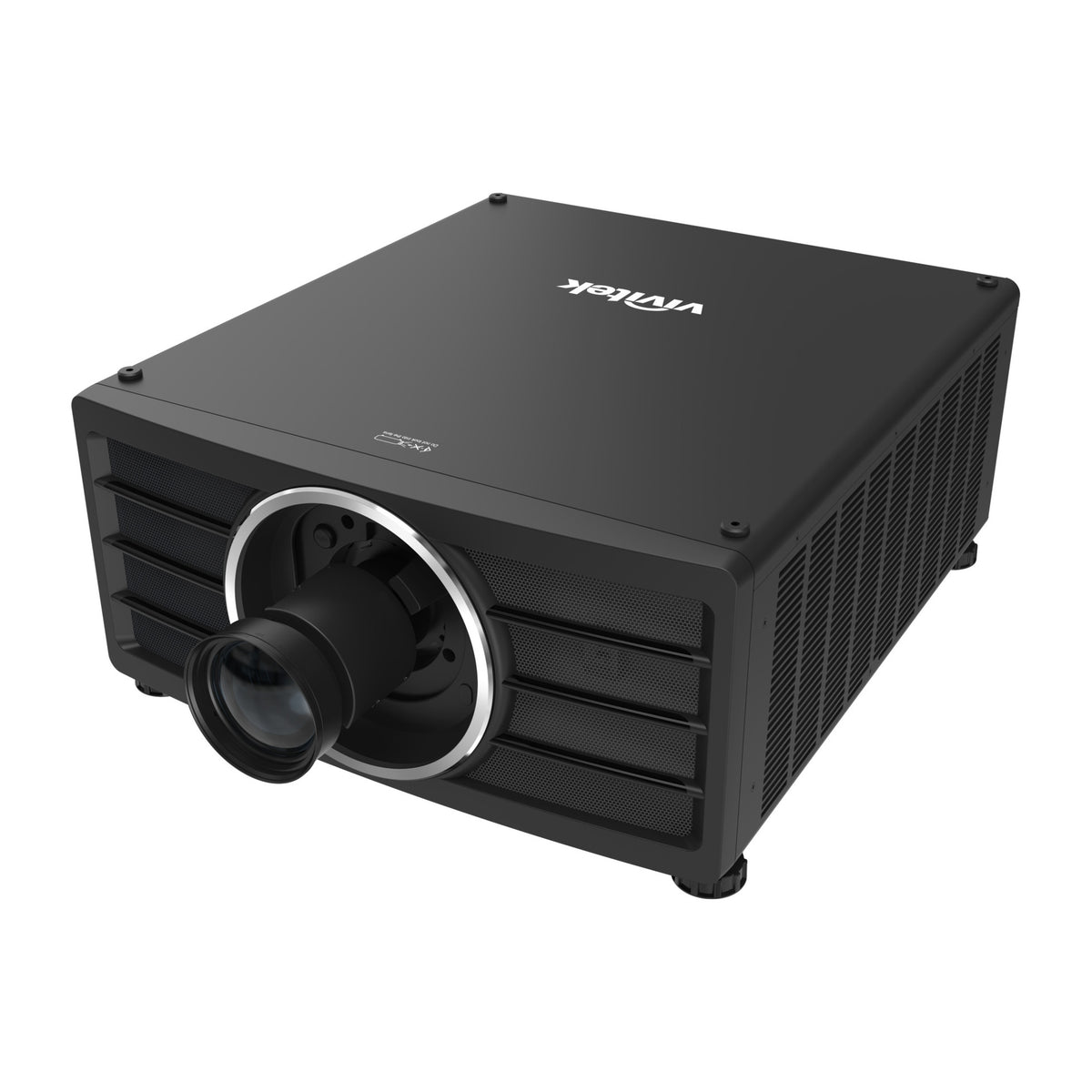

The DU9059Z is a 30,000 ANSI lumen WUXGA laser projector for rental, staging and large venue systems. Its Constant Brightness function monitors illumination output for multi-projector installations.
Choose optics using the DU9059Z-specific lens list. Several lens part numbers differ from other D9000 models, so a matching throw range alone does not establish compatibility. The lenses in this catalogue that are verified for DU9059Z are listed separately.
| ITEM | DESCRIPTION |
|---|---|
| Image format | WUXGA (1920 x 1200) |
| Brightness | 30000 ANSI Lumens |
| Projection optics | 7 optional lenses from 0.38:1 to 10.3:1 throw ratio range |
| Source connections | HDMI Number of Ports (2x), Display Port , DVI-D , Component (5 BNC) (RGBHV) , Remote Jack(wire remote) , 3G-SDI (2x: In and Out), RS-232 , USB A (x1 with Power ), RJ45 (1x: HDBaseT/LAN) |
| DETAIL | VALUE |
|---|---|
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 30000 ANSI Lumens |
| Contrast Ratio | 3 000 000:1 (Dynamic) |
| Native Aspect Ratio | 16:10 |
| Display Type | DLP Technology by TI |
| Chip Size | Single Chip 0.96'' DMD |
| Throw Ratio | 7 optional lenses from 0.38:1 to 10.3:1 throw ratio range |
| Zoom Ratio | Motorized Zoom & Focus |
| Projection Distance | Depending on lens selection |
| Image Size (Diagonal) | Depending on lens selection |
| Lens Shift Range | Lens Shift Range (Vertical: +/-50%; Horizontal: +/-15%) |
| Keystone Correction | Vertical: +/-40 Steps; Horizontal: +/-45 Steps |
| I/O Connection Ports | HDMI Number of Ports (2x), Display Port , DVI-D , Component (5 BNC) (RGBHV) , Remote Jack(wire remote) , 3G-SDI (2x: In and Out), RS-232 , USB A (x1 with Power ), RJ45 (1x: HDBaseT/LAN) |
| Dimensions (W x D x H) | 676.6 x 598.8 x 270mm |
| Weight | 45.4 kg |
| Noise Level | 49dB / 46dB (Normal / Eco) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 1860W (Normal Mode) <0.5W (Standby) |
