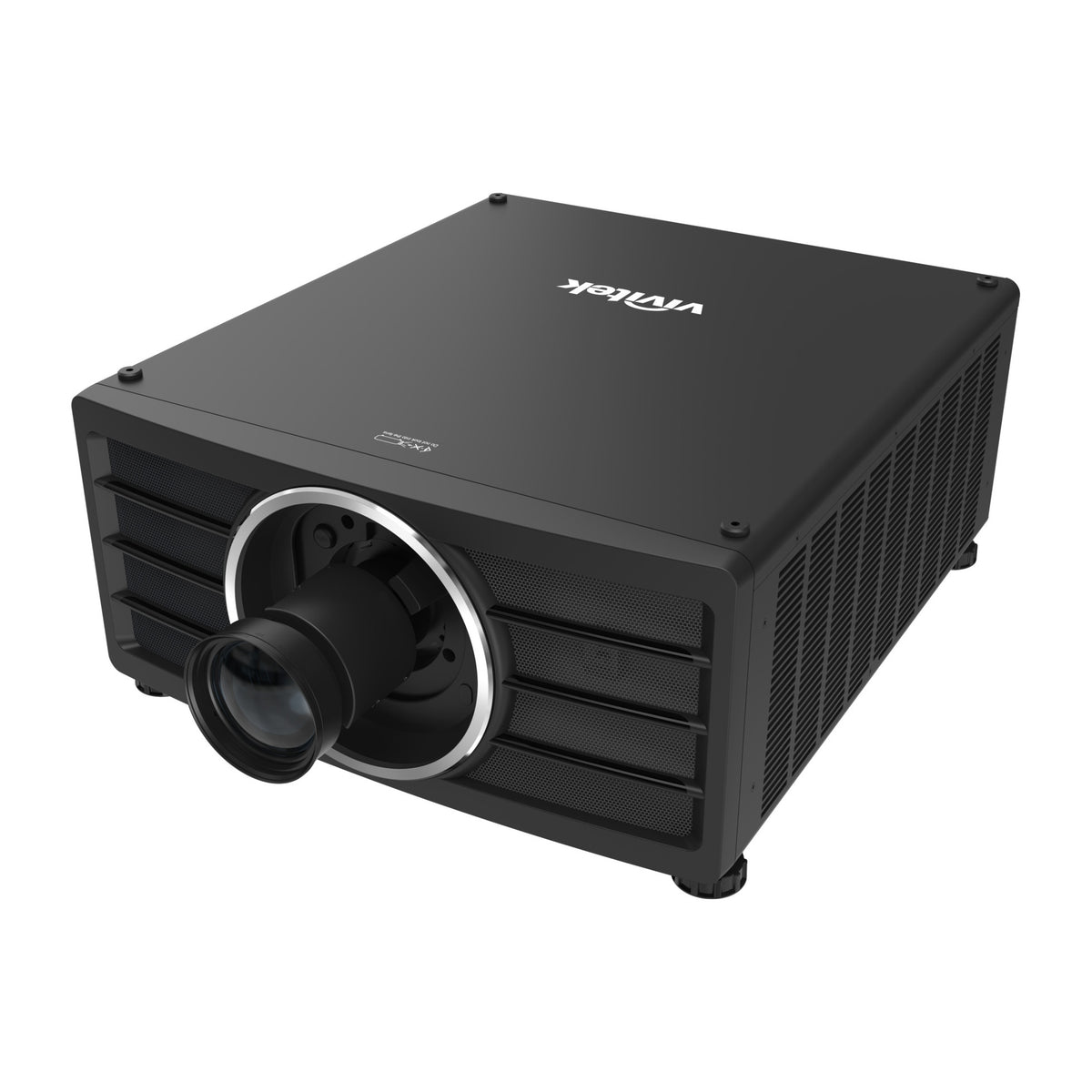

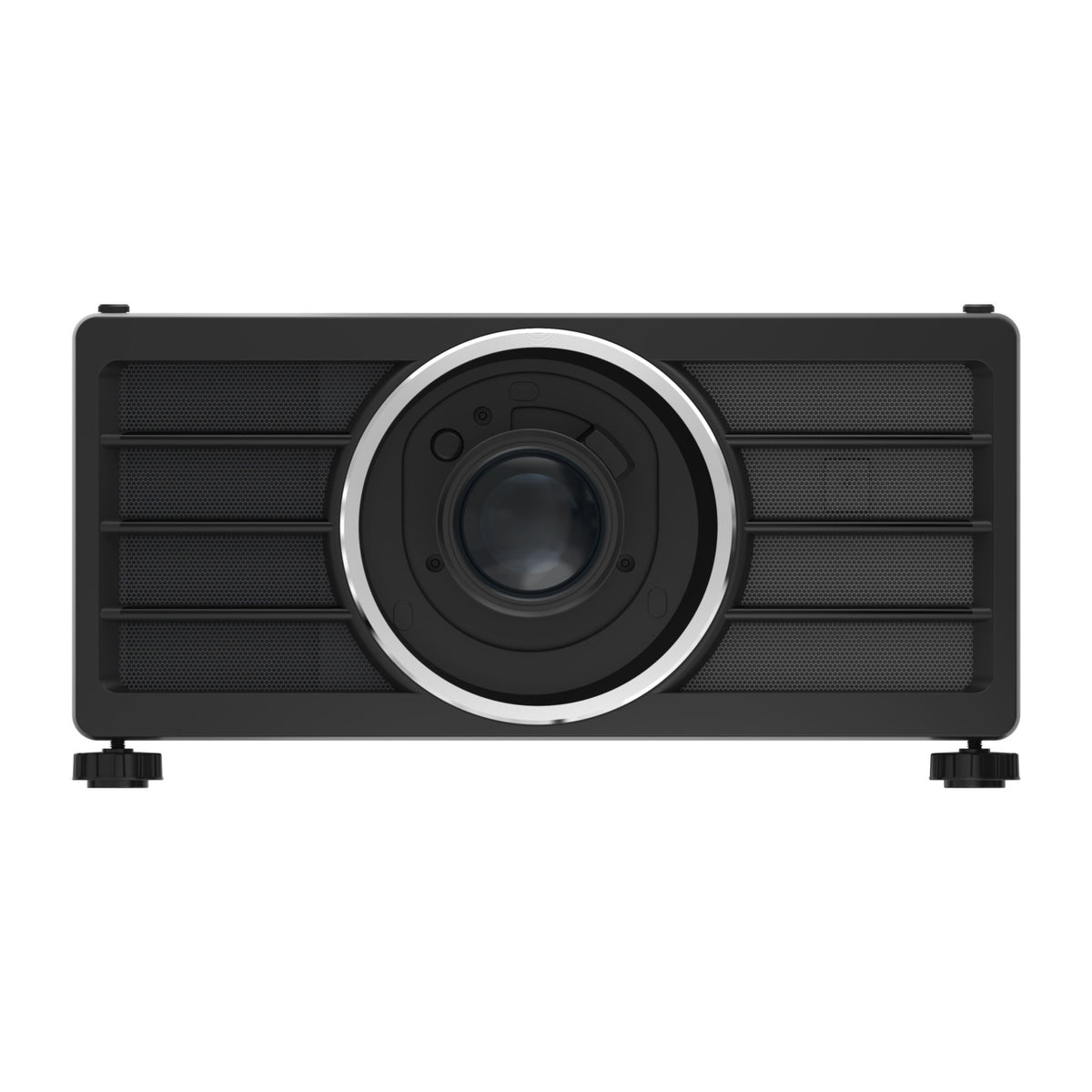

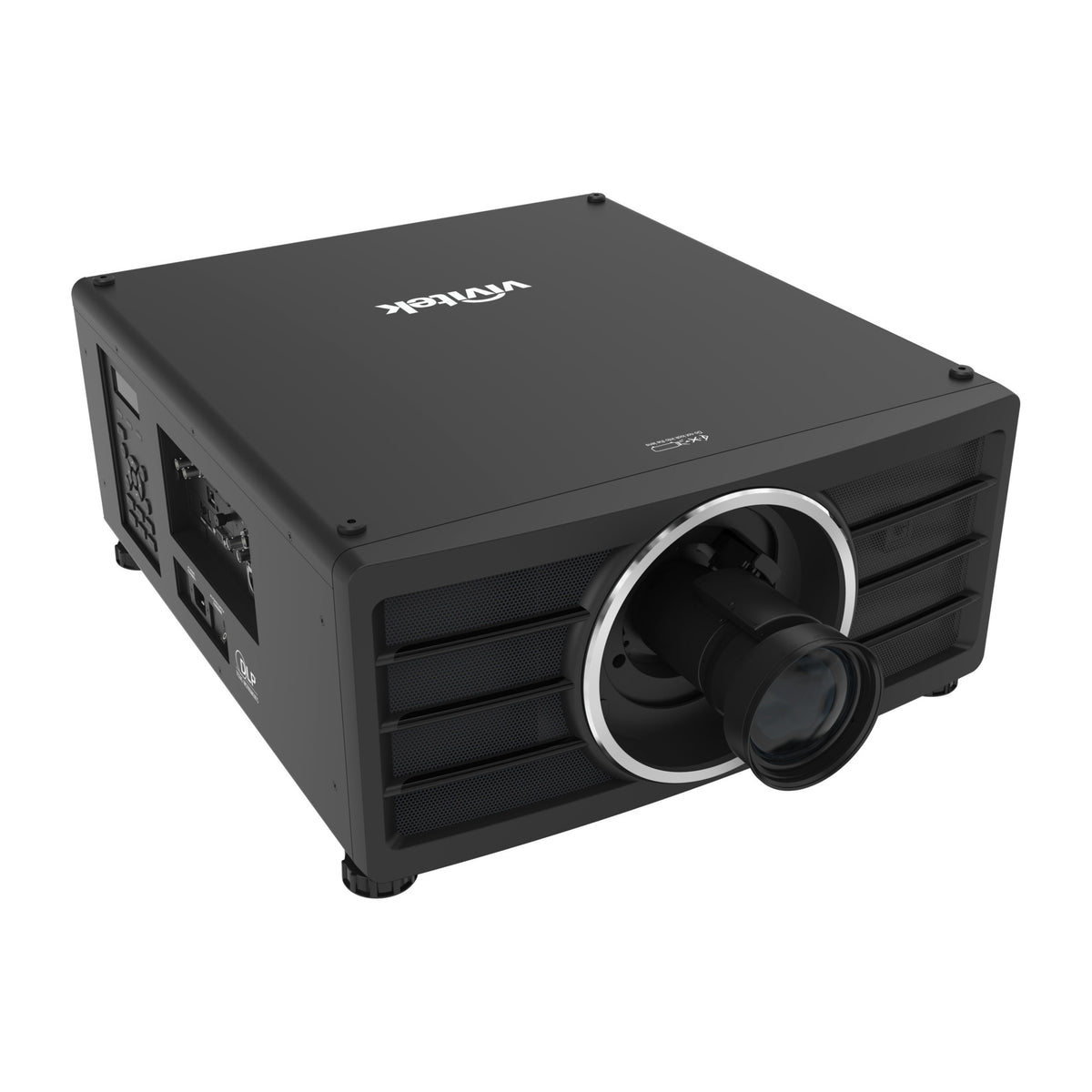

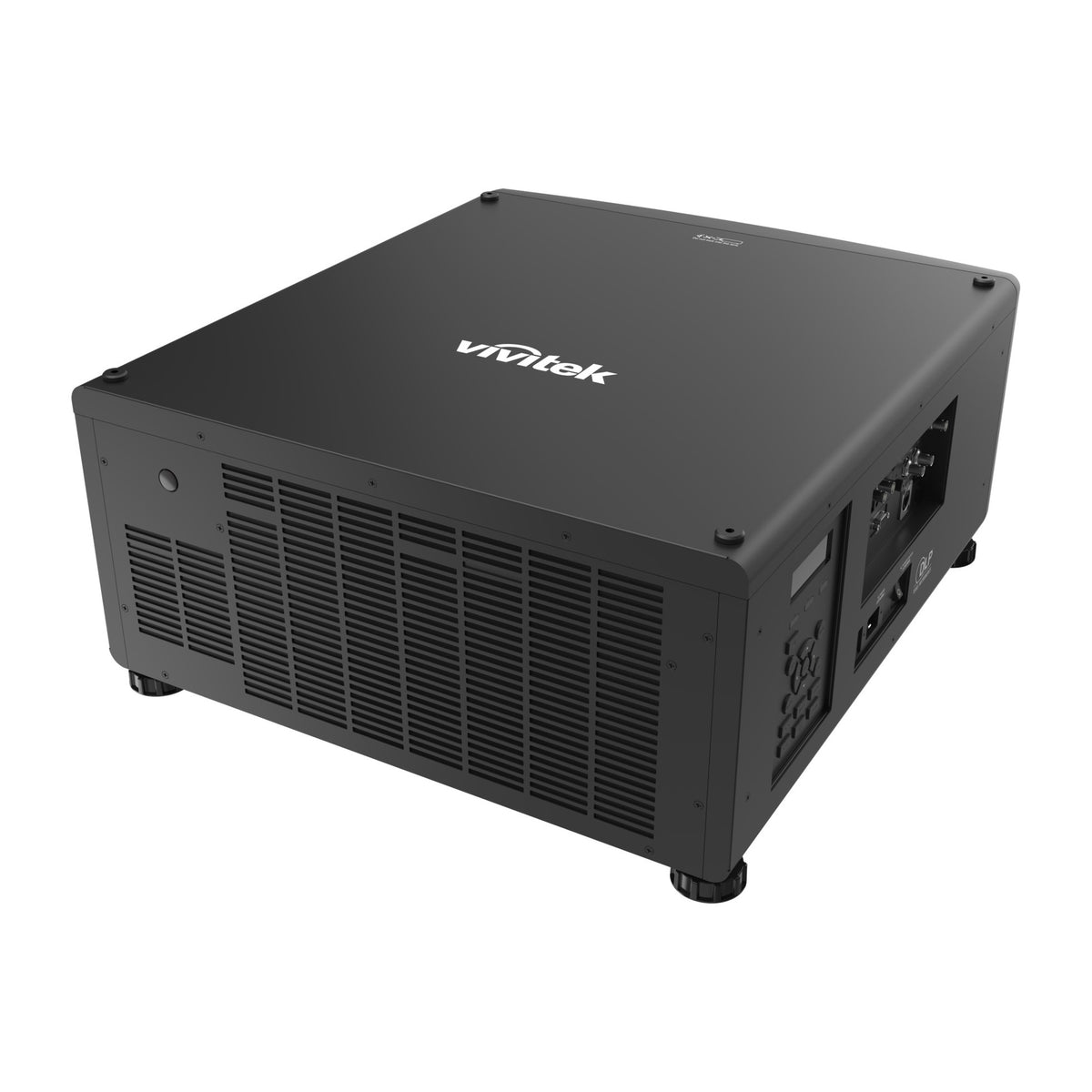

The DU9057Z brings 27,000 ANSI lumens to WUXGA large venue projection. Its laser illumination and Constant Brightness function support installations where light output must be monitored and maintained.
Interchangeable lenses accommodate different screen layouts and throw distances. Network and HDBaseT connections provide AV system integration. Compatible lenses are sold as separate accessories.
| ITEM | DESCRIPTION |
|---|---|
| Image format | WUXGA (1920 x 1200) |
| Brightness | 27000 ANSI Lumens |
| Projection optics | 7 optional lenses from 0.38:1 to 10.3:1 throw ratio range |
| Source connections | HDMI Number of Ports (2x), Display Port , DVI-D , Component (5 BNC) (RGBHV) , Remote Jack(wire remote) , 3G-SDI (2x: In and Out), RS-232 , USB A (x1 with Power ), RJ45 (1x: HDBaseT/LAN) |
| DETAIL | VALUE |
|---|---|
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 27000 ANSI Lumens |
| Contrast Ratio | 3 000 000:1 (Dynamic) |
| Native Aspect Ratio | 16:10 |
| Display Type | DLP Technology by TI |
| Chip Size | Single Chip 0.96'' DMD |
| Throw Ratio | 7 optional lenses from 0.38:1 to 10.3:1 throw ratio range |
| Zoom Ratio | Motorized Zoom & Focus |
| Projection Distance | Depending on lens selection |
| Image Size (Diagonal) | Depending on lens selection |
| Lens Shift Range | Lens Shift Range (Vertical: +/-50%; Horizontal: +/-15%) |
| Keystone Correction | Vertical: +/-40 Steps; Horizontal: +/-45 Steps |
| I/O Connection Ports | HDMI Number of Ports (2x), Display Port , DVI-D , Component (5 BNC) (RGBHV) , Remote Jack(wire remote) , 3G-SDI (2x: In and Out), RS-232 , USB A (x1 with Power ), RJ45 (1x: HDBaseT/LAN) |
| Dimensions (W x D x H) | 676.6 x 598.8 x 270mm |
| Weight | 45.4 kg |
| Noise Level | 43dB / 40dB (Normal / Eco) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 1500W (Normal Mode) <0.5W (Standby) |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
