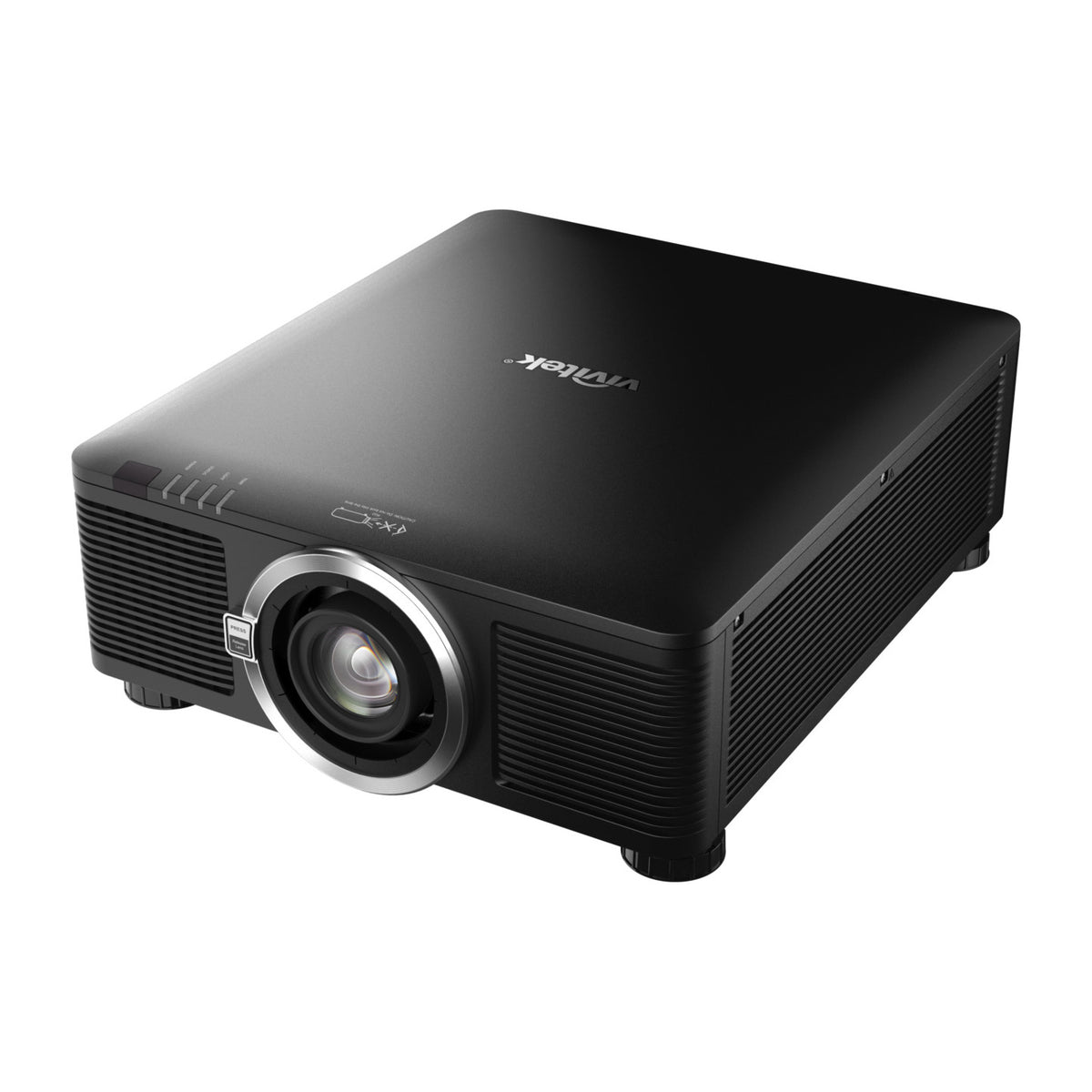

The DU8055Z is a 16,000 ANSI lumen WUXGA projector with dual laser illumination. Integrated edge blending and warping support multi-projector installations and shaped projection layouts.
Interchangeable motorised lenses and lens positioning memory give the installer a choice of optics and saved settings. It supports portrait and 360-degree installation; compatible lenses are listed separately.
| ITEM | DESCRIPTION |
|---|---|
| Image format | WUXGA(1920 x 1200) |
| Brightness | 16000 ANSI Lumens |
| Projection optics | 9 optional lenses from 0.31:1 to 6.94:1 throw ratio range |
| Source connections | HDMI Number of Ports 2 (x2), Display Port (x2), DVI-D , USB B (Service), Remote Jack(wire remote) , 3G-SDI , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A x1 (Power Only-5V/2A), RJ45 (LANx1, HDBaseTx1) |
AC Power Cord , Lens Cap , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | WUXGA(1920 x 1200) |
| Brightness | 16000 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 (Full On/Off) |
| Native Aspect Ratio | 30-12-1899 16:10:00 |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.8" DMD |
| Lamp Life and Type | 30,000 hours / Dual Laser Technology |
| Throw Ratio | 9 optional lenses from 0.31:1 to 6.94:1 throw ratio range |
| Zoom Ratio | Motorized |
| Lens Shift Range | Lens Shift Range (Vertical: ±60%, Horizontal: ±20%) |
| Keystone Correction | Horizontal ±60°, Vertical ±40° |
| I/O Connection Ports | HDMI Number of Ports 2 (x2), Display Port (x2), DVI-D , USB B (Service), Remote Jack(wire remote) , 3G-SDI , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A x1 (Power Only-5V/2A), RJ45 (LANx1, HDBaseTx1) |
| Dimensions (W x D x H) | 500 x 591 x 216 mm |
| Weight | 29.4 kg |
| Noise Level | 39dB / 36dB (Normal / Eco Mode) |
| Power | AC 100-240V, 50/60Hz Consumption: 900W@240Vac (Normal), <0.5W (Standby) |
