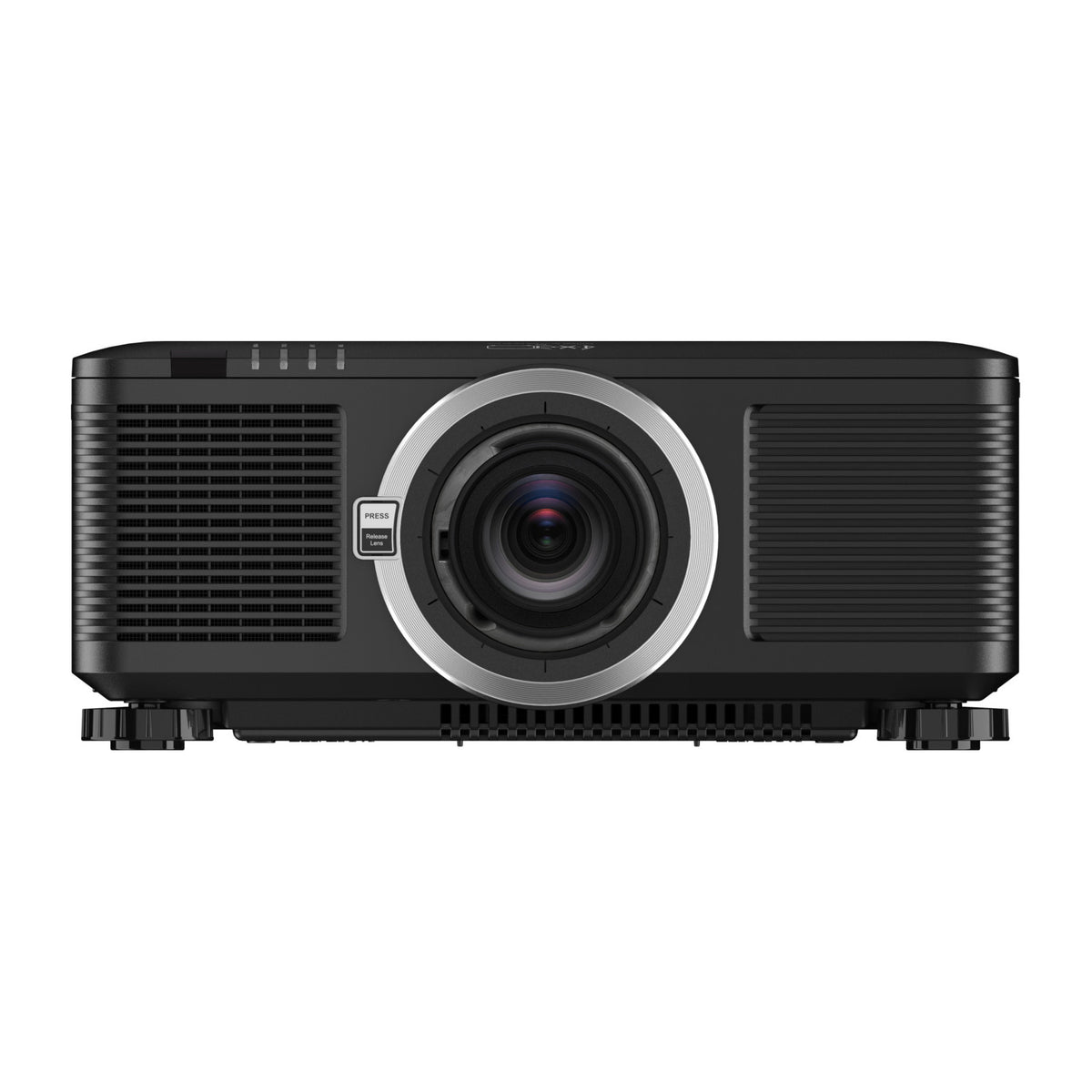

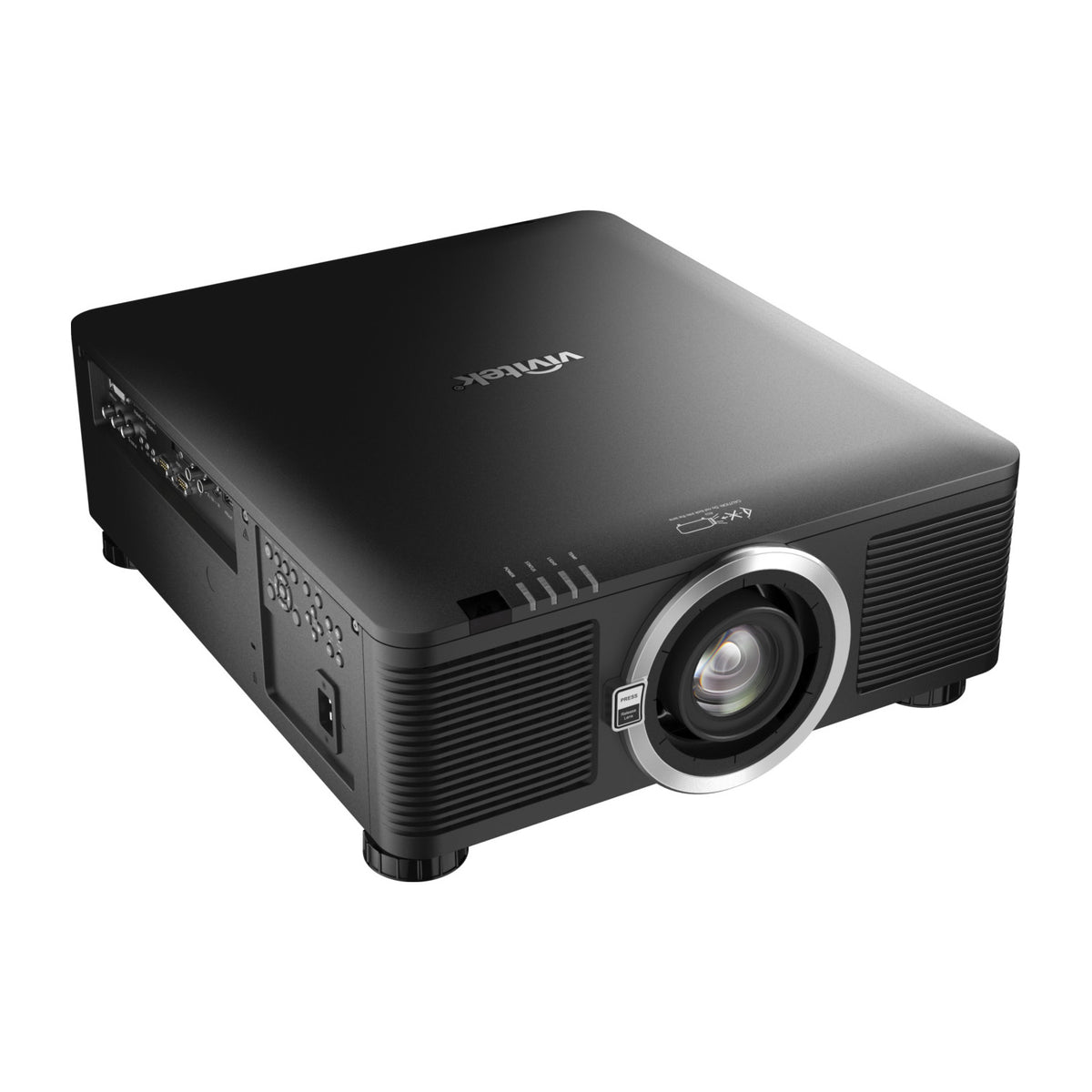

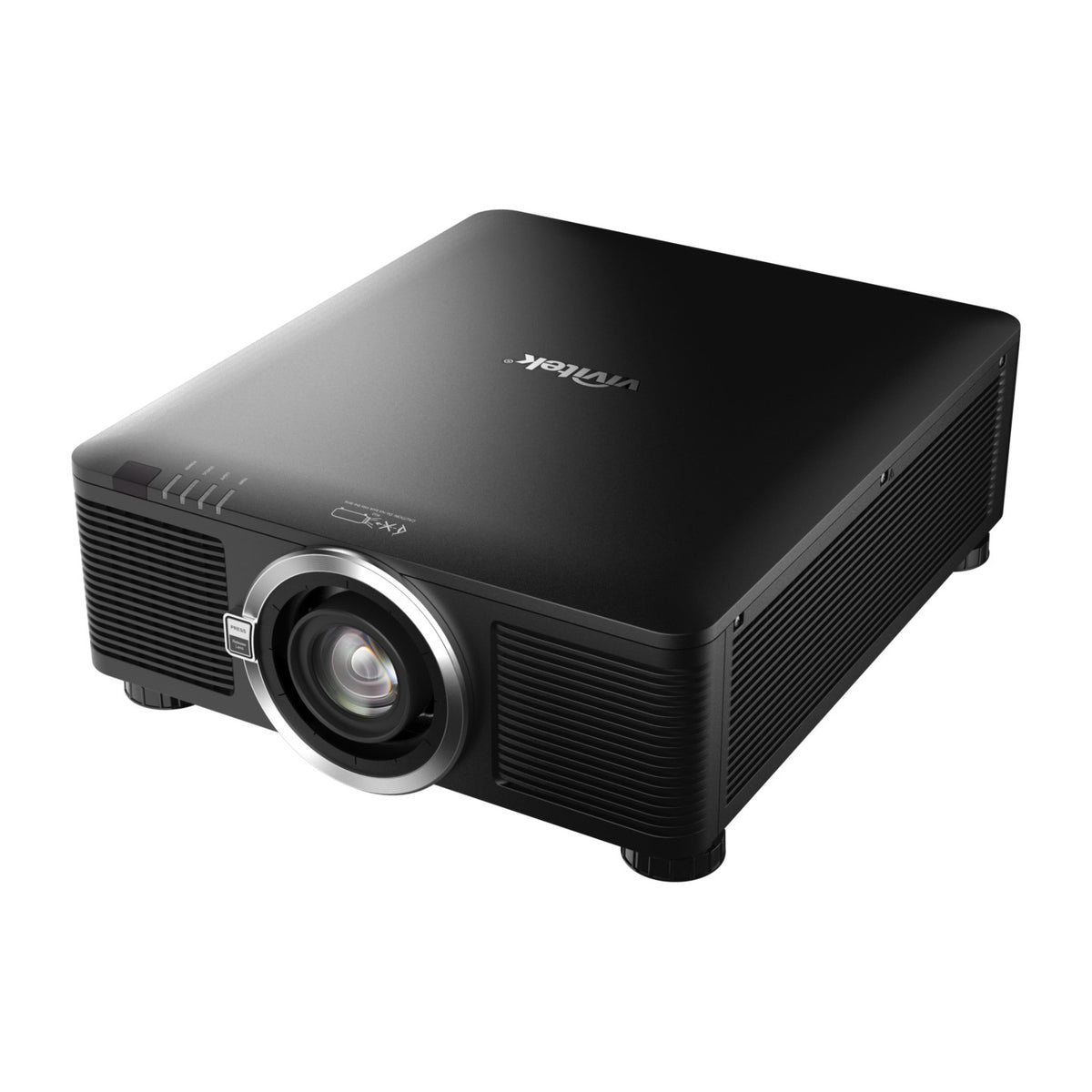

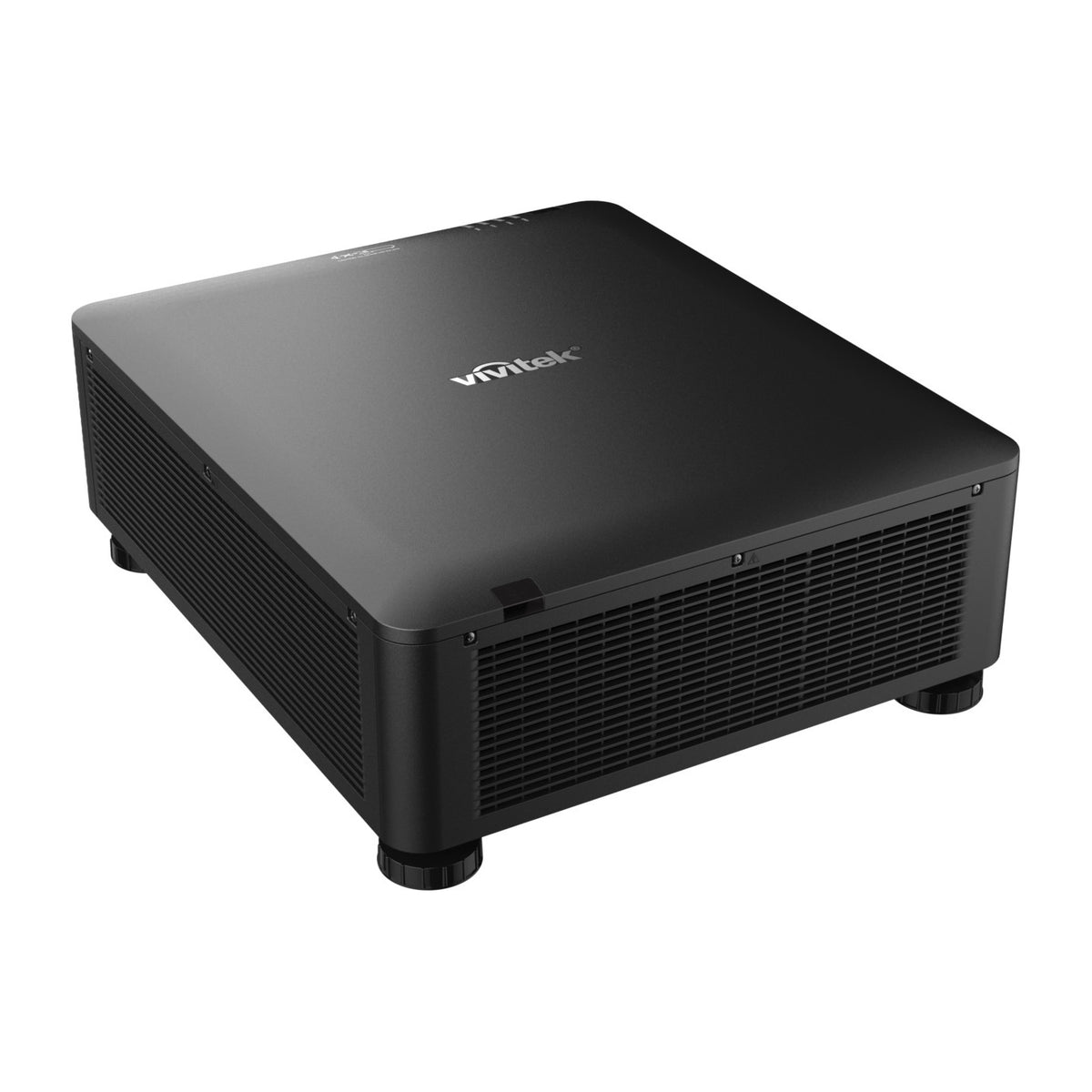

The DU8053Z combines WUXGA resolution with 14,000 ANSI lumens and dual laser illumination. It supports edge blending and warping for installations that use more than one projected image.
Motorised interchangeable lenses and lens positioning memory provide optical setup options. Portrait and 360-degree installation are supported. Choose the lens separately using the DU8053Z compatibility group.
| ITEM | DESCRIPTION |
|---|---|
| Image format | WUXGA(1920 x 1200) |
| Brightness | 14000 ANSI Lumens |
| Projection optics | 9 optional lenses from 0.31:1 to 6.94:1 throw ratio range |
| Source connections | HDMI Number of Ports 2 (x2), Display Port (x2), DVI-D , USB B (Service), Remote Jack(wire remote) , 3G-SDI , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A x1 (Power Only-5V/2A), RJ45 (LANx1, HDBaseTx1) |
AC Power Cord , Lens Cap , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | WUXGA(1920 x 1200) |
| Brightness | 14000 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 (Full On/Off) |
| Native Aspect Ratio | 16:10 |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.8" DMD |
| Lamp Life and Type | 30,000 hours / Dual Laser Technology |
| Throw Ratio | 9 optional lenses from 0.31:1 to 6.94:1 throw ratio range |
| Zoom Ratio | Motorized |
| Lens Shift Range | Lens Shift Range (Vertical: ±60%, Horizontal: ±20%) |
| Keystone Correction | Horizontal ±60°, Vertical ±40° |

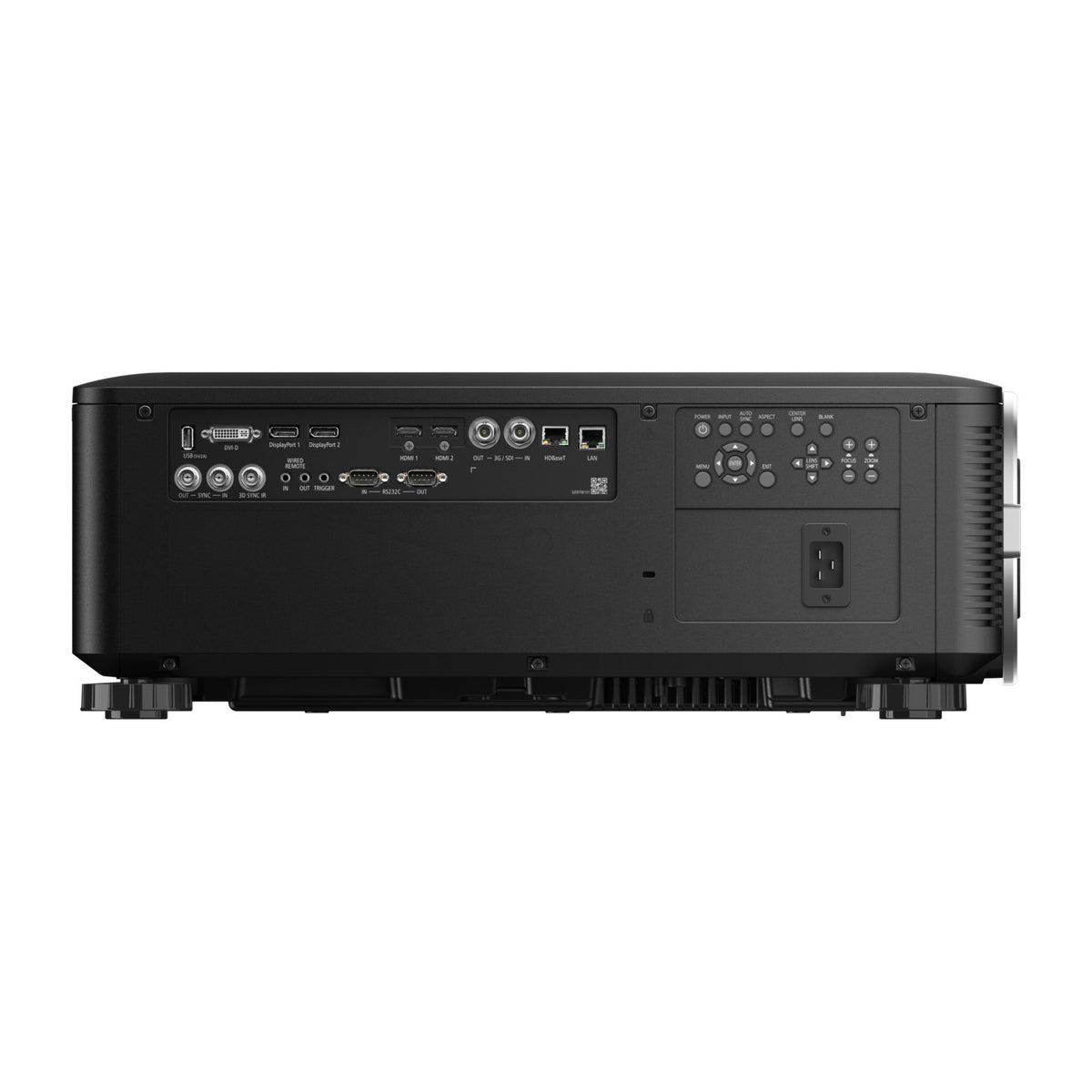

| I/O Connection Ports | HDMI Number of Ports 2 (x2), Display Port (x2), DVI-D , USB B (Service), Remote Jack(wire remote) , 3G-SDI , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A x1 (Power Only-5V/2A), RJ45 (LANx1, HDBaseTx1) |
| Dimensions (W x D x H) | 500 x 591 x 216 mm |
| Weight | 29.4 kg |
| Noise Level | 39dB / 36dB (Normal / Eco Mode) |
| Power | AC 100-240V, 50/60Hz Consumption: 830W240Vac (Normal), <0.5W (Standby) |
