The DU775Z-UST produces a WUXGA image from a 0.25:1 ultra short throw lens. Its 5,000 ANSI lumens and fixed lens support large-screen installations where the projector needs to stay close to the projection surface.
Two 10 W speakers provide onboard audio. HDMI input and output, network control and an optional interactive upgrade give it a place in teaching, signage and visitor-display systems. The interactive accessories are optional.
| ITEM | DESCRIPTION |
|---|---|
| Image format | WUXGA (1920×1200) |
| Brightness | 5000 ANSI Lumens |
| Projection optics | 0.25:1 |

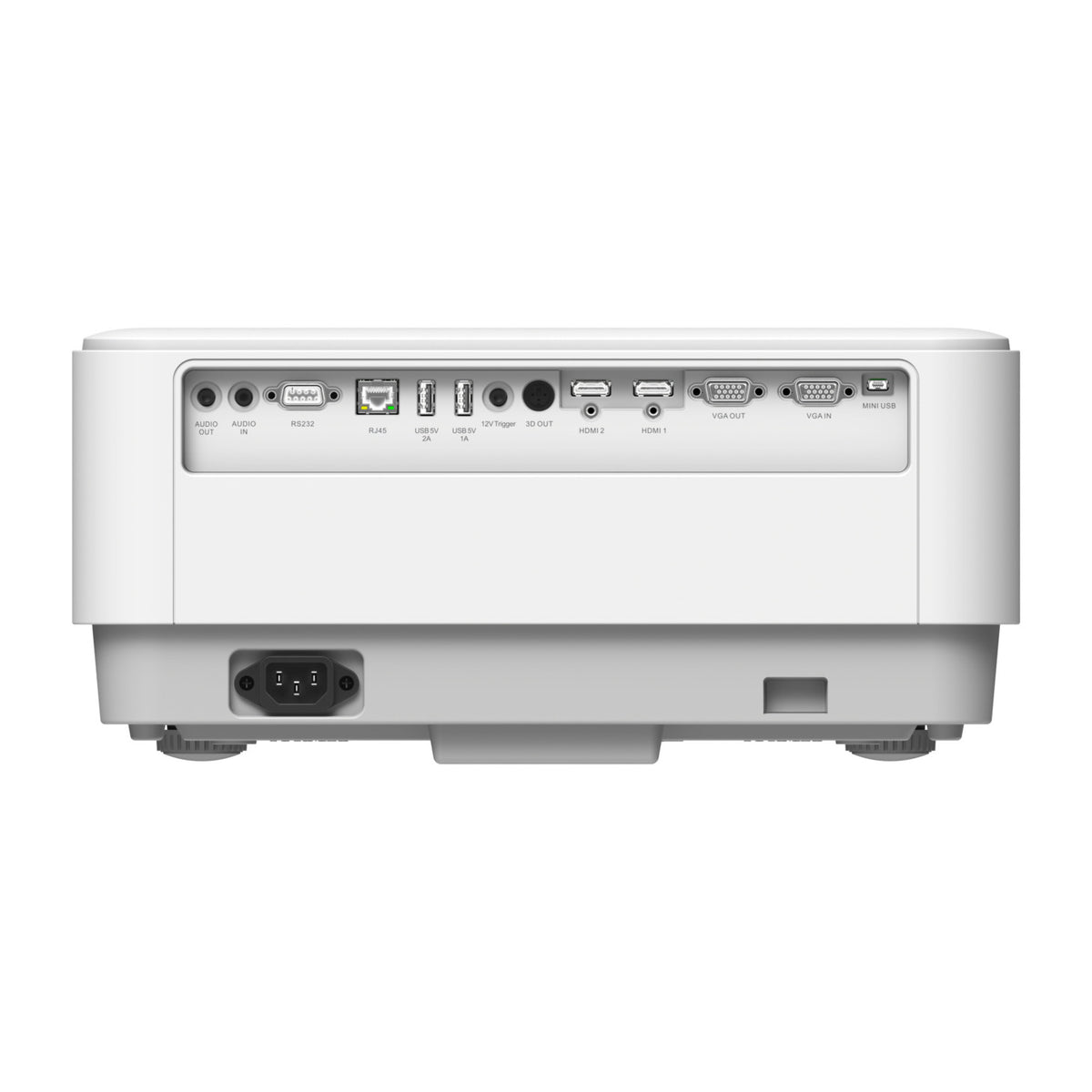

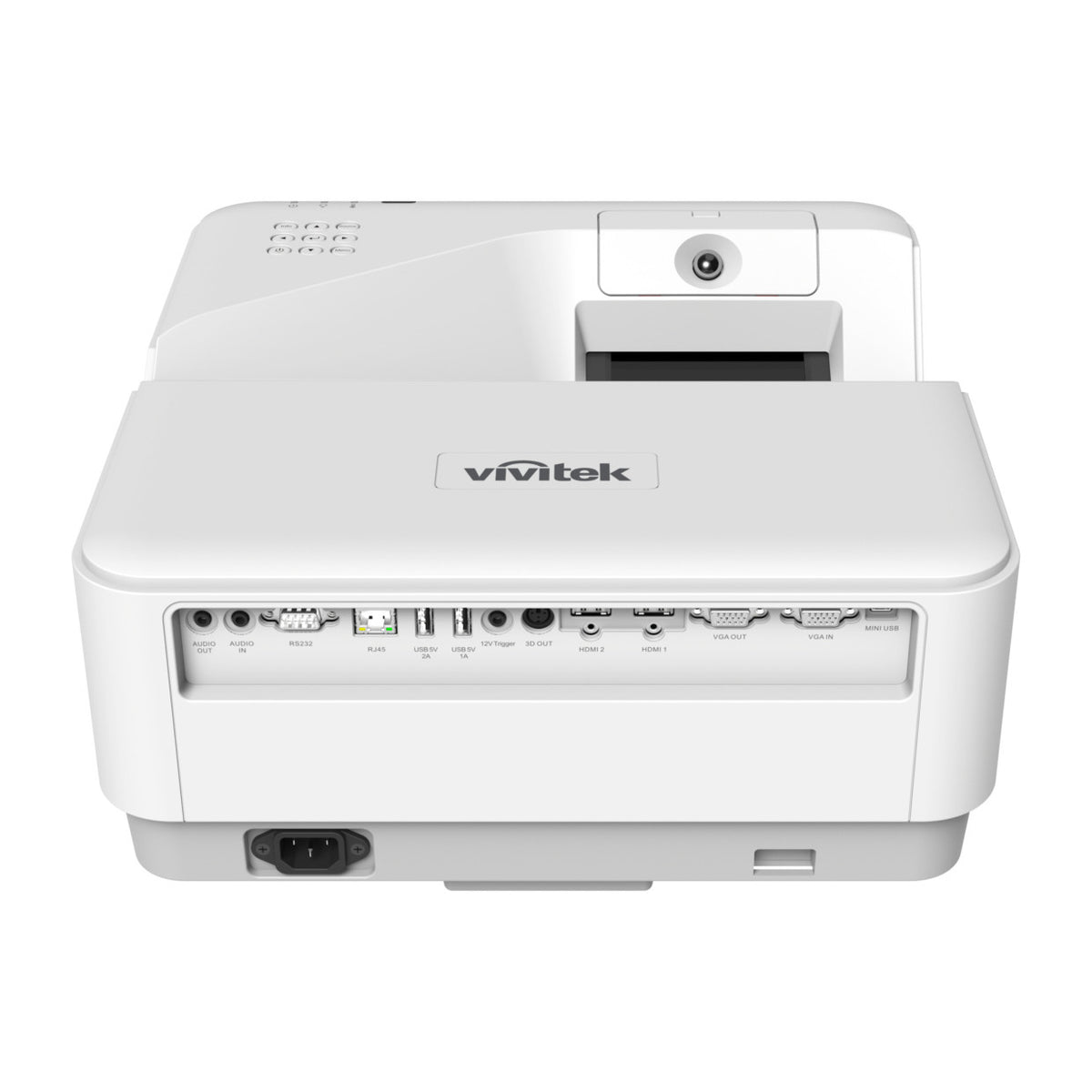

| Source connections | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports v 2.0 (HDMI-In x2, HDMI-Out x1), USB B (Service), RS-232 , 3D-Sync , USB A 5V/2A (Power Only), VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , RJ45 , Audio-In (RCA) , Audio-In (Mini-Jack) |
AC Power Cord , User Manual (CD) , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | WUXGA (1920×1200) |
| Brightness | 5000 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 |
| Native Aspect Ratio | 16:10 |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.48” DMD |
| Lamp Life and Type | Laser light source 20,000 / 30,000 Hours (Normal / Eco. Mode) |
| Throw Ratio | 0.25:1 |
| Zoom Ratio | Fixed |
| Projection Distance | 336mm~739mm |
| Image Size (Diagonal) | 70"- 150" (100% Focus) |
| Keystone Correction | Vertical: ±15 steps |
| Speakers | 10W x 2 |
| I/O Connection Ports | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports v 2.0 (HDMI-In x2, HDMI-Out x1), USB B (Service), RS-232 , 3D-Sync , USB A 5V/2A (Power Only), VGA-Out (15pin D-Sub) , Audio-Out (Mini-Jack) , RJ45 , Audio-In (RCA) , Audio-In (Mini-Jack) |
| Dimensions (W x D x H) | 380 x 405 x 150 mm |
| Weight | 8.9 kg |
| Noise Level | 32dB/27dB (Normal/Eco. Mode) |
