The DU7299Z supplies 10,000 ANSI lumens with native WUXGA resolution. Its interchangeable lens system supports installations with different projection distances and screen positions.
Motorised lens adjustment and lens memory help configure the picture. HDBaseT and network connections provide system integration. Optional lenses are separate products, with compatibility and throw ratios listed for this exact model. This offer is the black version.
| ITEM | DESCRIPTION |
|---|---|
| Image format | WUXGA (1920 x 1200) |
| Brightness | 10000 ANSI Lumens |
| Projection optics | 9 optional lenses from 0.50:1 to 8.3 :1 throw ratio range |

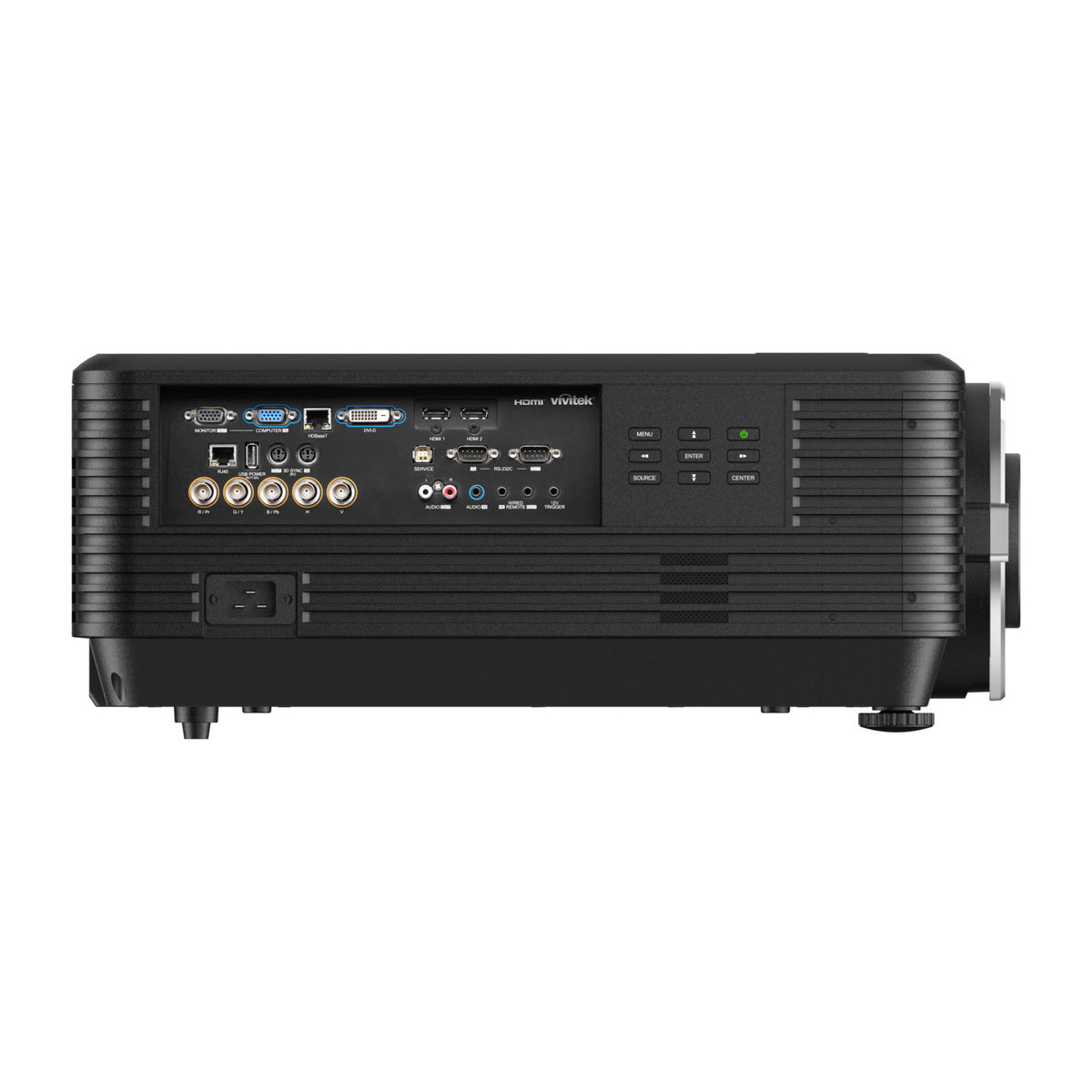

| Source connections | VGA-In (15pin D-Sub) , HDMI Number of Ports v.2.0 (x2), DVI-D , Component (5 BNC) (RGBHV) , USB B (Service), Remote Jack(wire remote) , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A (Power Only), VGA-Out (15pin D-Sub) , Audio-Out (RCA) , RJ45 (x2: LANx1, HDBaseTx1), Composite Video , Audio-In (RCA) , Audio-In (Mini-Jack) |
VGA Cable , AC Power Cord , Lens Cap , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 10000 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 (Full On/Off) |
| Native Aspect Ratio | 16:10 |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.67” DMD |
| Lamp Life and Type | Lamp free design. Laser light source lasts up to 20,000 hours |
| Throw Ratio | 9 optional lenses from 0.50:1 to 8.3 :1 throw ratio range |
| Zoom Ratio | Motorized |
| Lens Shift Range | Lens Shift Range (Vertical: Bottom 50% to Top 70%, Horizontal: Left 15% to Right 15%) |
| Keystone Correction | Vertical +/-30°; Horizontal +/-30° |
| Speakers | 10 W x2 |
| I/O Connection Ports | VGA-In (15pin D-Sub) , HDMI Number of Ports v.2.0 (x2), DVI-D , Component (5 BNC) (RGBHV) , USB B (Service), Remote Jack(wire remote) , RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A (Power Only), VGA-Out (15pin D-Sub) , Audio-Out (RCA) , RJ45 (x2: LANx1, HDBaseTx1), Composite Video , Audio-In (RCA) , Audio-In (Mini-Jack) |
| Dimensions (W x D x H) | 470 x 517 x 202mm |
| Weight | 23.5 kg |
| Noise Level | 38dB/36dB (Normal/Eco. Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 575W (Normal Mode), <0.5W (Standby) |
| Colour | Black |
