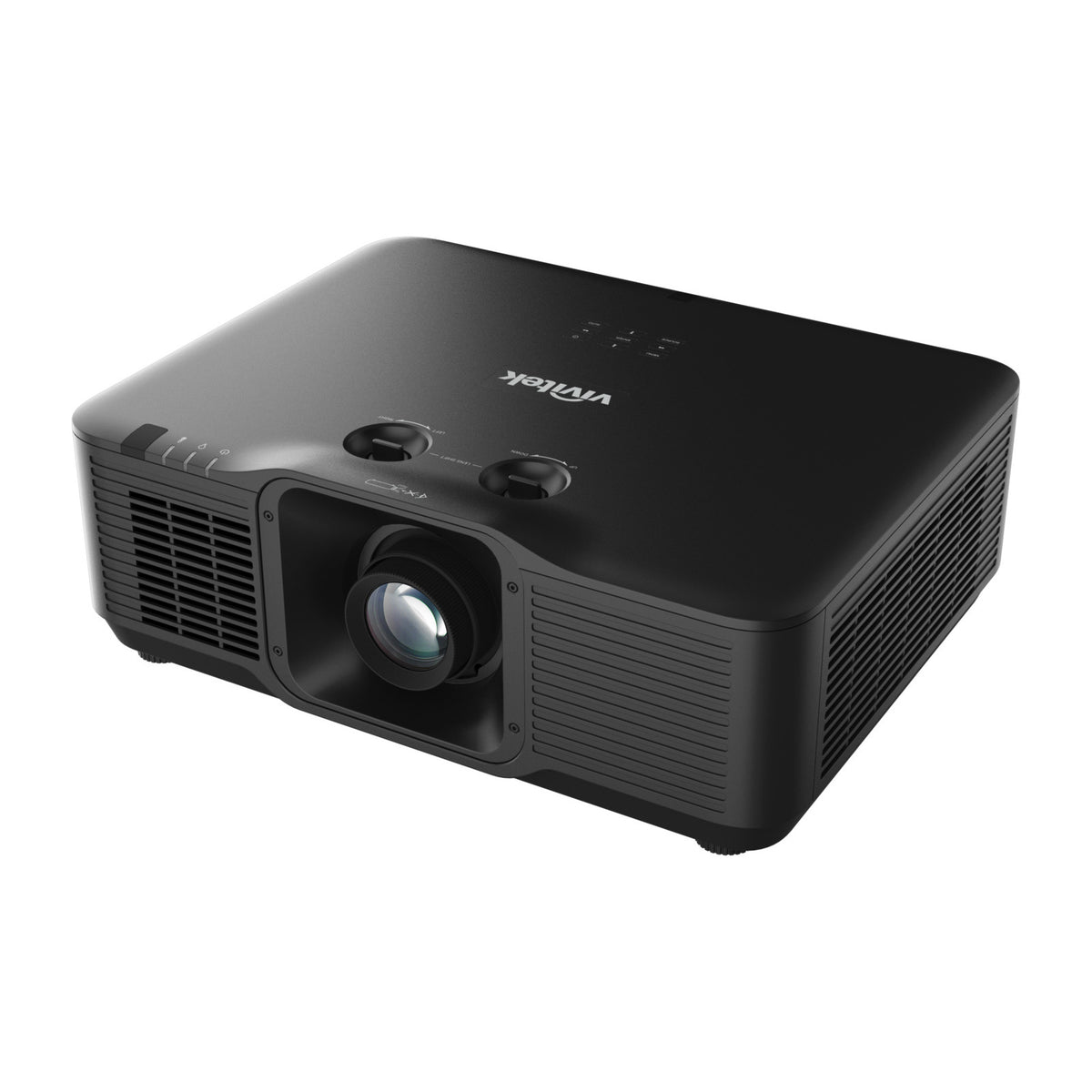

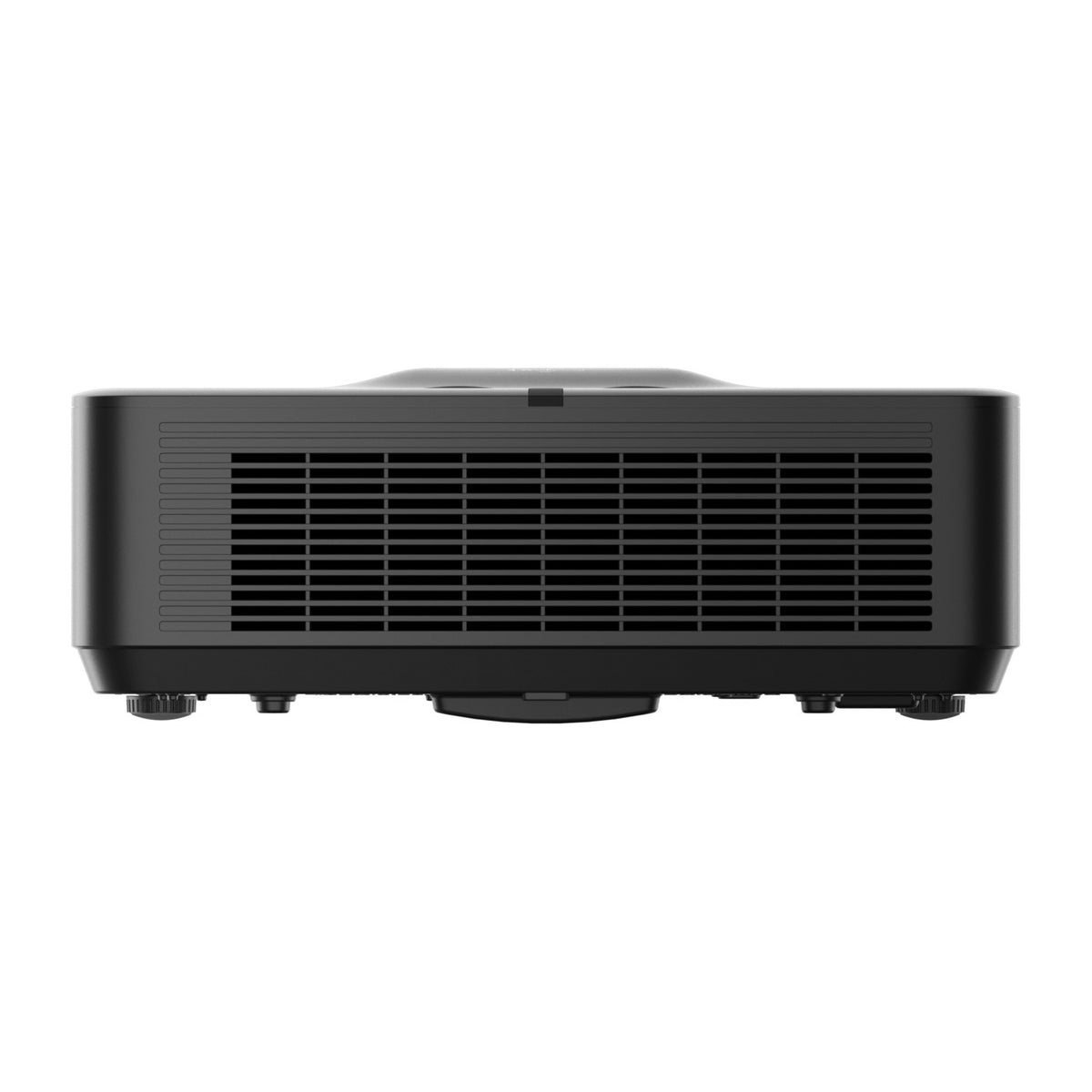

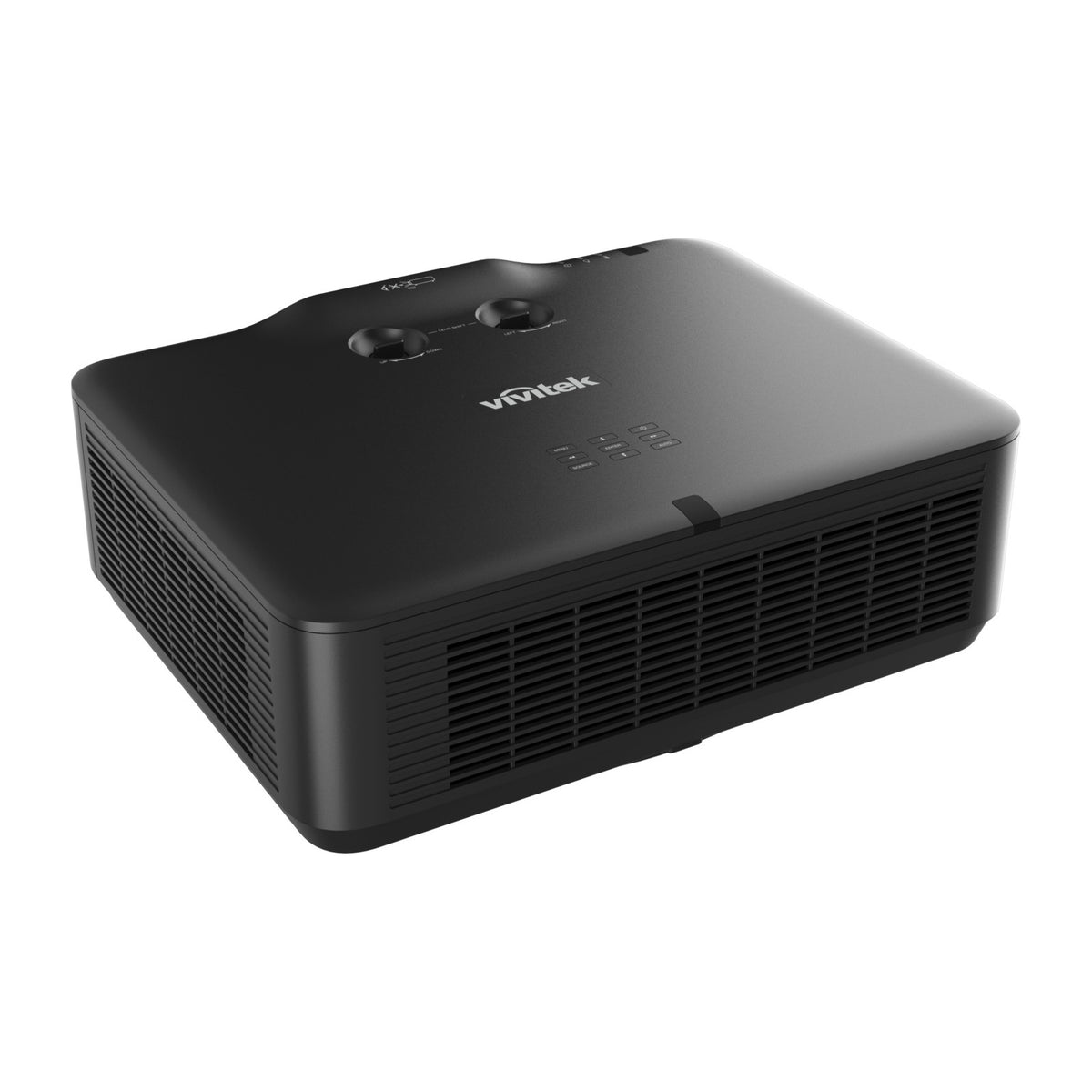

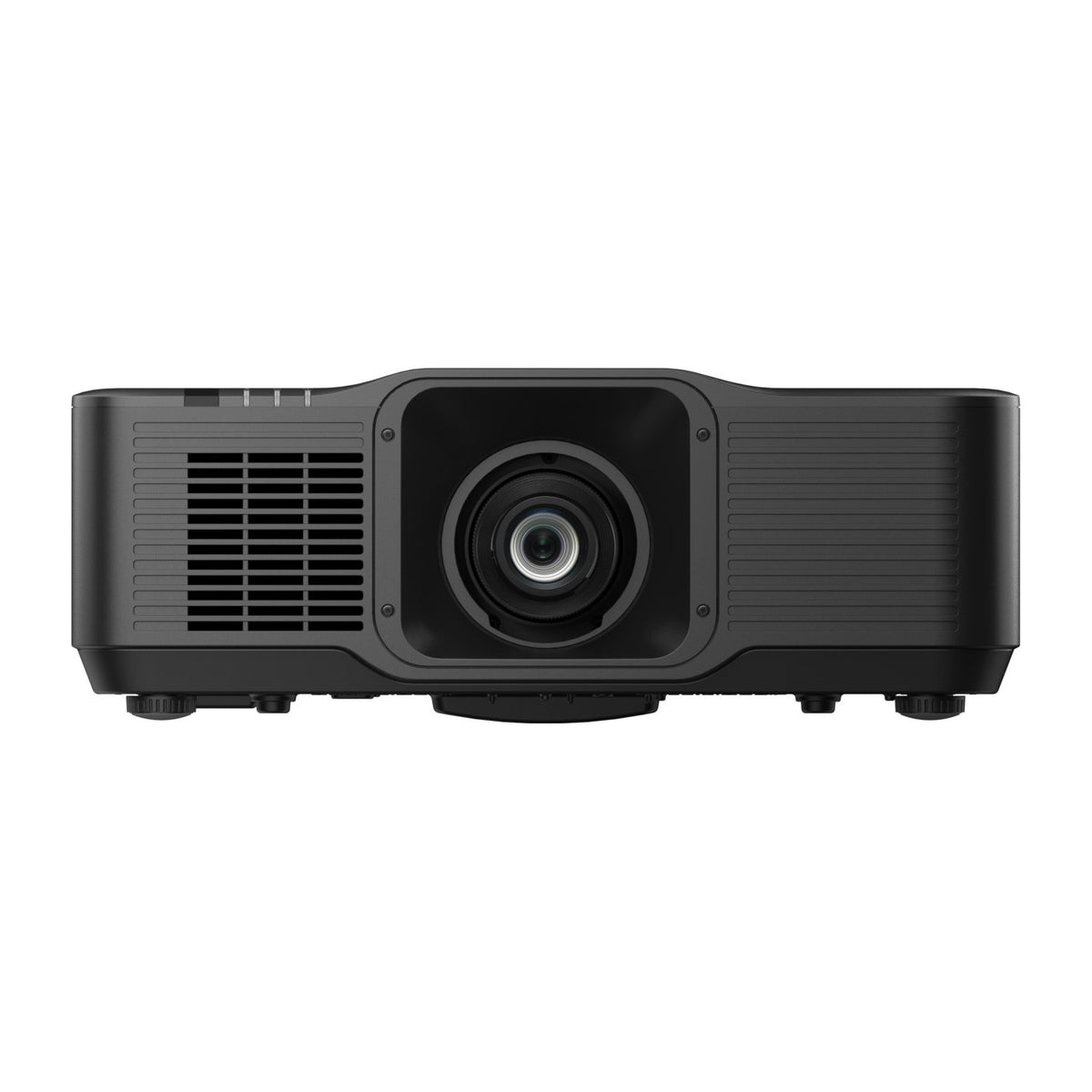

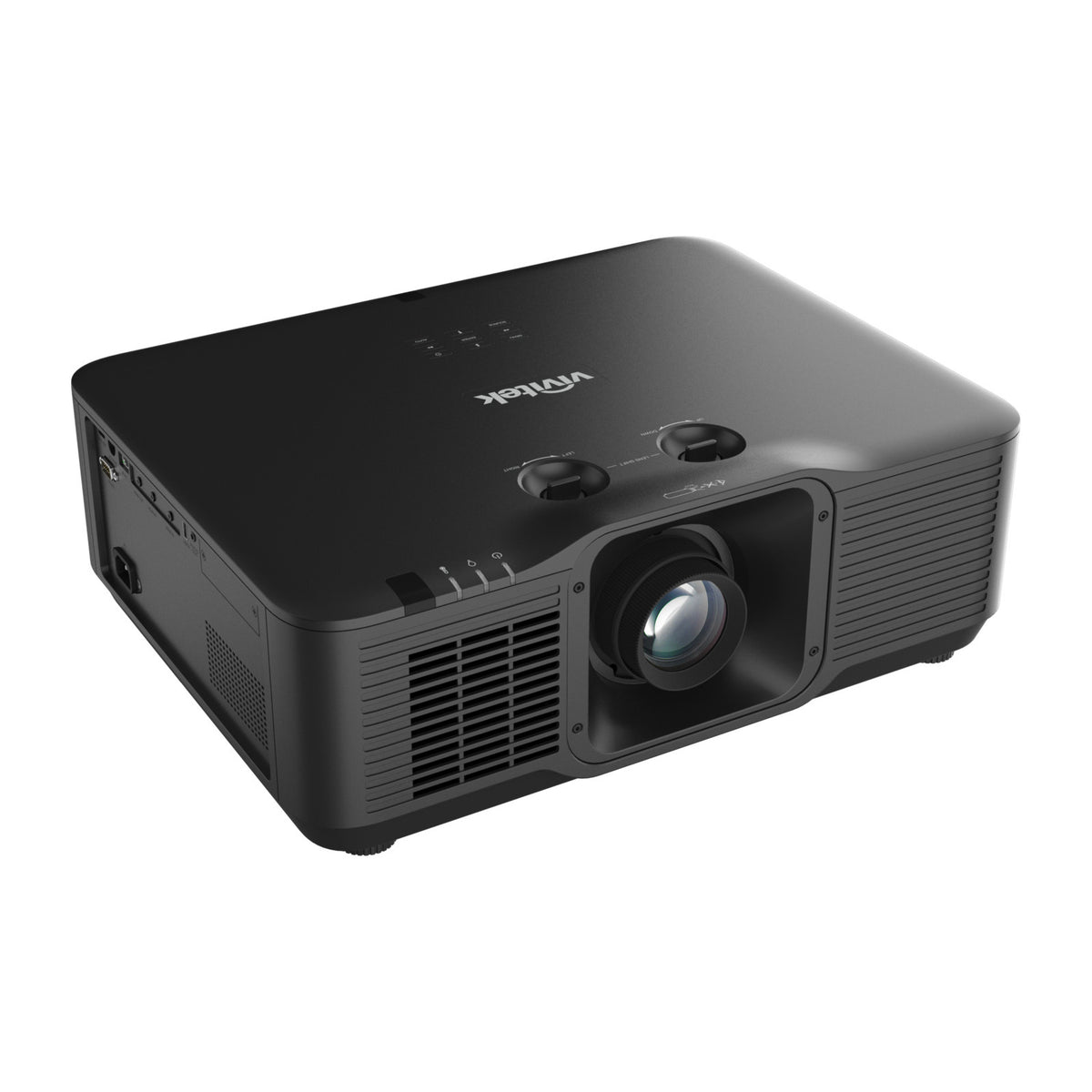

The DU5053Z brings WUXGA resolution and 7,700 ANSI lumens to conference and presentation systems. Lens shift and the standard 1.15-1.9:1 throw range help position the image in a fixed installation.
HDMI input and output connect source devices and downstream displays. Network control is provided, with HDBaseT available through an optional module. This offer is the black version.
| ITEM | DESCRIPTION |
|---|---|
| Image format | WUXGA (1920 x 1200) |
| Brightness | 7700 ANSI Lumens |
| Projection optics | 1.15 - 1.9 :1 (Std.) |
| Source connections | HDMI Number of Ports v.2.0 (2.0 In x2 / Out x1), RS-232 , 3D-Sync (Out x1), USB A (Power Only), USB miniB (Service), Audio-Out (RCA) , RJ45 (HDBaseT(Optional) x1, LAN x1) |
AC Power Cord , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | WUXGA (1920 x 1200) |
| Brightness | 7700 ANSI Lumens |
| Contrast Ratio | 3,000,000:1 (Full On/Off) |
| Native Aspect Ratio | 16:10 |
| Display Type | Single Chip 0.67" DLP Technology |
| Lamp Life and Type | 20,000 hrs (Normal) |
| Throw Ratio | 1.15 - 1.9 :1 (Std.) |
| Zoom Ratio | 1.65x |
| Projection Distance | 1.5m - 8m |
| Image Size (Diagonal) | 36.7” - 322" |
| Lens Shift Range | Lens Shift Range (V: 25% / H: Left 4% to Right 4%) |
| Speakers | 10W x 1 |
| I/O Connection Ports | HDMI Number of Ports v.2.0 (2.0 In x2 / Out x1), RS-232 , 3D-Sync (Out x1), USB A (Power Only), USB miniB (Service), Audio-Out (RCA) , RJ45 (HDBaseT(Optional) x1, LAN x1) |
| Dimensions (W x D x H) | 496 x 380 x 160 mm |
| Weight | 12 kg |
| Noise Level | 36dB/31dB (Normal/Eco Mode) |
| Colour | Black |
