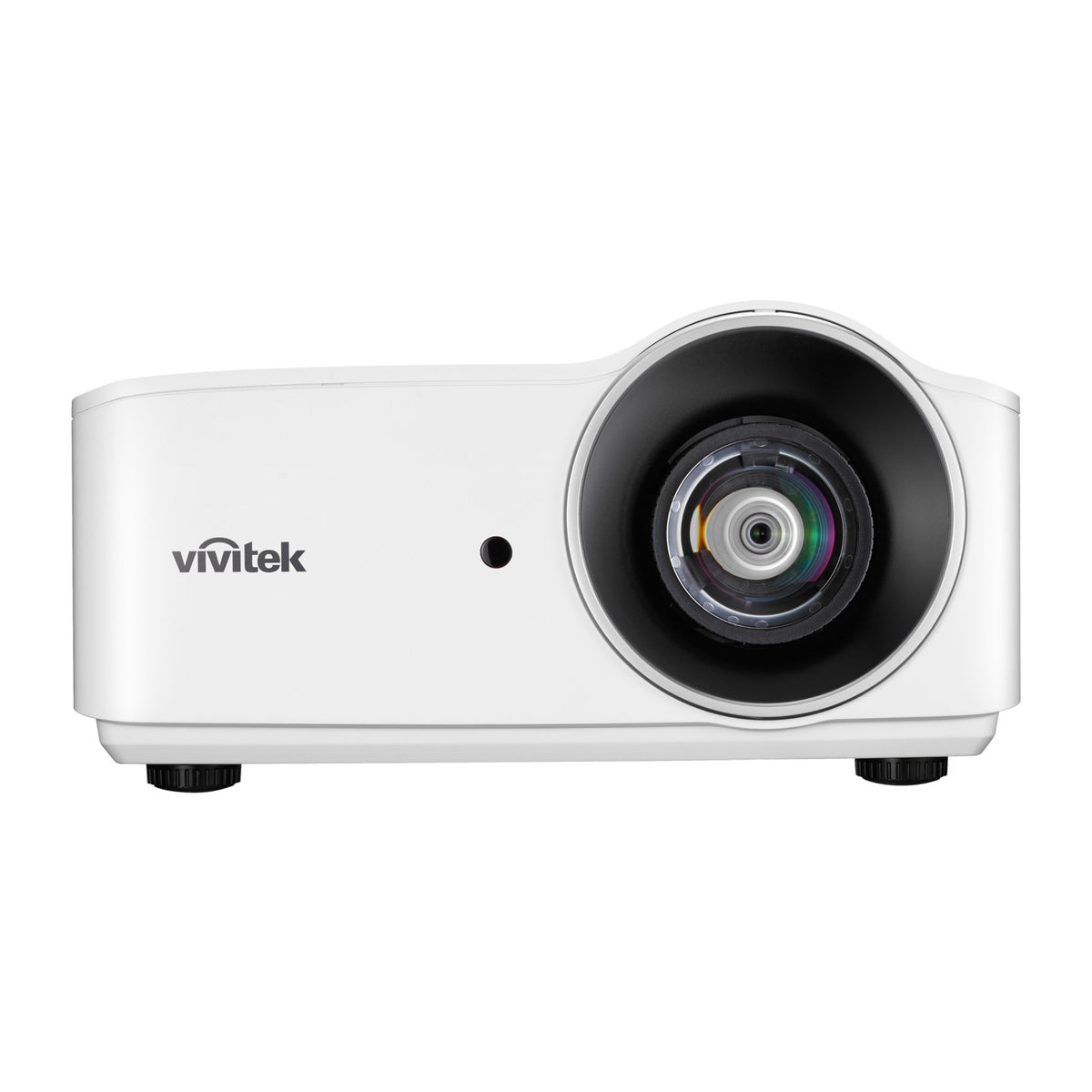

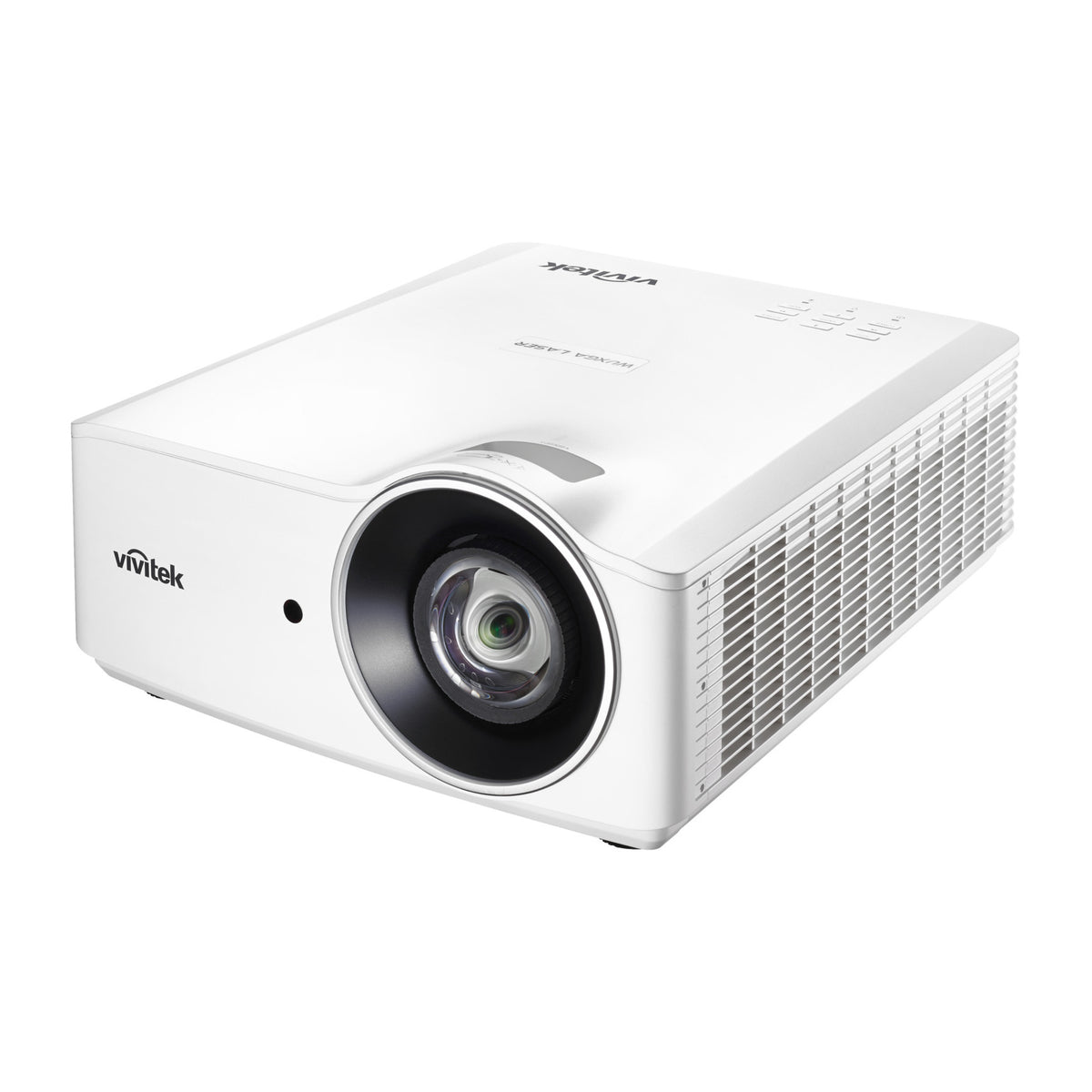

The DU4381Z-ST is a WUXGA laser projector with a 0.5:1 short throw lens and 6,100 ANSI lumens. It suits installations that need a large image from a shorter projection distance.
Three HDMI inputs offer source connections. Its built-in speaker and microphone input support presentation audio, with network connectivity for installation control.
| ITEM | DESCRIPTION |
|---|---|
| Image format | WUXGA (1920×1200) |
| Brightness | 6100 ANSI Lumens |
| Projection optics | 0.5:1 |

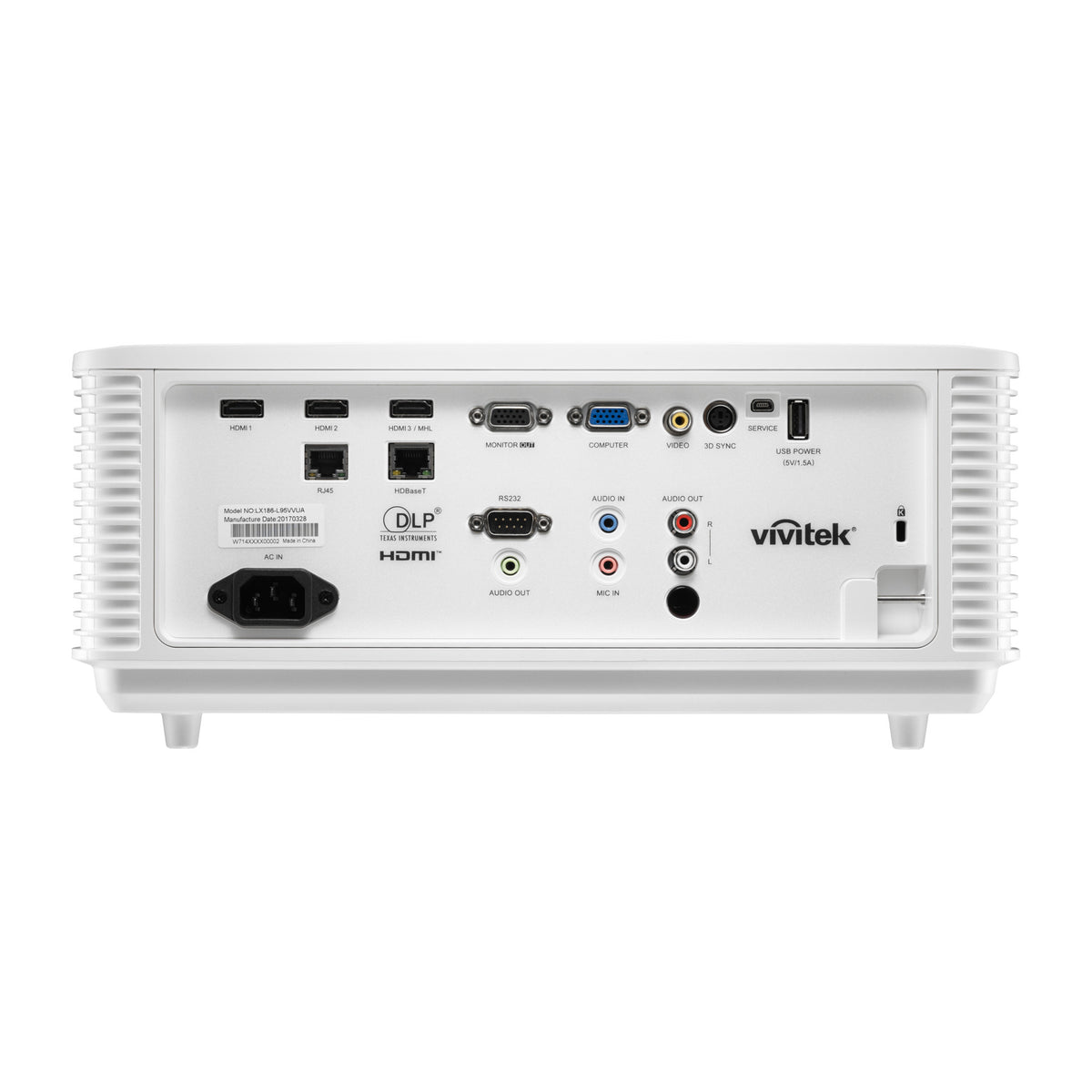

| Source connections | VGA-In (15pin D-Sub) (1x), HDMI Number of Ports 1.4a (3x), Microphone (Mini-Jack) (1x), Remote Jack(wire remote) , RS-232 (1x ), 3D-Sync (1x 3D Sync out), USB A (1x 5V 1.5A), USB miniB (Service), VGA-Out (15pin D-Sub) (1x), RJ45 (2x LAN / HDBaseT), IP Telnet Capable Over RJ-45 , Composite Video (1x), Audio-In (RCA) (1x), Audio-In (Mini-Jack) (1x) |
R/C Wire 3.5mm Jack , AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | WUXGA (1920×1200) |
| Brightness | 6100 ANSI Lumens |
| Contrast Ratio | 30,000 :1 |
| Native Aspect Ratio | 16:10 |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.67" S600HB |
| Throw Ratio | 0.5:1 |
| Zoom Ratio | Fixed |
| Projection Distance | 0.65 - 3.5 m |
| Image Size (Diagonal) | 60" - 325" |
| Keystone Correction | Vertical: +/-15°, Horizontal +/-15° |
| I/O Connection Ports | VGA-In (15pin D-Sub) (1x), HDMI Number of Ports 1.4a (3x), Microphone (Mini-Jack) (1x), Remote Jack(wire remote) , RS-232 (1x ), 3D-Sync (1x 3D Sync out), USB A (1x 5V 1.5A), USB miniB (Service), VGA-Out (15pin D-Sub) (1x), RJ45 (2x LAN / HDBaseT), IP Telnet Capable Over RJ-45 , Composite Video (1x), Audio-In (RCA) (1x), Audio-In (Mini-Jack) (1x) |
| Dimensions (W x D x H) | 360 x 440 x 186.3 mm |
| Weight | 10.5 kg |
| Noise Level | 36dB/34dB (Normal/Eco. Mode) |
| Power | AC 100-240V, 50/60Hz |
