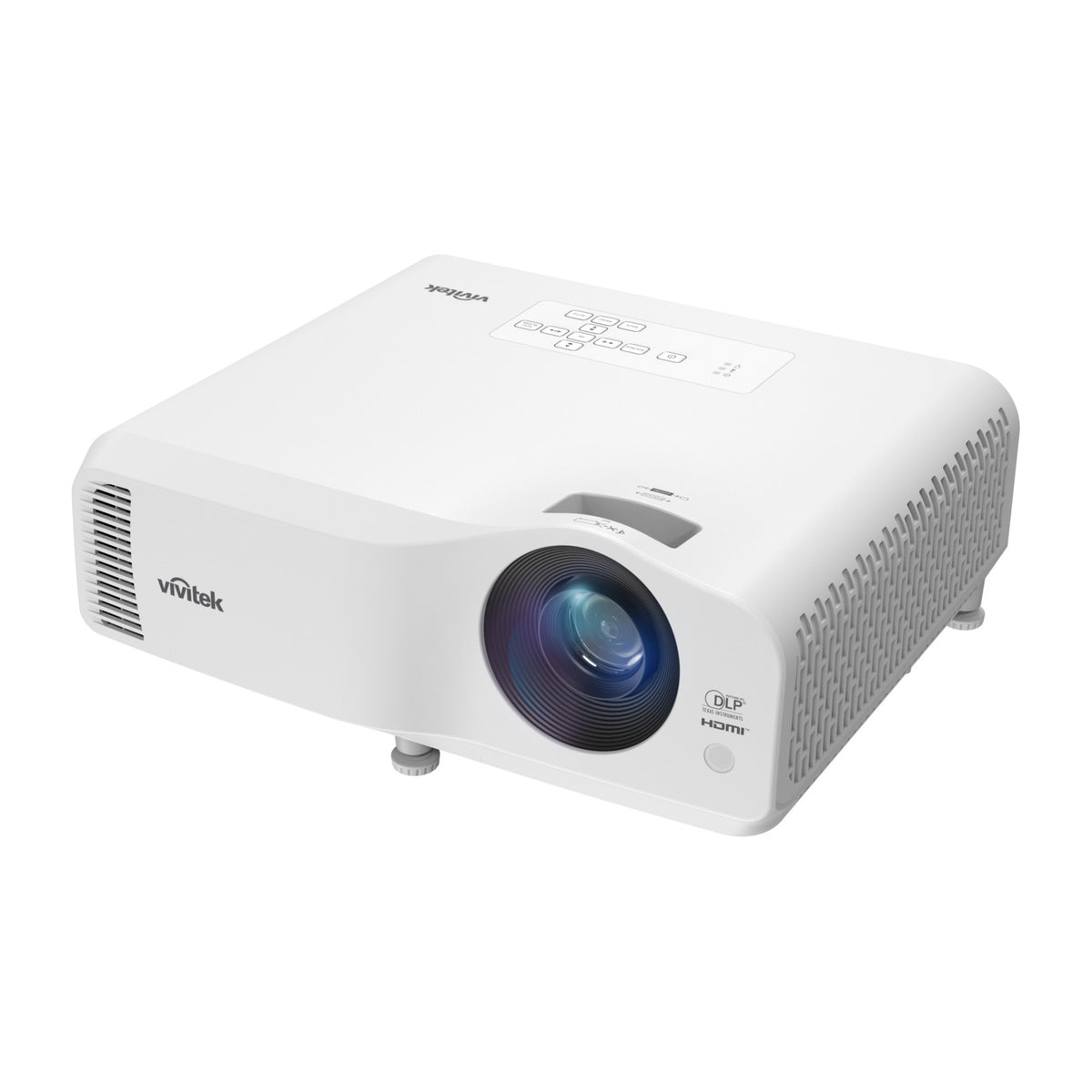

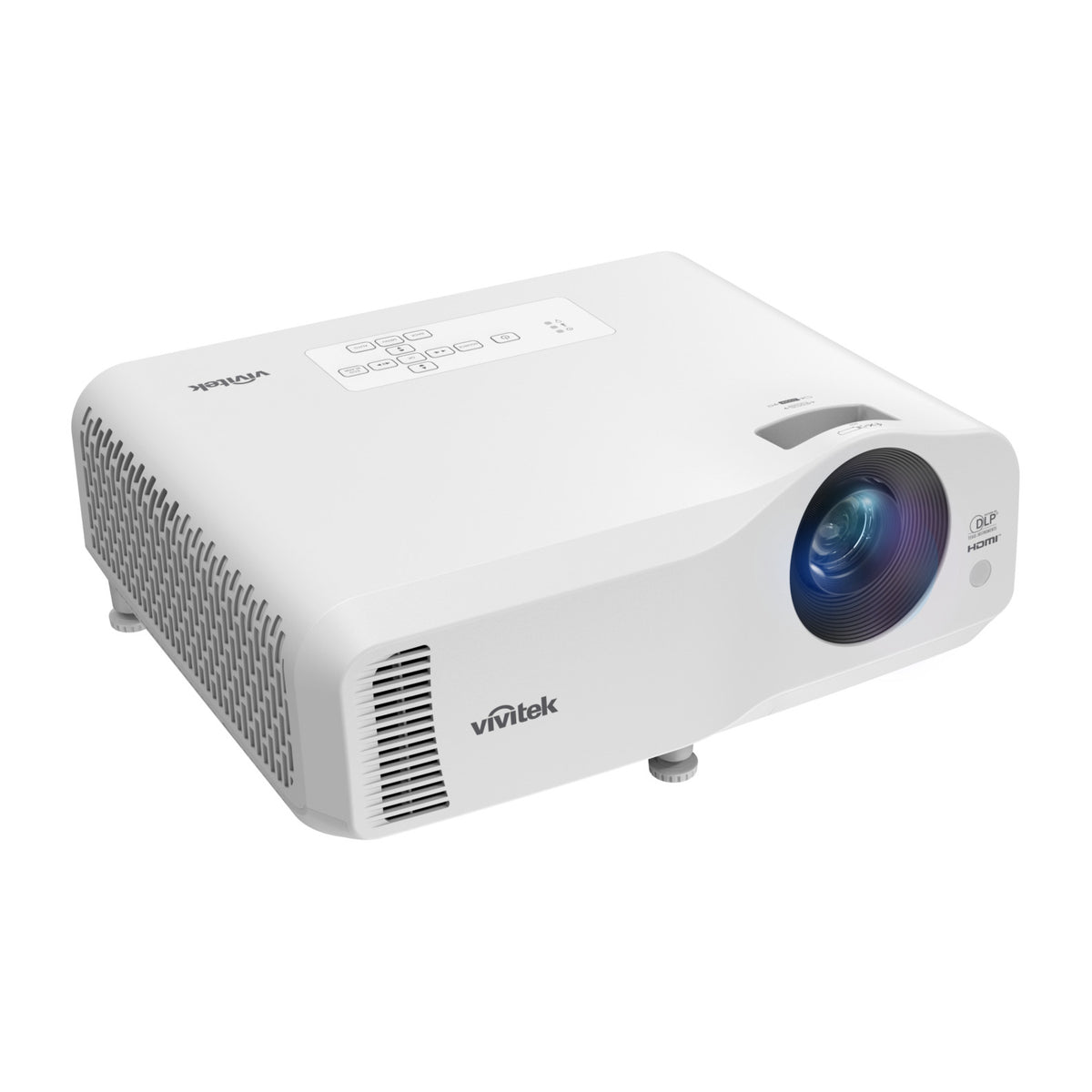

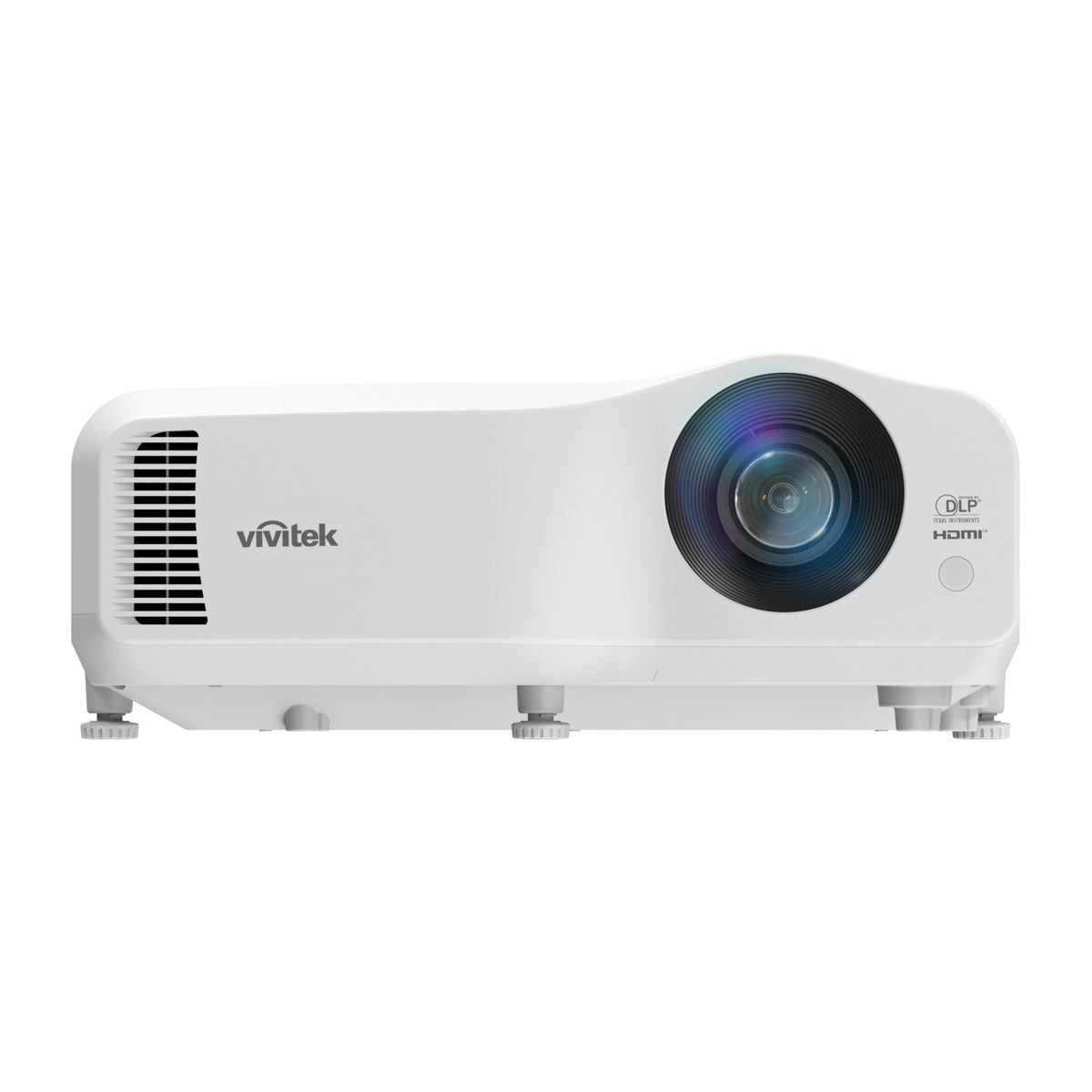

The DH2661Z is a Full HD laser projector with 4,000 ANSI lumens for presentations and video. Two HDMI 2.0 inputs provide source connections, while its zoom lens covers a 1.47-1.75:1 throw range.
The laser light source is rated for up to 20,000 hours in Normal mode or 30,000 hours in Eco mode. A built-in speaker and audio output support the sound side of the system.
| ITEM | DESCRIPTION |
|---|---|
| Image format | 1080p (1920 x 1080) |
| Brightness | 4000 ANSI Lumens |
| Projection optics | 1.475-1.753 |

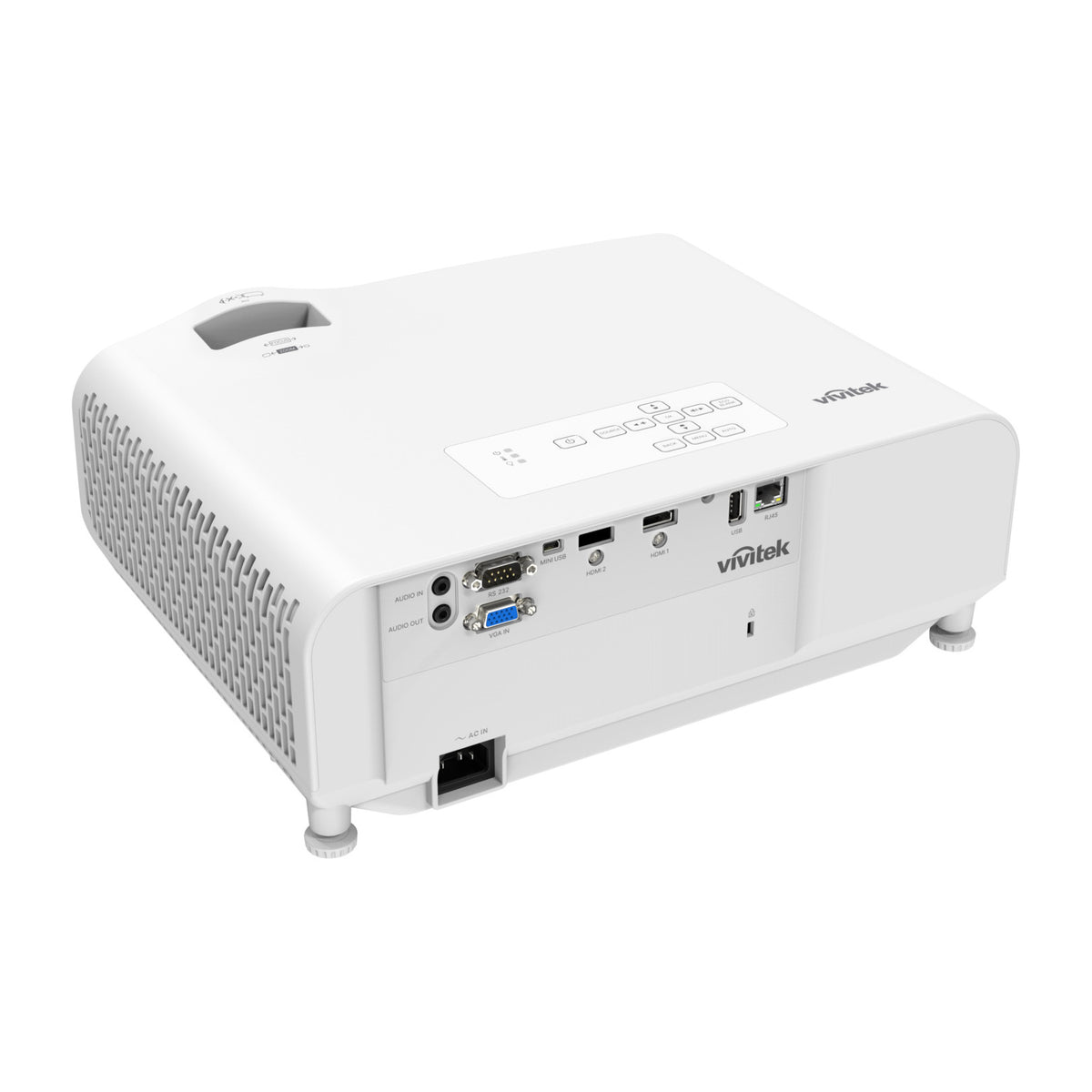

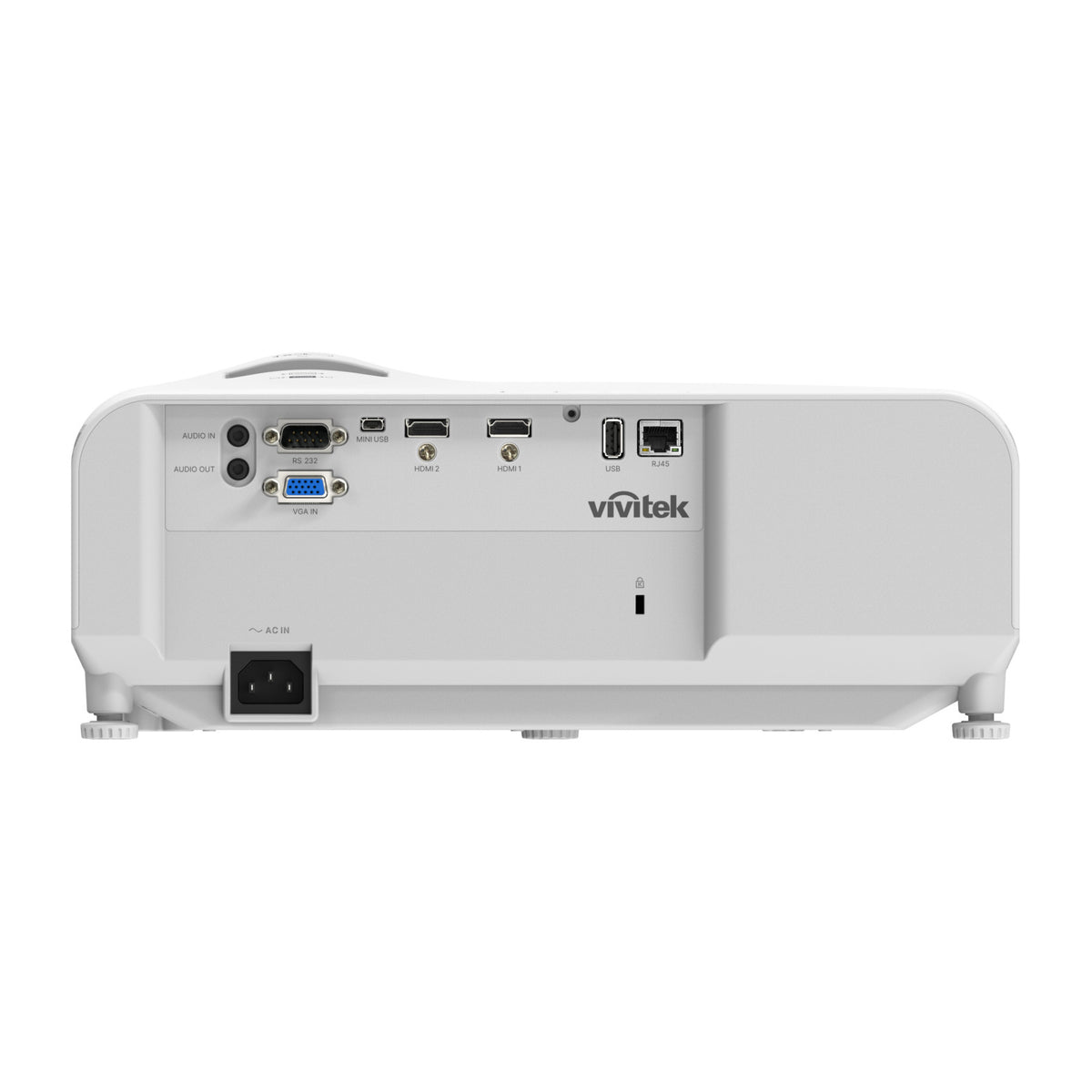

| Source connections | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports 2.0 (x2), RS-232 , USB A 2.0 (Power 5V/1.5A), USB miniB (Service), Audio-Out (Mini-Jack) , RJ45 , Audio-In (RCA) , Audio-In (Mini-Jack) |
VGA Cable , AC Power Cord , Quick Start Guide , Warranty Card (by region) , Remote Controller (with battery)
| DETAIL | VALUE |
|---|---|
| Native Resolution | 1080p (1920 x 1080) |
| Brightness | 4000 ANSI Lumens |
| Contrast Ratio | 3,000,000: 1 |
| Native Aspect Ratio | 16:9 |
| Display Type | Single chip DLP® Technology by Texas Instruments |
| Chip Size | 0.65” DMD |
| Lamp Life and Type | 20,000 / 30,000 hours (Normal / Eco) |
| Throw Ratio | 1.475-1.753 |
| Zoom Ratio | 1.2x |
| Projection Distance | 1.32 - 9.9m |
| Image Size (Diagonal) | 40" - 300" |
| Keystone Correction | Horizontal ±30°, Vertical ±30°/ 4-Corner |
| Speakers | 10W (Mono) |
| I/O Connection Ports | VGA-In (15pin D-Sub) (x1), HDMI Number of Ports 2.0 (x2), RS-232 , USB A 2.0 (Power 5V/1.5A), USB miniB (Service), Audio-Out (Mini-Jack) , RJ45 , Audio-In (RCA) , Audio-In (Mini-Jack) |
| Dimensions (W x D x H) | 353 x 290 x 144mm |
| Weight | 4.8 kg |
| Noise Level | 33dB/31dB (Normal/Eco Mode) |
| Power | Supply: AC 100-240V, 50/60Hz Consumption: 230W (Normal Mode), 180W (Eco Mode), <0.5W (Standby) |
