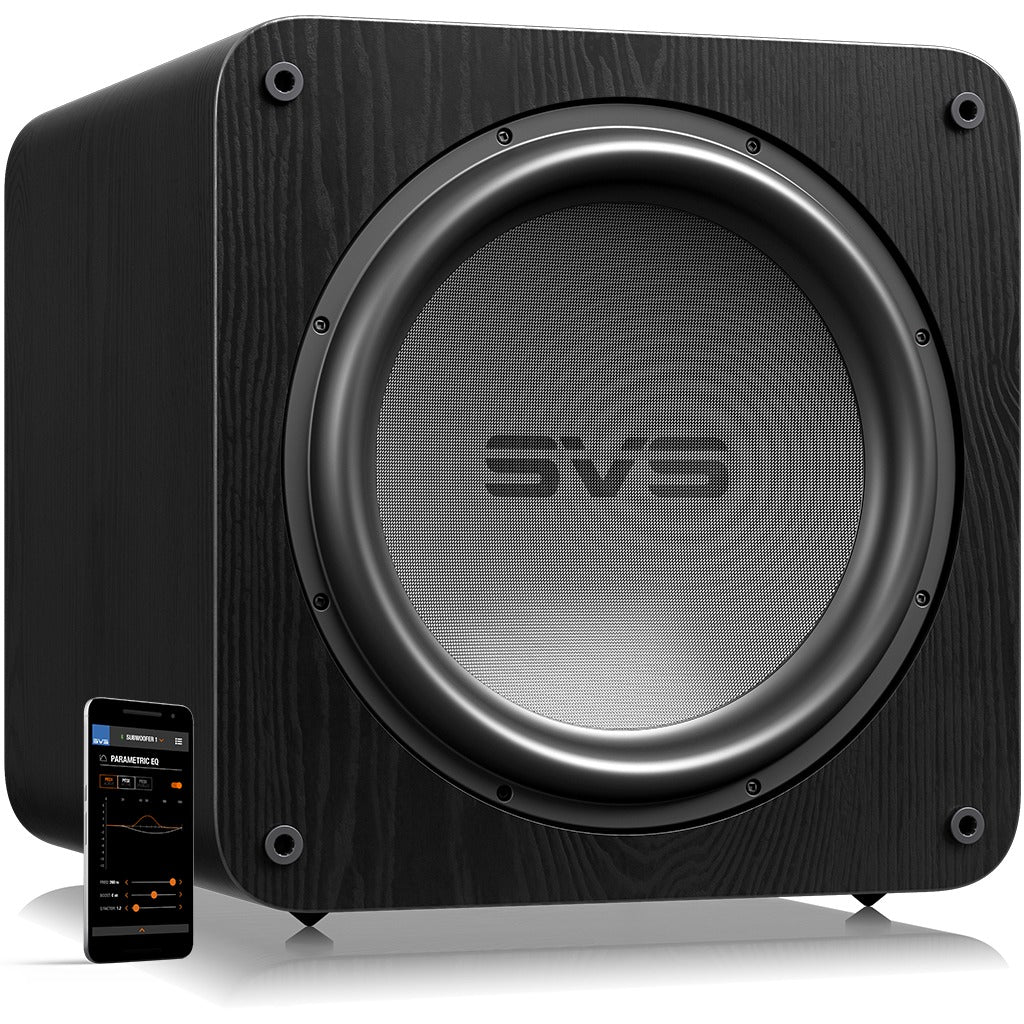

The SB-5000 REvolution is a sealed subwoofer on a different scale. Its glass-fibre composite driver is meant to pressurise a substantial cinema while retaining the direct, controlled character that draws listeners to a sealed design.
SVS drives the dual voice coils with two monoblock amplifier sections. Each output stage controls one coil, backed by a regulated switch-mode power supply and fast DSP that monitors thermal behaviour, voltage and excursion as the soundtrack moves from silence to full impact.
This is not the compact option in the range, and it makes no attempt to look like one. The appeal is reference output without port noise, together with app-based equalisation precise enough to make that output belong to the room.
For current specifications and product support, visit the SVS SB-5000 REvolution Subwoofer product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Composite driver | A rigid, relatively light cone and extreme-excursion suspension move substantial air without surrendering piston control. |
| Dual-mono voice-coil drive | Separate Class D amplifier sections feed the driver's two voice coils for greater current delivery and closer control of cone movement. |
| Regulated switch-mode supply | Power-factor correction and a stable internal rail help the amplifier maintain its behaviour as household voltage and programme demand change. |
| High-speed protection and DSP | Analog Devices processing shapes the response while supervising current, temperature and driver travel in real time. |
| Sealed reference enclosure | Heavy bracing and a closed cabinet support deep output with clean transient behaviour and no contribution from a port. |
| DETAIL | VALUE |
| Technical Specifications | |
| Cabinet | Sealed subwoofer design |
| Driver | Front-firing 15-inch glass-fibre composite driver |
| Amplifier | Dual-mono 2,000 W continuous Class-D; more than 5,000 W peak |
| Frequency response | 17 Hz to 280 Hz, +/-3 dB |
| Control | Bluetooth app and rear-panel OLED interface |
| Dimensions | 465 H x 453 W x 495 D mm with grille |
| Weight | 46.3 kg |
| Available finishes | Black Ash |
| Sold as | Each |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
