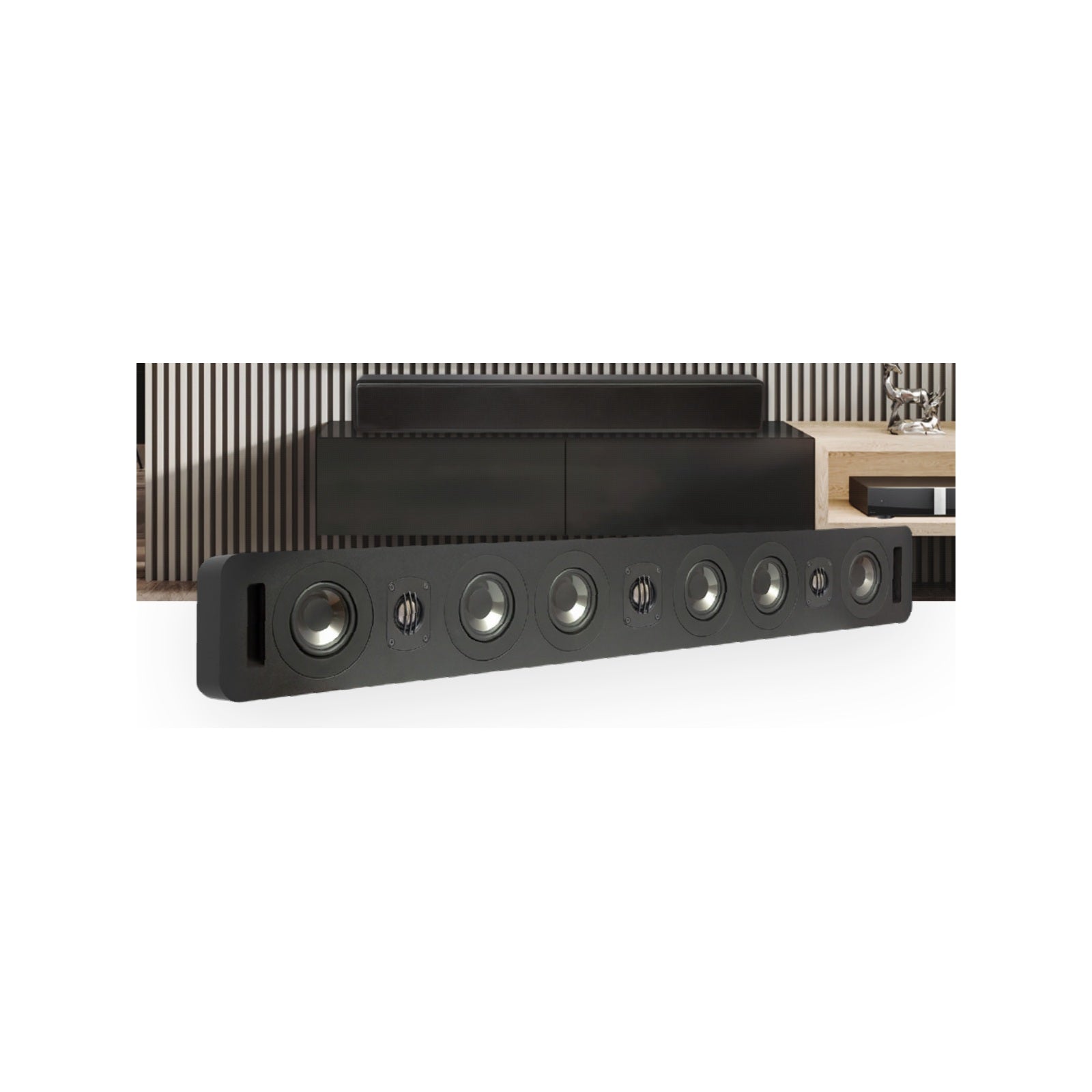

For a clean screen wall, SB-40P is the practical front-stage choice. It gives the installation three separate channels without three separate boxes.
6 × 3" graphite-polymer is divided across the LCR layout. That keeps the soundbar tied to a proper left, centre and right arrangement instead of folding everything into one summed channel.
The published 140 Hz-20 kHz and 6 ohms give the installer the information needed to match the cabinet to the amplifier, screen width and seating position.
| ITEM | DESCRIPTION |
| Main Features | |
| Passive LCR architecture | Three receiver-driven channels are combined in one cabinet to keep the screen-wall front stage aligned. |
| Model-specific driver array | 6 × 3" graphite-polymer is arranged for separate left, centre and right channel coverage. |
| External amplification | The soundbar has no built-in power stage; the AV receiver or power amplifier remains responsible for channel power and processing. |
| Screen-wall format | The long, shallow enclosure is suited to installations where the display position and front-stage width are planned together. |
| DETAIL | VALUE |
| Product Specifications | |
| Model | SB-40P |
| Channel configuration | Passive LCR |
| Woofers | 6 × 3" graphite-polymer |
| Tweeters | 3 × 1" titanium dome |
| Power handling | 60 W per channel |
| Sensitivity | 88 dB |
| Impedance | 6 ohms |
| Frequency response | 140 Hz-20 kHz |
| Dimensions | 1011.24 W × 69.85 D × 131.76 H mm |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
