The Pinnacle Ring Radiator Tweeter’s distinctive pointed shape guides the dispersion of high frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.
Polk Audio’s pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation means the woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.
Designed with the same driver components of the Reserve series speakers, you can mix and match to create the ultimate home theater setup.

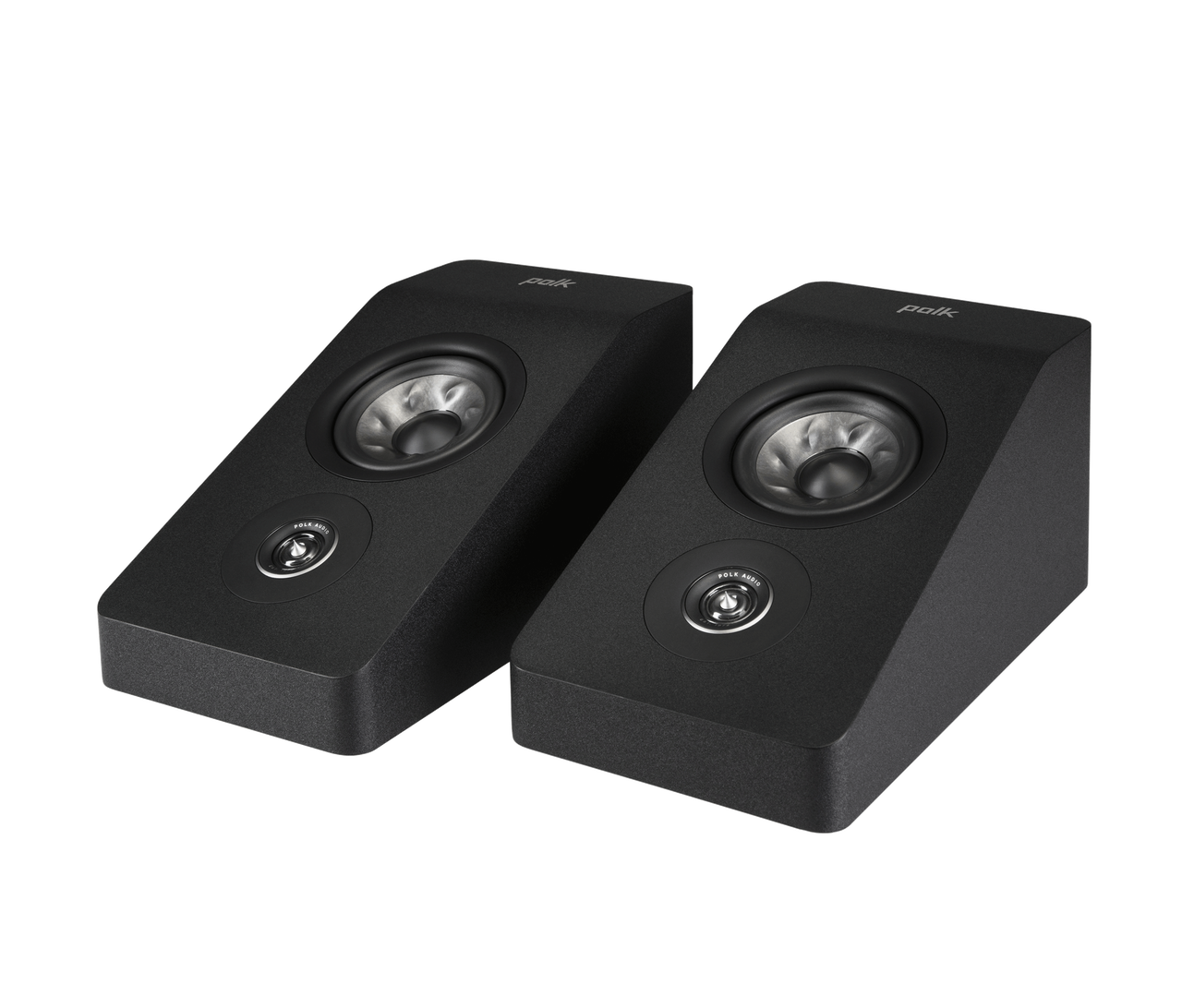

For official product information and current support resources, visit the Polk Audio Polk R900HT Atmos Module product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Pinnacle Ring Radiator tweeter | Polk’s high-frequency driver is shaped for broad, even dispersion and a generous listening area. |
| Turbine Cone drivers | A rigid, low-mass cone structure keeps midrange detail and bass transients clean under dynamic programme material. |
| Dolby Atmos integration | The channel is engineered for a coherent height layer in a properly configured cinema system. |
| Dedicated height-channel role | Places overhead effects into the system without changing the voicing of the main speaker family. |
| Flexible cinema placement | Suitable for the model’s supported top-mounted or wall-mounted height configuration. |
| DETAIL | VALUE |
| Product Specifications | |
| Speaker Type | Height Module |
| UOM (Sold As) | Pair |
| Tweeter | 0.75" Pinnacle Ring Radiator |
| Woofers | 4” Turbine Cone |
| Overall Frequency Response | 50 – 50kHz (when wall mounted) |
| Frequency Response (-3dB limits) | 70 – 32kHz (when wall mounted) |
| Recommended Amplifier Power | 45 - 100W |
| Amplifier Output Compatibility | 8Ω / 6Ω / 4Ω |
| Minimum Impedance (ohms) | 4.2Ω |
| Sensitivity (2.83V/1m) | 85.5dB (when wall mounted) |
| Tweeter/Mid-range Crossover Frequency | 2100 |
| Product Dims W x H x D (Includes width of feet) | 166 × 158.3 x 320mm 6.5 × 6.2 × 12.6 in |
| Product Weight (each) | 6.6 lbs/3 kg |
| Shipping Weight | 16 lbs/7.3 kg |
| Mid-Bass / Woofer Enclosure Type | Sealed |
| Available Finishes | Black / Walnut / White |
| Feet | Pads |
| Wall-Mountable (keyhole slots) | Yes |
| Binding Posts: Nickel-plated 5-Way | Single |
| Hi-Res Certified | Yes |
| Shipping Dims (WxHxD) | 415 × 370 x 260mm (16.3 × 14.6 × 10.2) in |
| Best Suited For | |
| Dolby Atmos and DTS:X layouts using the model’s supported height-channel placement. | |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
