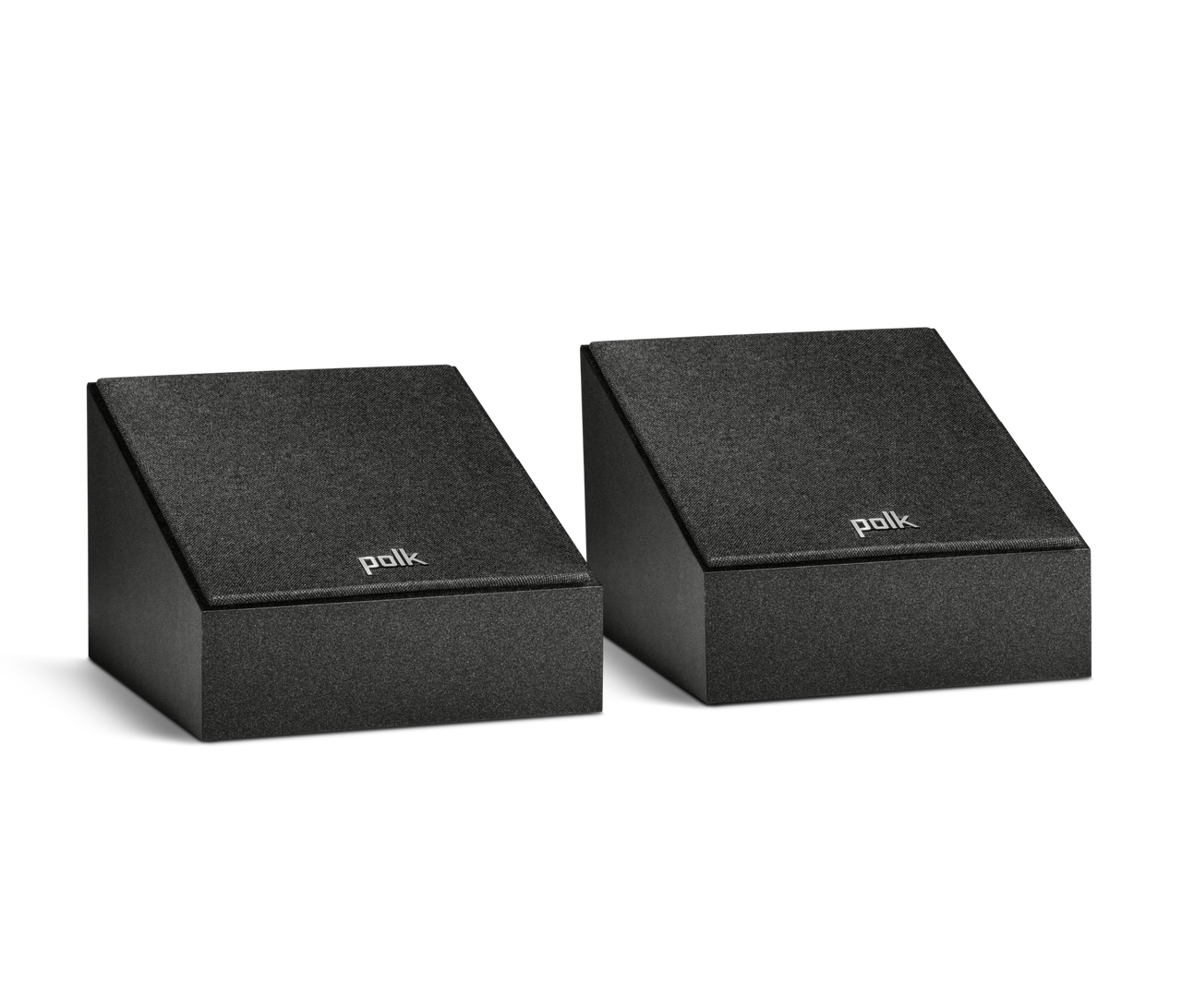

Polk MXT90 Atmos/Surround
The Polk Monitor XT90 adds a dedicated height channel to a compatible home-cinema system. It can sit on selected Monitor XT loudspeakers or mount to a wall when the room layout calls for a separate position.
Its angled enclosure uses a bilaminate paper woofer to direct height information towards the listening area. Dolby Atmos, DTS:X and DTS Virtual:X compatibility lets the module handle overhead effects and ambience from a suitable AV receiver.
Plan the XT90 as part of a minimum seven-channel receiver system, then match placement to the ceiling and seating position so the reflected height channel reaches the room as intended.
For official product information and current support resources, visit the Polk Monitor XT90 product page.
| ITEM |
DESCRIPTION |
| Main Features |
| Height-channel role |
Adds reflected overhead information to a compatible immersive-audio layout. |
| Speaker or wall placement |
Fits selected Monitor XT models and includes a keyhole slot for wall mounting. |
| Monitor XT voicing |
Uses timbre-consistent components for a coherent match with the rest of the range. |
| Receiver compatibility |
Works with AV receivers that provide the required channel count and immersive-audio decoding. |
| DETAIL |
VALUE |
| Product Specifications |
| Quantity included |
Pair |
| Woofer |
4 in bilaminate paper |
| Crossover frequency |
2.7 kHz |
| Recommended amplification |
30 W to 100 W per channel |
| Impedance |
Compatible with 4 ohm and 8 ohm outputs |
| Overall frequency response |
94 Hz to 22 kHz |
| Sensitivity |
89 dB |
| Inputs |
5-way nickel-plated binding posts |
| Compatible speakers |
Monitor XT20, MXT60 and MXT70 |
| AV receiver requirement |
Minimum seven channels with Dolby Atmos, DTS:X or DTS Virtual:X support |
| Dimensions (W × H × D) |
190.5 × 143.2 × 212.9 mm |
| Weight |
2.72 kg |
