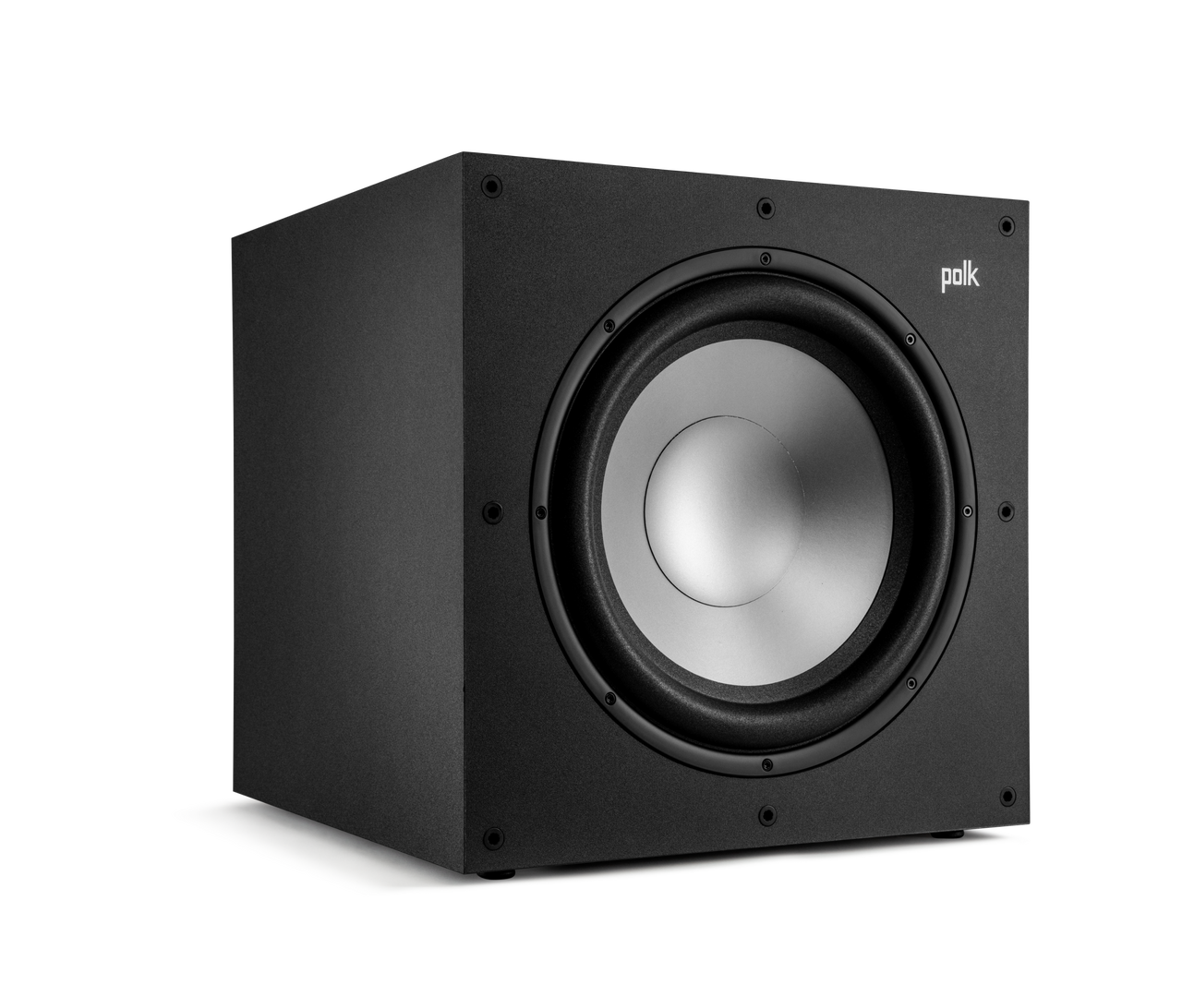

Polk MXT12SUB Subwoofer
The Polk Monitor XT12 is a powered subwoofer for a music or home-cinema system that needs a larger dedicated bass foundation. The 12-inch Dynamic Balance driver and ported cabinet are designed to bring more weight and impact to soundtracks, games and music.
Room integration is built into the design: the adjustable crossover, phase and volume controls help the subwoofer blend with the main speakers instead of simply adding uncontrolled bass.
Use its wired line-level, LFE or speaker-level connections with a compatible receiver or amplifier. The specific connections and adjustments are listed below so the sub can be planned correctly before installation.
For official product information and current support resources, visit the Polk Audio Polk MXT12SUB Subwoofer product page.
| ITEM |
DESCRIPTION |
| Main Features |
| Larger powered bass foundation |
Adds a dedicated low-frequency channel for home cinema and music systems that need more physical scale. |
| Adjustable room integration |
Variable crossover, phase and volume controls help tailor the bass contribution to the room and speaker system. |
| Multiple wired connection paths |
Line-level, LFE and speaker-level inputs provide options for compatible receivers and amplifiers. |
| DETAIL |
VALUE |
| Product Specifications |
| Amplifier type |
Class AB |
| Transducer |
12 in bi-laminate paper (foam surround) |
| Published low-frequency extension |
Down to 24 Hz |
| Low-pass crossover frequency |
80 Hz,160 Hz/LFE |
| Phase adjustment |
0/180° |
| Line level |
Yes |
| LFE input |
Single RCA |
| Speaker input |
Left/right 5-way binding posts |
| Bass type |
Bass reflex (ported) |
| Dimensions (W × H × D) |
16 × 16.4 × 17.9 in (407 × 418 × 456 mm) |
| Weight |
39 lb (17.7 kg) |
| Feet |
Permanently installed |
