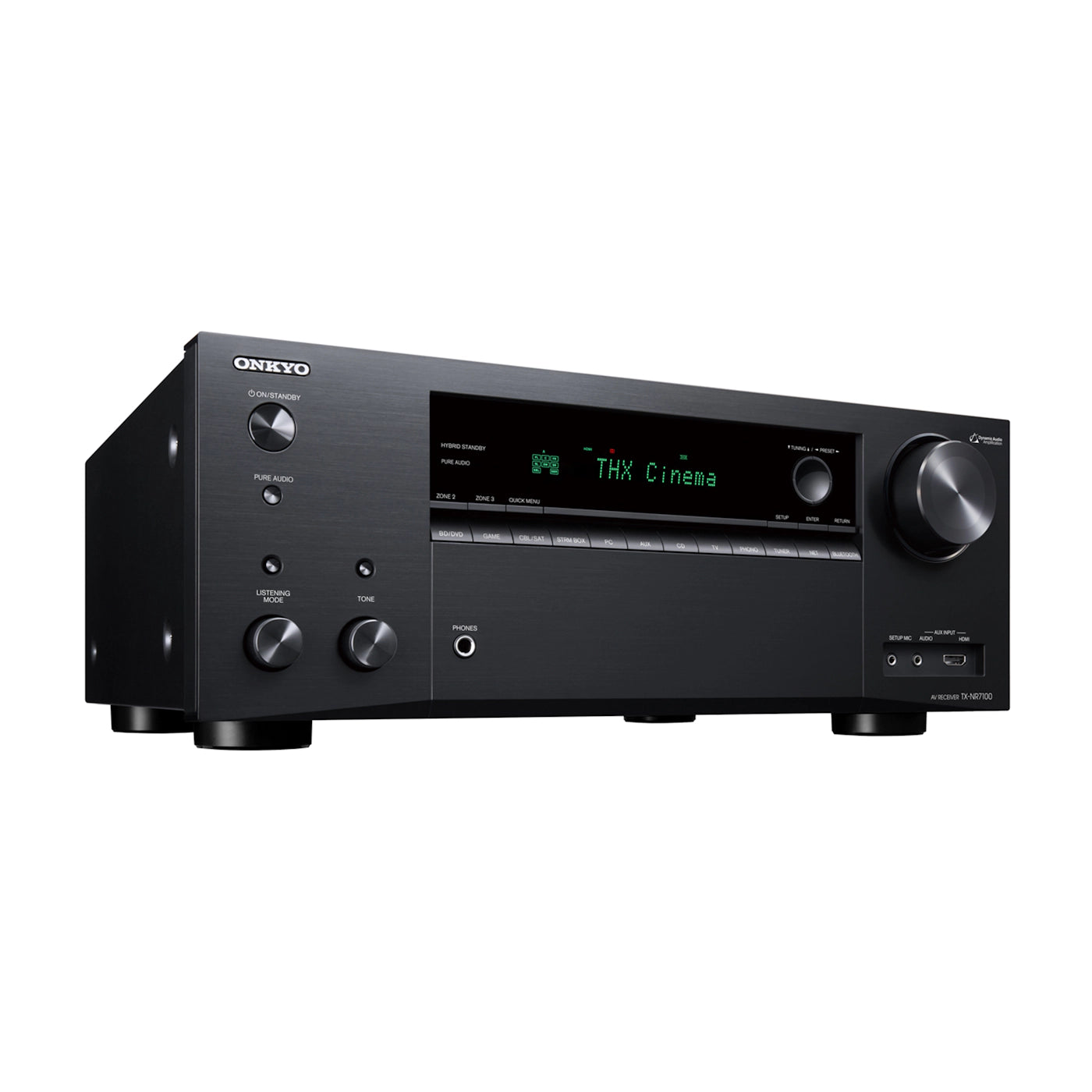

The Onkyo TX-NR7100 M2 9.2-Channel 8K AV Receiver is a THX®-certified, Dirac Live®-equipped home theater centerpiece engineered to deliver reference-grade performance for your movies, music, and next-gen gaming systems — all at a price that punches well above its weight.
The Onkyo TX-NR7100 M2 9.2-Channel 8K SMART AV Receiver easily integrates into your existing Smart Home ecosystem, including Apple AirPlay 2, Alexa, Google apps, Chromecast built-in, and more. You get a highly capable and compatible network device that can operate seamlessly in your multi-room ecosystem, with bidirectional Bluetooth® for streaming in and sending audio to wireless headphones via SBC, aptX, or aptX HD codecs.*
HDMI® 2.1 is the most recent update of the HDMI® spec and supports eARC, a range of higher video resolutions and refresh rates including 8K60 and 4K120, and Dynamic HDR formats. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. With 7 HDMI inputs (including one on the front panel) and 3 outputs delivering up to 40 Gbps of bandwidth, HDMI 2.1 with 8K and eARC ensures your system is ready for the clearest and cleanest picture available both now and down the road.
Own your opponents with HDMI 2.1 enhancements for gamers: 4K/120Hz HDR pass-through enables ultra-fast motion; VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay; ALLM (Auto Low Latency Mode) optimizes latency from source to screen; and QFT (Quick Frame Transport) limits lag for a smoother experience.
| Power output (All channels) | 220 W/Ch (6 ohms, 1 kHz, 10% THD, 1-ch driven) 100 W/Ch (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC) |
| Channels | 9.2 (5.1.4 or 7.1.2 Dolby Atmos / DTS:X) |
| Amplifier type | Discrete Dynamic Audio Amplification |
| Speaker impedance | 4–16 ohms |
| HDMI inputs / outputs | 7 In (1 front) / 3 Out (eARC) |
| Wireless | Wi-Fi (dual-band), Bluetooth (aptX / aptX HD) |
State-of-the-art Dirac Live® Room Correction technology unlocks your loudspeakers' full potential, improving musical staging, clarity, dialog, and bass depth across the full frequency band — without additional upgrades. Calibrate using your smartphone with the included wired mic and the Onkyo Controller app, or go virtually wireless with the Dirac Live PC/macOS application and a third-party USB mic. AccuEQ is also onboard as a built-in alternative for fast, hands-on calibration.
In 1993, Onkyo became the first consumer home theater electronics brand to be THX-certified. The TX-NR7100 M2 carries that legacy forward with THX Select certification — passing thousands of bench tests — and four dedicated THX listening modes: Cinema, Gaming, Music, and Surround EX. No matter what input or combination of features you use, nothing is added and nothing is taken away from the source material.
Bring the theater experience to your home by recreating IMAX content just as filmmakers intended. The TX-NR7100 M2 meets the precise quality standards established by IMAX to reduce noise and grain for brighter, clearer pictures, paired with immersive sound for the ultimate cinema experience.
Dolby Atmos® and DTS:X® formats allow engineers to map sound anywhere in 3D space, effects moving from speaker to speaker all around the room and wrapping your audience in the latest films and games. With 9 channels of onboard amplification, you can run a full 5.1.4 or 7.1.2 immersive layout without external amps. Dolby Surround® and DTS® Neural:X find overhead cues in legacy soundtracks and upmix for awesome spatial realism.
This receiver can join your existing Sonos Home Sound System, or be the start of a new one, just by pairing it with a Sonos Port.* This Works With Sonos Certified AVR offers a best-in-class tie-in to the Sonos ecosystem, waking, changing inputs, and playing at the volume you want using the Sonos Volume-Pass Through feature from the Sonos app. The TX-NR7100 M2 can work with up to three Sonos Ports — one for each of three independent zones — each playing a completely different stream.
Klipsch and Onkyo teamed up to implement the precise crossover values for specific Klipsch Reference and Reference Premiere speakers. Simply select the model of speaker for each channel, and the optimized crossover setting will be automatically applied — no guesswork, no manual tuning.
Access to Spotify®, TIDAL, Deezer, TuneIn, Pandora®, Amazon Music HD (via DTS Play-Fi), Apple AirPlay 2, and Chromecast built-in is baked into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.
DTS Play-Fi allows you to enjoy high-quality music from connected online services, networked media servers, and your device library over Wi-Fi® to any number of compatible products using the Onkyo Music Control App for iPad, iPhone, and Android smartphones/tablets. DTS Play-Fi can synchronize the music in every room, and each member of your family can use their own device to listen to their music in a room or group of rooms. DTS Play-Fi lets you structure a comprehensive multi-room ecosystem that satisfies virtually any need.
Set up different high-definition entertainment options with up to 8K60 resolution in two different rooms. Watch a movie in the home theater while the kids enjoy cartoons in another room — both in 8K. Surround-back and height channels are user-assignable, so you can also power Zone 2 / Zone 3, or bi-amp your front L/R for higher performance.
Refined over decades to deliver emotion in high fidelity, DAA features a custom High-Current Low-Noise Power Transformer, customized capacitors, and discrete two-stage amp output. Unique topology prevents phase-shift while high current improves speaker control for true dynamic speed. Driving demanding loads through all 9 channels, DAA has power to move.
