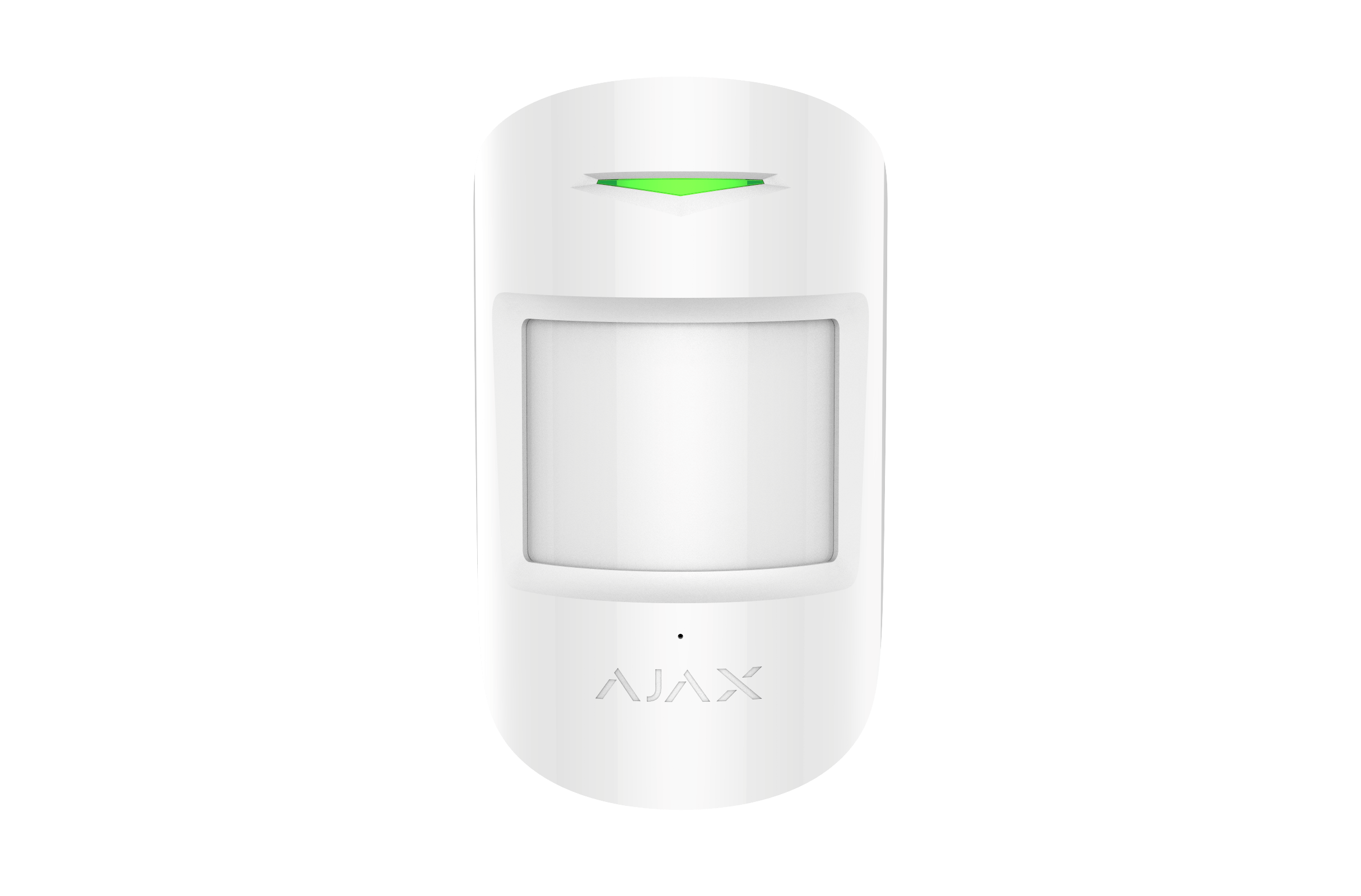

The Ajax MotionProtect Jeweller is a wireless indoor motion detector designed to identify movement inside protected premises and instantly alert the Ajax alarm system when intrusion is detected. It is ideal for homes, apartments, offices, retail spaces, storerooms, and other indoor security applications.
Using a PIR sensor, MotionProtect detects movement from people by identifying infrared radiation changes in the protected area. When installed correctly, it monitors up to 12 metres and recognises human motion from the first step, helping provide fast and reliable intrusion detection.
The detector includes Ajax SmartDetect technology to help prevent false alarms. It can ignore pets weighing up to 20 kg and up to 50 cm in height, making it suitable for many homes with small animals when installed and configured according to Ajax recommendations.
MotionProtect communicates with the Ajax hub using Jeweller two-way radio technology, offering secure wireless communication, encrypted data transmission, and long-range connection in open space. It is battery-powered, easy to install with SmartBracket mounting, and can operate for up to 5 years from its pre-installed battery.
| ITEM | DESCRIPTION |
| Main Features | |
| Wireless indoor motion detector | Detects movement inside protected indoor areas and sends an alarm signal to the Ajax hub when intrusion is detected. |
| PIR motion detection | Uses a passive infrared sensor to detect movement from objects with temperatures close to the human body. |
| Up to 12 m detection range | Monitors movement across rooms, passages, offices, and other indoor spaces when installed at the recommended height. |
| SmartDetect false alarm prevention | Ajax software algorithm helps filter out false alarms caused by minor environmental changes or non-threatening movement. |
| Pet immunity | Designed to ignore pets up to 20 kg and up to 50 cm in height when installed and configured correctly. |
| Adjustable sensitivity | Detection sensitivity can be adjusted in the Ajax app to suit the room layout and installation environment. |
| Jeweller radio technology | Provides secure two-way wireless communication between the detector and the Ajax hub. |
| Encrypted communication | Data transmitted between the device and hub is protected using encrypted Ajax wireless communication. |
| Tamper protection | Alerts the system if an attempt is made to remove the detector from its mounting surface. |
| Battery powered | Runs on a pre-installed battery, allowing clean wireless installation without additional power cabling. |
| SmartBracket mounting | Quick mounting panel allows fast installation without needing to open the detector body during setup. |
| System Benefits | |
| Residential security | Suitable for living rooms, bedrooms, passages, garages, home offices, and other indoor areas. |
| Commercial security | Suitable for offices, retail stores, storerooms, reception areas, and small business premises. |
| App-based configuration | Installers and users can adjust detector settings, view signal strength, and monitor status through Ajax apps. |
| Wireless retrofit installation | Ideal for adding motion detection to existing premises without chasing walls or running new alarm cables. |
| DETAIL | VALUE |
| Product Specifications | |
| Brand | Ajax |
| Product name | MotionProtect Jeweller |
| Product type | Wireless indoor motion detector |
| Sensitive element | PIR sensor |
| Motion detection distance | Up to 12 m |
| Detection angle | 88.5° horizontal |
| Motion detection speed | 0.3 to 2 m/s |
| Sensitivity levels | 3 adjustable levels |
| Pet immunity | Up to 20 kg and up to 50 cm in height |
| False alarm prevention | SmartDetect algorithm and temperature compensation |
| Communication technology | Jeweller two-way radio communication |
| Radio communication range | Up to 1,700 m in open space |
| Tamper protection | Yes |
| Recommended installation height | 2.4 m |
| Installation location | Indoor use only |
| Power supply | 1 × CR123A battery |
| Battery life | Up to 5 years |
| Operating temperature | -10°C to +40°C |
| Operating humidity | Up to 75% |
| Protection class | IP50 |
| Dimensions | 110 × 65 × 50 mm |
| Weight | 86 g |
| Available colours | Black / White |
| Package Contents | |
| Included items | MotionProtect Jeweller, SmartBracket mounting panel, CR123A battery pre-installed, installation kit, and quick start guide |
| Best Suited For | |
| Indoor Ajax alarm systems | ✓ |
| Homes and apartments | ✓ |
| Offices and shops | ✓ |
| Pet-friendly indoor detection | ✓ |
