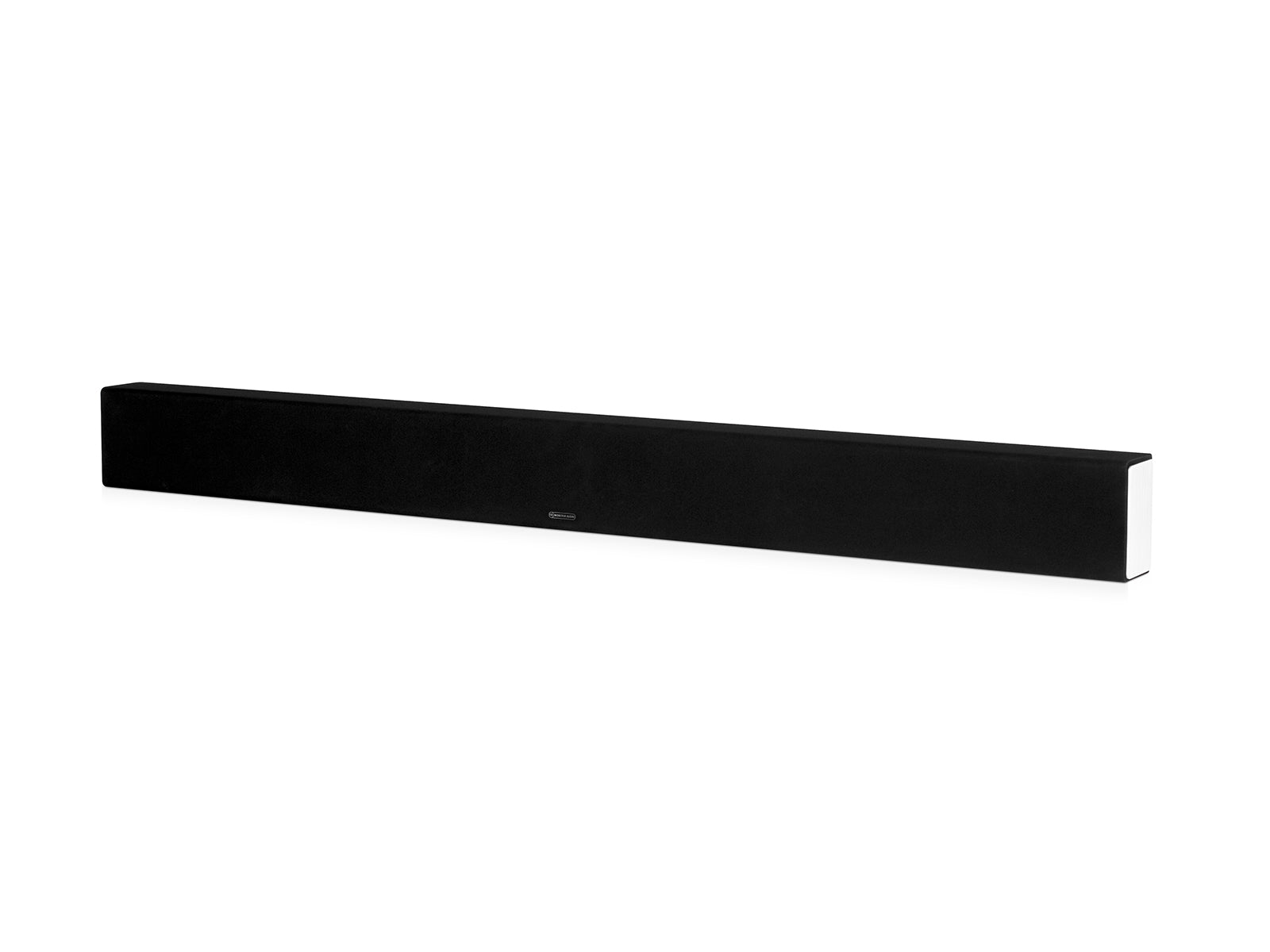

The SB-4 passive soundbar is designed to provide a visually balanced, audio solution for 70 inch screens and larger, this stylish, high performance, passive soundbar is ideal for installers keen to deliver premium performance in media room applications.
The SB-4 incorporates a series of clever technical features and design innovations which demonstrate Monitor Audio’s revered attention to detail and commitment to quality.
Ease of installation is another key advantage of the SB-4. High quality, low profile binding posts provide an easy and trouble free connection, with the terminals recessed neatly to enable a flush to wall installation. The terminal panel also houses standard fixing points compatible with SANUS TV mounts, with many options for TV and wall installation. Wall mounting is also possible using Monitor Audio’s low-profile wall mount bracket with cable access, easy pre-alignment and fixing template.
The SB-4 is designed to be used with a partnering sub-woofer and crossed over to provide the best possible experience and increased system power handling. Alternatively, the soundbar can be used independently to deliver an impressive uplift in TV audio performance with only a slightly reduced power handling.
For official product information and current support resources, visit the Monitor Audio SB4 Soundbar product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Passive LCR architecture | Separate left, centre and right channels preserve dialogue focus and screen-wide steering from one cabinet. |
| Screen-focused channel layout | Keeps dialogue and front-stage effects closely connected to the picture. |
| Living-room integration | A low-profile format intended to preserve a clean television installation. |
| DETAIL | VALUE |
| Product Specifications | |
| Frequency Response (-3 dB) | 70 Hz – 30 kHz |
| Sensitivity (1W@1M) | 87 dB |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS) | 80 W |
| System Power Handling (RMS) | 100 (High pass filter set to 100 Hz) |
| Recommended Amplifier Requirements | 30 – 100 W |
| Crossover Frequency | 80 — 120 Hz |
| Maximum SPL | 104dBA (108.8 all channels driven) |
| Bass Alignment | Auxiliary Bass Reflex (ABR) Loading |
| Drive Unit Complement | All Channels: 2 × 4" (100 mm) C-CAM cone bass/mid driver 2 × 1" (25 mm) C-CAM Gold Dome tweeter |
| Cabinet Dimensions: (H x W x D) (Including Feet) | 145 × 1562 × 89 mm (5^11/16 × 61^9/16 × 3^1/2") |
| External Dimensions (Including Bracket (H x W x D)) | 145 × 1562 × 100 mm (5^11/16 × 61^9/16 × 3^15/16") |
| Bracket | BSB |
| Weight | 12 kg (26 lb 7 oz) |
| Sold As | Single Unit |
| Best Suited For | |
| Living-room television systems where a clean screen wall and focused front stage are priorities. | |
