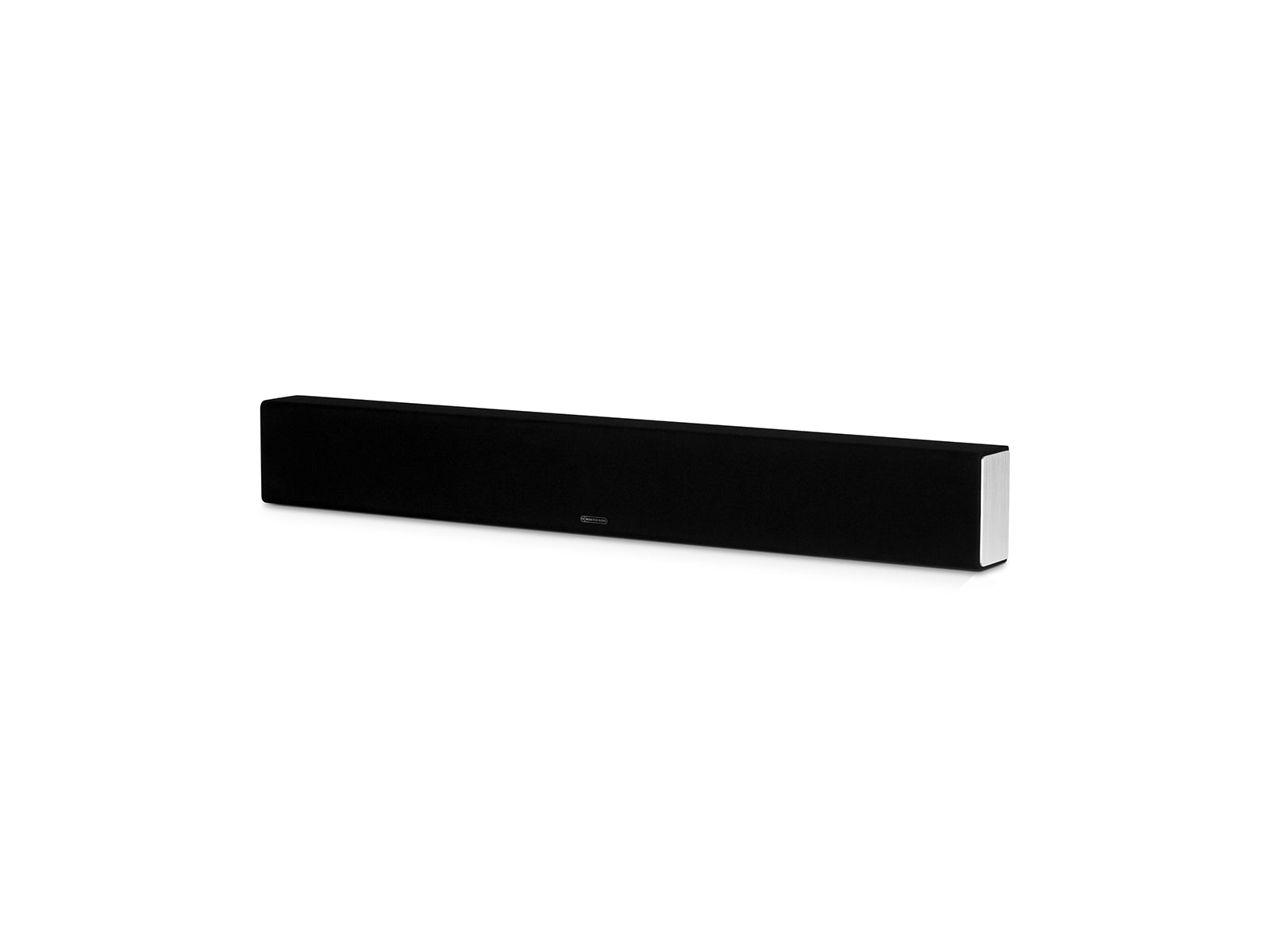

The compact SB-2 is engineered for seamless integration with 50-60 inch TVs, featuring three separate driver arrays for left, centre, right channels in a single cabinet.
The SB-2 employs individual 4 inch C-CAM mid-bass, 1 inch C-CAM tweeter and sealed ABR (Auxiliary Bass Radiator) drivers per section.
In larger rooms the SB-2 can be used with a partnering Monitor Audio subwoofer to deliver the best possible audio experience. Within smaller environments and systems, the SBs will deliver effortless full range audio way beyond the limits of any TV's sound system.
For official product information and current support resources, visit the Monitor Audio SB2 Soundbar product page.
| ITEM | DESCRIPTION |
| Main Features | |
| C-CAM driver technology | Monitor Audio’s ceramic-coated aluminium magnesium diaphragms combine low mass with controlled rigidity. |
| Passive LCR architecture | Separate left, centre and right channels preserve dialogue focus and screen-wide steering from one cabinet. |
| Screen-focused channel layout | Keeps dialogue and front-stage effects closely connected to the picture. |
| Living-room integration | A low-profile format intended to preserve a clean television installation. |
| DETAIL | VALUE |
| Product Specifications | |
| Frequency Response (-3 dB) | 90 Hz – 30 kHz |
| Sensitivity (1W@1M) | 84 dB |
| Nominal Impedance | 8 ohms |
| Power Handling (RMS) | 40 W |
| System Power Handling (RMS) | 100 (High pass filter set to 100 Hz) |
| Recommended Enclosure | 30 — 100 W |
| Crossover Frequency | 80 — 120 Hz |
| Maximum SPL | 104 (108.8 all channels driven) |
| Bass Alignment | Auxiliary Bass Reflex (ABR) Loading |
| Drive Unit Complement | 3 × 4" (100 mm) C-CAM cone bass/mid driver 3 × 1" (25 mm) C-CAM Gold Dome tweeter |
| Cabinet Dimensions: (H x W x D) (Including Feet) | 145 × 1110 × 89 mm (5^11/16 × 43^11/16 × 3^ 15/16 "^) |
| External Dimensions (Including Bracket (H x W x D)) | 145 × 1110 × 100 mm (5^11/16 × 43^11/16 × 3^15/16") |
| Bracket | BSB |
| Weight | 7.64 kg (16 lb 12 oz) |
| Sold As | Single Unit |
| Best Suited For | |
| Living-room television systems where a clean screen wall and focused front stage are priorities. | |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
