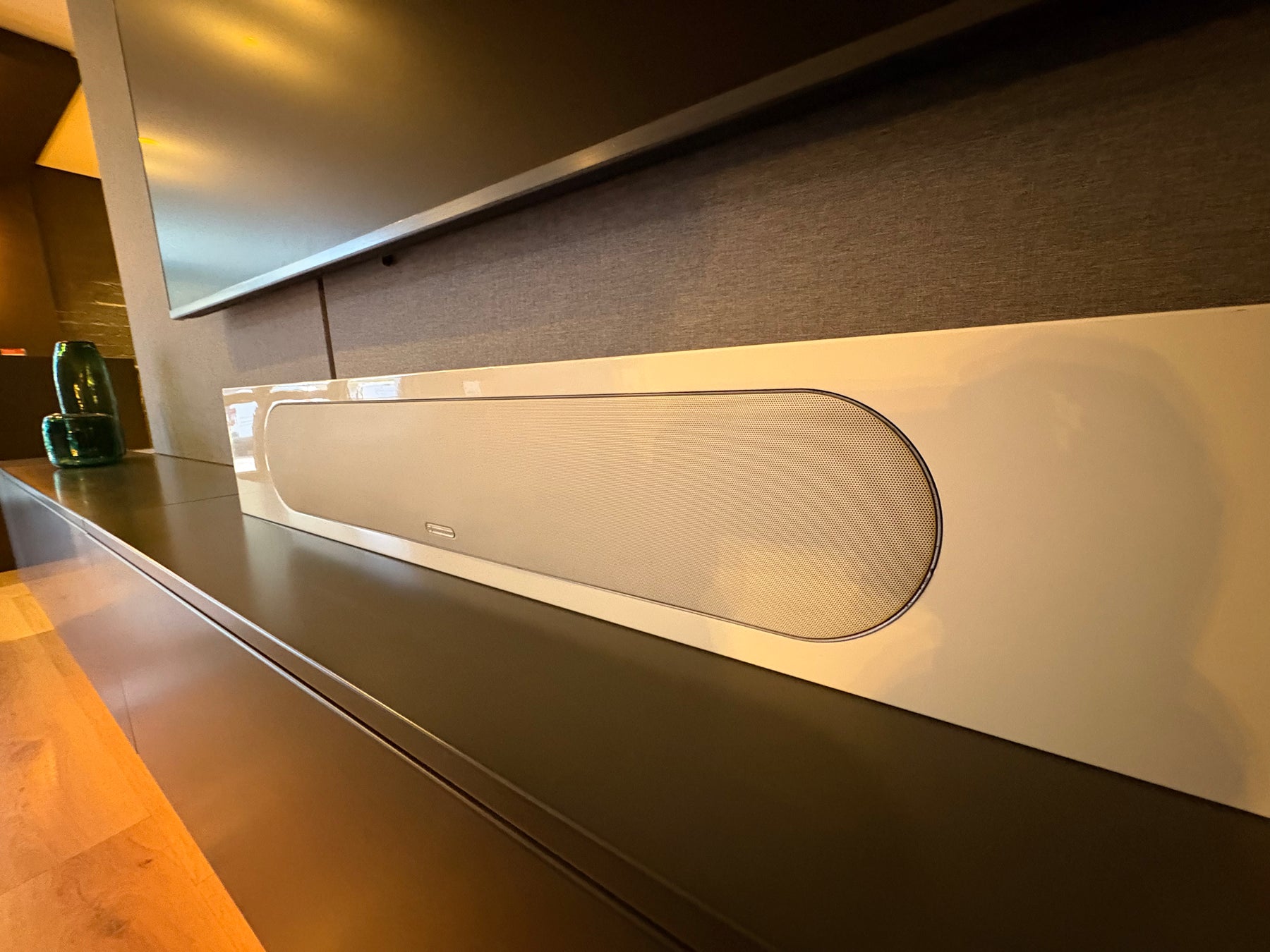

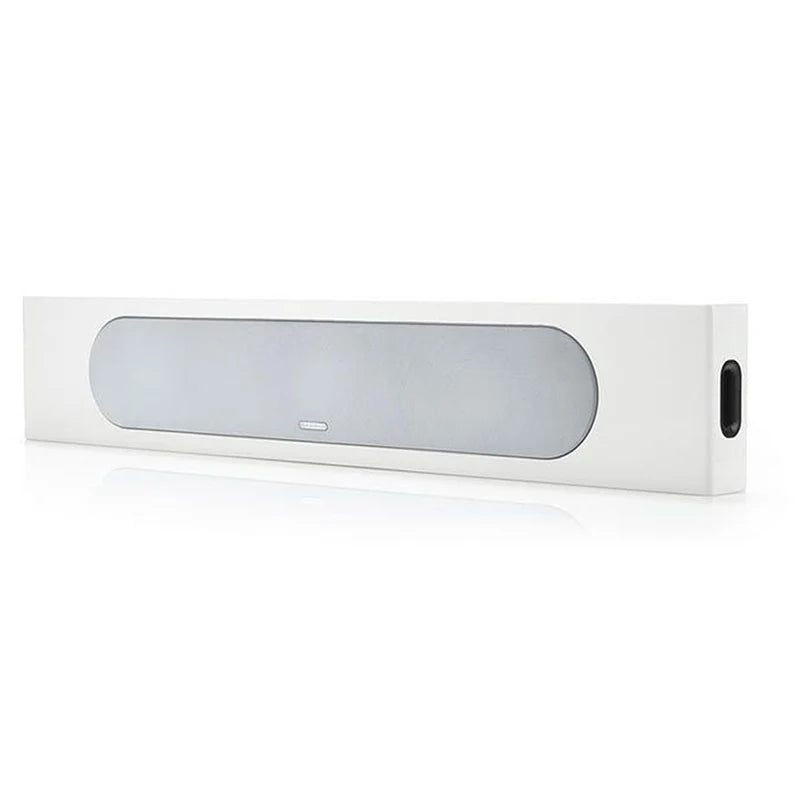

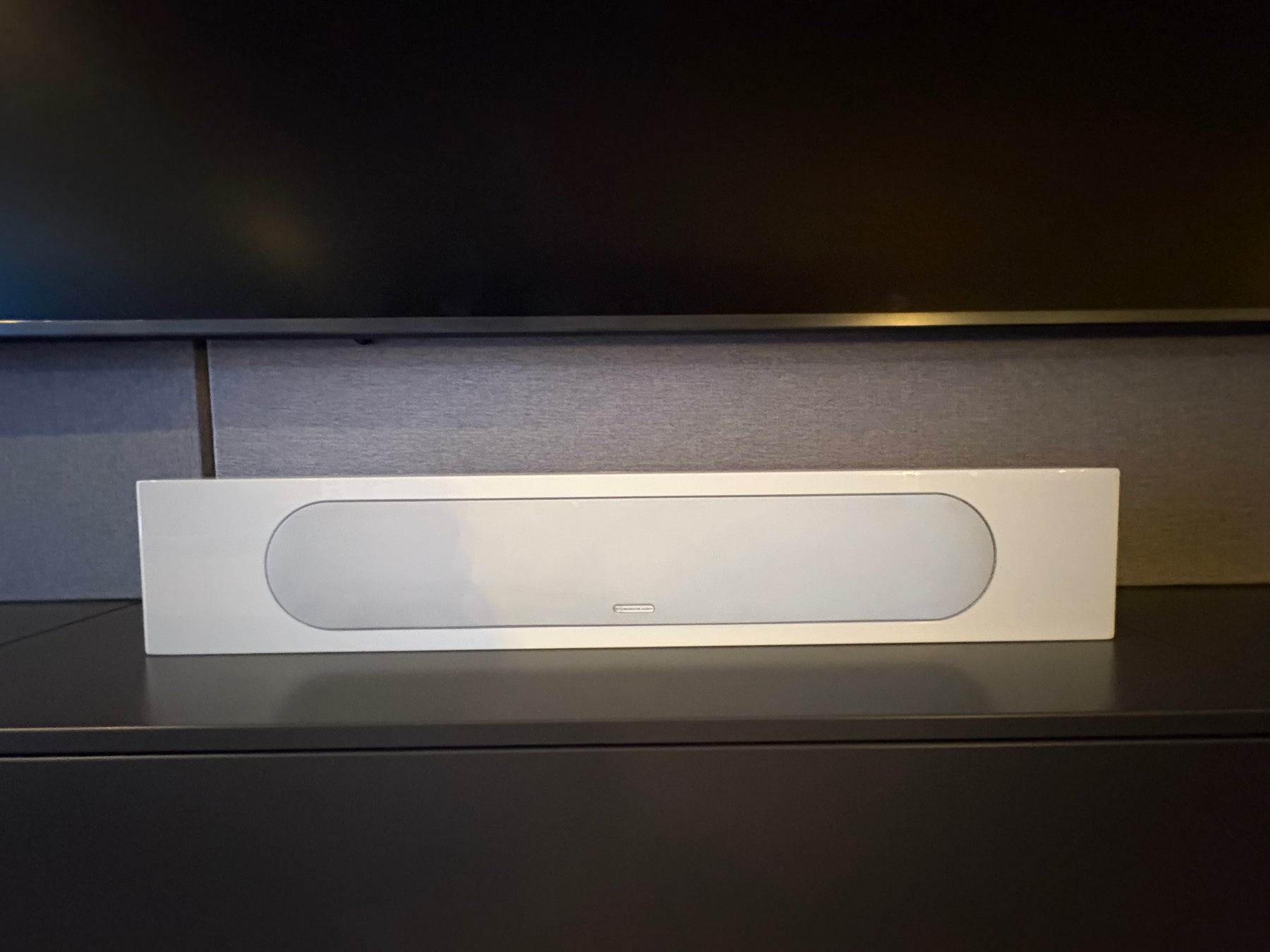

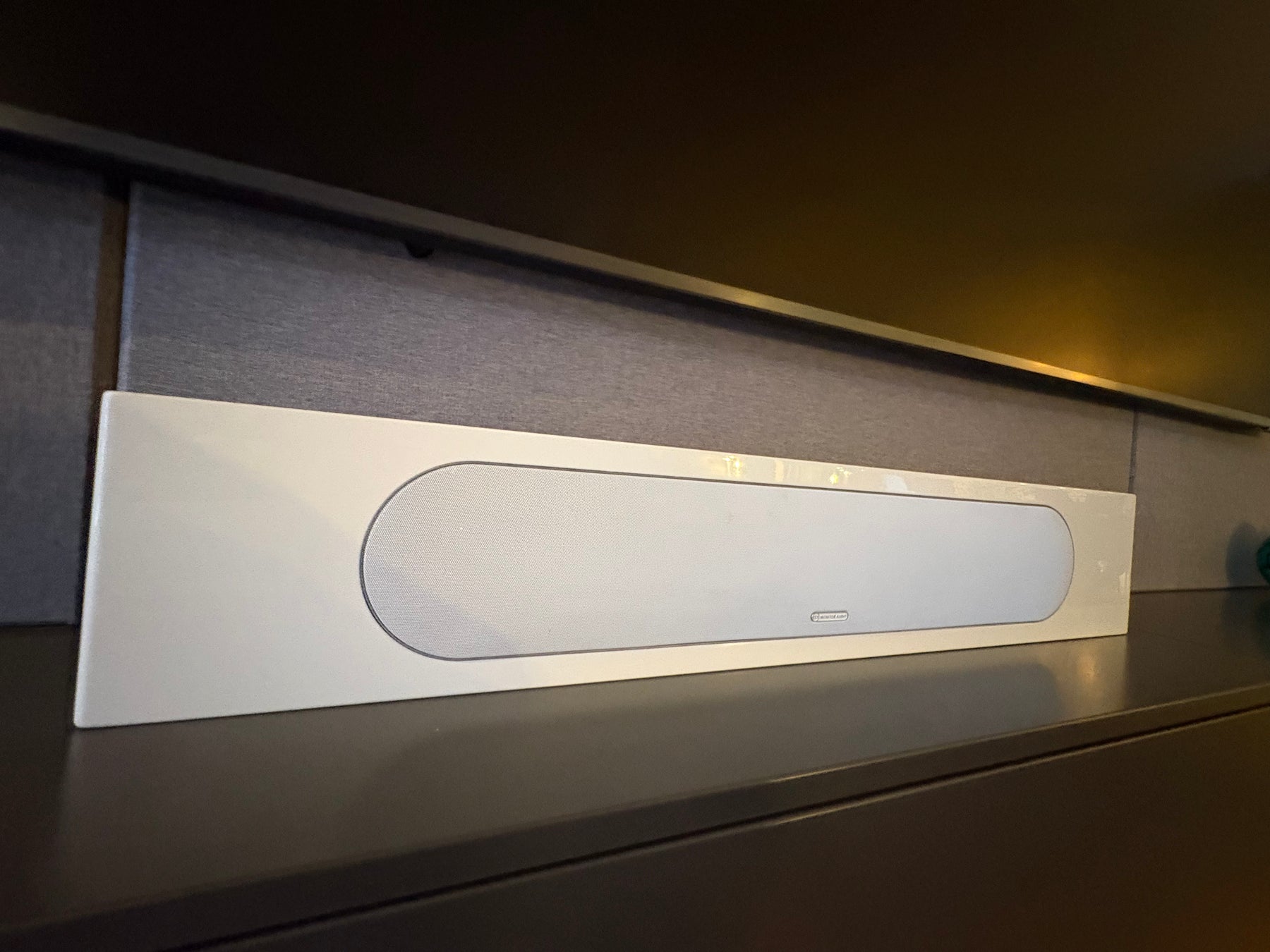

The Monitor Audio Radius One houses the left, centre and right front channels in one slim cabinet, creating a clean home-cinema installation above or below a television. Unlike an active soundbar, it connects to three amplified channels on an AV receiver, retaining independent LCR sound and full receiver control.
Monitor Audio's C-CAM bass/mid drivers are paired with C-CAM Gold Dome tweeters across all three channels. Voices remain firmly connected to the screen, while music and film effects have the clarity and separation expected from a dedicated passive speaker system.
Its shallow cabinet works neatly on an AV unit and can also be wall-mounted with the correct bracket. Add a compatible subwoofer for the deeper bass content in films and music, leaving the Radius One to handle the front soundstage.
Demo unit condition: This speaker has a couple of light cosmetic scratches from display use. It is fully operational and playing beautifully. The marks do not affect its acoustic performance.
| ITEM | DESCRIPTION |
| Main Features | |
| Single-cabinet front stage | Keeps the screen area uncluttered while retaining discrete left, centre and right channels. |
| C-CAM driver array | Metal-cone bass/mid drivers and Gold Dome tweeters deliver clear dialogue and precise front-channel detail. |
| AV receiver integration | Uses separate amplified receiver channels rather than built-in electronics, preserving surround processing and source control. |
| Screen-friendly placement | Suitable for positioning above or below a television or projector screen, with support for compatible wall mounting. |
| DETAIL | VALUE |
| Technical Specifications | |
| System format | Passive 3-channel LCR loudspeaker |
| Frequency response | 90 Hz-35 kHz |
| Sensitivity | 87 dB (1 W @ 1 m) |
| Nominal impedance | 6 ohms |
| Power handling single (RMS) | 75 W |
| System power handling (RMS) | 100 W |
| Recommended amplifier requirements | 30-100 W |
| Maximum SPL | 108 dBA |
| Bass alignment | Centre: bass reflex, front ported; left/right: bass reflex, side ported |
| Drive-unit complement | 3 × 4-inch C-CAM cone bass/mid drivers; 3 × 25 mm C-CAM Gold Dome tweeters |
| Cabinet dimensions | 175 × 980 × 67 mm (H × W × D) |
| Dimensions including grille and terminals | 175 × 980 × 79 mm (H × W × D) |
| Weight | 7.4 kg |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
