Description

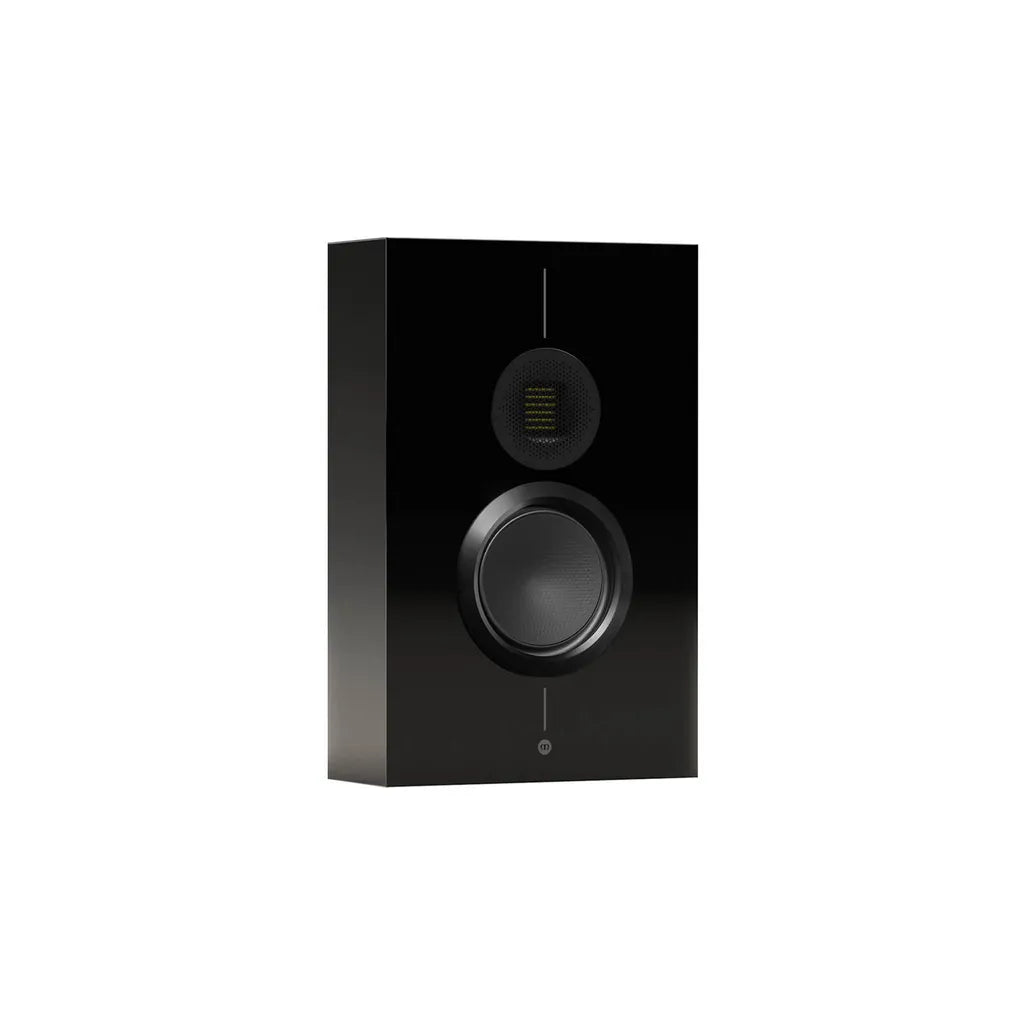

Monitor Audio Gold On-wall
The Gold On-Wall 6G is a new, highly flexible addition to the Gold Series 6G range. Not only does its slim profile allow it to be a fantastic rear and side channel AV speaker, but it also means that it is perfect for wall-mounted front LCR (left-centre-right) applications – making it an ideal home cinema speaker.
It features the latest MPD III high-frequency transducer and a powerful 6-inch mid-bass driver, benefiting from the latest HDT C-CAM cone technology and powerful motor systems. The Gold On-Wall 6G is a highly versatile, décor-friendly alternative, delivering detailed high-fidelity surround sound in abundance.
It belongs in systems where the speaker layout is planned, not improvised.
For official product information and current support resources, visit the Monitor Audio Gold On-wall product page.
| ITEM | DESCRIPTION |
| Main Features | |
| C-CAM driver technology | Monitor Audio’s ceramic-coated aluminium magnesium diaphragms combine low mass with controlled rigidity. |
| Micro Pleated Diaphragm transducer | A low-mass pleated high-frequency element preserves speed, openness and fine detail. |
| Passive LCR architecture | Separate left, centre and right channels preserve dialogue focus and screen-wide steering from one cabinet. |
| Purposeful loudspeaker engineering | Driver, enclosure and crossover choices are matched to the model’s intended system role. |
| System-ready design | Built to work as a coherent part of a considered music or cinema installation. |
| DETAIL | VALUE |
| Product Specifications | |
| System Format | 2-way |
| Sensitivity (2.83v @ 1m, Installed) | 88 dB |
| Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) | 130 – 300 W |
| Continuous Power Handling (CTA 426-B) | 150 W |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance (20Hz to 20kHz) | 5.3 Ohms @ 200 Hz |
| Drive Unit Complement | 1 × 6” (152 mm) HDT C-CAM Bass-Mid Drivers 1 x MPD III Tweeter |
| Frequency Response, In-Room (-6dB) | 38 Hz – 60 kHz |
| Maximum Peak SPL (AES75, Z-weighted) | 115 dB |
| Bass Alignment | Ported |
| Port Tuning Frequency | 44 Hz |
| Crossover Frequency | LF/HF: 2.5 kHz |
| External Dimensions with all accessories fitted (H x W x D) | 465 × 300 × 124.2 mm (18^5/16 × 11^13/16 × 4^7/8”) |
| Weight (each) | 9 kg (19 lb 14 oz) |
| Sold As | Single Unit |
| Best Suited For | |
| Purpose-planned stereo, cinema or distributed-audio installations. | |
