Description

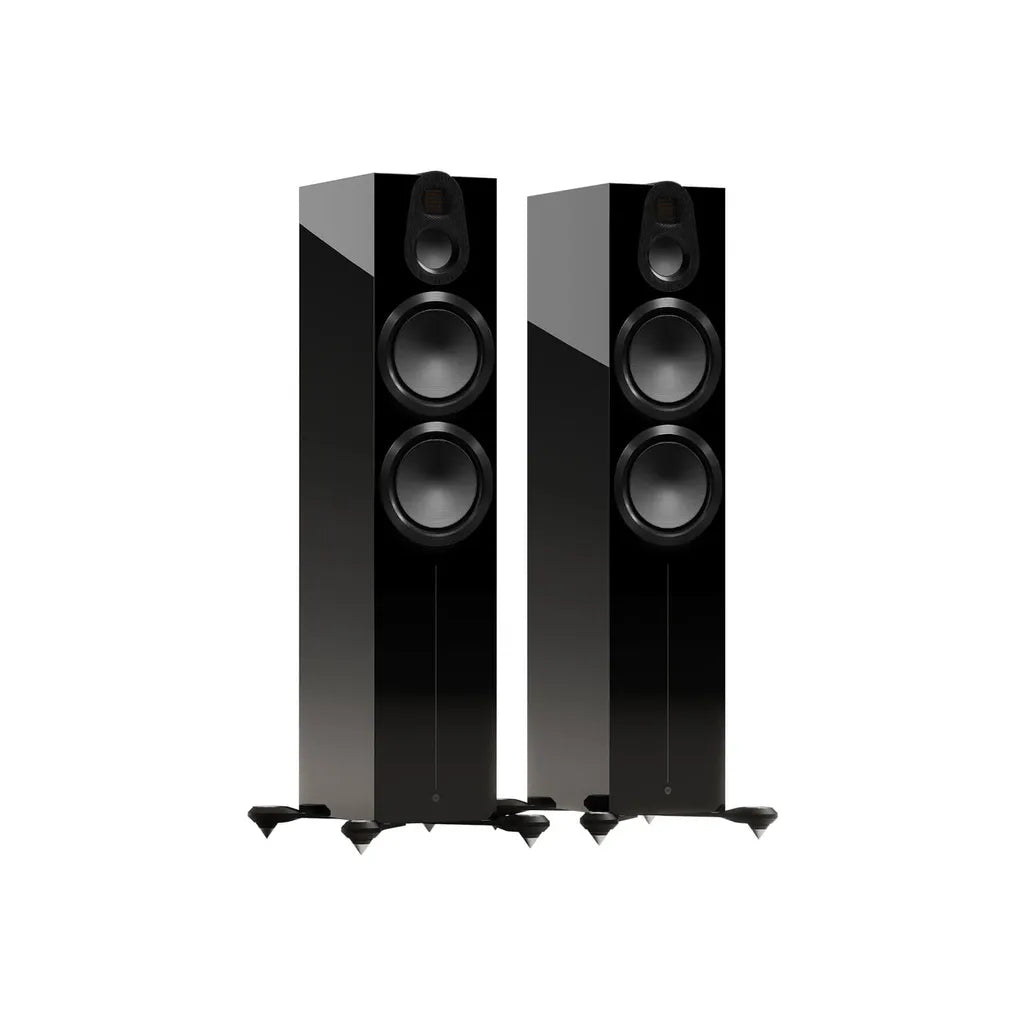

Monitor Audio Gold 500 F/Stander
The Gold 500 6G is the flagship model of the new Gold Series 6G. It represents the highest-levels of performance and system design at the price point, and within this competitive market segment.
Designed to house the latest MPD III high-frequency transducer alongside the new 3-inch mid-driver and powerful twin 8-inch bass drivers, each of which benefit from the latest HDT, C-CAM cone technology and hugely powerful motor systems. The Gold 500 6G is a worthy flagship for such a prestigious range; a formidable acoustic treat for the ears as well as the eyes.
It belongs in a stereo pair or front stage where cabinet scale, placement and amplifier matching are planned from the outset.
For official product information and current support resources, visit the Monitor Audio Gold 500 F/Stander product page.
| ITEM | DESCRIPTION |
| Main Features | |
| C-CAM driver technology | Monitor Audio’s ceramic-coated aluminium magnesium diaphragms combine low mass with controlled rigidity. |
| Micro Pleated Diaphragm transducer | A low-mass pleated high-frequency element preserves speed, openness and fine detail. |
| HiVe II porting | Rifled port geometry encourages faster airflow and cleaner bass from a compact cabinet. |
| Full-scale floorstanding format | A cabinet and driver layout intended to carry a stereo pair or front cinema stage without timid scale. |
| Stereo and cinema role | Voicing suited to two-channel listening as well as a matched multi-channel loudspeaker system. |
| DETAIL | VALUE |
| Product Specifications | |
| System Format | 3-way |
| Sensitivity (2.83v @ 1m, Free-Field) | 88.5 dB |
| Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) | 130 – 600 W |
| Continuous Power Handling (CTA 426-B) | 300 W |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance (20Hz to 20kHz) | 4 Ohms @ 150 Hz |
| Drive Unit Complement | 2 × 8” (203 mm) HDT C-CAM Bass Drivers 1 × 3” (76 mm) HDT C-CAM Mid-Range Driver 1 x MPD III Tweeter |
| Frequency Response Free-Field (-6dB) | 44 Hz – 60 kHz |
| Frequency Response, In-Room (-6dB) | 25 Hz – 60 kHz |
| Maximum Peak SPL (AES75, Z-weighted) | 122 dB |
| Bass Alignment | HiVe II Ported |
| Port Tuning Frequency | 33 Hz |
| Crossover Frequency | LF/MF: 700 Hz MF/HF: 2.6 kHz |
| External Dimensions with all accessories fitted (H x W x D) | 1155 × 383 × 475 mm (45^1/2 × 15^1/16 × 18^11/16”) |
| Weight (each) | 26.5 kg (58 lb 7 oz) |
| Sold As | Pair |
| Best Suited For | |
| Stereo lounges and medium-to-large home-cinema front stages. | |
