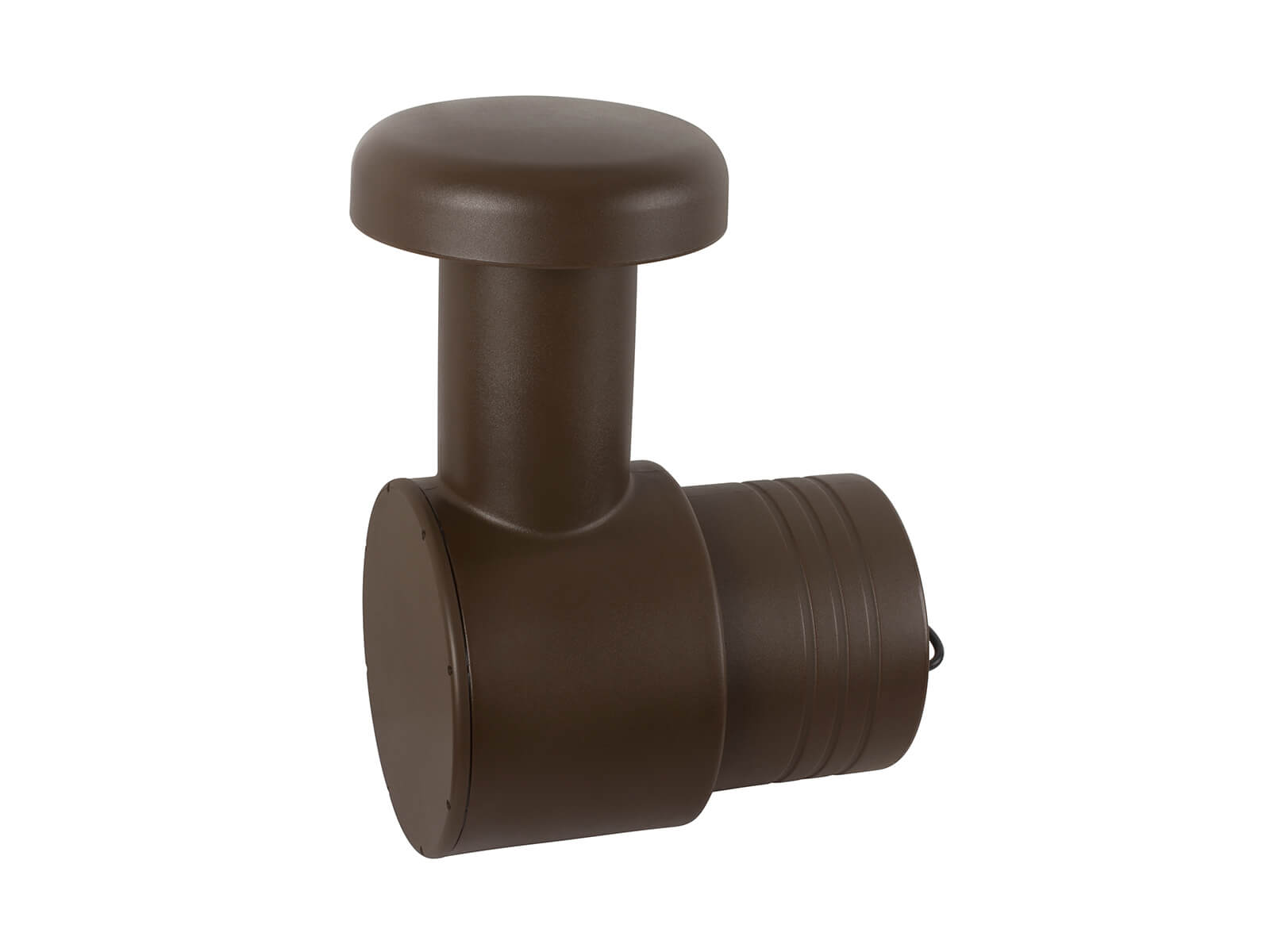

The CLG-W12 is a passive subwoofer. Optimised for discreet sub-surface installation, its proprietary Monitor Audio bandpass design incorporates an internally loaded 12" C-CAM driver which sits in a waterproof rotationally-moulded polymer enclosure buried below the garden surface - only the CLG-W12’s domed output port is visible.
From this little ‘chimney’ powerfully taut bass frequencies will join the clean mids and highs of the surrounding CLG140 / CLG160 satellites for punchy and articulate full-range garden sound.
The CLG-W12 can be powered from a single amplifier channel at 4 ohms, with its 70/100 V line option recommended for cable runs over 10m (30ft) and for adding subwoofers to the system. In this line configuration, the CLG140/CLG160 satellites are daisy-chained to the CLG-W12, one after the other, up to a recommended maximum of twelve per subwoofer. System expansion to larger garden spaces simply involves the addition of amplifier channels, subwoofers and satellites.
In the simplest designs, satellites are connected in a mono configuration to one amplifier channel, the other channel powering the subwoofer. The use of a stereo power amplifier with 70/100volt line capability and crossover features will allow the adjustment of levels between bass and mid-high range. Alternatively, the system can be designed to provide stereo operation by adding elements to create left/right zones.
For official product information and current support resources, visit the Monitor Audio Climate GW12 Sub product page.
| ITEM | DESCRIPTION |
| Main Features | |
| C-CAM driver technology | Monitor Audio’s ceramic-coated aluminium magnesium diaphragms combine low mass with controlled rigidity. |
| Weather-aware construction | The enclosure and installation hardware are intended for permanent outdoor audio zones. |
| Purpose-built low-frequency channel | Adds weight, tension and scale while allowing the main speakers to work within their intended range. |
| System tuning controls | Designed to integrate level, phase and crossover behaviour with the room and main speakers. |
| DETAIL | VALUE |
| Product Specifications | |
| Frequency Response (-6 dB) | 30 Hz — 100 Hz |
| Sensitivity (1W@1M) | 87 dB |
| Nominal Impedance | 4 ohms or 70/100 Volt line level (cable select) |
| Maximum SPL | 110 dBA |
| Power Handling (RMS) | 250 W |
| Recommended Amplifier Requirements | 100 — 250 W |
| Drive Unit Complement | 1 × 12" C-CAM cone, long throw sub-bass driver |
| Crossover Recommendation | 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum) |
| External Dimensions (H x W x D) | 750 × 380 × 505.5 mm (19^1/2 × 14^15/16 × 19^7/8") |
| Connection | Encapsulated cable connection |
| Environmental Protection Rating | IP54 |
| Colour / Finish | Brown |
| Weight | 19.5 kg (42 lb 14 oz) |
| Sold As | Single Unit |
| Best Suited For | |
| Music and cinema systems requiring controlled low-frequency extension and impact. | |
