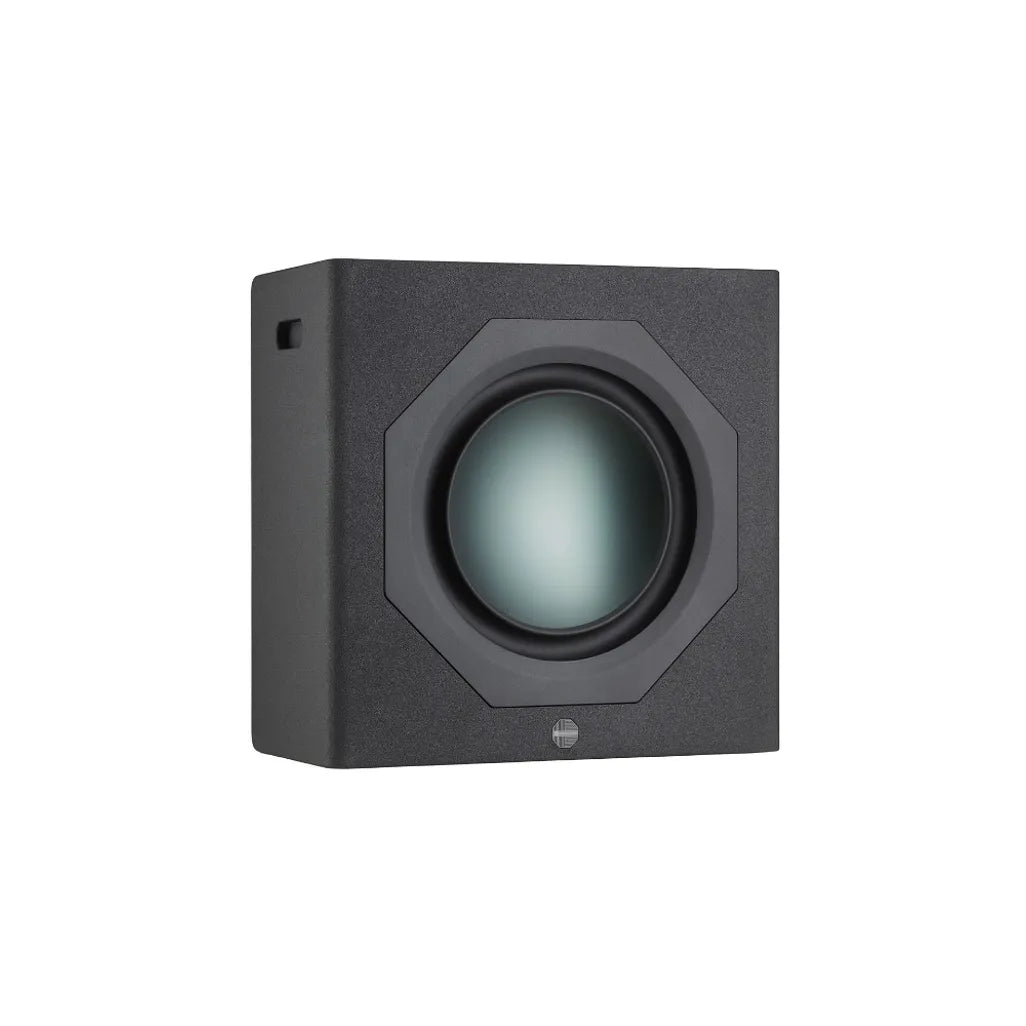

The exceptional Cinergy Sub15 can be installed in the wall, stacked or used as a floorstanding unit. Better yet, you can combine it with other Cinergy Sub15 and Cinergy 300 units to create a hidden ‘sound wall’, delivering the kind of audio rarely experienced in the home.
In order to achieve the full THX-certified experience, Cinergy Sub15 needs be paired with Monitor Audio’s IA800-2C installation Amplifier. As such, the Cinergy Sub15 is only sold along with the IA800-2C, ensuring you enjoy great sound without compromise.
Integrated carefully with the room and main speakers, it supplies the low-frequency authority that lets the rest of the system stay composed.
For official product information and current support resources, visit the Monitor Audio Cinergy Subwoofer 15 product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Can be mounted in-wall, stacked or used as a floorstander | A model-specific element of the product’s design and system role. |
| Sized to match the Cinergy 300 speakers, making the products easy to combine | A model-specific element of the product’s design and system role. |
| Isolation feet to eliminate unwanted vibrations | A model-specific element of the product’s design and system role. |
| Bracing/securing brackets for use in | hidden sound wall |
| THX-certified cinema engineering | Output, dispersion and dynamic behaviour are aligned with serious dedicated-cinema installations. |
| Purpose-built low-frequency channel | Adds weight, tension and scale while allowing the main speakers to work within their intended range. |
| DETAIL | VALUE |
| Product Specifications | |
| THX Certification | THX® Certified Ultra (with 2 x Cinergy Sub15’s) |
| Sensitivity (2.83 Vrms @ 1 M) | 86 dB @ 100 Hz |
| Maximum Linear SPL**** (@1m, free space) | Continuous 109 dB, Peak 120 dB |
| Power Handling (RMS) | Continuous 600 W, Peak* 1500 W (Band limited***) |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance (20 Hz - 20 kHz) | 4 Ohms |
| Recommended Low Frequency Crossover Frequency | 40 - 100 Hz (Low Pass) |
| Recommended Amp Requirements (RMS) | Must be used with IA750-2 / IA750-4 running C Sub Profile |
| Bass Alignment | Sealed |
| LF Extension, In Free Space, No Port Bungs (- 6dB) | 17 Hz (IA750-2 / IA750-4) |
| Drive Unit Complement | 1 × 15" Ultra high Excursion C-CAM Driver |
| External Dimensions (Cabinet Only (H x W x D)) | 540 × 540 × 280 mm (21^1/4 × 21^1/4 × 11") |
| Max External Dimensions (Inc all Fittings) (H x W x D) | 567 × 540 × 280 mm (22^5/16 × 21^1/4 × 11") |
| Weight | 38.5 kg (84 lb 12 oz) |
| Conditions | * Calculated from a peak voltage, this is not a true power figure but useful for comparisons. |
| THX | THX® Certified Loudspeakers. |
| Best Suited For | |
| Music and cinema systems requiring controlled low-frequency extension and impact. | |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
