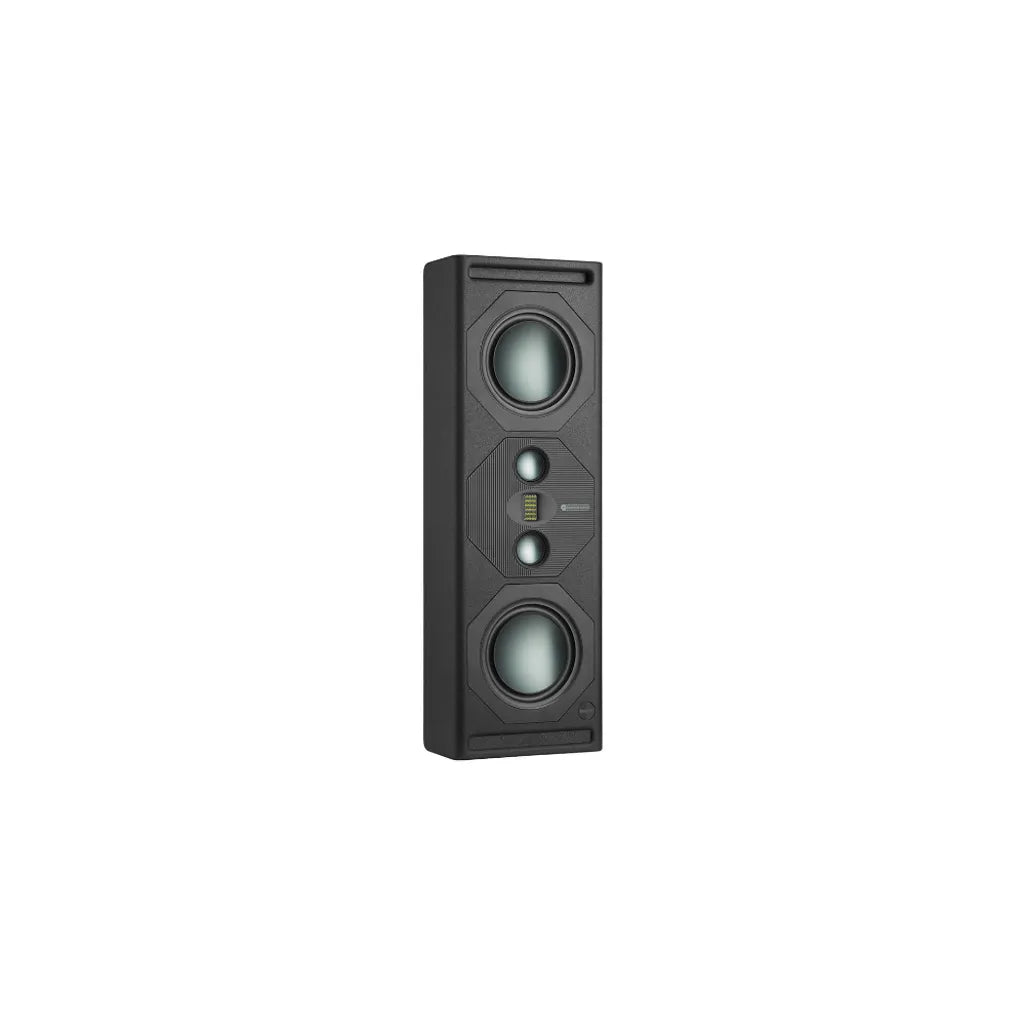

Like the rest of the Cinergy range, the 200 incorporates some very smart features to achieve its effortless performance. On the outside, handy brackets make installation easy.
Inside, two mid-range drivers double the power handling, improve efficiency and reduce reflections off ceilings and floors. Together, they ensure everything from the most epic cinematic score to the quietest whisper of dialogue is reproduced beautifully and faithfully.
It belongs in systems where the speaker layout is planned, not improvised.
For official product information and current support resources, visit the Monitor Audio Cinergy 200 product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Unique isolation options reduce unwanted vibrations by up to 18dB for a professional cinema experience | A model-specific element of the product’s design and system role. |
| Rotatable mid-tweeter array | A model-specific element of the product’s design and system role. |
| Numerous mounting options, with a design perfectly suited to an in-cabinet mounting behind an acoustically transparent screen | A model-specific element of the product’s design and system role. |
| Removable port bungs to tailor the bass response along with EQ profiles for use with Monitor Audio Installation Amplifiers | A model-specific element of the product’s design and system role. |
| MPD high-frequency transducer with accuracy, clarity and lifelike sound? | A model-specific element of the product’s design and system role. |
| C-CAM mid-range driver with high power handling, high sensitivity, wide directivity | A model-specific element of the product’s design and system role. |
| DETAIL | VALUE |
| Product Specifications | |
| THX Certification | THX® Certified Ultra |
| System Format | 3 Way |
| Sensitivity (2.83 Vrms @ 1 M) | 90 dB |
| Maximum Linear SPL**** (@1m, free space) | Continuous 109 dB, Peak 122 dB |
| Power Handling (RMS) | Continuous 350 W, Peak* 1400 W |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance (20 Hz - 20 kHz) | 3.8 Ohms |
| Recommended Low Frequency Crossover Frequency | 80 - 100 Hz (High Pass) |
| Recommended Amp Requirements (RMS) | 200 - 1400 W (IA750-2 or IA750-4) |
| Bass Alignment | Ported** |
| Port Tuning Frequency | 47 Hz** |
| LF Extension, In Wall, With Port Bungs (- 6dB) | 47 Hz |
| LF Extension, In Free Space, No Port Bungs (- 6dB) | 47 Hz |
| HF Extension (-6dB) | >30 kHz |
| Drive Unit Complement | 2 × 8" RDT Driver 2 × 2.5" C-CAM Driver 1 x MPD Transducer |
| External Dimensions (Cabinet Only (H x W x D)) | 904 × 300 × 160 mm (35^9/16 × 11^13/16 × 6^5/16") |
| External Dimensions (Inc Grille) (H x W x D) | 904 × 300 × 173.6 mm (35^9/16 × 11^13/16 × 6^13/16") |
| Max External Dimensions (Inc all Fittings) (H x W x D) | 904 × 300 × 173.6 mm (35^9/16 × 11^13/16 × 6^13/16") |
| Weight | 30 kg (66 lb) |
| Conditions | * Calculated from a peak voltage, this is not a true power figure but useful for comparisons. |
| THX | THX® Certified Loudspeakers. |
| Best Suited For | |
| Purpose-planned stereo, cinema or distributed-audio installations. | |
