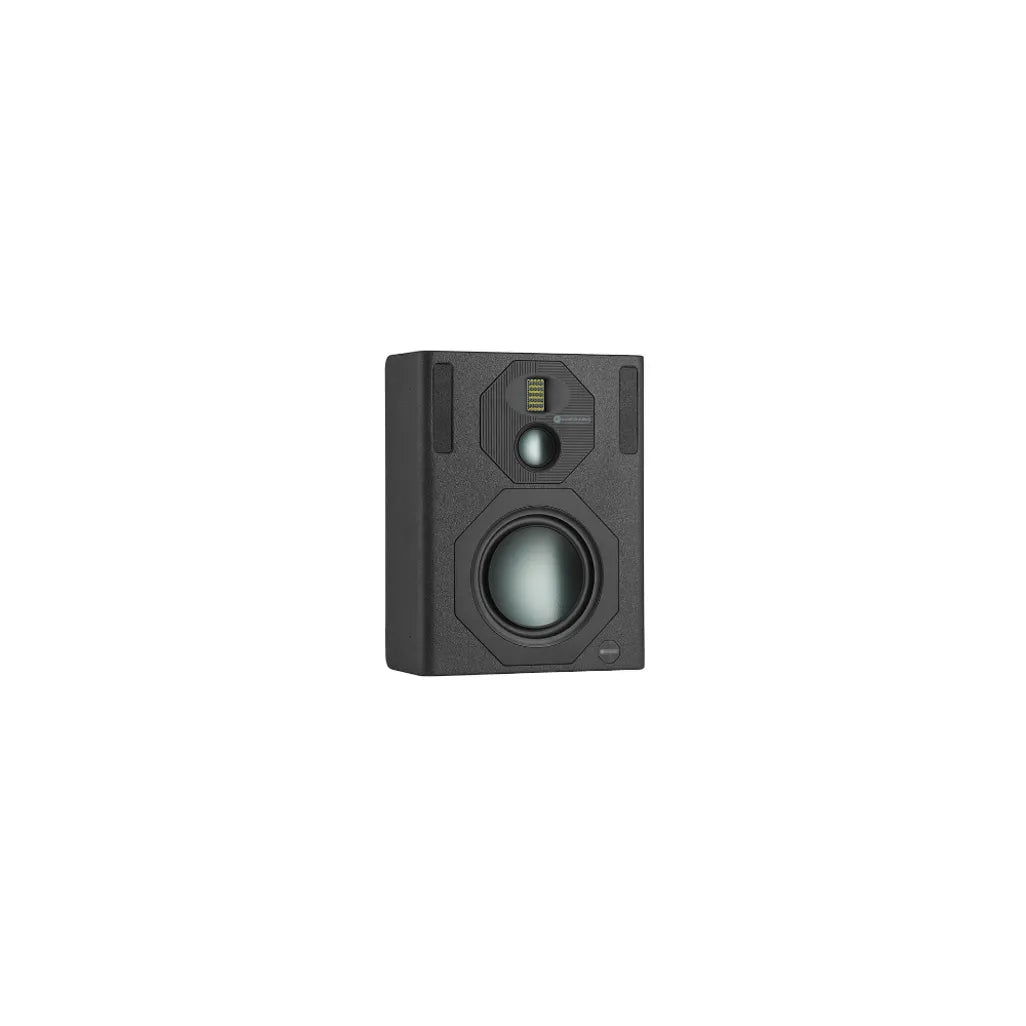

Whether it’s mounted on the wall or integrated within it, the Monitor Audio Cinergy 100 brings exceptional audio to your cinema space. Unique isolation options separate the speaker from surfaces around it, reducing vibrations for purer sound and a truly cinematic experience.
Removable port bungs give your installer the power to tailor the bass response to you. And thanks to precise equaliser settings for use with Monitor Audio's Amplifiers, it’s possible to fine-tune your listening experience even further.
It belongs in systems where the speaker layout is planned, not improvised.
For official product information and current support resources, visit the Monitor Audio Cinergy 100 product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Unique isolation options reduce unwanted vibrations by up to 18dB for a professional cinema experience | A model-specific element of the product’s design and system role. |
| Rotatable mid-tweeter array for use vertically or horizontally | A model-specific element of the product’s design and system role. |
| Numerous mounting options, with a design perfectly suited to custom built mounting behind an acoustically transparent screen | A model-specific element of the product’s design and system role. |
| Removable port bungs to tailor the bass response along with EQ profiles for use with Monitor Audio Installation Amplifiers | A model-specific element of the product’s design and system role. |
| MPD high-frequency transducer with accuracy, clarity and lifelike sound? | A model-specific element of the product’s design and system role. |
| C-CAM mid-range driver with high power handling, high sensitivity, wide directivity | A model-specific element of the product’s design and system role. |
| DETAIL | VALUE |
| Product Specifications | |
| THX Certification | THX® Certified Ultra |
| System Format | 3 Way |
| Sensitivity (2.83 Vrms @ 1 M) | 89 dB |
| Maximum Linear SPL**** (@1m, free space) | Continuous 103 dB, Peak 116 dB |
| Power Handling (RMS) | Continuous 200 W, Peak* 800 W |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance (20 Hz - 20 kHz) | 3.8 Ohms |
| Recommended Low Frequency Crossover Frequency | 80 - 100 Hz (High Pass) |
| Recommended Amp Requirements (RMS) | 100 - 800 W (IA750-2 or IA750-4) |
| Bass Alignment | Ported** |
| Port Tuning Frequency | 67 Hz** |
| LF Extension, In Wall, With Port Bungs (- 6dB) | 48 Hz |
| LF Extension, In Free Space, No Port Bungs (- 6dB) | 65 Hz |
| HF Extension (-6dB) | >30 kHz |
| Drive Unit Complement | 1 × 8" RDT Driver 1 × 2.5" C-CAM Driver 1 x MPD Transducer |
| External Dimensions (Cabinet Only (H x W x D)) | 460 × 350 × 160 mm (18^1/8 × 13^3/4 × 6^5/16") |
| External Dimensions (Inc Grille) (H x W x D) | 460 × 350 × 174.1 mm (18^1/8 × 13^3/4 × 6^7/8") |
| Weight | 18.4 kg (40 lb 8 oz) |
| Conditions | * Calculated from a peak voltage, this is not a true power figure but useful for comparisons. |
| THX | THX® Certified Loudspeakers. |
| Best Suited For | |
| Purpose-planned stereo, cinema or distributed-audio installations. | |
