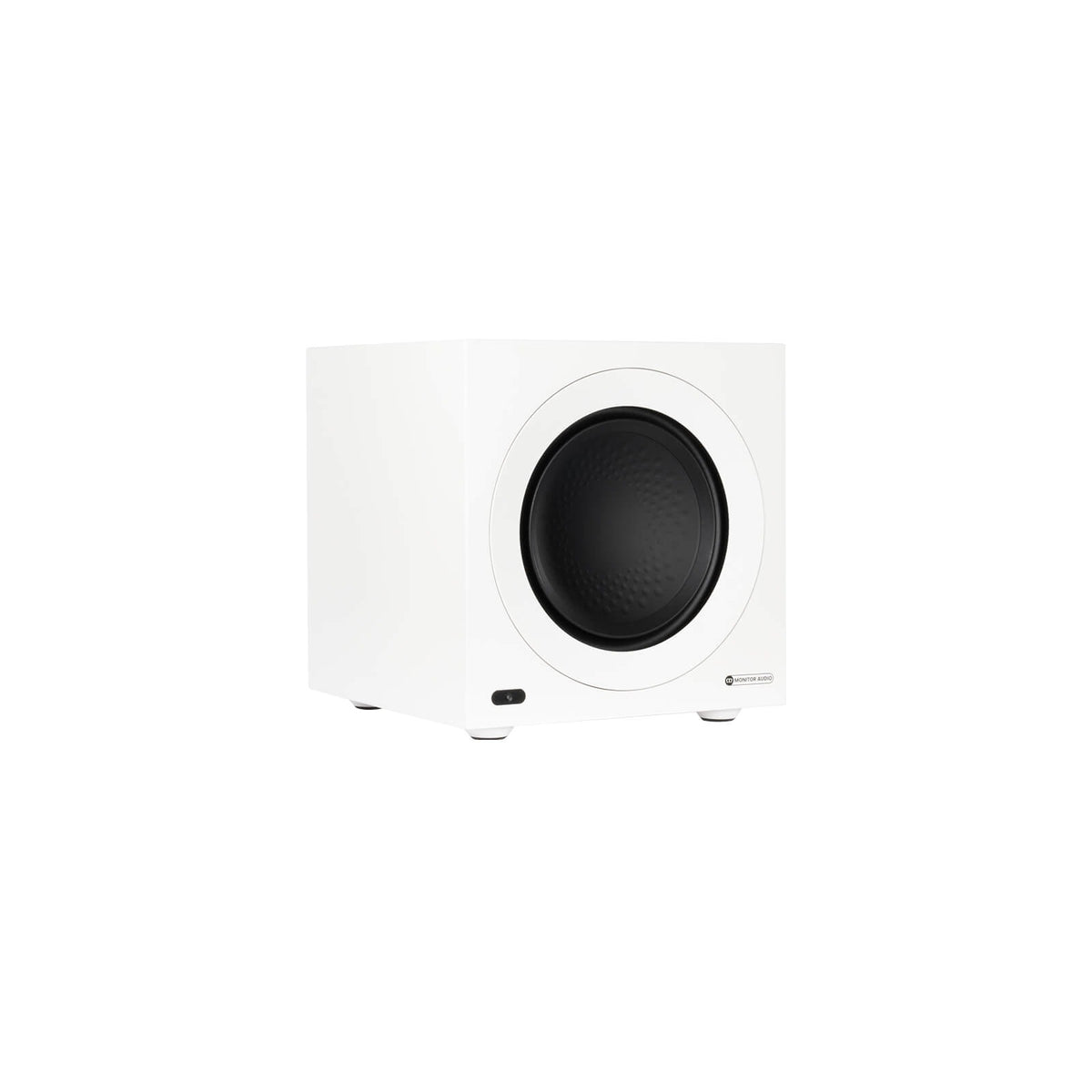

The Anthra W10 is a cube, and that is not styling. Equal dimensions in all three axes break up the internal standing waves a rectangular cabinet encourages, which is a structural answer to a problem most subwoofers treat electronically.
Build follows the same logic. Braced panels and a front baffle twice the thickness of the walls keep cabinet energy out of what the driver is doing, and what reaches the room is pitch definition rather than bulk.
Control is where it separates from the range below. A colour display and rotary dial replace hidden switches, and the processing behind them offers preset curves alongside custom equalisation set from an app.
Adjustable filter slopes count for anyone integrating a subwoofer properly, because a steep roll-off suits a sealed main speaker while a gentle one suits a ported design. Few subwoofers at any price leave that choice open to the owner of the system.
Monitor Audio Anthra W10 official product page
| ITEM | DESCRIPTION |
|---|---|
| Cube cabinet geometry | Equal dimensions break up internal standing waves structurally. |
| Heavily braced construction | A front baffle twice the thickness of the cabinet walls. |
| Colour display and dial | Setup through a real interface rather than hidden switches. |
| App-configurable equalisation | Preset curves plus custom bands set from software. |
| Adjustable filter slope | Roll-off matched to sealed or ported main speakers. |
| DETAIL | VALUE |
|---|---|
| Drive unit complement | 1 x 10" (254 mm) High Linear-Excursion Triple Suspension Driver |
| Amplifier output power | 240Vac: Instantaneous 500W, Continuous short-term 425W |
| Frequency response | Lower limit -6dB @17Hz; Upper limit -6dB @400Hz (LPF Off) |
| Enclosure type | Active, sealed cabinet with braced 18mm MDF and 36mm front baffle |
| Inputs | Stereo unbalanced RCA or mono/LFE balanced XLR |
| Controls and presets | Full-colour LCD display with rotary dial, LED brightness control, phase adjustment 0-360 degrees |
| Low pass filter range | 20-200Hz with adjustable roll-off from -3 to -48dB/Oct |
| External dimensions | 321 x 321 x 321 mm (without feet) |
| Weight | 20.06 kg |
| Sold as | Single |
| Dsp | 28 Bit 50 MIPS, configurable through MaestroUnite; 3 preset EQ curves plus 3 custom curves with 8-band support |
| Multi-subwoofer support | Compatible with up to three additional Anthra subwoofers |
| ITEM | QUANTITY |
|---|---|
| Anthra W10 active subwoofer | 1 |
