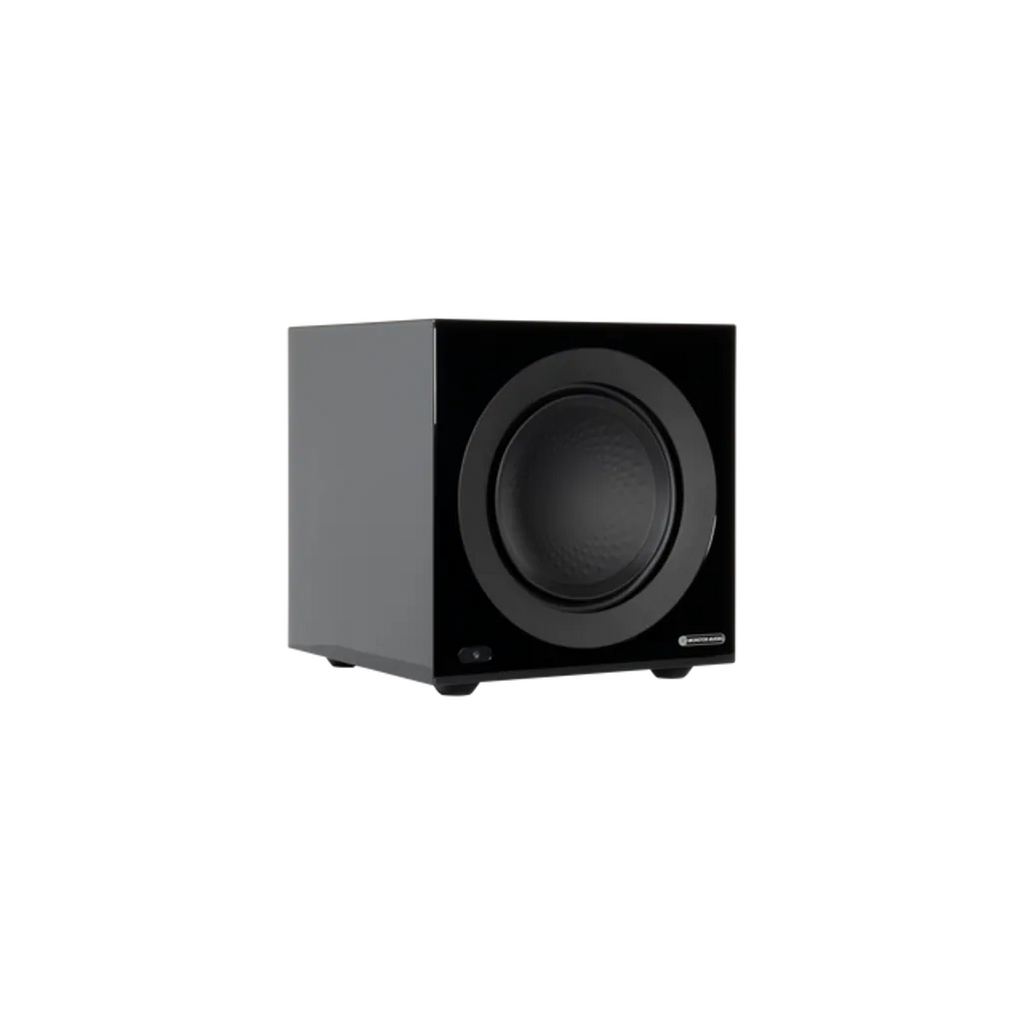

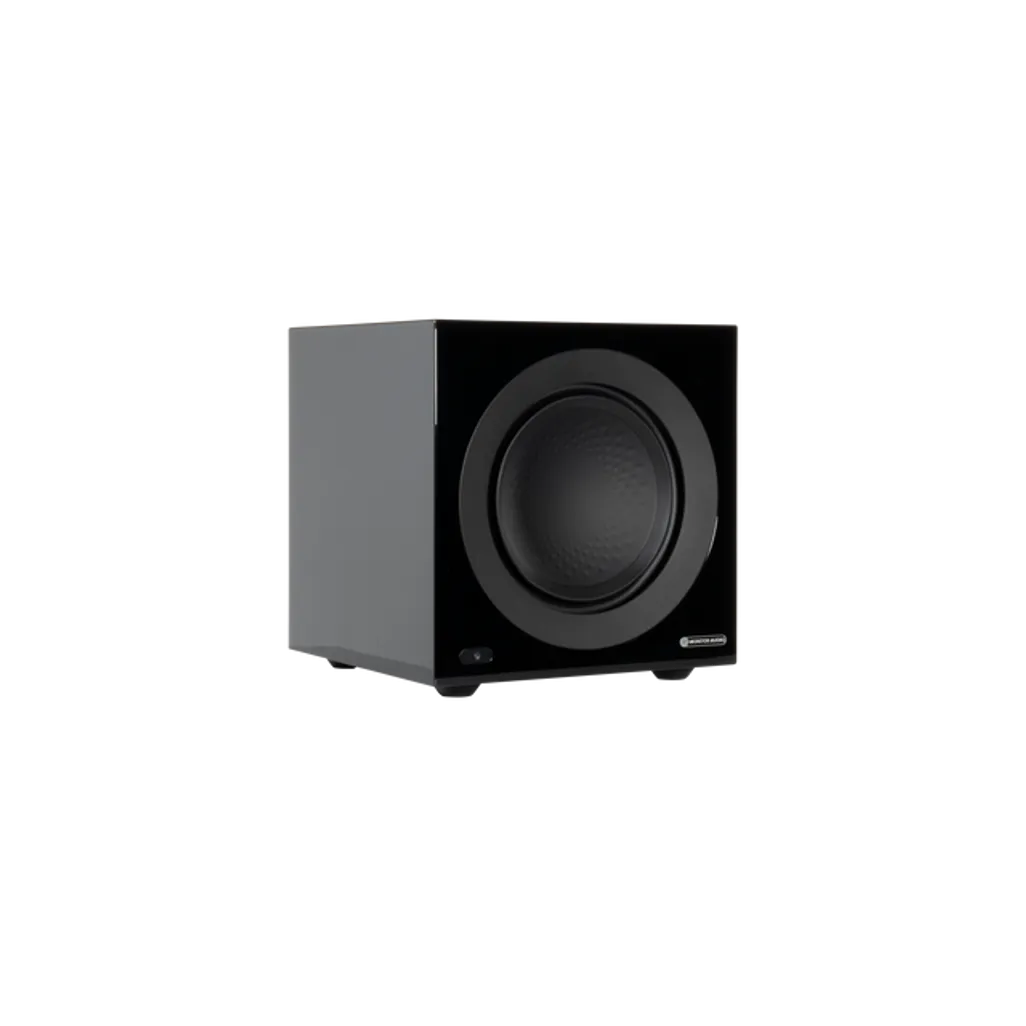

Monitor Audio Anthra W10 takes the low-frequency brief seriously, with C-CAM driver technology shaping how it delivers weight and control.
C-CAM driver technology defines much of the model’s character, while rigid surface technology ii keeps its performance tied to a real installation rather than a showroom checklist.
Integrated carefully with the room and main speakers, it supplies the low-frequency authority that lets the rest of the system stay composed.
For official product information and current support resources, visit the Monitor Audio Anthra W10 product page.
| ITEM | DESCRIPTION |
| Main Features | |
| C-CAM driver technology | Monitor Audio’s ceramic-coated aluminium magnesium diaphragms combine low mass with controlled rigidity. |
| Rigid Surface Technology II | The patterned driver surface improves stiffness and control without adding unnecessary moving mass. |
| MaestroUnite setup | App-based configuration provides access to DSP, EQ and multi-subwoofer settings. |
| Class-D amplification | Efficient onboard amplification supplies controlled drive without turning the cabinet into a space heater. |
| Purpose-built low-frequency channel | Adds weight, tension and scale while allowing the main speakers to work within their intended range. |
| System tuning controls | Designed to integrate level, phase and crossover behaviour with the room and main speakers. |
| DETAIL | VALUE |
| Product Specifications | |
| System Format | Active – Sealed Cabinet |
| Drive Unit Complement | 1 × 10" (254 mm) High Linear-Excusion Triple Suspension Driver |
| Amplifier Classification | High-Efficiency Class-D |
| Lower Frequency Limit | -6dB @17Hz |
| Upper Frequency Limit | (LPF Off) -6dB @400Hz |
| Driver Excursion (pk-pk) | 50 mm |
| DSP | 28 Bit 50 MIPS Configuratable through MaestroUnite |
| Analogue Digital Conversion | Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals |
| Amplifier Output Power, 240Vac | Instantaneous: 500 W* Continuous short-term: 425 W** |
| Amplifier Output Power, 120Vac | Instantaneous: 450 W Continuous short-term: 390 W |
| LED UI Control | Brightness, On-Off |
| Phase Control | 0-360 Degrees measured at LPF Crossover |
| Low Pass Filter | 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct |
| Custom EQ | Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass) |
| Volume Level | Wide adjustable input gain to allow maximum output from a wide range of input signals |
| Inputs | Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR |
| Outputs | Stereo unbalanced outputs with unbuffered throughput from RCA Inputs Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input |
| Mains Input Voltage | Universal Mains, 85-265VAC |
| External Dimensions (without feet) (HxWxD) | 321 × 321 × 321 mm |
| Power Consumption | 120 W |
| Cabinet Construction | Braced 18 mm thick MDF with 36 mm front baffle |

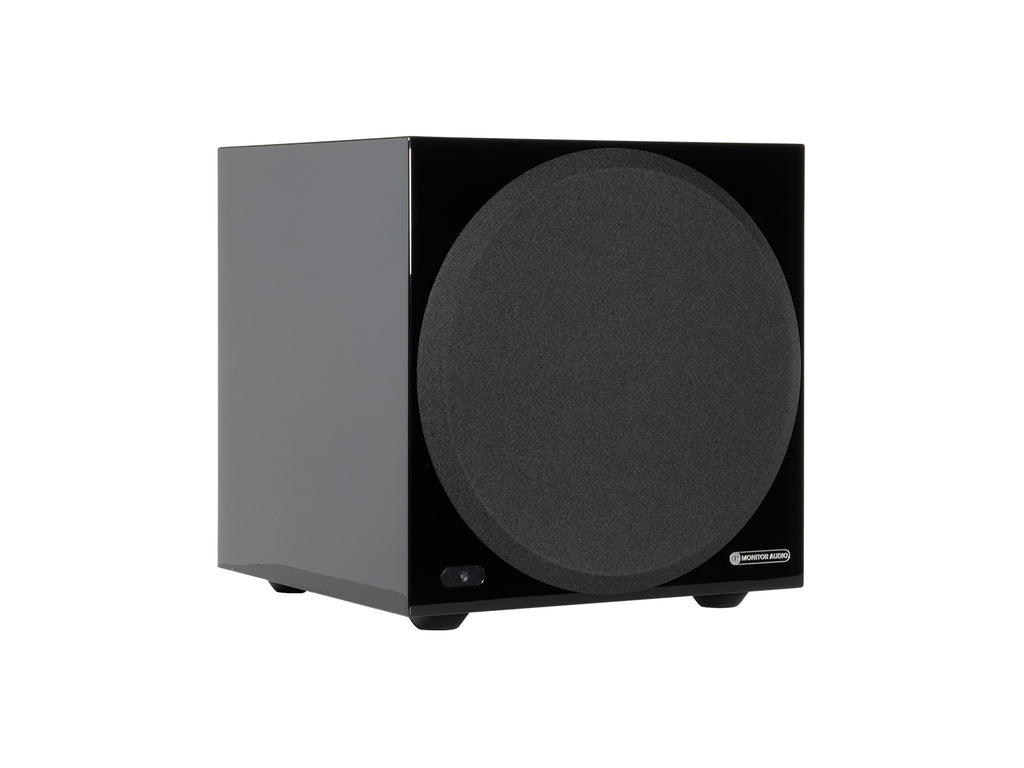

| Grille | Cloth covered magnetically attached Grilles |
| Weight | 20.06 kg (44 lb 1 oz) |
| Best Suited For | |
| Music and cinema systems requiring controlled low-frequency extension and impact. | |
