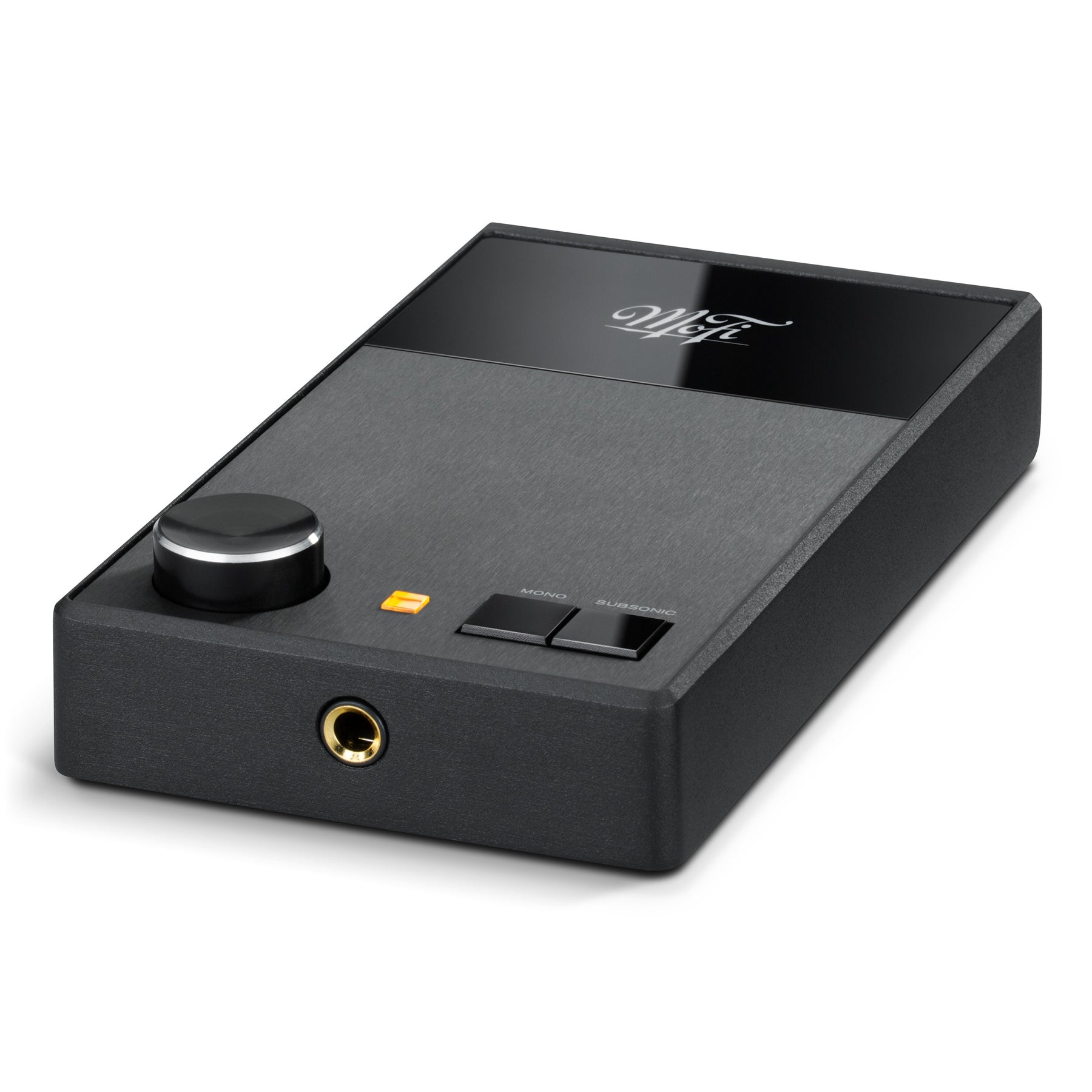

Late-night vinyl in a study is easier when the phono stage and headphone amplifier sit together beside the turntable. UltraPhono combines a configurable MM/MC phono stage with a Class A headphone amplifier, making it useful beside a turntable when private listening is part of the routine. The front volume control provides stepped, repeatable adjustment rather than a basic add-on socket.
Gain, cartridge loading, mono and subsonic filtering cover the setup needs of a wide range of moving-magnet and moving-coil cartridges. The headphone stage can drive demanding loads while the line output feeds a normal stereo amplifier.
UltraPhono is the compact choice when headphone listening and cartridge adjustment need to share one position beside the deck.
For official product information and current support resources, visit the MoFi Electronics UltraPhono Phono Stage & Headphone Amp product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Phono input: Integrated headphone amplifier | Private vinyl listening does not require a separate headphone box. |
| Phono input: Selectable MM/MC setup | Gain and loading controls adapt the stage to different cartridge types. |
| Phono input: Switchable mono | Mono records can be summed before the signal reaches the amplifier. |
| Phono input: Subsonic filter | Low-frequency record warp energy can be removed when it threatens headroom. |
| DETAIL | VALUE |
| Phono Stage Specifications | |
| Gain | 40, 46, 60 or 66 dB |
| THD | Less than 0.006% MM; less than 0.055% MC |
| MM load impedance | 47,000 ohms |
| MC load options | 75, 100, 500, 1k, 10k or 47k ohms |
| Input capacitance | 100 pF |
| Subsonic filter | Yes |
| Mono | Switchable |
| Headphone output | 8 V RMS maximum, 62 ohms, 1.5 W/channel |
| Volume control | 31 steps, 2 dB per step, 62 dB range |
| Minimum headphone impedance | Greater than 10 ohms |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
