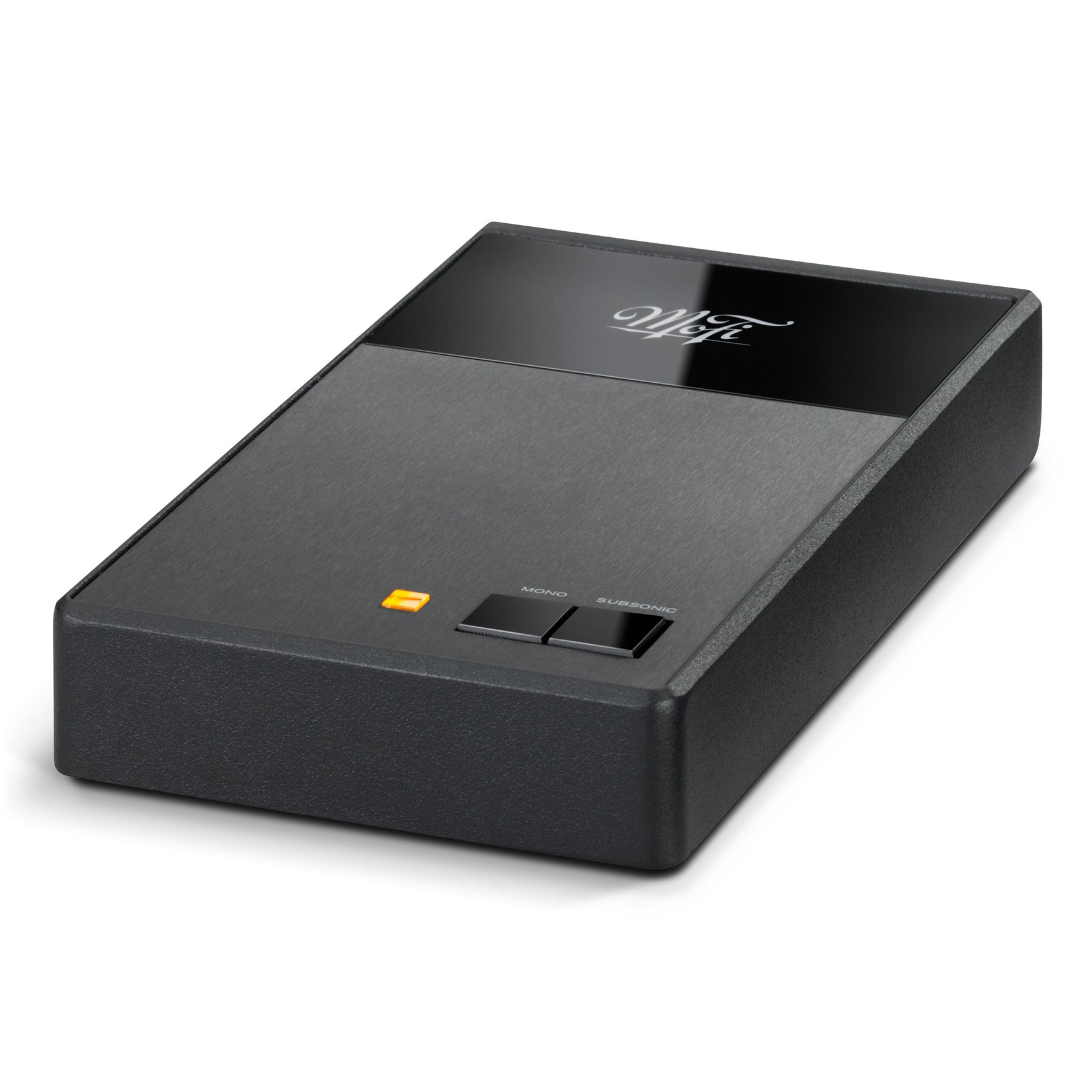

A small turntable system in a lounge or home office still needs quiet gain and the right cartridge loading. StudioPhono is a compact phono stage for a turntable that needs more cartridge control than a fixed-input amplifier provides. Tim de Paravicini's circuit supports both moving-magnet and moving-coil cartridges without adding a headphone section to the signal path.
Rear-panel setup covers gain and loading, while mono and subsonic switches deal with older pressings and record-warp energy. Its small case can sit close to the turntable, which helps keep the low-level cartridge cable run short.
StudioPhono fits systems that need proper cartridge setup but send headphone duties elsewhere.
For official product information and current support resources, visit the MoFi Electronics StudioPhono Phono Stage product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Phono input: MM and MC compatibility | Selectable gain and loading allow the same stage to follow a cartridge upgrade. |
| Phono input: Compact installation | The small chassis is easy to place near the turntable. |
| Phono input: Mono switch | Summing is available for mono records. |
| Phono input: Subsonic filter | The filter limits very-low-frequency movement caused by warped records. |
| DETAIL | VALUE |
| Phono Stage Specifications | |
| Gain | 40 dB, 46 dB, 60 dB or 66 dB |
| THD | Less than 0.01% MM; less than 0.012% MC |
| MM load impedance | 47,000 ohms |
| MC load options | 75 ohms, 100 ohms, 500 ohms, 1k ohms, 10k ohms or 47k ohms |
| Input capacitance | 100 pF |
| Subsonic filter | Yes |
| Mono | Switchable |
