A large listening room needs composure when an evening moves from a small jazz recording to a full orchestral work. SourcePoint V10 Master Edition is built for a large stereo room where a standmount cannot supply the required scale. Each cabinet uses a concentric midrange and tweeter, twin front woofers and two rear passive radiators, with separate internal chambers controlling the work done by each section.
The bass system reaches lower without forcing the concentric driver to cover the bottom octave. A tunable crossover gives the installer a practical way to settle the treble balance once the speakers are in the room, and the faceted baffle controls reflections around the drivers.

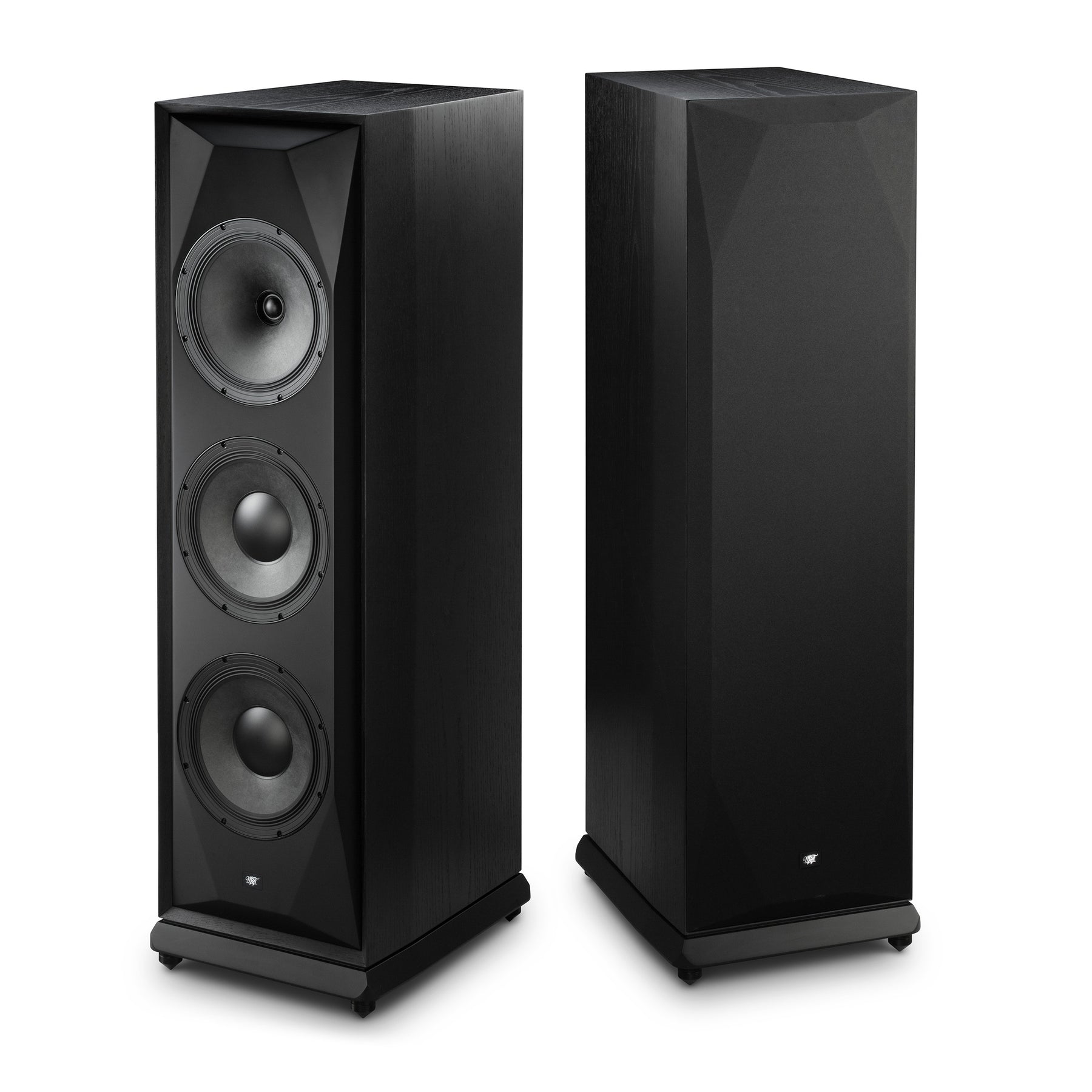

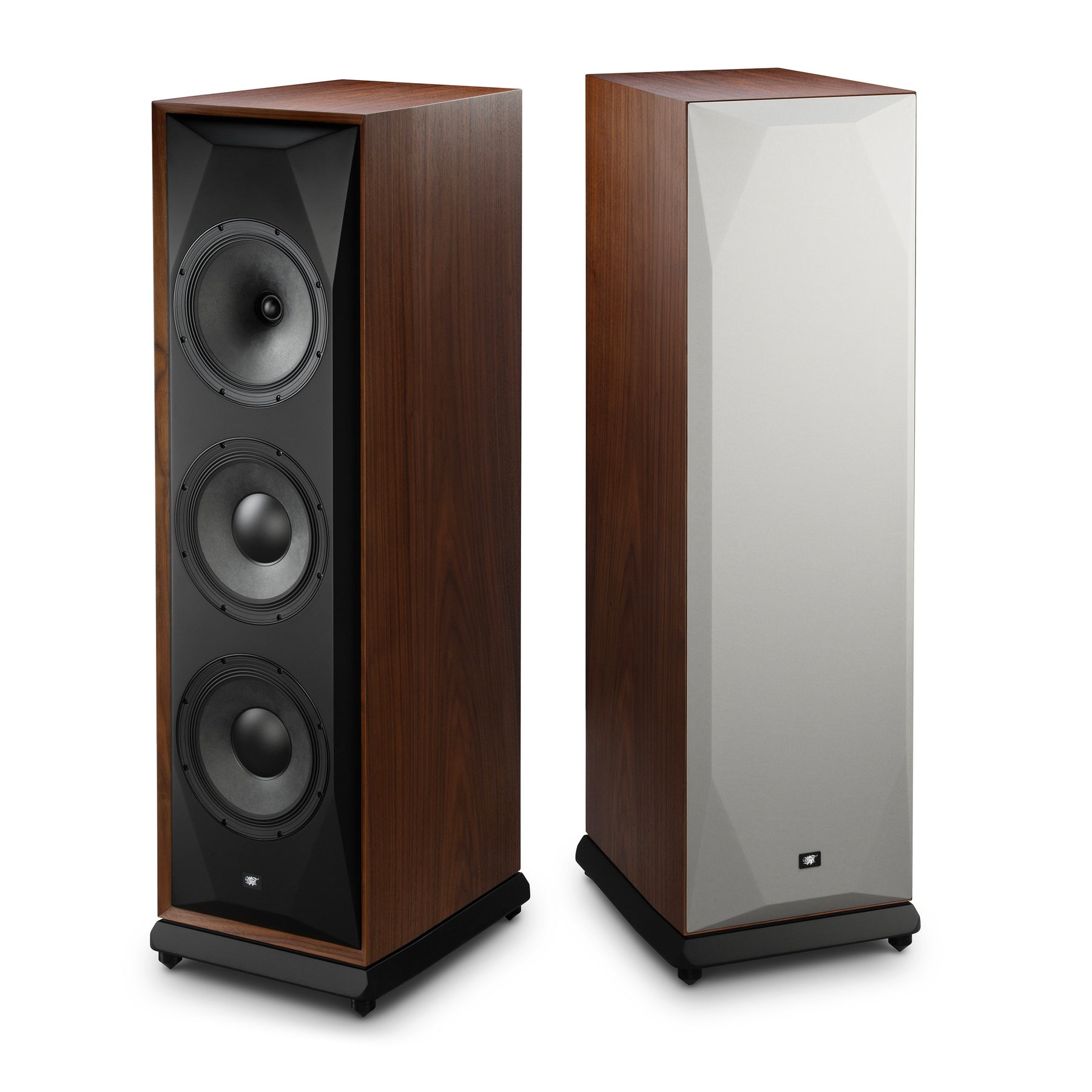

The pair is available in Black Ash or Walnut real-wood veneer. Each speaker ships individually, so delivery and final placement should be planned around its cabinet weight.
For official product information and current support resources, visit the MoFi Electronics SourcePoint V10 Master Edition Speakers (Pair) product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Speaker: Concentric midrange and tweeter | Point-source geometry keeps the main vocal and treble range coherent across the listening area. |
| Speaker: Dedicated bass system | Twin woofers and rear passive radiators handle low frequencies in isolated chambers. |
| Speaker: Tunable Master Edition crossover | Room adjustment is available without external equalisation. |
| Speaker: Multi-chamber cabinet | Internal separation and bracing reduce interaction between driver sections. |
| Speaker: Real-wood finish | Black Ash and Walnut suit both dedicated rooms and visible living spaces. |
| DETAIL | VALUE |
| Loudspeaker Specifications | |
| System configuration | 3-way passive-radiator enclosure with concentric driver |
| Frequency range | 27 Hz-30 kHz |
| Sensitivity | 91 dB / 2.83 V / 1 m |
| Nominal impedance | 6 ohms; 4.5 ohms minimum |
| Max power input | 200 W |
| Crossover frequencies | 130 Hz and 1.4 kHz |
| Tweeter | Tunable 1.25 in wide-roll soft dome |
| Midrange | 10 in paper cone |
| Woofers | 2 × 10 in paper cone |
| Passive radiators | 2 × 10 in |
| Binding posts | 5-way |
| Dimensions | 48.8 × 19.9 × 15.5 in |
| Weight | 160 lb each |
