In a dedicated listening room, the final few degrees of treble balance can decide whether a long evening remains relaxed or becomes tiring. SourcePoint 10 Master Edition keeps the scale and point-source behaviour of the original speaker, then gives a dedicated listening room more control over the final tonal balance. The same large concentric driver anchors vocals and instruments from a single acoustic centre.
Revised crossover components improve impedance linearity, and a three-position treble switch lets the installer account for room absorption, furnishings and listening distance. The braced vented cabinet and Twin-Drive magnet system remain central to the design.

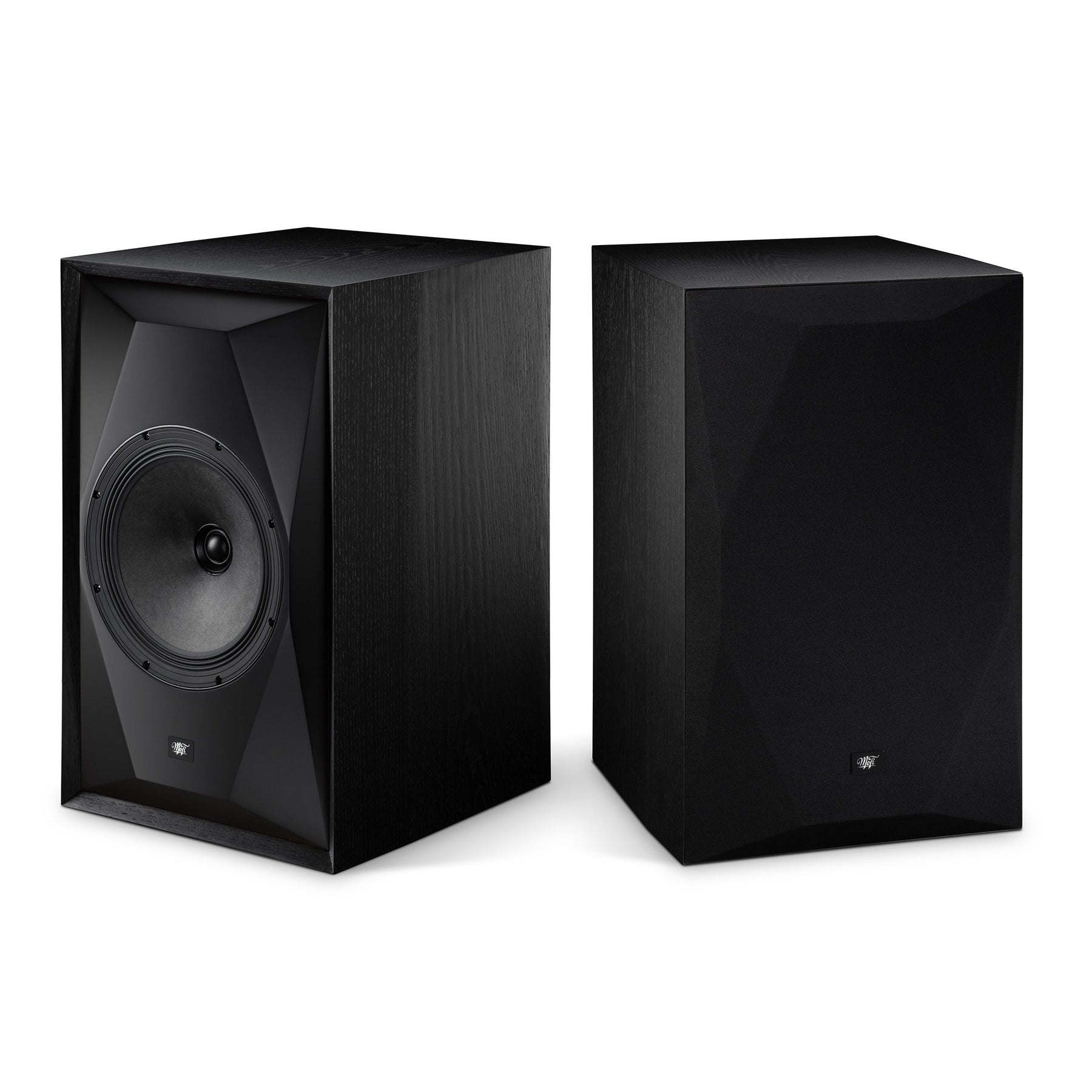

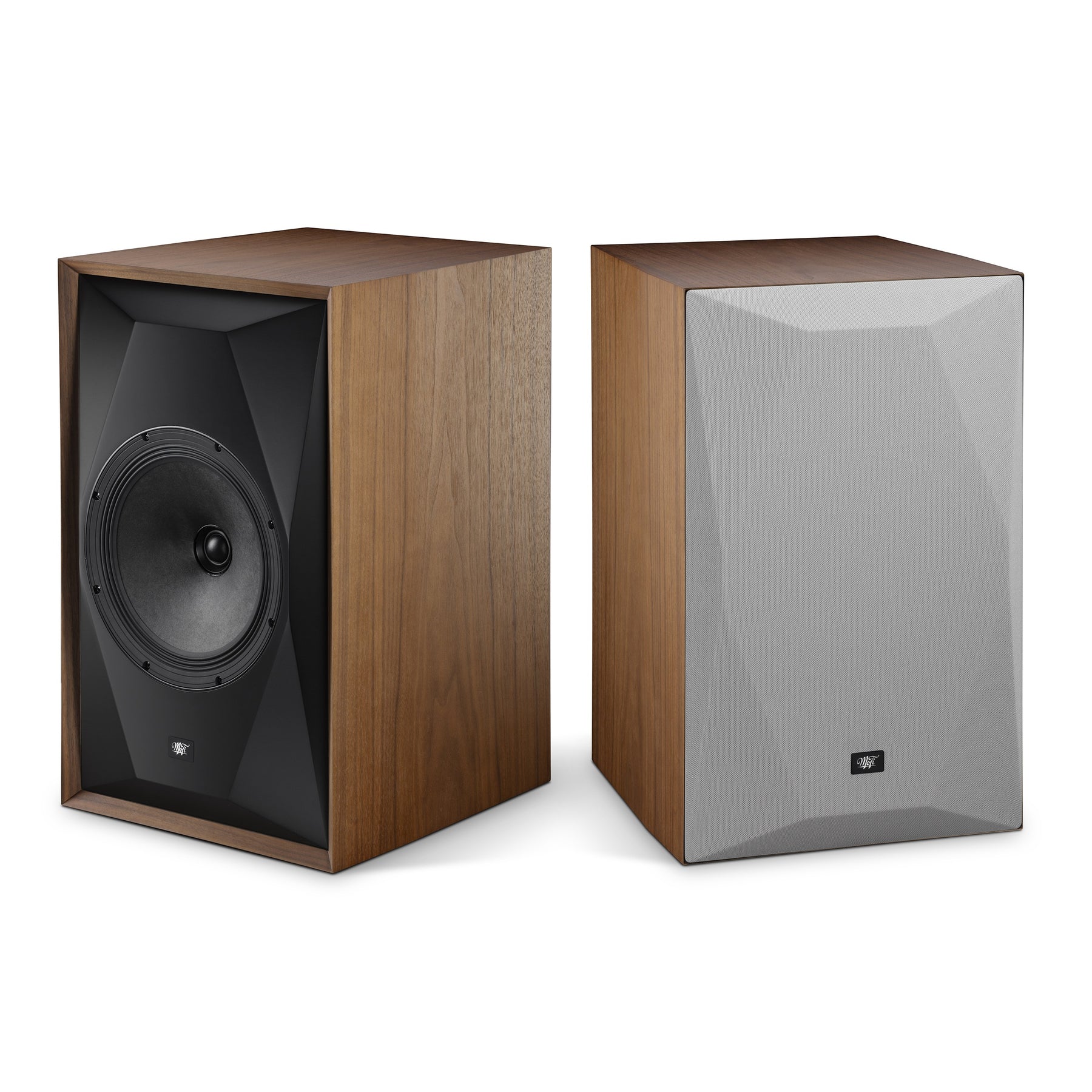

Choose Black Ash or Walnut. Matching tall and Low Slung stands appear as separate products, so this catalogue price is for the Master Edition loudspeaker pair without stands.
For official product information and current support resources, visit the MoFi Electronics SourcePoint 10 Master Edition Speakers (Pair) product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Speaker: Ten-inch concentric driver | The paper-pulp cone and central soft-dome tweeter act from one acoustic origin. |
| Speaker: Master Edition crossover | Upgraded components refine the network and impedance behaviour. |
| Speaker: Three-position treble control | The rear switch adjusts high-frequency balance for the room. |
| Speaker: Twin-Drive magnet system | A symmetrical motor field limits modulation inside the driver. |
| Speaker: Braced real-wood cabinet | Black Ash and Walnut veneers cover a thick, internally reinforced enclosure. |
| DETAIL | VALUE |
| Loudspeaker Specifications | |
| System configuration | 2-way vented enclosure with concentric driver |
| Frequency range | 42 Hz-30 kHz |
| Sensitivity | 91 dB / 2.83 V / 1 m |
| Nominal impedance | 8 ohms; 6.2 ohms minimum |
| Minimum recommended power | 30 W |
| Max power input | 200 W |
| Crossover frequency | 1.6 kHz |
| Treble adjustment | Three-position switch |
| Tweeter | 1.25 in wide-roll soft dome |
| Woofer | 10 in paper-pulp cone |
| Binding posts | 5-way |
| Dimensions with grille | 14.5 × 22.5 × 16.6 in |
| Dimensions without grille | 14.5 × 22.5 × 16 in |
| Weight | 46.2 lb each |
