In a listening room with more than one turntable or cartridge, setup changes should not interrupt the evening for long. MasterPhono is the control centre for a vinyl system that changes cartridges or runs more than one turntable. Peter Madnick's fully discrete circuit accepts voltage-mode and current-mode inputs, with front-panel access to gain, loading, mono and filtering rather than a row of hidden switches underneath the case.
Balanced and unbalanced connections make it easier to integrate into a serious preamplifier or active-speaker system. The power supply and audio circuits occupy separate chassis sections, and the analogue meters can monitor output or assist with cartridge calibration.

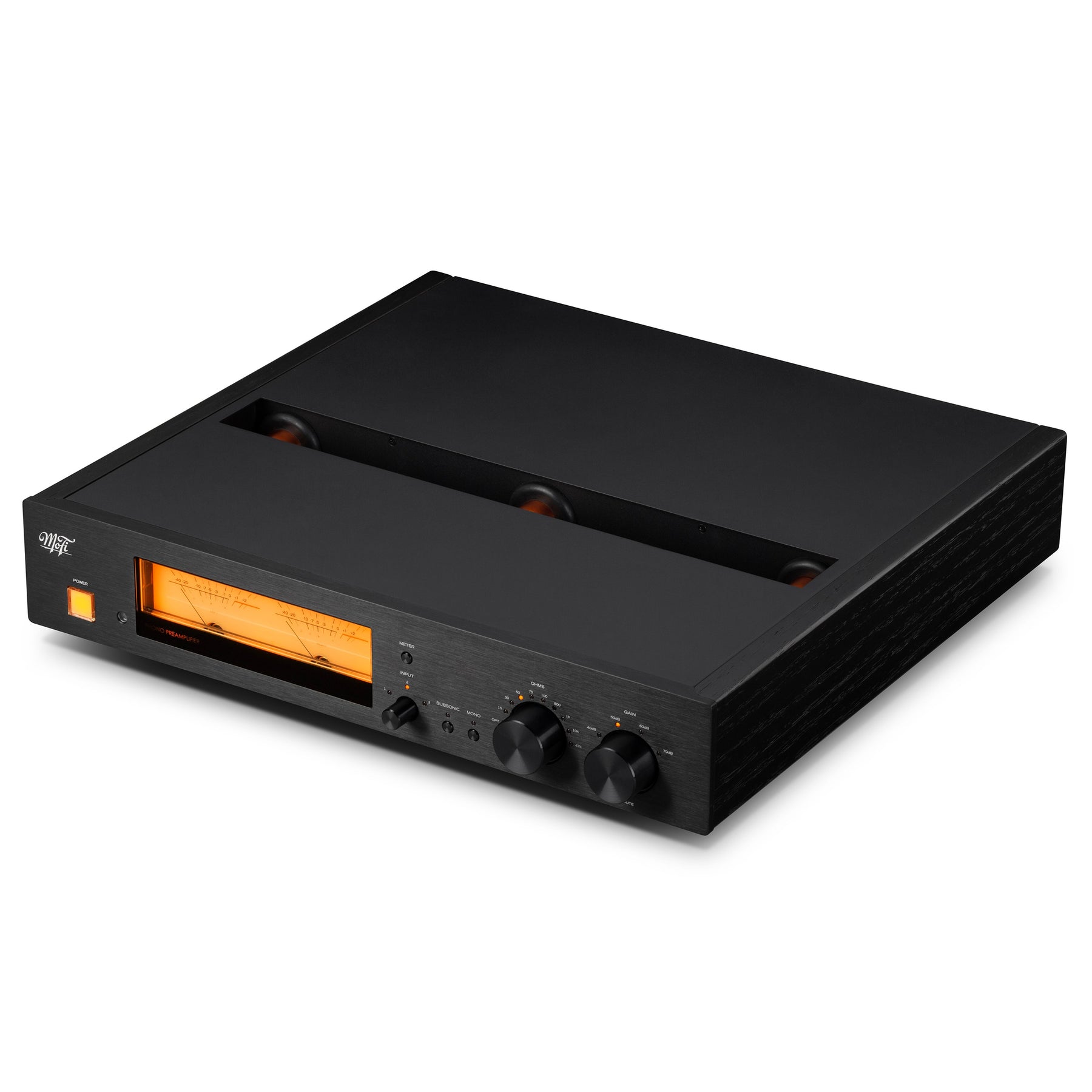

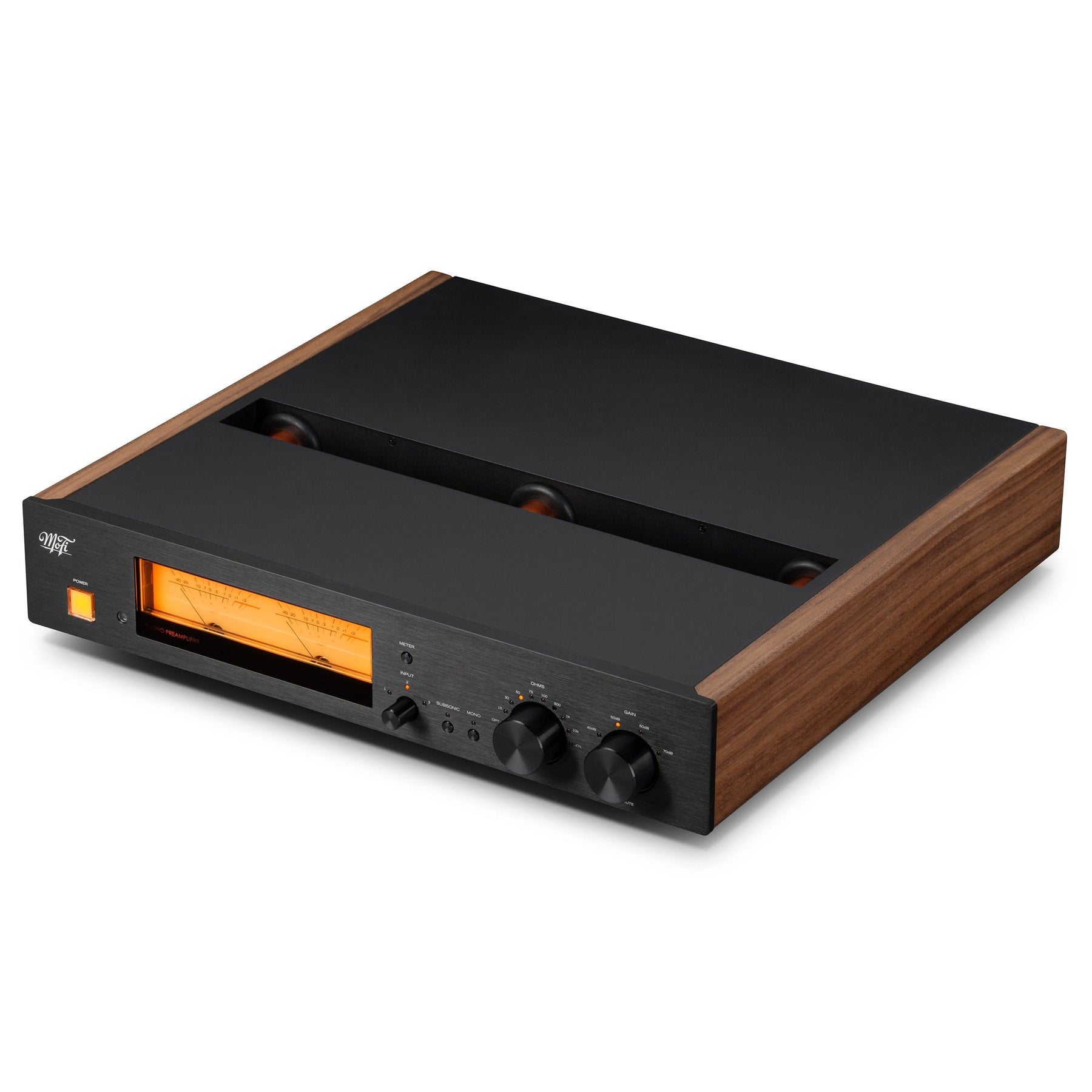

Black Ash and Walnut are separate finish variants at the same catalogue price. Either version suits a rack or sideboard where the front panel remains accessible during cartridge setup.
For official product information and current support resources, visit the MoFi Electronics MasterPhono Phono Preamplifier product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Phono input: Voltage and current inputs | Supports conventional cartridge loading and low-impedance transimpedance operation. |
| Phono input: Front-panel cartridge setup | Gain and loading changes can be made without opening the case. |
| Phono input: Balanced signal path | XLR input and output options suit longer cable runs and balanced systems. |
| Phono input: Dual-function meters | The meters handle monitoring and cartridge calibration duties. |
| Phono input: USB-upgradeable control | Firmware can add refinements without replacing the analogue audio stage. |
| DETAIL | VALUE |
| Phono Stage Specifications | |
| Inputs | Current mode and voltage mode; balanced and unbalanced |
| Gain | 40, 50, 60 or 70 dB for MM or MC |
| Loading | 15, 30, 50, 75, 100, 500, 1k, 10k, 47k ohms + 150 pF, and custom |
| Output impedance | 230 ohms balanced; 115 ohms unbalanced |
| Maximum output | 10 V RMS at 1% THD |
| RIAA accuracy | +/- 0.05 dB |
| Frequency response | 10 Hz-50 kHz, +/- 0.20 dB |
| Dimensions | 17.5 × 3.5 × 15.75 in |
| Weight | 15 lb |
