Marantz MODEL50 Amplifier in black

Marantz MODEL50 Amplifier

R 40,590.00 ZAR R 49,990.00 ZAR
Skip to product information

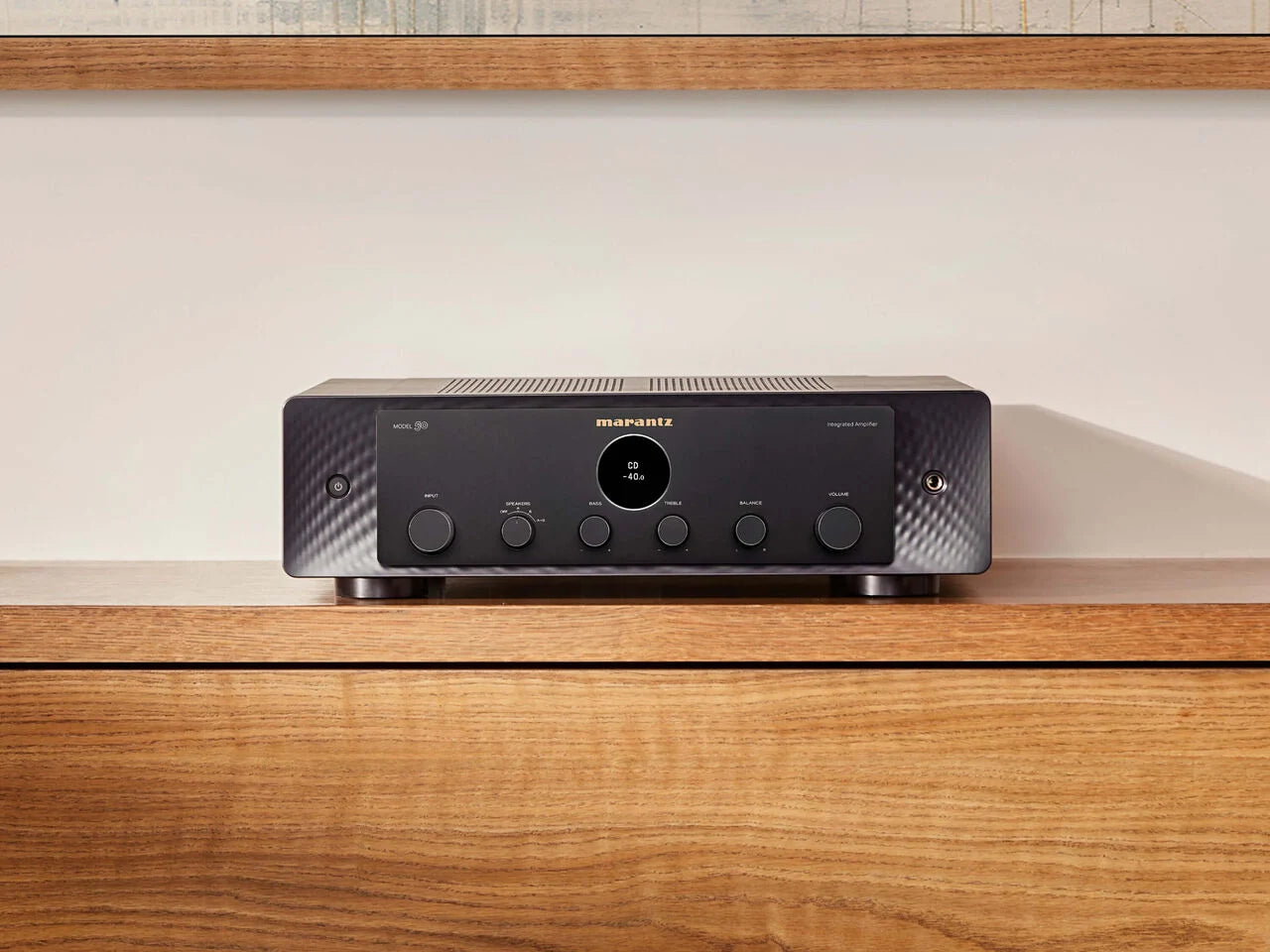

Marantz MODEL50 Amplifier in black
  • Marantz MODEL50 Amplifier in black
  • Marantz MODEL50 Amplifier in black rear view
  • Marantz MODEL50 Amplifier in silver alternate view
  • Marantz MODEL50 Amplifier in silver rear view
Marantz MODEL50 Amplifier
Marantz

Marantz MODEL50 Amplifier

R 40,590.00 ZAR R 49,990.00 ZAR
Description

MODEL 50

  • MODEL 50 was designed and engineered to be thoroughly modern, yet timeless. Engineered with Marantz proprietary technologies, this integrated amplifier pushes the boundaries of audio equipment design to reveal the musicality in all your stereo source components.
    • Artisinal Design
    • 2.2 Channels
    • 70 Watts Per Channel
    • Custom HDAM
    • 5 Year Warranty

    An Evolution 70 Years
in the Making

    Warm, rich, and spacious sound. Elegant to behold. Marantz 50 series strikes a perfect balance between timeless and modern.Details & SpecificationsFeatures Others Inputs Outputs Specifications General
    Technical Details
    • Channels: 2
    • Current Feedback Topology: Yes
    • Phono EQ: Marantz Musical
    • HDAM version: SA3, SA2
    • Power Transformer: Toroidal
    • High Grade Audio Components: Yes
    • Customised Components: Yes
    • Symmetric PCB Layout: Yes
    • Aluminium extrusion heat sink: Yes
    • Balance / Bass / Treble

    Others

    • Linear Drive Power Supply: Yes
    • Liniear volume control: Yes
    • Schottky diodes: Yes
    • Solid Heat Sinks: Yes
    • Bottom Plate: triple
    • Low noise OLED display: Yes
    • Source Direct: Yes
    • Power Amp direct: Yes

    Inputs Outputs

    • Audio Inputs: 6
    • Phono Input: MM: Yes / MC: No
    • Audio Outputs1
    • Pre-out / Main-in: Yes + subwoofer / -
    • Power Amp Direct IN: Yes
    • Gold Plated Cinch: Yes
    • Speaker A / B: Yes
    • Speaker Terminals: Marantz SPKT-1+
    • Number of terminals: 4
    • D-Bus: Yes
    • Headphone Out: Yes

    Specifications

    • Power Output (8 / 4 Ohm RMS): 70 W / 100 W
    • Frequency Response: 5 Hz–100 kHz
    • Total Harmonic Distortion: 0.02 %
    • Damping Factor: 100
    • Input Sensitivity: MM: 1.4 mV / 47 kΩ
    • Signal to Noise Ratio: MM/MC: 87 dB / -
    • Input Sensitivity: High level: 185 mV / 16 kΩ
    • Signal to Noise Ratio: High level: 116 dB (2 V input)
    • Input Sensitivity: Power Amp Direct IN: 1.5 V / 15 kΩ
    • Signal to Noise Ratio: Power Amp Direct IN: 125 dB
    • Treble Control: ± 10 dB at 15 kHz
    • Bass Control: ± 10 dB at 50 Hz

    General

    • Available Colors: Black / Silver-Gold
    • Metal Front Panel: Yes
    • Power Consumption in W: 220
    • Standby Consumption in W: 0.3
    • Auto Power off: Yes
    • Detachable Power Cable: Yes
    • Remote Control: RC003PMND
    • System Remote Function: Yes
    • Maximum Dimensions (W x D x H) in mm: 442 x 431 x 130
    • Weight in kg: 14.2
    • Carton Maximum Dimensions (W x D x H) in mm: 527 x 517 x 255
    • Carton Weight (inc. product) in kg: 17.5
