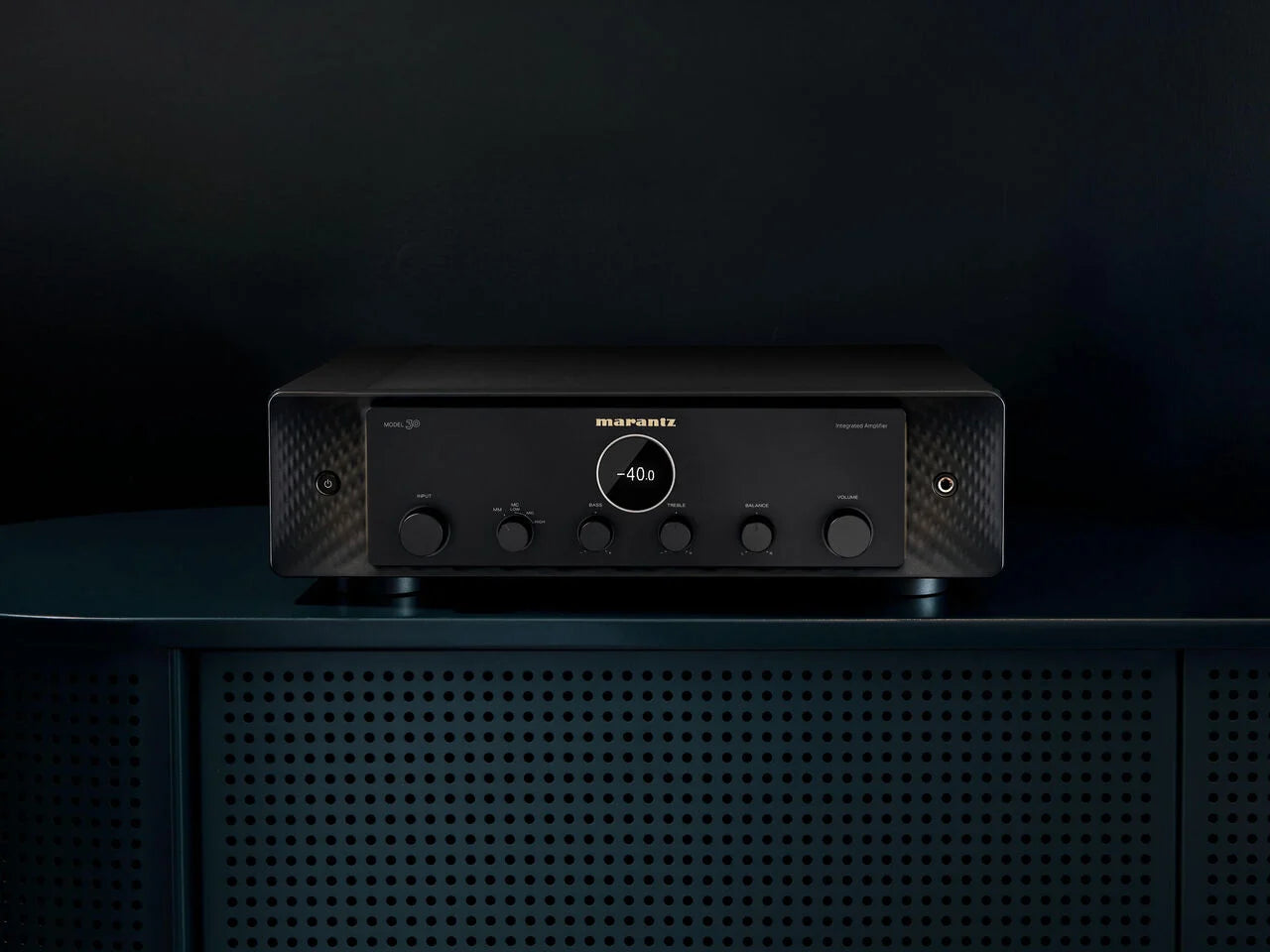

Marantz MODEL30 Amplifier

R 78,990.00 ZAR R 87,490.00 ZAR

MODEL 30

Get the most musical sound possible from this Sound Master tuned integrated amplifier. Its custom designed technology delivers exquisite detail and unforgettable musicality from any style of music.

Artisinal Design
2.2 Channels
100 Watts Per Channel
Custom HDAM
3 Year Warranty

A Masterpiece of Audio Architecture

Featuring a fully discrete, two stage design for minimal interference, and unique Marantz HDAM technology for signal purity, MODEL 30 offers exceptional sound quality.Details & SpecificationsOutput Power Features

Amplifier CircuitSwitching Amp
(Hypex NC500/SMPS600
by single)
Power TransToroidal w/case
VolumeElectric
LoudnessNo
Bass / Treble / Mid / Balance Controlyes / yes / No / yes
REC Out SelectNo
Source Directyes
Pure DirectNo
(Marantz) Purest ModeNo
Isolator (for USB-B input)No
Jitter reducerNo
Dual Clock: 44.1 / 48 kHzNo
Digital FilterNo
Analog Amp ModeNo
Wide Range5Hz - 50kHz
Total Harmonic Distortion0.005%
(1kHz, 8Ω)
Damping Factor500
Input Sensitivity: Phono inputMM: 2.3 mV / 39 kohm
MC: 250
Input Sensitivity: CD/Line/Recorder220 mV / 13 kohm
Input Sensitivity: Power Amplifier input1.1 V / 13 kohm
SN RatioPHONO (MM): 88dB
PHONO (MC): 75dB
CD: 107dB

Terminal

Phono Inputyes (MM/MC)
Ext. Pre Input (Power Amp Direct)yes
Preoutyes
Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out6/1
(PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
* [PHONO] and [CD] inputs = high grade terminals.
Balanced XLR inputNo
Rec-Out SelectorNo
Optical inputNo
Coaxial inputNo
USB ANo
USB BNo
HDMINo
DACNo
2 sets of Spk TerminalNo
Speaker TerminalMarantz Original
SPKT-100+
Remote Control Bus Terminalyes (Cinch)
NFCNo
EthernetNo

Network UI Control Others Cosmetic

Amplifier Circuit: Switching Amp
(Hypex NC500/SMPS600 by single)
Power Trans: Toroidal w/case
Volume: Electric
Loudness: No
Bass / Treble / Mid / Balance Control: yes / yes / No / yes
REC Out Select: No
Source Direct: yes
Pure Direct: No
(Marantz) Purest Mode: No
Isolator (for USB-B input): No
Jitter reducer: No
Dual Clock: 44.1 / 48 kHzNo
Digital Filter: No
Analog Amp Mode: No
Wide Range: 5Hz - 50kHz
Total Harmonic Distortion: 0.005%
(1kHz, 8Ω)
Damping Factor: 500
Input Sensitivity: Phono inputMM: 2.3 mV / 39 kohm
MC: 250
Input Sensitivity: CD/Line/Recorder: 220 mV / 13 kohm
Input Sensitivity: Power Amplifier input: 1.1 V / 13 kohm
SN RatioPHONO (MM): 88dB
PHONO (MC): 75dB
CD: 107dB

Terminal

Phono Input: yes (MM/MC)
Ext. Pre Input (Power Amp Direct)yes
Preout: yes
Audio (In/Out) Terminals *except Power Amp Direct In(or Ext-Pre) and Pre-out6/1
(PHONO / MM&MC / CD / TUNER / LINE 1 / LINE 2 / RECORDER)
* [PHONO] and [CD] inputs = high grade terminals.
Balanced XLR input: No
Rec-Out Selector: No
Optical input: No
Coaxial input: No
USB A: No
USB B: No
HDMI: No
DAC: No
2 sets of Spk Terminal: No
Speaker Terminal: Marantz Original
SPKT-100+
Remote Control: Bus Terminalyes (Cinch)
NFC: No
Ethernet: No

Network

Engine: No
Computer music file streaming: No
Gapless Playback Music ServerUSB A: No
Internet radio: No
AirPlay 2: No
GoogleCast: No
Album art browsing: No
Jpeg Picture Playback: No
Cloud Music Service: No
WPS Wi-Fi Protected Setup: No
Wi-Fi Sharing: No
WMM: No
OFF mode: No
Multi-Poimt:No

UI

Displayyes (Porthole, OLED)

Control

App Control via Network Player: yes
System Remote Controller: yes
(New system remote controller to control SACD 30 and MODEL 30)
RS232C: No
Flasher Input: No
Trigger 12V: No
