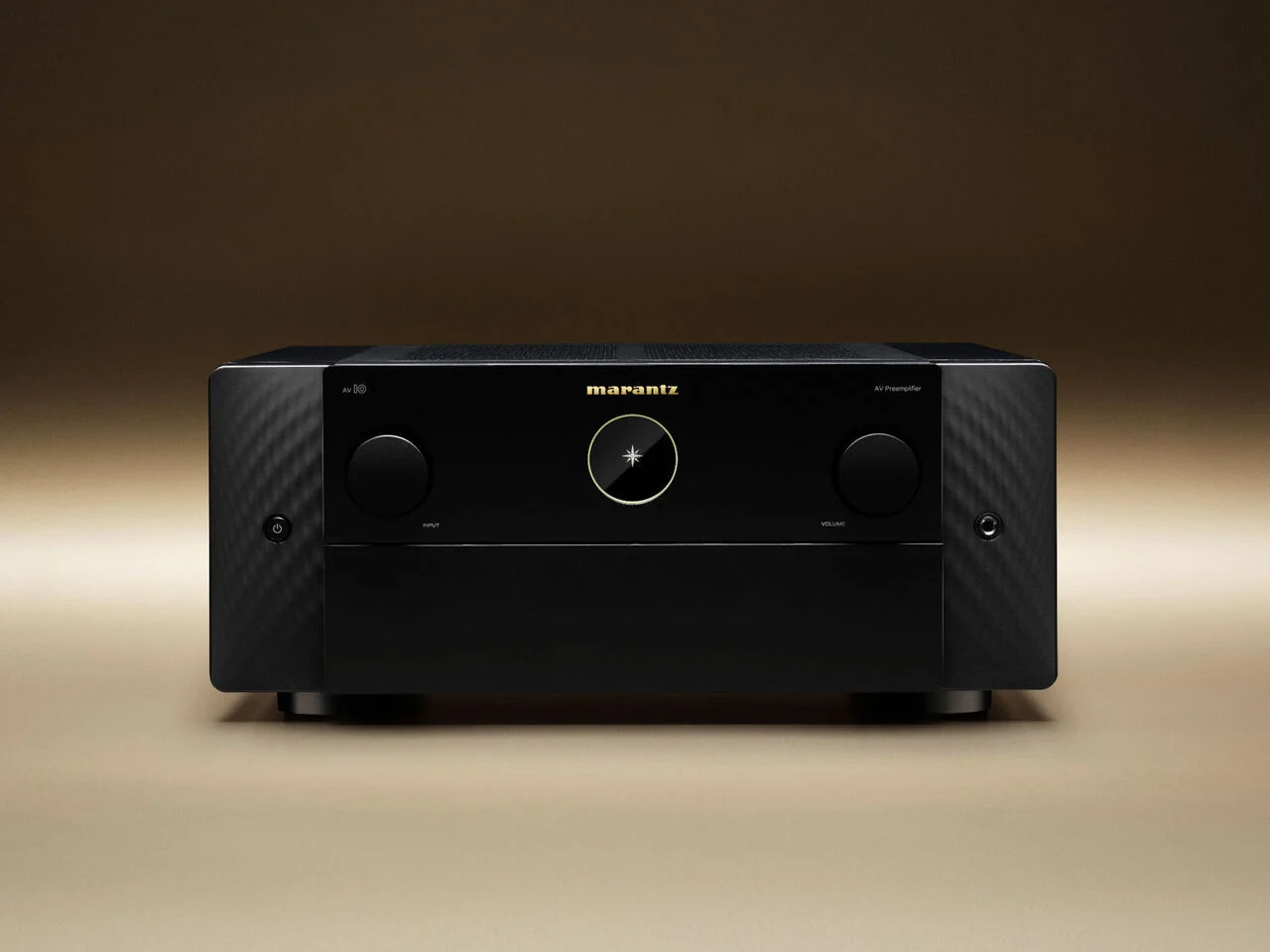

Marantz AV10 AV Processor

R 175,190.00 ZAR R 209,990.00 ZAR

AV 10

AV 10 represents the highest measure of performance and capability for reference-level home theater systems. Marantz Sound Masters meticulously tuned AV 10 for amazing performance with careful parts selection to create the most memorable home theater experiences possible.

Crafted in Shirakawa, Japan
15.4 Channels
7 HDMI Inputs plus eARC
8K and Dolby Atmos
3D Audio
HEOS Built-in
5 Year Warranty

Details & SpecificationsMultichannel Surround Sound Enhancements Network

HEOS Multi-room and StreamingYes
Bluetooth Re-transmit for Bluetooth headphonesYes
Alexa / Google Voice Assistant / Apple HomePodYes / Yes / Yes
Network Audio SharingYes
Lossy formats: MP3 / WMA / AACYes / Yes / Yes
Lossless formats: FLAC / ALAC / WAVYes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24Yes / Yes / Yes
DSD Audio StreamingYes (2.8/5.6MHz)
FLAC HD 192/24Yes
WAV 192/24Yes
ALAC 192/24Yes
Gapless PlaybackYes (FLAC, WAV ,ALAC ,DSD)
AirPlay Audio StreamingYes (AirPlay2)
Internet radioYes (TuneIn)
Spotify*Yes (connect)
PandoraYes
SiriusXMYes
Other Streaming Services *Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon TestedYes
Compatible with Remote APP for Smart PhonesMarantz AVR Remote
Compatible with Remote APP for TabletsAndroid / iOS / Amazon Kindle
Ethernet PortsYes
Wi-FiYes
BluetoothYes

HDMI

HDMI Inputs: Back / Front7 / No
HDCP2.3 supportYes
HDMI Outputs: Main / Zone2 / 1
HDMI to HDMI Scaling1080P/4K to 8K
GUI Overlay on HDMIYes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz ABYes / Yes
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARCYes / Yes / Yes / Yes
Enhanced ARCYes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDRYes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gamingYes
Variable Refresh Rate / Quick Frame TransportYes / Yes
3D Signal Pass-ThroughYes
8K signal pass-through / scaling / GUI overlayYes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI OverlayYes / Yes / Yes
HDMI pass-though in standby modeYes
Picture Adjust / Noise ReductionNo / No
CECYes
DSD Audio CapabilityYes
Audio Return ChannelYes
Auto LipSyncYes

Multi-Room CI

HEOS Multi-Room IntegratedYes
HEOS Link Compatibility: IR/ IPYes / Yes
Multi-Room Zones3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / AnalogYes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / PreoutNo / Yes
Zone HDMI Output from HDMI SourceYes
IP Control / RS232 Control / Web Control / App ControlYes / Yes / Yes / Yes
IR Flasher InYes
Marantz Remote BusYes
DC Trigger Output2
HDMI DiagnosticsYes

Others Inputs Outputs

Composite In / OutNo / No
Component In / OutNo / No
HDMI In / Out7 / 3
Multi-Room Video Out: Video / HDMINo / Yes
Analogue In / Out5 (1x XLR) / No
Phono (MM) InYes
Digital In: Optical / Coaxial2 / 2
Multi-Room Out: analog / digital2 / No
Multichannel Pre OutYes (17.4 RCA & 17.4 XLR)
Subwoofer Out4 (independent)
Speaker A / Bassignable pre out
Bi-amp driveassignable pre out
Multi-Room Speaker Terminalpre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USBNo / No / No / No / Yes
USB Audio / Made for iPod / Made for iPhoneYes / No / No
AM/FM TunerYes

General

Metal Front PanelYes
System Remote ControlRC047SR
Pre-Programmed / Learnable / LCD DisplayYes / Yes / Yes
Power Consumption in W100
Standby Consumption in W0.2
CEC Standby Consumption in W0.5
Network Standby Consumption in WLess than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches17.4 x 19.8 x 7.4
( 17.4 x 19.8 x 9.9 )
【 17.4 x 19.0 x 7.4 】
Weight in lbs.37.0
