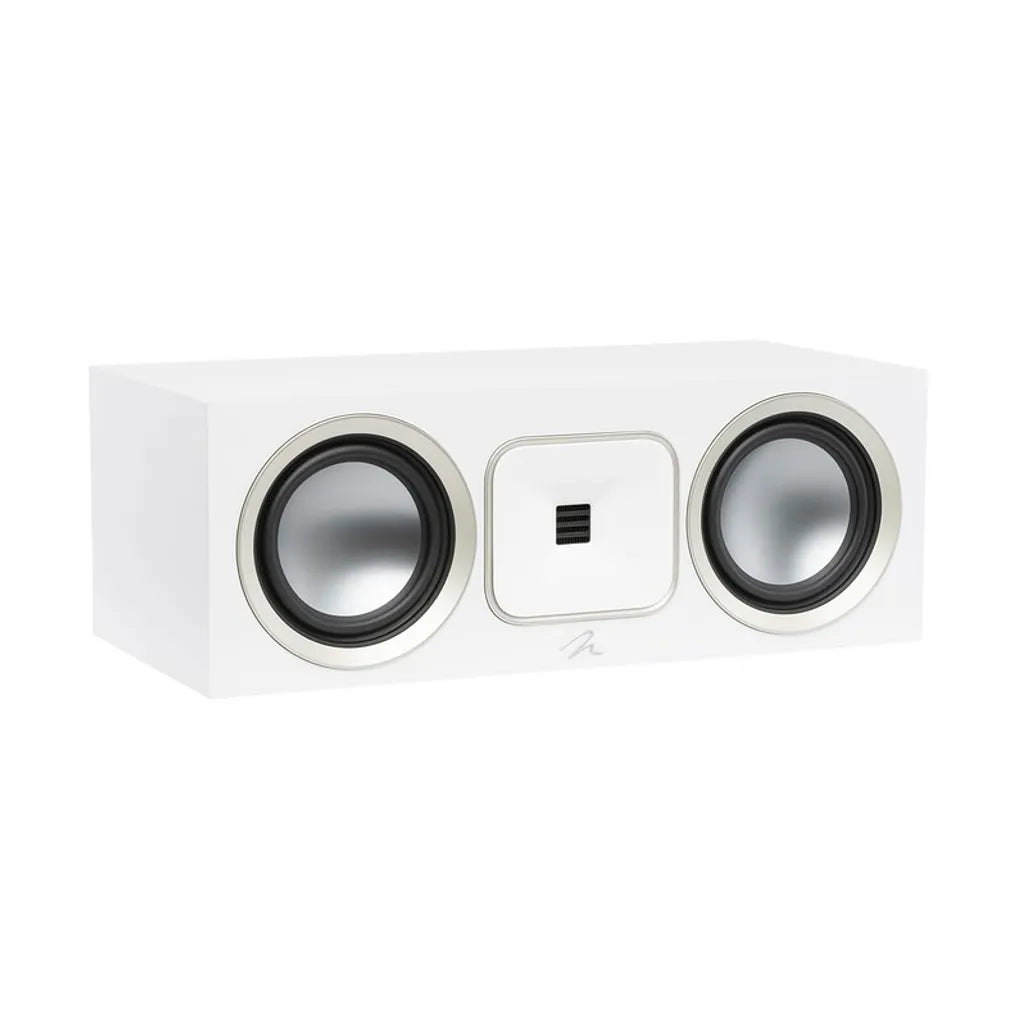

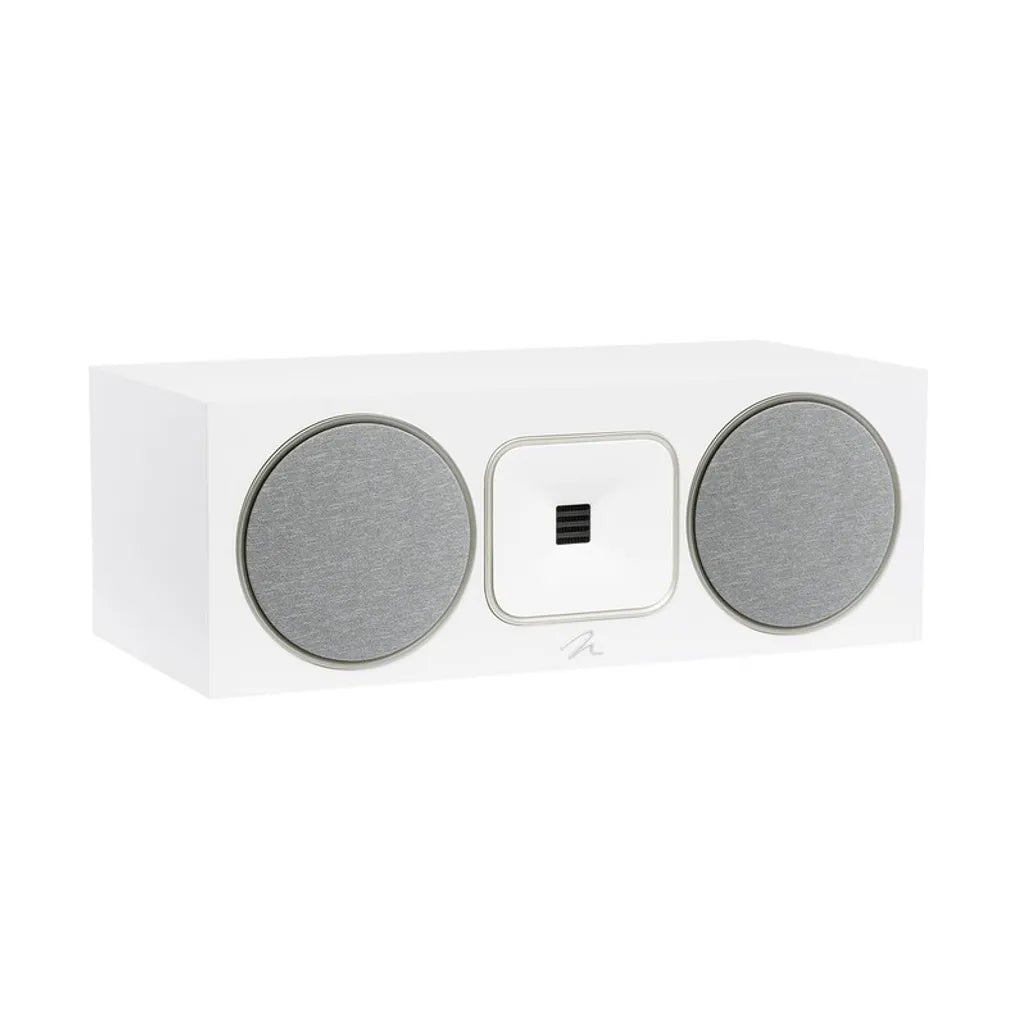

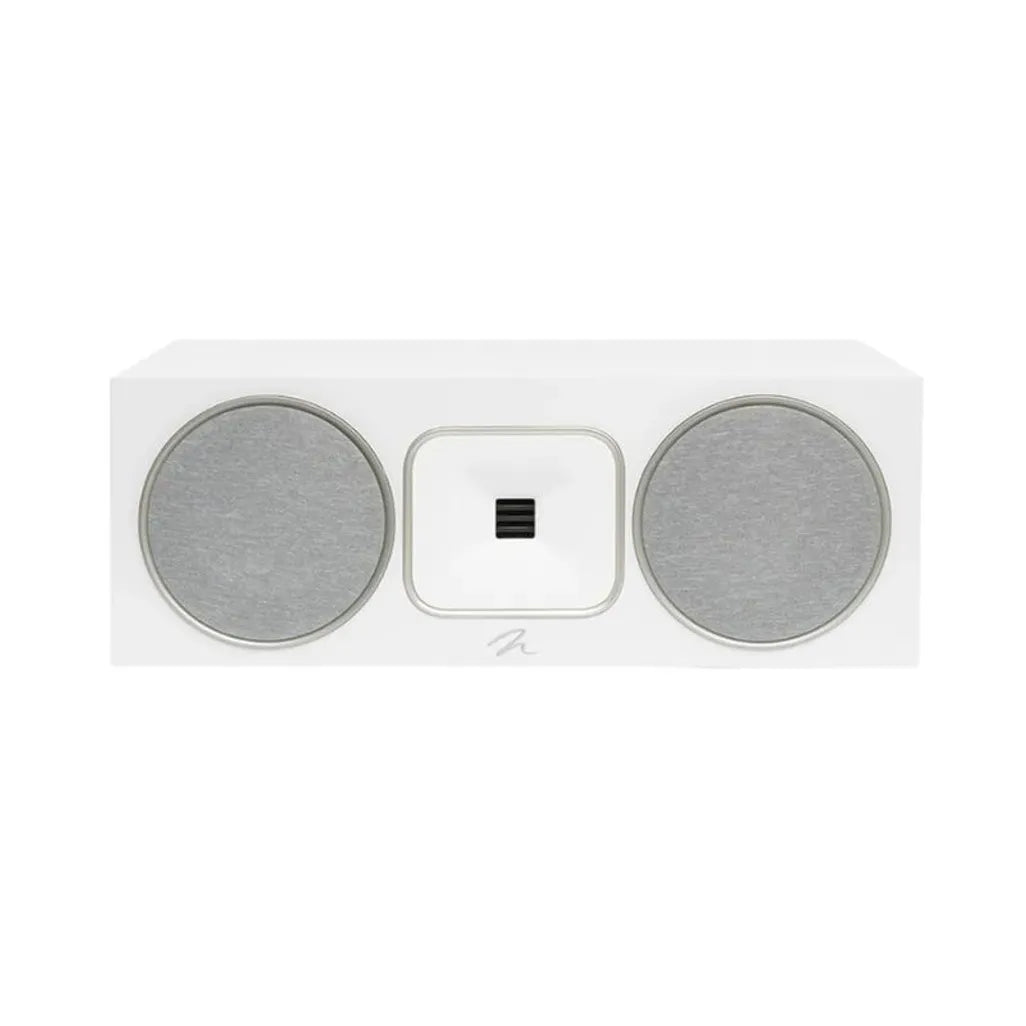

MartinLogan Motion Foundation C1 is a wide centre-channel speaker designed to keep dialogue stable across a multi-seat cinema. The C1's Satin White cabinet gives the speaker a lighter visual presence while the black baffle keeps attention on the drivers.

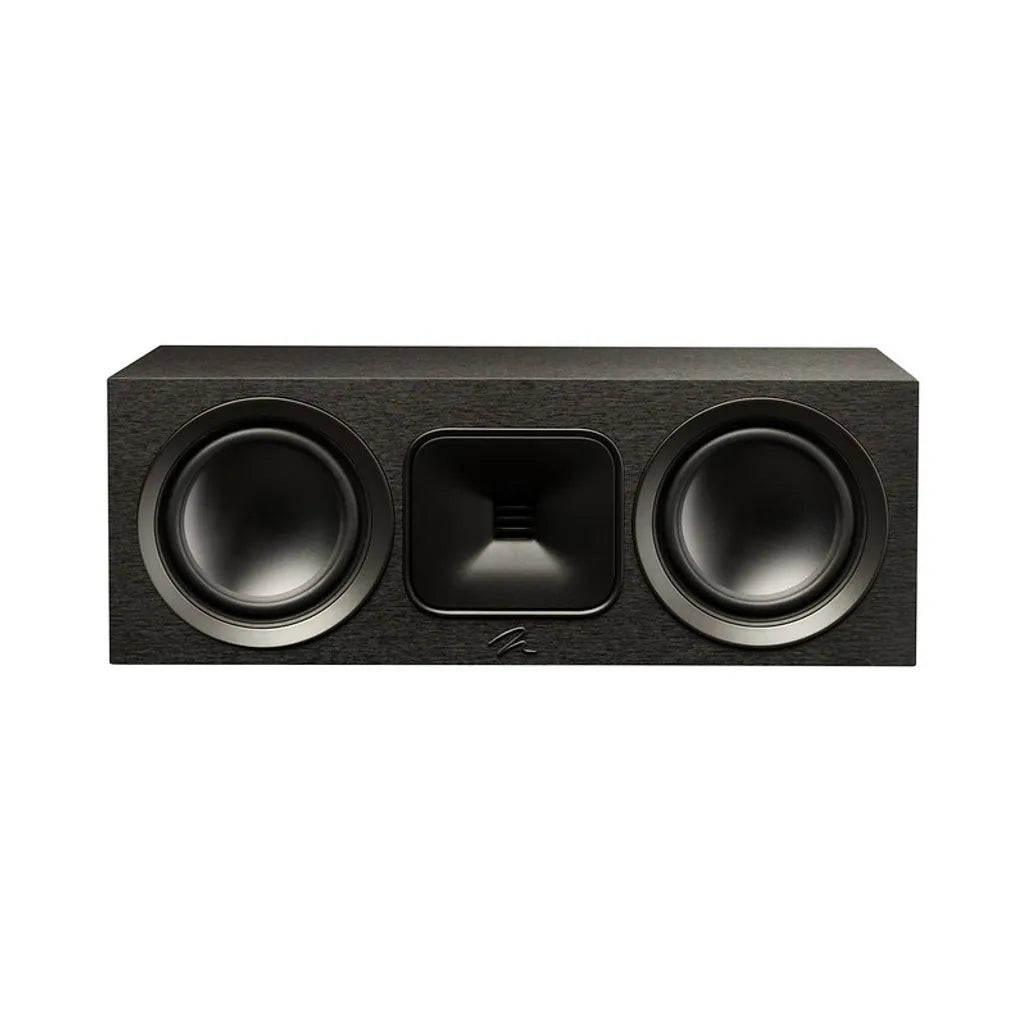

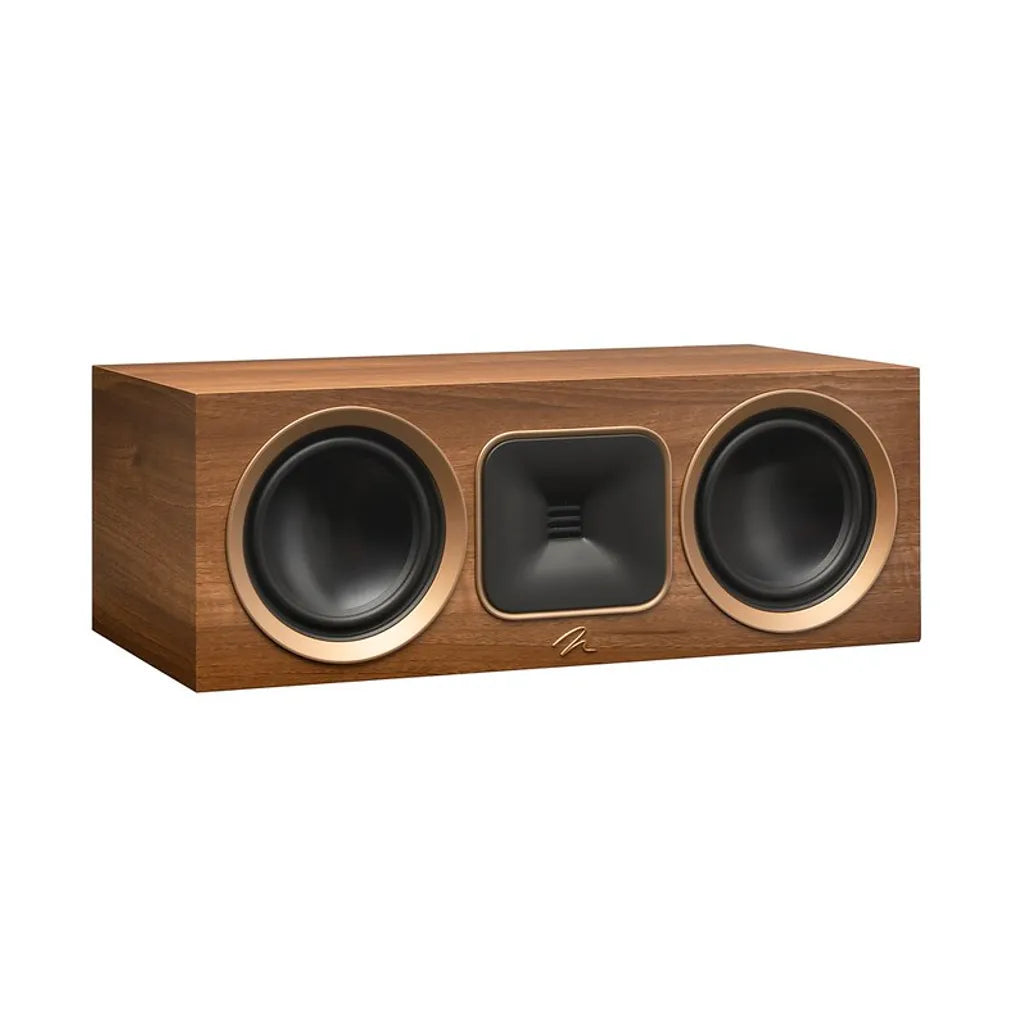

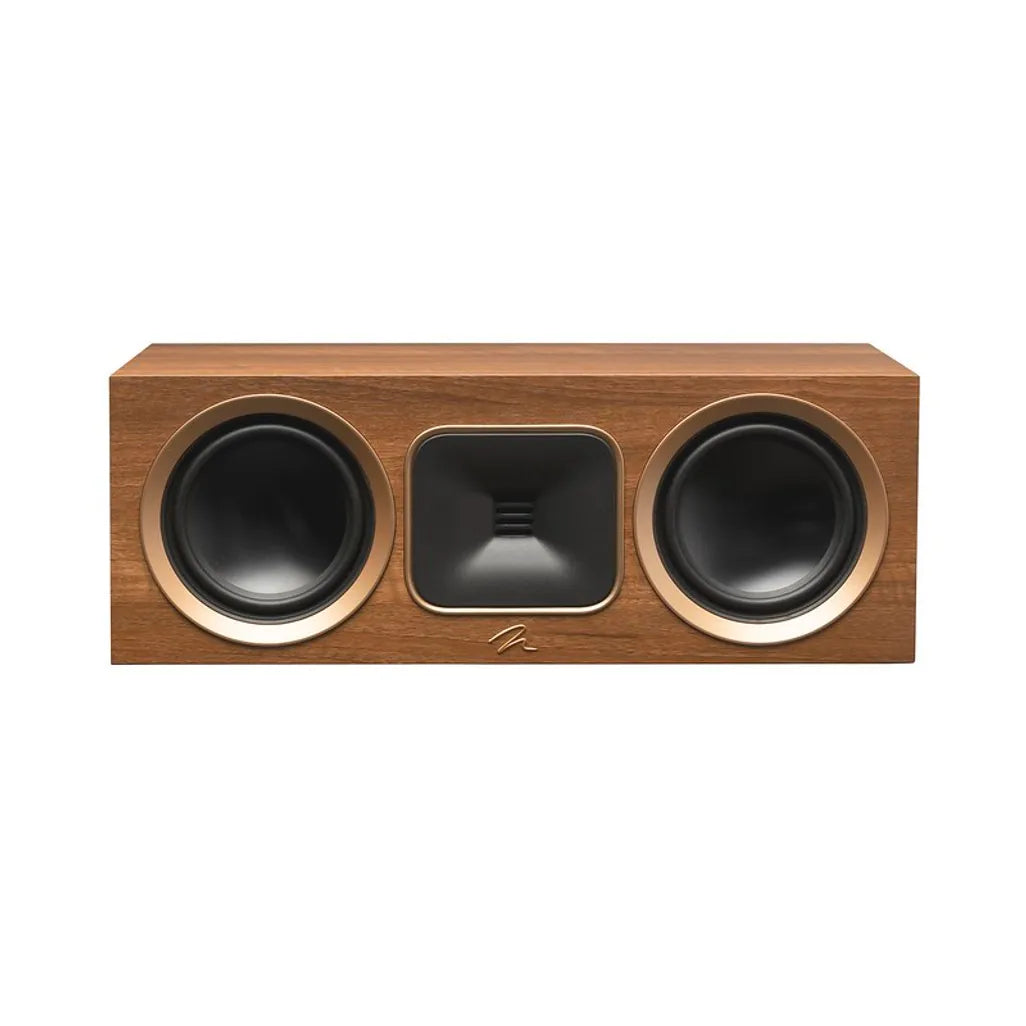

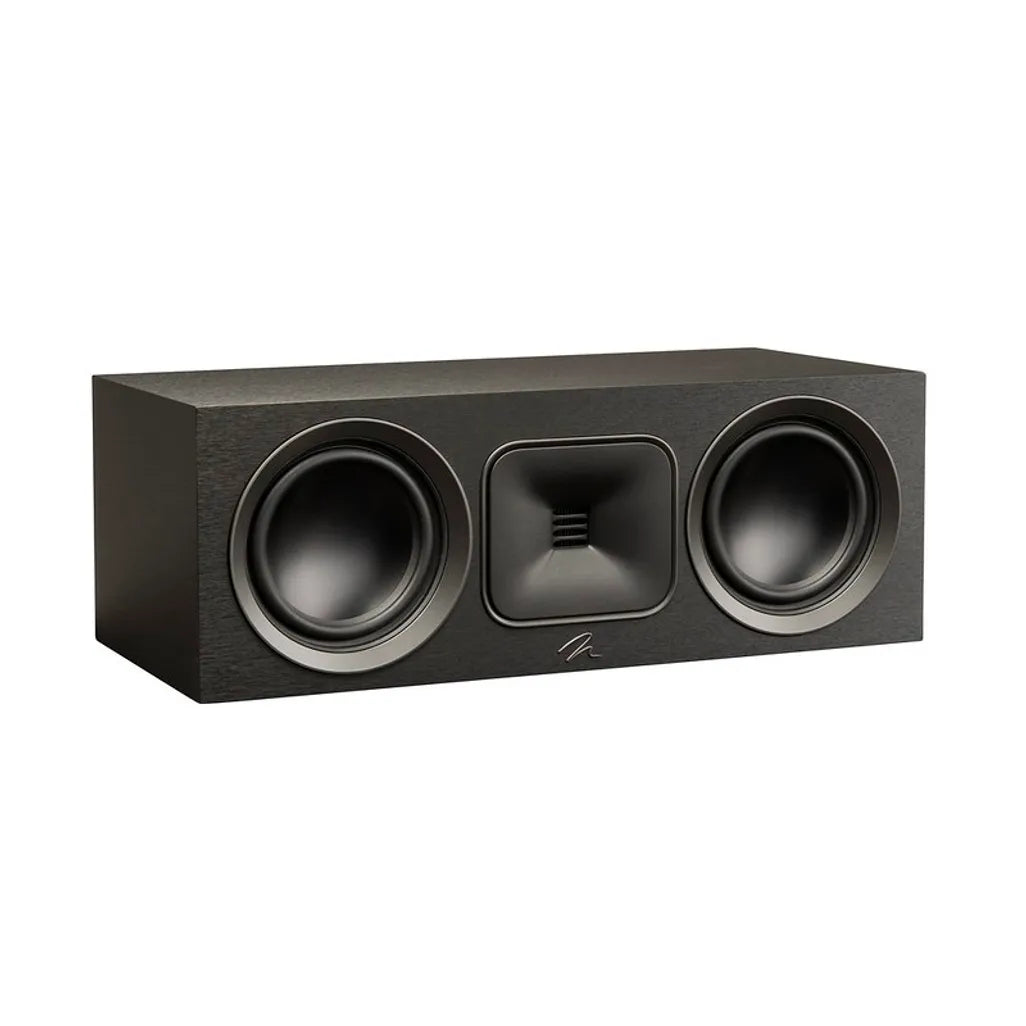

Two 5.5-inch aluminium drivers flank the Folded Motion tweeter in a 2.5-way arrangement. The crossover rolls the outer driver away earlier than the inner one, a useful approach for controlling horizontal interference without giving up the output of a dual-woofer centre.
Place the C1 as close to the screen as the furniture allows and aim its baffle toward seated ear height. Its rear ports need ventilation, so a fully closed cabinet is not the right home unless the joinery has been designed around the speaker.
For official details on M/Logan Foundation C1 (SatinWhite), view the MartinLogan Motion Foundation C1 product page.
| ITEM | DESCRIPTION |
| Screen-focused dialogue | The C1 fixes voices to the picture instead of asking the left and right speakers to create a phantom centre. |
| Two-and-a-half-way network | Staggered crossover points help the broad cabinet retain more even horizontal coverage. |
| Folded Motion clarity | The compact pleated tweeter keeps speech edges and soundtrack detail clean. |
| Matching Foundation voicing | Driver materials and waveguide geometry suit a cinema built around F1, F2, B1 or B2 models. |
| DETAIL | VALUE |
| Frequency response | 53 Hz to 23 kHz, +/-3 dB |
| Sensitivity | 91 dB at 2.83 V per metre |
| Nominal impedance | 4 ohms |
| Recommended amplifier power | 15 to 100 W |
| Crossover frequencies | 2.9 kHz and 3.2 kHz |
| High-frequency driver | Gen2 Obsidian Folded Motion S tweeter |
| Bass and mid drivers | 2 × 5.5 inch aluminium cones |
| Enclosure alignment | Rear-ported bass reflex |
| Dimensions | 20.3 × 61 × 36.8 cm |
| Weight | 18 lb, as listed by the manufacturer |
| Sold as | Single speaker |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
