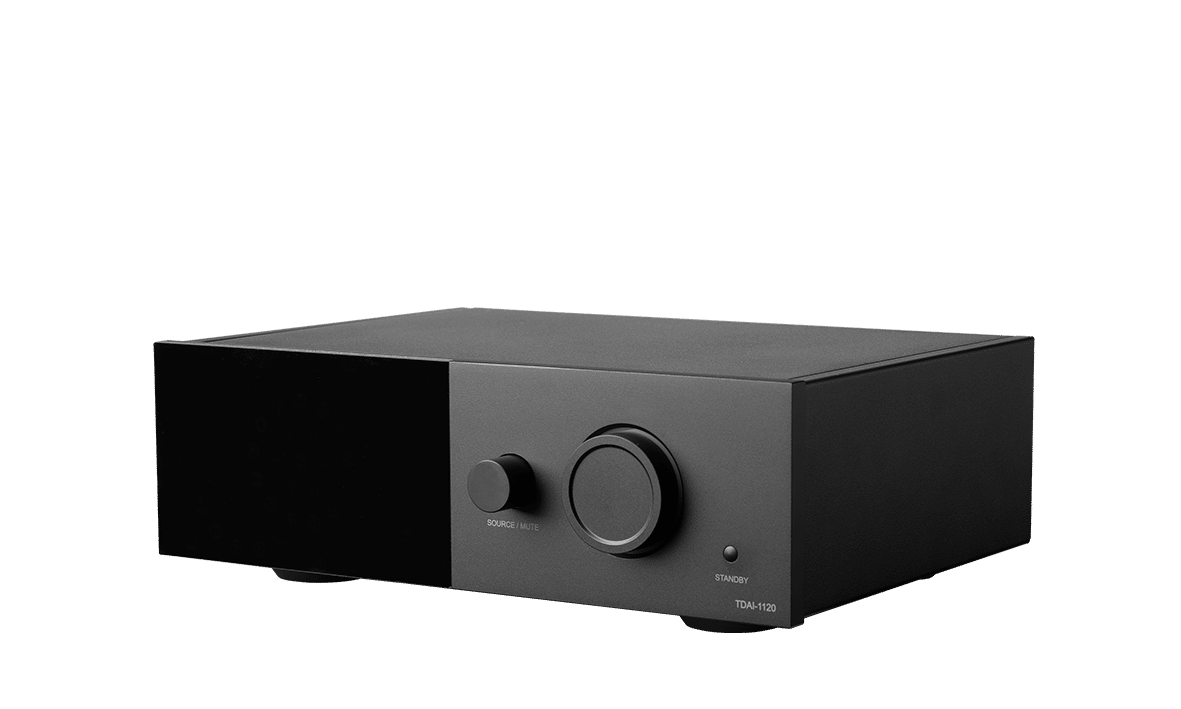

Lyngdorf TDAI-1120 Streaming Amplifier
The Lyngdorf TDAI-1120 combines a two-channel digital amplifier, network streamer and RoomPerfect room correction in a compact chassis.
It connects televisions through HDMI eARC, accepts digital, line and moving-magnet phono sources, and provides an analogue output for a subwoofer or secondary amplifier.
Run the supplied RoomPerfect microphone routine after the loudspeakers are positioned, then use the app, web interface or optional remote for daily listening.
For official product information and current support resources, visit the Lyngdorf TDAI-1120 product page.
| ITEM |
DESCRIPTION |
| Main Features |
| RoomPerfect included |
The supplied microphone measures the room and corrects speaker and subwoofer integration. |
| True digital amplification |
Digital sources remain in the digital domain through the amplifier stage. |
| Integrated streaming |
Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, Roon Ready and AirPlay 2 are supported. |
| Television connection |
HDMI eARC and CEC provide audio, lip-sync and compatible TV-remote control. |
| DETAIL |
VALUE |
| Product Specifications |
| Power output |
2 × 120 W RMS into 4 ohms; 2 × 60 W RMS into 8 ohms |
| Maximum output current |
30 A |
| Frequency response |
20 Hz to 20 kHz, ±0.5 dB |
| Digital inputs |
2 × coaxial, 2 × optical, 1 × HDMI eARC |
| Analogue inputs |
1 × MM phono RCA; 1 × line RCA; RoomPerfect microphone XLR |
| Analogue output |
Stereo RCA, 4 Vrms maximum |
| Network |
Wi-Fi 802.11n, Ethernet and USB-A |
| Maximum digital resolution |
24-bit/192 kHz |
| Dimensions (H × W × D) |
101 × 300 × 260 mm |
| Weight |
3.3 kg |
