| DETAIL |
VALUE |
| Product Specifications |
| Video support |
8K and |
| Frame or bezel |
It supports 40 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates, Variable refresh rate (VRR), Quick Frame Transport (or Fast Vactive), and auto low latency mode (ALLM) support and high dynamic range (HDR) metadata passthrough for HDMI dynamic HDR, HDR10+, and Dolby Vision™ |
| Inputs |
State-of-the-art HDMI processing With three HDMI inputs and two outputs, the MP-40 2.1 supports HDMI 2.1 including eARC, Dynamic Lip-Sync and QMS (Quick Media Switching) as well as the latest decoding and post-processing formats |
| Outputs |

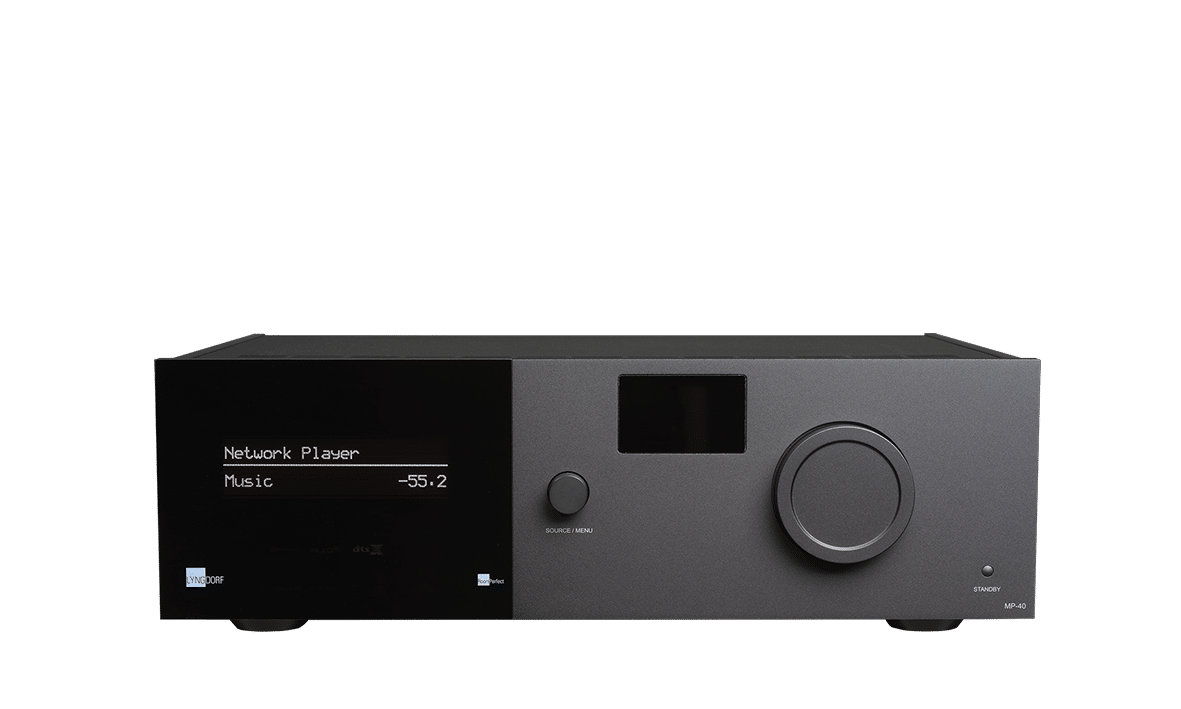

MP-40 2.1 The MP-40 2.1 multichannel processor from Lyngdorf Audio offers the same sonic qualities and performance of the flagship processor, the MP-60 2.1, in a streamlined design for smaller immersive or surround sound home cinemas where less decoding channels are required.The MP-40 2.1 features 12 native channel decoding and 16 balanced audio outputs and offers full support of the immersive surround formats DOLBY ATMOS®, DTS:X® and AURO-3D® as well as 8K and 3D video, HDCP 2.3, and advanced HDMI switching |
| Microphone system |
Specifications RoomPerfect™ microphone, Microphone stand, Microphone cable, RF remote control State-of-the-art HDMI processing |
| Decoding |
12 decoding/upmixing channels, Dolby Atmos®, DTS:X, AURO-3D®, all legacy codecs |
| Post processing options |
Dolby Surround, AURO-MATIC®, DTS Neural:X |
| Audio inputs |
3 x HDMI (1 x HDMI eARC) ≤192kHz/24bit, 1 x AES/EBU S/P-DIF input (≤192kHz/24bit), 3 x S/P-DIF coaxial inputs (≤192kHz/24bit), 4 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect |
| Audio outputs |
16 x XLR analog outputs (8 Vrms max.), 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit) |
| Audio specifications |
Frequency response: ±0,5dB from 20 to 20,000 Hz, Total harmonic distortion: 0.005% max from 20 to 20,000 Hz |
| EQ |
RoomPerfect™, Subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q |
| Media player |
Internet radio (vTuner, airable), AirPlay 2, Spotify Connect, Tidal Connect with Dolby Atmos Music, Roon Ready, DLNA Support of FAT32 based media storage (uPnP/ see DLNA formats ) |
| Video inputs |
3 x HDMI 2.1 (HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, 4k120 4:4:4 10-bit high frame rate video, variable refresh rate (VRR), fast vactive (FVA), and auto low latency mode (ALLM) support, accepts HDR, Dolby Vision™ and HLG |
| Video outputs |
2 x HDMI 2.1 (HDCP 2.3) |
| Control interfaces |
1 x DB9 RS232 connector, 2 x IR sensor inputs, 1 x IR output (loop from one of the sensor inputs), 1 x trigger input, 4 x trigger outputs, 1 x RJ45 ethernet LAN connector, 2 x USB A connectors, 1 x SD card slot, (Backup, storage for system software and settings) |
| Remote control |
Infrared/RF |
| Accessories included |
RoomPerfect™ microphone, Microphone stand, Microphone cable, RF remote control |
| Standby power consumption |
< 0.5W |
