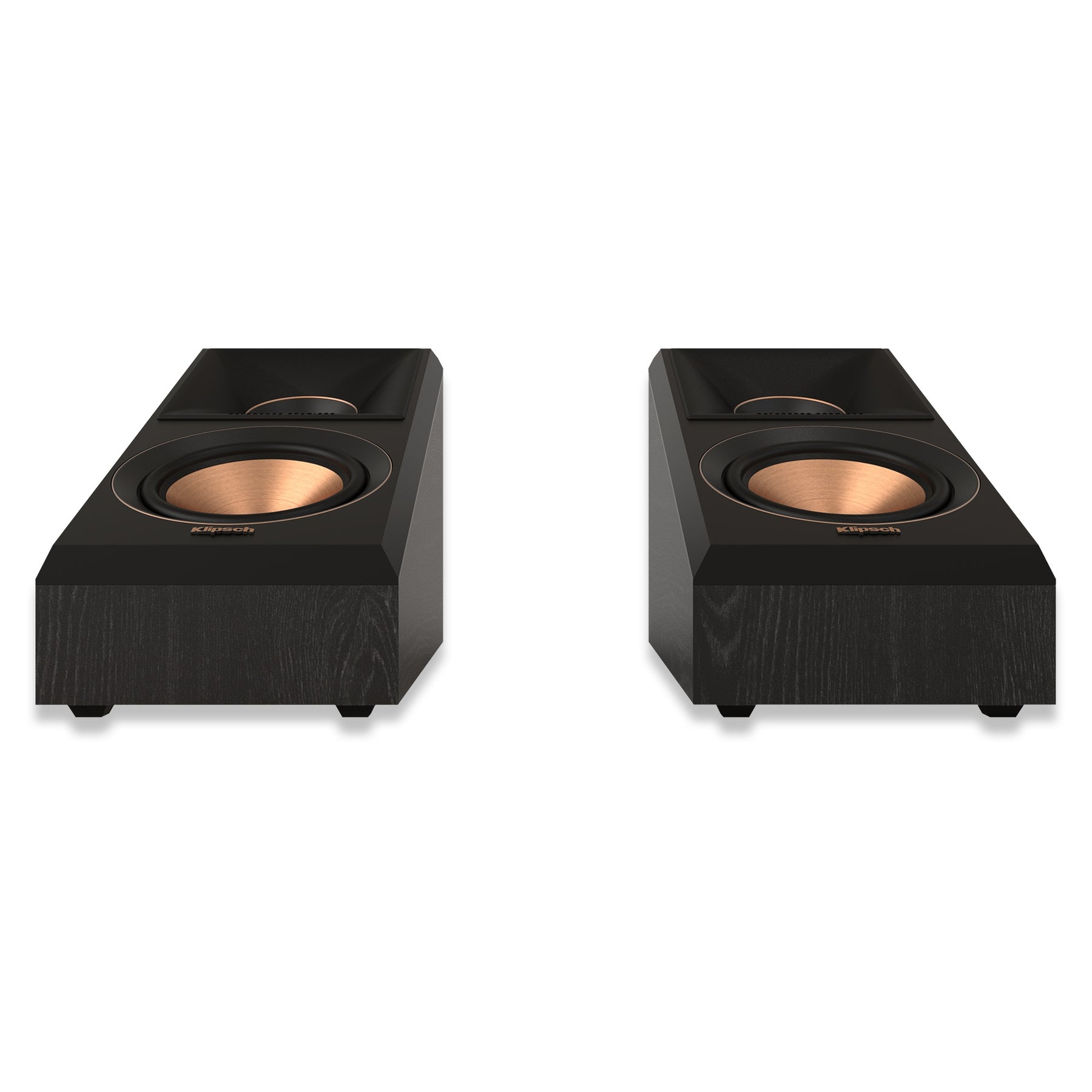

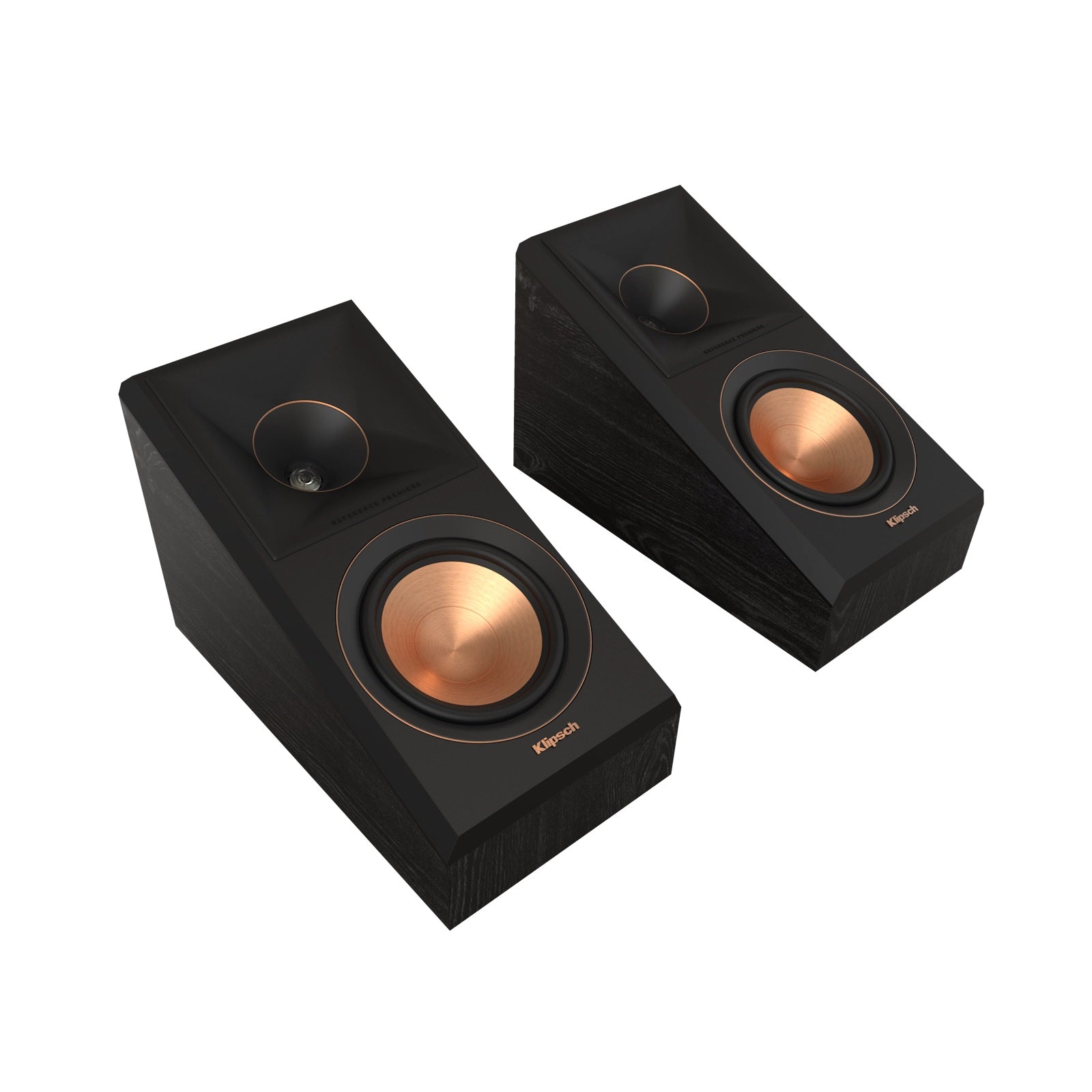

A convincing Dolby Atmos system depends on placing sound above and around the listener without losing the energy of the main speaker array. The Klipsch RP-500SA II handles that role with unusual versatility, operating as an up-firing Atmos module, a wall-mounted height channel or a rear surround speaker.
Klipsch pairs its titanium LTS vented tweeter with an expanded Tractrix® horn, giving effects the clarity and controlled direction needed to move cleanly through a dedicated cinema room. A Cerametallic™ woofer adds the speed and weight required for flyovers, weather effects and ambient detail to remain part of the soundtrack rather than sounding detached from it.
A switchable crossover changes the speaker between Dolby Atmos and Dolby Surround operation. Place the pair on compatible Reference Premiere floorstanding speakers for reflected overhead sound, or use the integrated keyhole mounts to create elevation or surround channels along the room’s walls.
Internally braced sealed cabinets, aluminium binding posts and removable magnetic grilles give the RP-500SA II the finish expected of the Reference Premiere range. This is a particularly polished route to a more enveloping cinema layout, with enough placement freedom to suit both carefully planned rooms and substantial system upgrades.
For official product information and current support resources, visit the Klipsch RP-500SA II product page.
| ITEM | DESCRIPTION |
| Main Features | |
| Three-Way Placement | Use the pair as up-firing Dolby Atmos modules, wall-mounted height channels or rear surround speakers. |
| Switchable Sound Modes | A rear-panel switch optimises operation for Dolby Atmos or conventional Dolby Surround placement. |
| Tractrix® Horn Technology | The expanded silicone-composite horn directs high-frequency effects towards the listening area with clarity and control. |
| Reference Premiere Drivers | A titanium LTS vented tweeter and Cerametallic™ woofer deliver detailed effects with low distortion and high efficiency. |
| On-Wall Installation | Integrated keyhole mounting supports neatly angled elevation and surround-channel installations. |
| Refined Cabinet Design | Internal bracing, scratch-resistant vinyl finishes and removable magnetic grilles suit a polished cinema installation. |
| DETAIL | VALUE |
| Acoustic Specifications | |
| High-Frequency Driver | 1-inch titanium LTS vented tweeter with Hybrid Cross-Section Expanded Tractrix® horn |
| Low-Frequency Driver | 5.25-inch Cerametallic™ cone woofer with Faraday rings |
| Power Handling | 75 W continuous / 300 W peak |
| Nominal Impedance | 8 ohms compatible |
| Frequency Response | Conforms to Dolby Atmos specifications |
| Sensitivity | Conforms to Dolby Atmos specifications |
| Crossover Frequency | Conforms to Dolby Atmos specifications |
| Cabinet & Installation | |
| Enclosure Type | Sealed |
| Enclosure Material | Internally braced MDF |

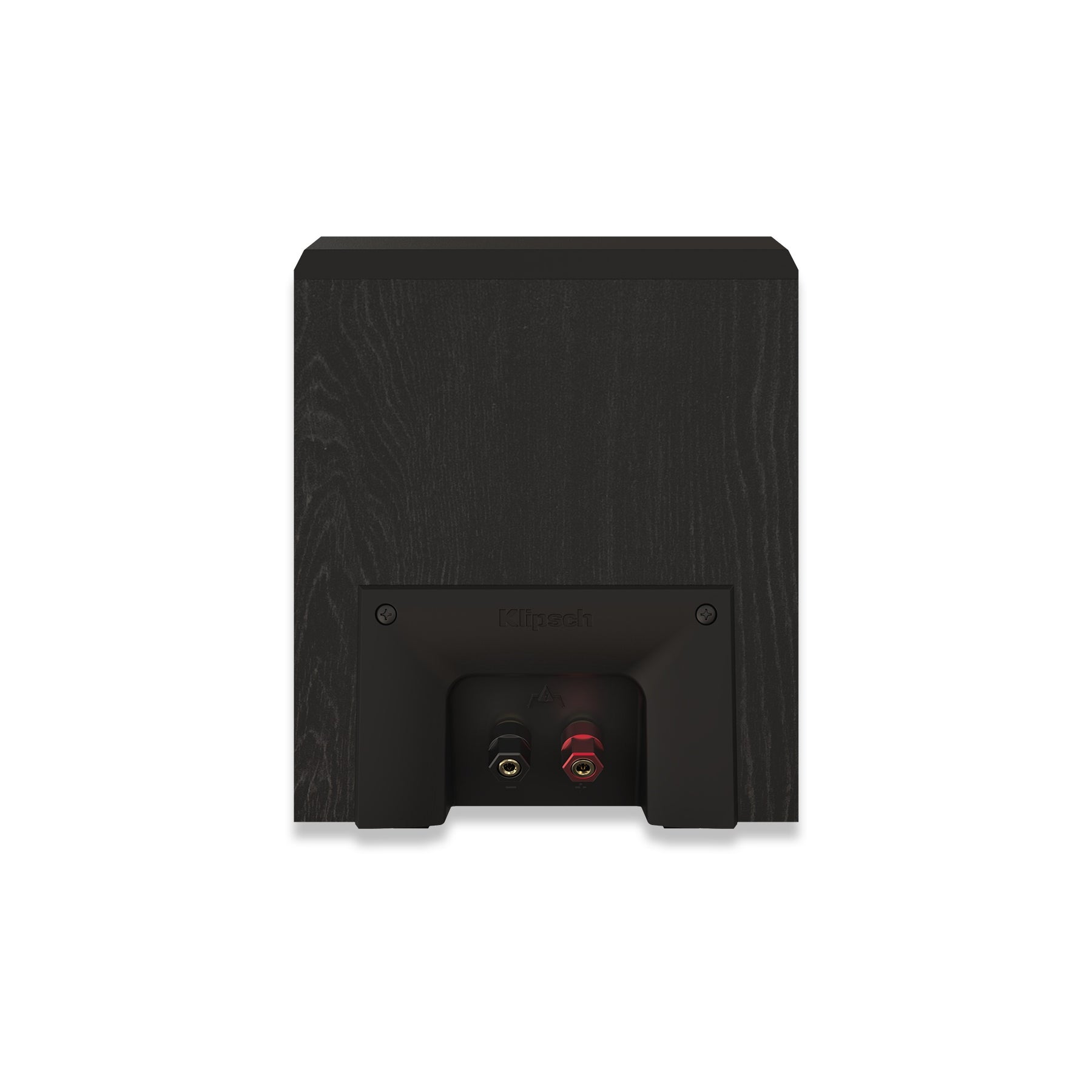

| Speaker Input | Single binding posts |
| Dimensions per Speaker | 21.7 × 17.3 × 32.0 cm (H × W × D) |
| Weight per Speaker | 4.35 kg |
| Available Finishes | Ebony or Walnut |
| Package Details | |
| Speakers Supplied | 2 × Klipsch RP-500SA II speakers |
| Included Accessories | 8 × rubber feet and 2 × Dolby Atmos jumpers for use with compatible Reference Premiere floorstanding speakers |
| Best Suited For | |
| Dolby Atmos home cinemas, wall-mounted height channels, rear surround positions and Reference Premiere system upgrades. | |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
