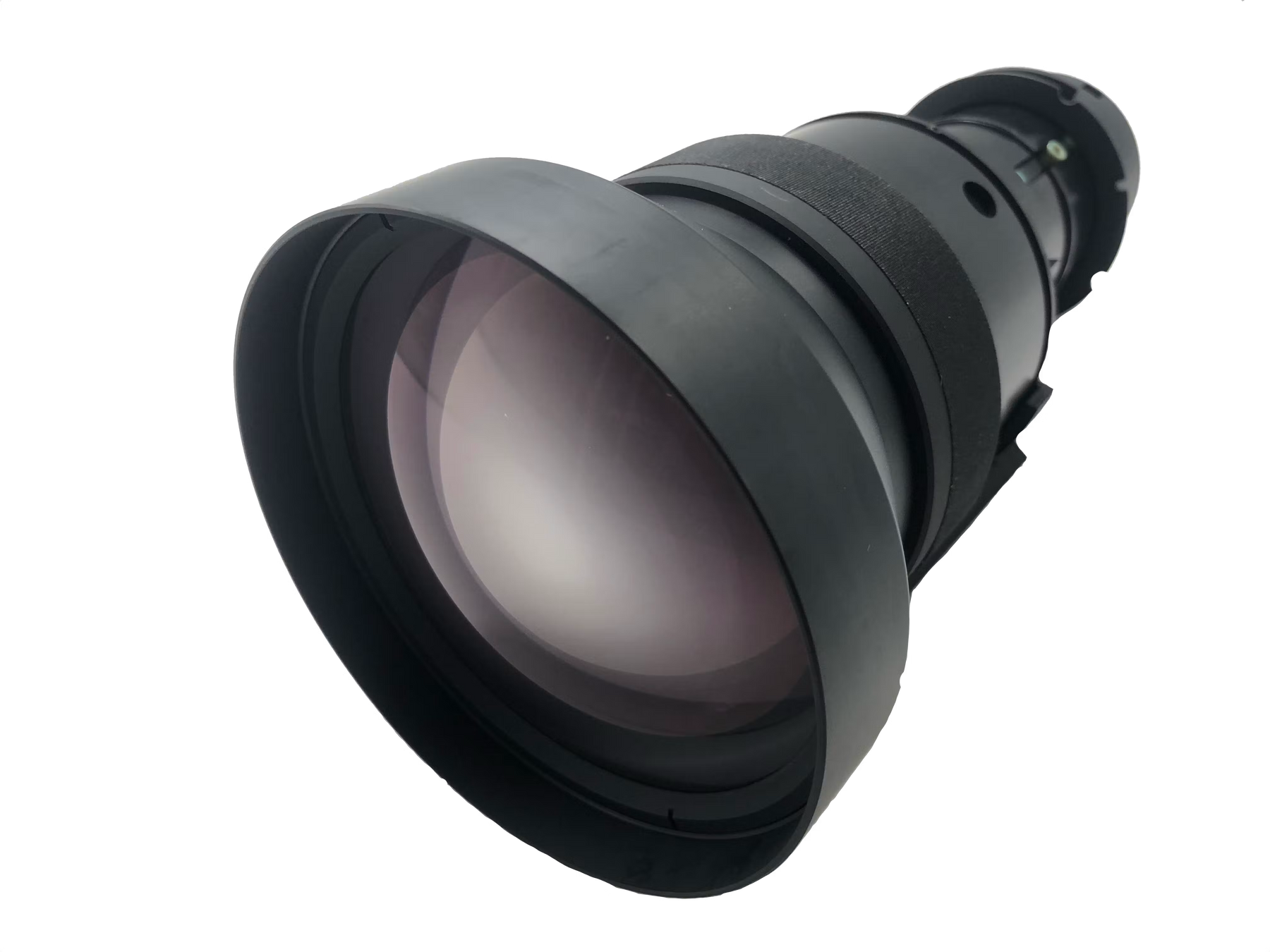

InFocus LENS-104 is an installation lens for matching an InFocus projector to the room's throw distance, screen position and image geometry.
For a boardroom, auditorium or large display space, InFocus LENS-104 gives the installer optical flexibility without compromising image geometry.
This is the lens for rooms designed around the image rather than forced around a fixed optic.
| ITEM | DESCRIPTION |
| Main Features | |
| Optical role | Matches projector placement to the required screen size and throw distance. |
| Projector compatibility | InFocus IN6009 keeps the optic tied to the correct chassis. |
| Motorised adjustment | Manual zoom/focus supports precise commissioning. |
| Installation planning | Built for fixed AV rooms where lens choice is resolved from measured geometry. |
| DETAIL | VALUE |
| Product Specifications | |
| Brand | InFocus |
| Model | LENS-104 |
| Accessory type | IN6009 optional lens |
| Compatible projector | InFocus IN6009 |
| Throw ratio | 2.1 ~ 4.2 |
| Zoom / focus | Manual zoom/focus |
| Zoom ratio | 2.0× |
| F-stop | 2.0 ~ 3.4 |
| Focal length | 21.5 ~ 44 mm |
| Lens shift | H ±9% / V 60% up, 10% down |
| Supported screen size | 80 ~ 300 in |
| Approximate weight | 1400 g |
| Best Suited For | |
| Fixed projection installations, boardrooms, auditoriums and venues requiring model-specific throw geometry. | |
Have a question about this product or want help matching it to your space? Send the item through and our team will respond with the right advice.
